4110 ‘Extreme’ Box Newel

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 20 Business Days
Order Samples Before You Buy

Product Description

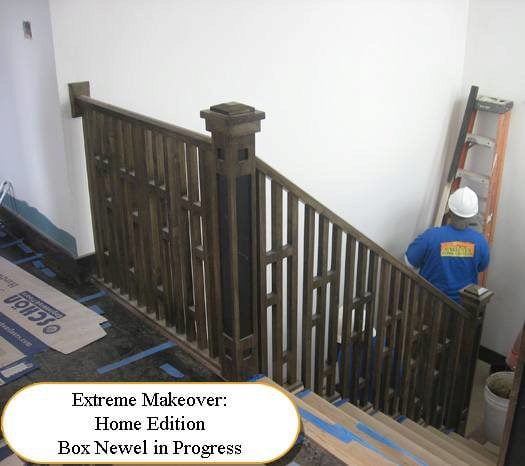

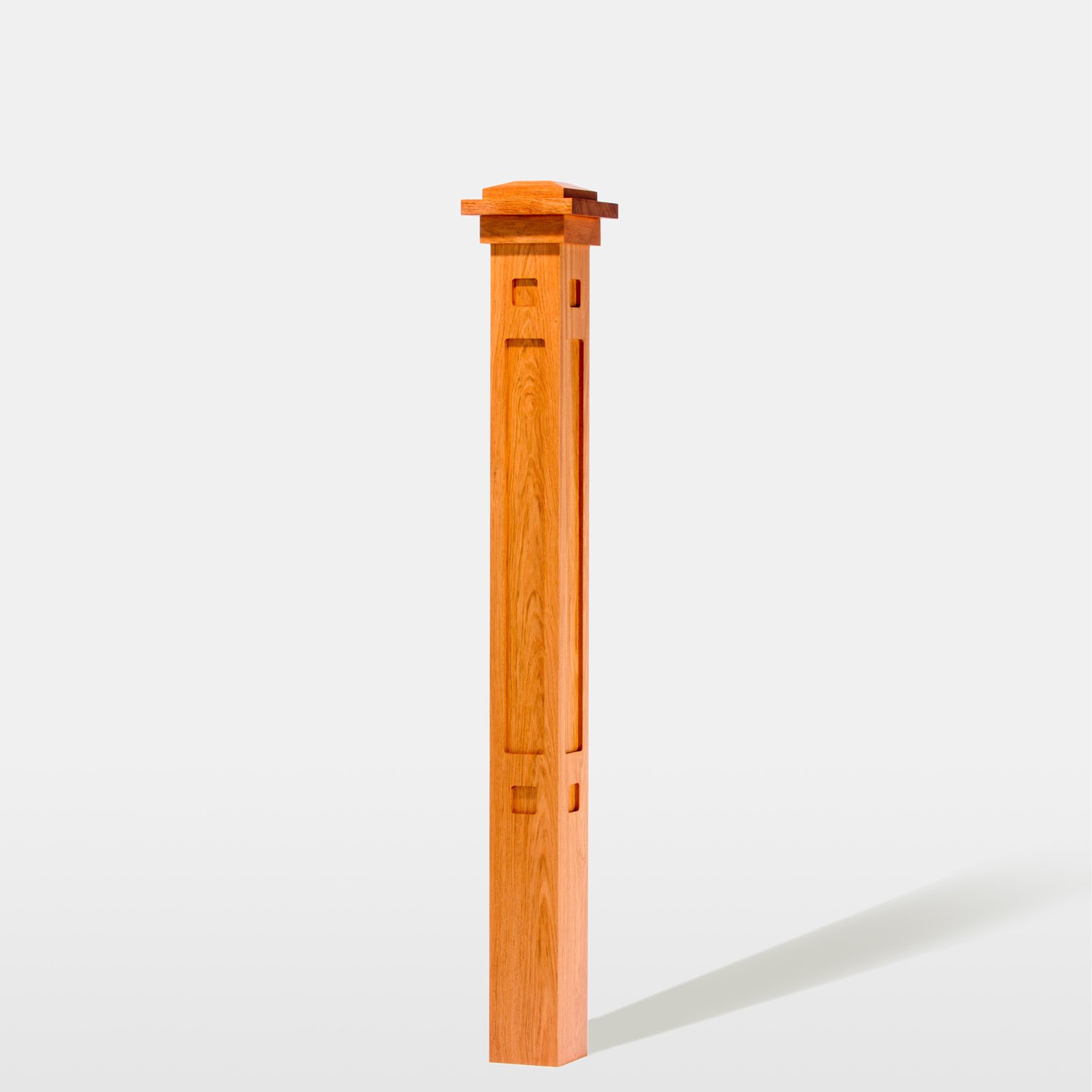

Enjoy a piece of “Extreme Makeover: Home Edition” in your own home with our 4110 ‘Extreme’ Box Newel. This box newel was specifically designed for one of the TV show’s home renovations, and offers several special features. At 4 ¾” square and 54” tall, this newel is precisely crafted to ensure clean lines and strong construction. The detailing of the two recessed squares and large recessed panel give the ‘Extreme’ Box Newel a high-end, craftsman-style presence. And when the material quality is as amazing as the craftsmanship, you can’t go wrong! Choose from a selection of our fine wood species and stains to complete your newel design.

To achieve the entire look from the “Extreme Home Makeover” project, consider pairing your ‘Extreme’ Box Newel with the ‘3109 Extreme’ Wood Balusters and 6100 ‘Extreme’ Handrail.

Key Features

  • Craftsman Style
  • Recessed Details
  • Stain-Grade
  • Easy Install

Mounting System

To install your 4110 ‘Extreme’ Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The ‘Extreme’ Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that box newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4110 ‘Extreme’ Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

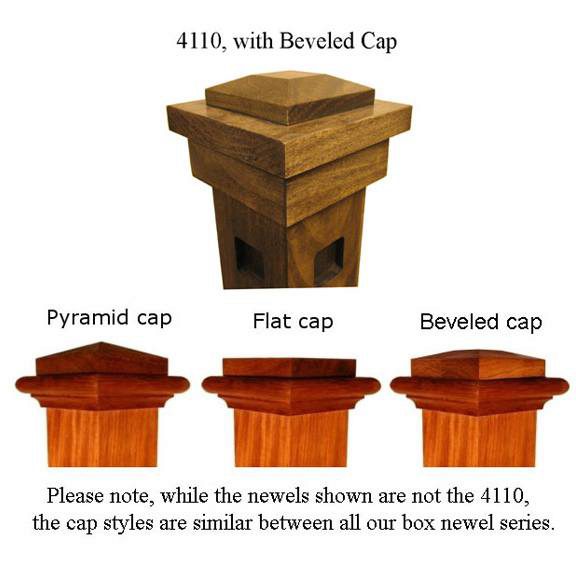

Cap Attachment

The cap for this box newel is sent unattached to the newel body, allowing easy access for mounting handrail. Then, after handrails are attached, the cap can be secured on-site by applying a bit of wood glue and finishing nails for increased strength.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Box Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

Product Dimensions

  • Overall: 4 ¾” x 4 ¾” x 54”
  • Bottom Opening: 3 1/4″ x 3 1/4″

Composition

  • Hollow Construction
  • No Visible End Grain

Clear Finish & Stain Information

StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For the Box Newels we offer both clear finishes and stains. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Box Newels.

All of our stained and clear-finished Box Newels will be coated with Pre-Catalyzed Lacquer. Using the same quality product that cabinet makers require, this lacquer is designed to resist the natural oils from hands. We use this lacquer on all of our products that will be consistently touched, such as handrails, balusters, and newels. This layer of protection will keep your Box Newels looking smooth and stain free for years to come.

Wood Grain & Color Variation

At StairSupplies™ we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSupplies™, you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.

Interior Use Only

This product may contain glue joints and is designed for interior use only.

Installation Guide

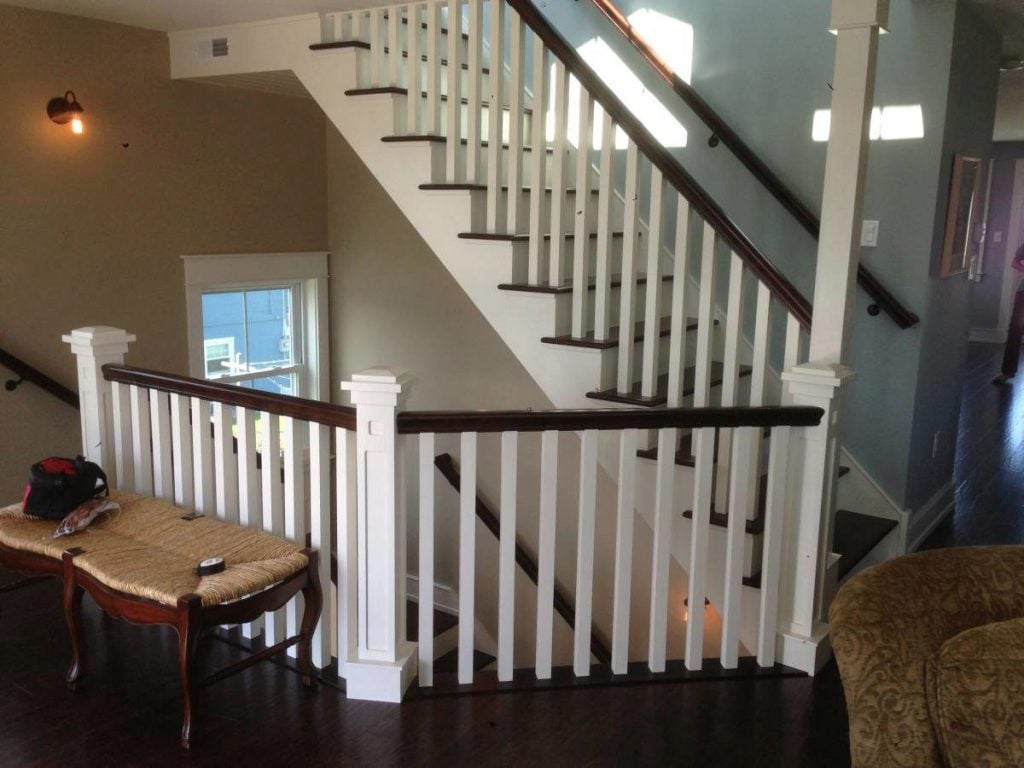

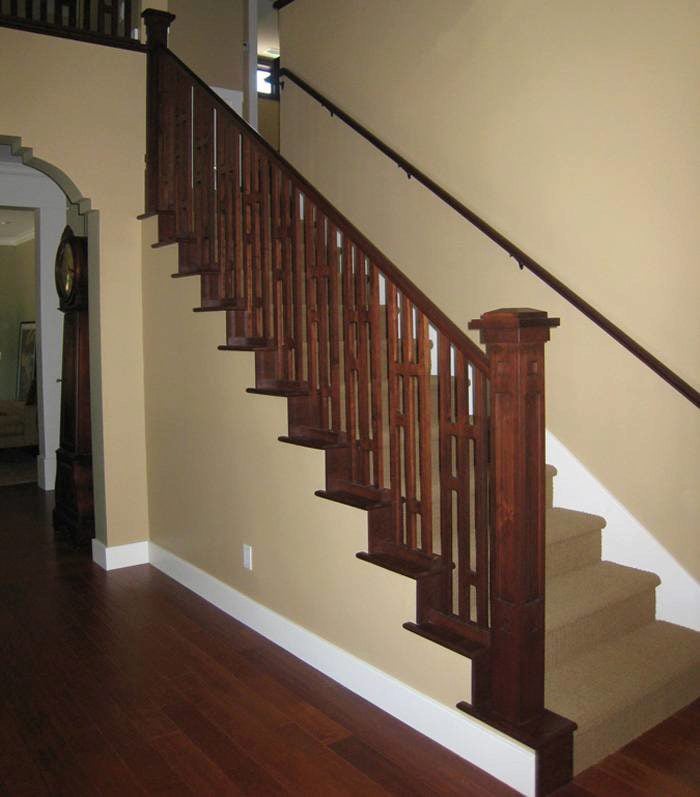

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A

    Guest
    Jason
    7 years 8 months ago

    Hello, are these boxed newel available in other sizes?

    Guest
    Stair Supplies
    7 years 8 months ago

    Thank you for your question, Jason. In order to best answer this question, we would need to receive the specifics of your request. Would you be willing to contact us directly by email at [email protected]?

    Guest
    Chris Thorndike
    5 years 5 months ago

    How far up from the bottom is the first recess?

    Guest
    StairSupplies
    5 years 5 months ago

    Chris,

    Thanks for the question. I just measured one here in the office and it was about 16 inches from the bottom to the first recess.

    If you have more questions, you can call a member of our team at (866) 226 6536 to get you all the information you need.

    Best,

    StairSupplies Customer Support

    Guest
    Todd Bronk
    5 years 5 months ago

    Can you order the caps in wood (red oak) and order primed post?

    Guest
    StairSupplies
    5 years 5 months ago

    Thanks for the question, Todd.

    For that kind of a custom order, you would want to call (866) 226 6536 and talk to one of our salespeople in person; they should be able to help you get exactly what you want.

    Best,

    StairSupplies Customer Support

    Guest
    Ted Kakuris
    4 years 6 months ago

    Can Box Newels be slipped over 4×4 posts?

    Guest
    StairSupplies
    4 years 5 months ago

    Hi Ted,

    Unfortunately, due to the wall thickness, this would not work. If you are looking for mounting solutions. We sell Box Newel Mounting Kits.

    Thanks,
    StairSupplies Customer Support
