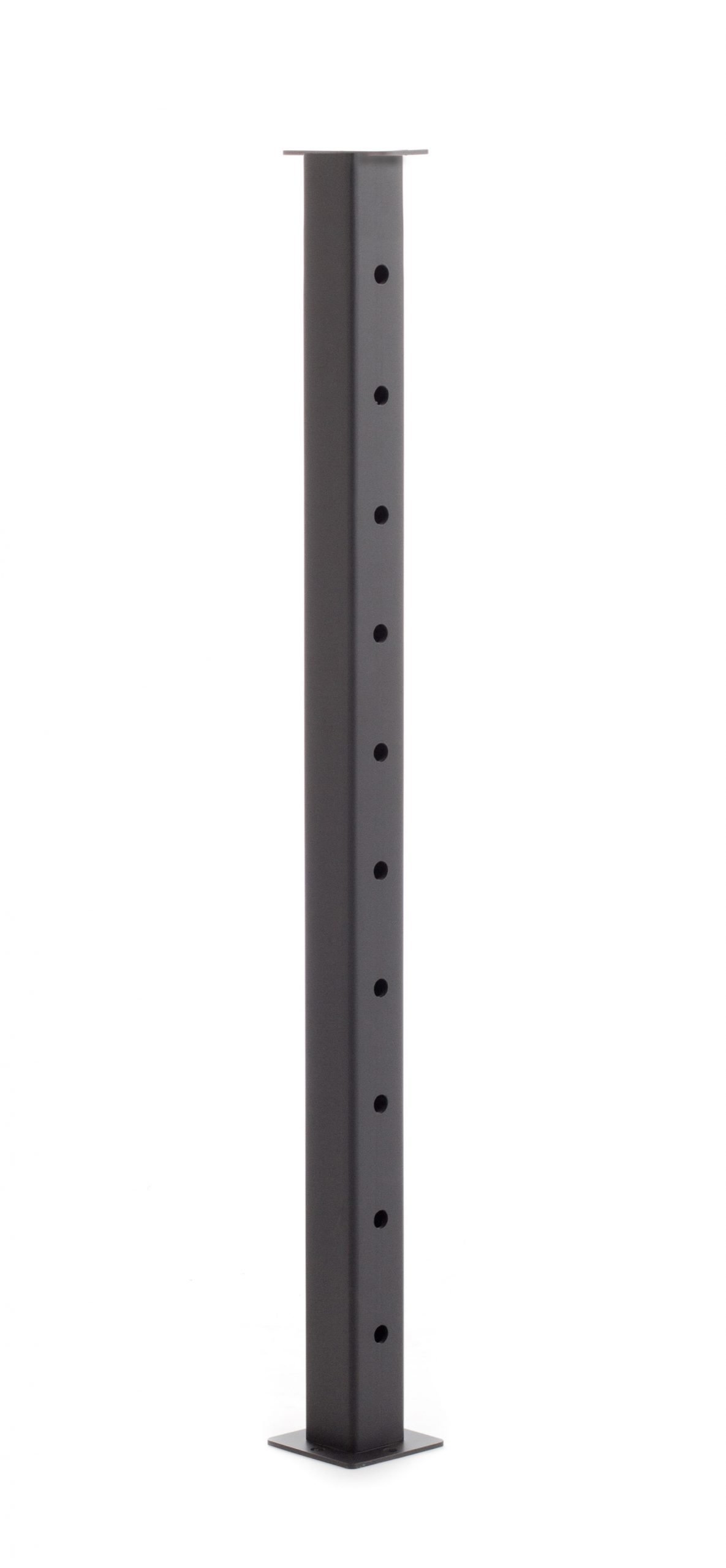

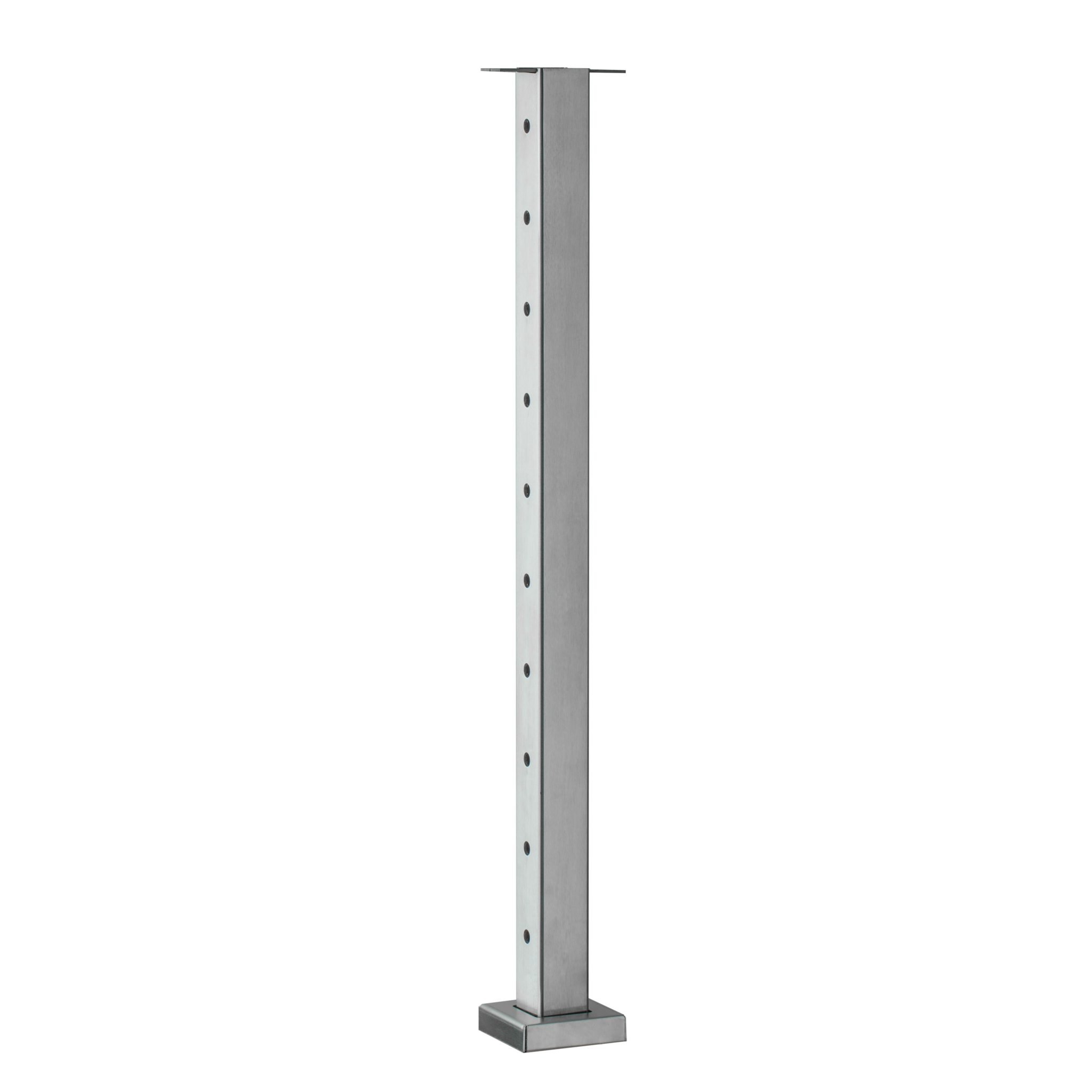

Surface Mount Flat Top Post

Surface Mount Flat Top 2″ Square Post

Clear
Ships in approx. 12 Days

Details of each “Post Configuration” can be found in the description below.

Product Description


Surface Mount Flat Top posts provide the foundation for a cable railing system.

Our cable railing posts are available in multiple material types (304 Stainless Steel, 316 Stainless Steel & Aluminum), and in multiple finishes (Brushed, Powder Coated Black, White, Pewter & Copper Vein). All holes are drilled with 3.125″ spacing, and we recommend putting a post at least every 4 feet to reduce deflection and ensure that you meet code. Guide to getting started with Viewrail.

Post-Layout-Guide

Layout example shows flat top posts, in conjunction with Universal Top posts on the staircase.

Post Configuration Details:

"A" Cable Railing Post

“A” – The “A” post is designed to be a start or end post on level runs. It has level 1/2″ holes drilled on both sides of the post. Recommended fittings: “Level Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits).

"A-2" Cable Railing Post

“A-2” – The “A-2″ post is designed to be an intermediate post on level runs. It has level 1/2” holes drilled on both sides of the post. Recommended fittings: “Steel Insert Sleeves” (36″ – 20, 39″ – 22, 42″ – 24).

"A-5" Cable Railing Post

“A-5” – The “A-5″ post is designed to be an intermediate post on level runs. It has level 5/16” holes drilled on both sides of the post. The cable will simply pass directly through the post, no additional fittings are required.C Post Left & Right Surface Mount

“C” – The “C” post is designed to be a level corner post where one run of cable ends, and another begins (going left or right depending on your selection). It has level 1/2″ holes drilled on both sides of the post, and a set of KeyMount holes turning left or right. Recommended fittings: “Level Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits) & “KeyMount Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits).

"D" Cable Railing Post

“D” – The “D” post is designed to turn a corner from an angled staircase to a level balcony turning left or right. It has 1/2″ offset* holes drilled on opposite sides of the post, and 1/2″ level holes drilled on the other two faces. Recommended fittings: “Angle Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits) & “Level Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits).

"F" Cable Railing Post

“F” – The “F” post is designed to be a start post on level runs. One side of the post has level KeyMount holes drilled into it, the other three sides of the post are completely clean (pick this post for an extra clean look). Recommended fittings: “KeyMount Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits).

"H" Cable Railing Post

“H” – The “H” post is designed to transition from 36″ tall stair section to a 39″ or 42″ level balcony section. It has 10, 5/16″ offset* holes drilled on opposite sides of the posts, in addition it has one (39″) or two (42″) KeyMount holes drilled at the top of the high side of the post. Recommended fittings: “Adhesive Sleeve” (20 sleeves) & “KeyMount Kits” (39″ – 1 kit, 42″ – 2 kits). Additional hardware: The Postside Handrail Bracket will make transitioning this handrail much easier.

"I" Cable Railing Post

“I” – The “I” post is designed to turn a corner from an angled staircase and change heights to a level balcony turning left or right. It has 10, 1/2″ offset* holes drilled on opposite sides of the post, and 11 (39″) or 12 (42″), 1/2″ level holes drilled on the other two faces. Recommended fittings: “Angle Tension Kits” (36″ – 10 kits) & “Level Tension Kits” (39″ – 11 kits, 42″ – 12 kits). Additional hardware: The Postside Handrail Bracket will make transitioning this handrail much easier.

"R" Cable Railing Post

“R” – The “R” post is designed to be a start post on level runs that can mount directly to a wall. One side of the post has level KeyMount holes drilled into it, the opposite side has 1/8″ holes that allow you to use our 2″ trim screws to fasten the post to the wall. Recommended fittings: “KeyMount Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits) & 2″ Trim Screws (15).

"S" Cable Railing Post

“S” – The “S” post is shipped without any holes pre-drilled in the post itself (handrail bracket and foot still come pre-drilled). Select this post if you have an application where cables are necessary but you still want to run handrail, or in a custom application and you want to drill the holes yourself.

* All offset holes are drilled at 40 degrees (the typical angle of a staircase), these 40 degree holes work with angles between 36 – 42 degrees. If you staircase falls outside those angles custom hole drilling can be requested at no additional charge.

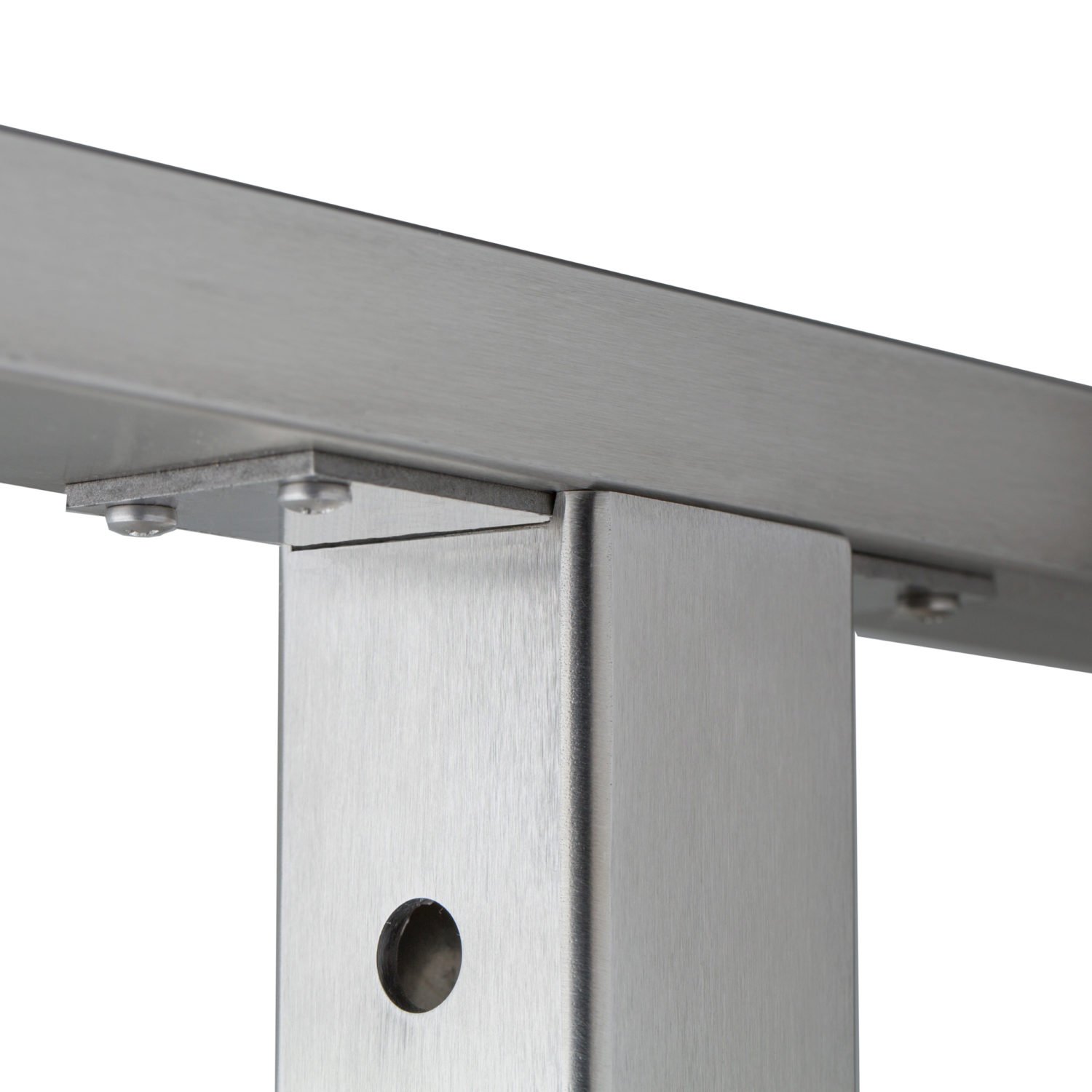

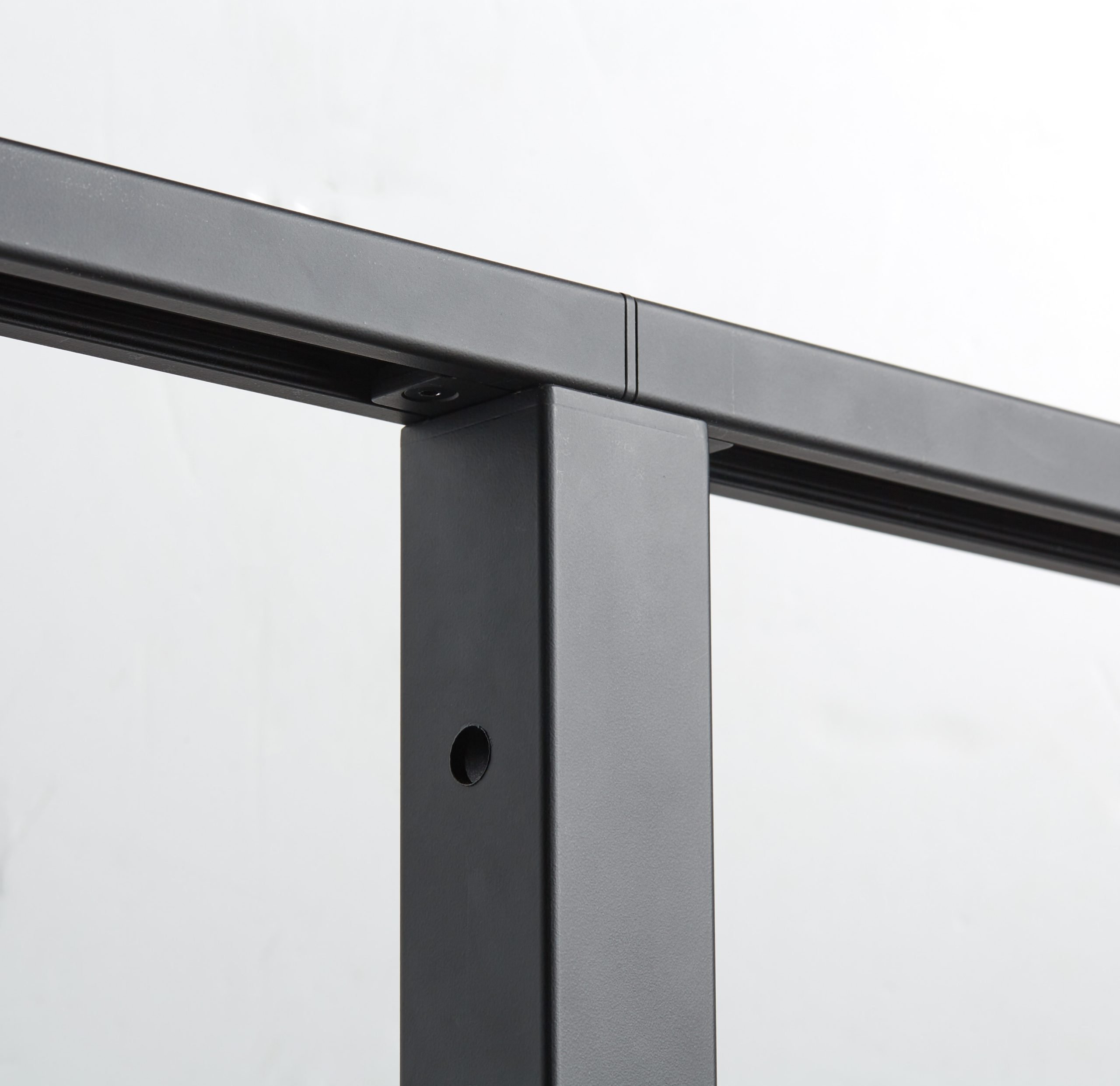

Posts are manufactured 1″ shorter than their defined height. This will allow you to be at the exact height with our 1″ tall metal handrail, or slightly over with our 1 5/8″ tall 6000 series handrail.

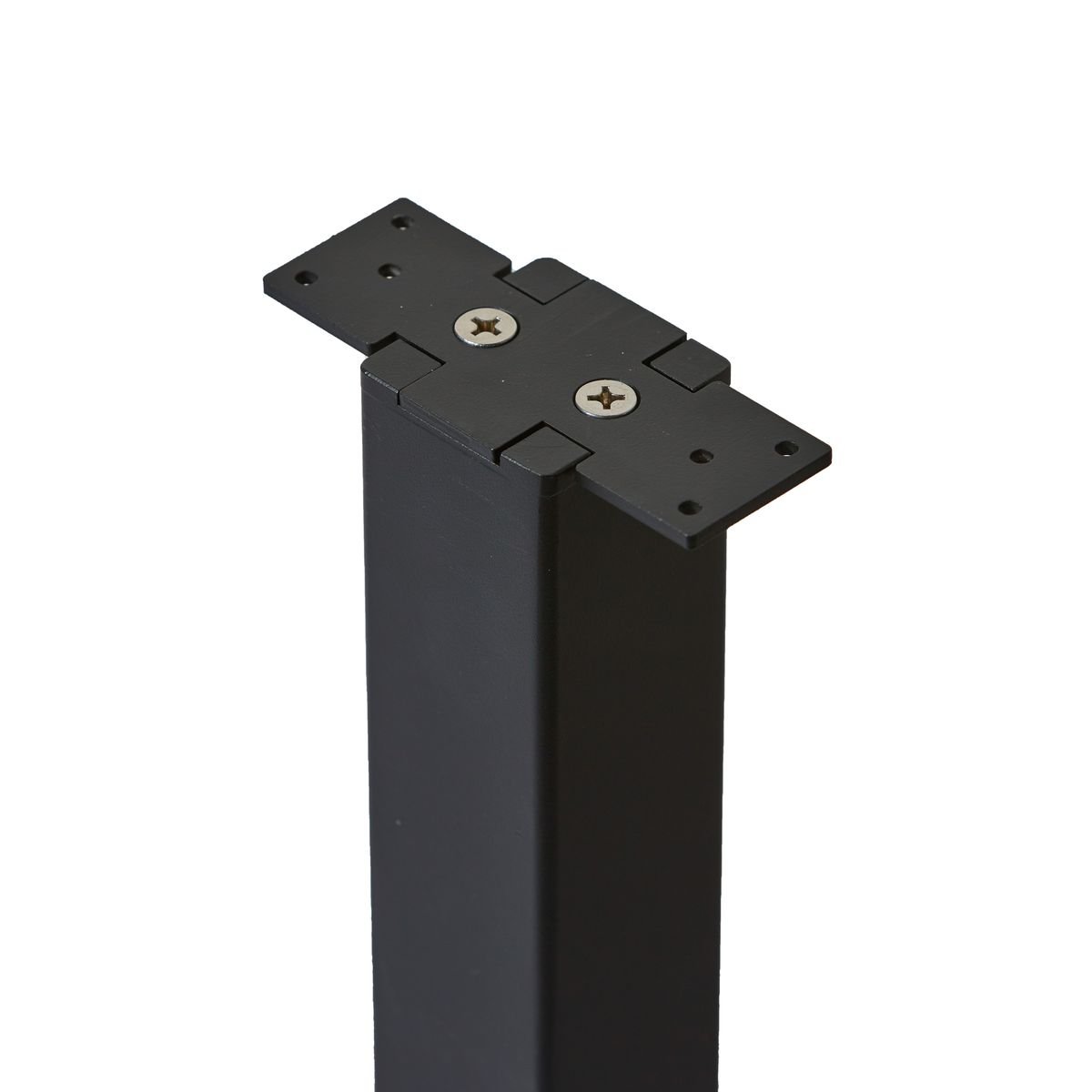

Mounting feet come with 4 holes (6 holes on “B” posts) for 3/8″ fasteners. The handrail bracket also comes with 6 pre-drilled holes to secure the handrail.

If you live in coastal region (within 50 miles of salt water) you want to select 316 stainless steel. If you are within 2 miles of the ocean you also want to add our clear coat protective finish on top of the 316.

The stainless steel posts are a hand polished stainless steel.  The finish is created by with an American worker and polishing wheel working with the steel products. The finish is polished to a bright finish with enough polishing lines to give character to the light as it reflects off. Here is what our customer’s say, “High quality” … “Beautiful Finish” … “Very Durable.” Posts are pre-drilled with 3.125″ spacing to accommodate our cable railing system. Custom hole drilling can be requested. Mounting feet with 4 holes are provided for 3/8″ fasteners. They can be fastened to concrete or wood with the 4 mounting holes provided at the bottom of the mounting feet.   Since there is a such a wide scope of fastening situations, fasteners are not provided.  Angle posts have holes drilled at a 40 degree angle which will accommodate most stairways from 37 degrees to 42 degrees. They can be ordered as 3-way and 4 way with holes on 3 sides or 4 side of the post to allow for creating right angles from posts.

Product Specifications

Surface Mount Post Attachment Guide

Reviews

There are no reviews yet.

Be the first to review “Surface Mount Flat Top 2″ Square Post”

Installation Guide

Metal Post Installation Guide Thumbnail

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A


    Guest
    Susan B
    8 months 13 days ago

    Is this price for one post?

    Support
    8 months 12 days ago

    Susan, Thank you for your question. Yes, this is the price for one post. We would welcome the chance to work with you on your specific project. Feel free to email us directly at orders@stairsupplies.com to discuss your project with us.

    Guest
    Robert
    7 months 6 days ago

    How impervious is the clear coated aluminum to seasonal changes outdoors, in semi-coastal areas? Does it need to be re-coated with clear coat from time to time?

    Support
    7 months 6 days ago

    Hi Robert,
    It’s very difficult to know for sure how the product will perform in your specific location. We’ve been selling this specific finish option for a little over a year, and haven’t heard of any problems. Assuming the finish isn’t damaged during installation then it shouldn’t need much maintenance for several years.
    Please let us know if you have more questions.

    Guest
    Denny Buckland
    3 days 8 hours ago

    concerning the color selections, which is a brighter white, apollo or bone white? do you have a matching spray paint available?

    Support
    3 days 8 hours ago

    Hi Denny,

    Apollo White is a brighter white than Bone White. You can check out this Post Materials and Finishes Page for a side-by-side comparison of our powder coat colors. We have touch-up kits available for powder coats that can cover scratches or small sections that need paint. Please let us know if you have any additional questions!
