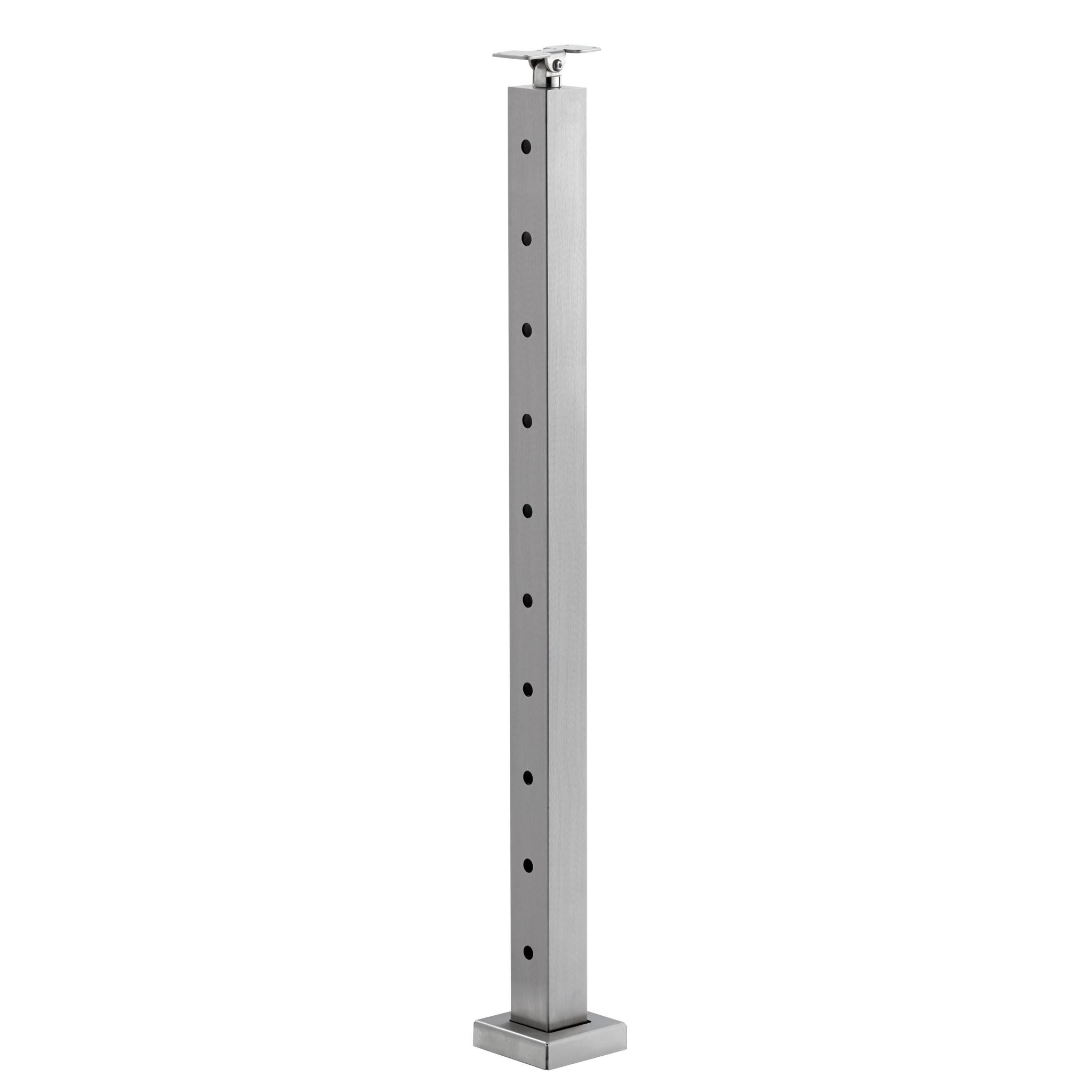

Surface Mount Universal Top 2″ Square Posts provide the foundation for a cable railing system.
Our cable railing posts are available in multiple material types (304 Stainless Steel, 316 Stainless Steel & Aluminum), and in multiple finishes (Brushed, Powder Coated Black, White, Pewter & Copper Vein). All holes are drilled with 3.125″ spacing, and we recommend putting a post at least every 4 feet to reduce deflection and ensure that you meet code. Guide to getting started with Viewrail.
Post Configuration Details:
“A” – The “A” post is designed to be a start or end post on level runs. It has level 1/2″ holes drilled on both sides of the post. Recommended fittings: “Level Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits).
“A-2” – The “A-2″ post is designed to be an intermediate post on level runs. It has level 1/2” holes drilled on both sides of the post. Recommended fittings: “Steel Insert Sleeves” (36″ – 20, 39″ – 22, 42″ – 24).
“A-5” – The “A-5″ post is designed to be an intermediate post on level runs. It has level 5/16” holes drilled on both sides of the post. The cable will simply pass directly through the post, no additional fittings are required.
“B” – The “B” (Up or Down) post is designed to be a start or end post on angled stair runs. It has 1/2″ offset* holes drilled on both sides of the post. Recommended fittings: “Angle Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits). The “Up” or “Down” options refer to the direction the cable will be travelling when it exits the post.
“B-5” – The “B-5″ post is designed to be an intermediate post on angled stair runs. It has 5/16” offset* holes drilled on both sides of the post. Recommended fittings: “Adhesive Sleeves” (36″ – 20, 39″ – 22, 42″ – 24)
“C” – The “C” post is designed to be a level corner post where one run of cable ends, and another begins (going left or right depending on your selection). It has level 1/2″ holes drilled on both sides of the post, and a set of KeyMount holes turning left or right. Recommended fittings: “Level Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits) & “KeyMount Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits).
“D” – The “D” post is designed to turn a corner from an angled staircase to a level balcony turning left or right. It has 1/2″ offset* holes drilled on opposite sides of the post, and 1/2″ level holes drilled on the other two faces. Recommended fittings: “Angle Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits) & “Level Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits).
“F” – The “F” post is designed to be a start post on level runs. One side of the post has level KeyMount holes drilled into it, the other three sides of the post are completely clean (pick this post for an extra clean look). Recommended fittings: “KeyMount Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits).
“H” – The “H” post is designed to transition from 36″ tall stair section to a 39″ or 42″ level balcony section. It has 10, 5/16″ offset* holes drilled on opposite sides of the posts, in addition it has one (39″) or two (42″) KeyMount holes drilled at the top of the high side of the post. Recommended fittings: “Adhesive Sleeve” (20 sleeves) & “KeyMount Kits” (39″ – 1 kit, 42″ – 2 kits). Additional hardware: The Postside Handrail Bracket will make transitioning this handrail much easier.
“I” – The “I” post is designed to turn a corner from an angled staircase and change heights to a level balcony turning left or right. It has 10, 1/2″ offset* holes drilled on opposite sides of the post, and 11 (39″) or 12 (42″), 1/2″ level holes drilled on the other two faces. Recommended fittings: “Angle Tension Kits” (36″ – 10 kits) & “Level Tension Kits” (39″ – 11 kits, 42″ – 12 kits). Additional hardware: The Postside Handrail Bracket will make transitioning this handrail much easier.
“J” – The “J” (up or down) post is designed to be a start post on angle stair runs. One side of the post has KeyMount holes drilled into it, the other three sides of the post are completely clean (pick this post for an extra clean look). Recommended fittings: “KeyMount Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits).
“R” – The “R” post is designed to be a start post on level runs that can mount directly to a wall. One side of the post has level KeyMount holes drilled into it, the opposite side has 1/8″ holes that allow you to use our 2″ trim screws to fasten the post to the wall. Recommended fittings: “KeyMount Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits) & 2″ Trim Screws (15).
“S” – The “S” post is shipped without any holes pre-drilled in the post itself (handrail bracket and foot still come pre-drilled). Select this post if you have an application where cables are necessary but you still want to run handrail, or in a custom application and you want to drill the holes yourself.
* All offset holes are drilled at 40 degrees (the typical angle of a staircase), these 40 degree holes work with angles between 36 – 42 degrees. If you staircase falls outside those angles custom hole drilling can be requested at no additional charge.
Posts are manufactured 1″ shorter than their defined height. This will allow you to be at the exact height with our 1″ tall metal handrail, or slightly over with our 1 5/8″ tall 6000 series handrail.

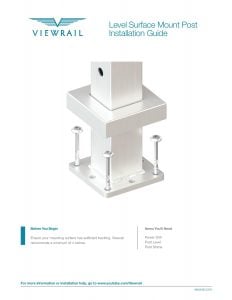

Mounting feet come with 4 holes (6 holes on “B” posts) for 3/8″ fasteners. The handrail bracket also comes with 6 pre-drilled holes to secure the handrail.

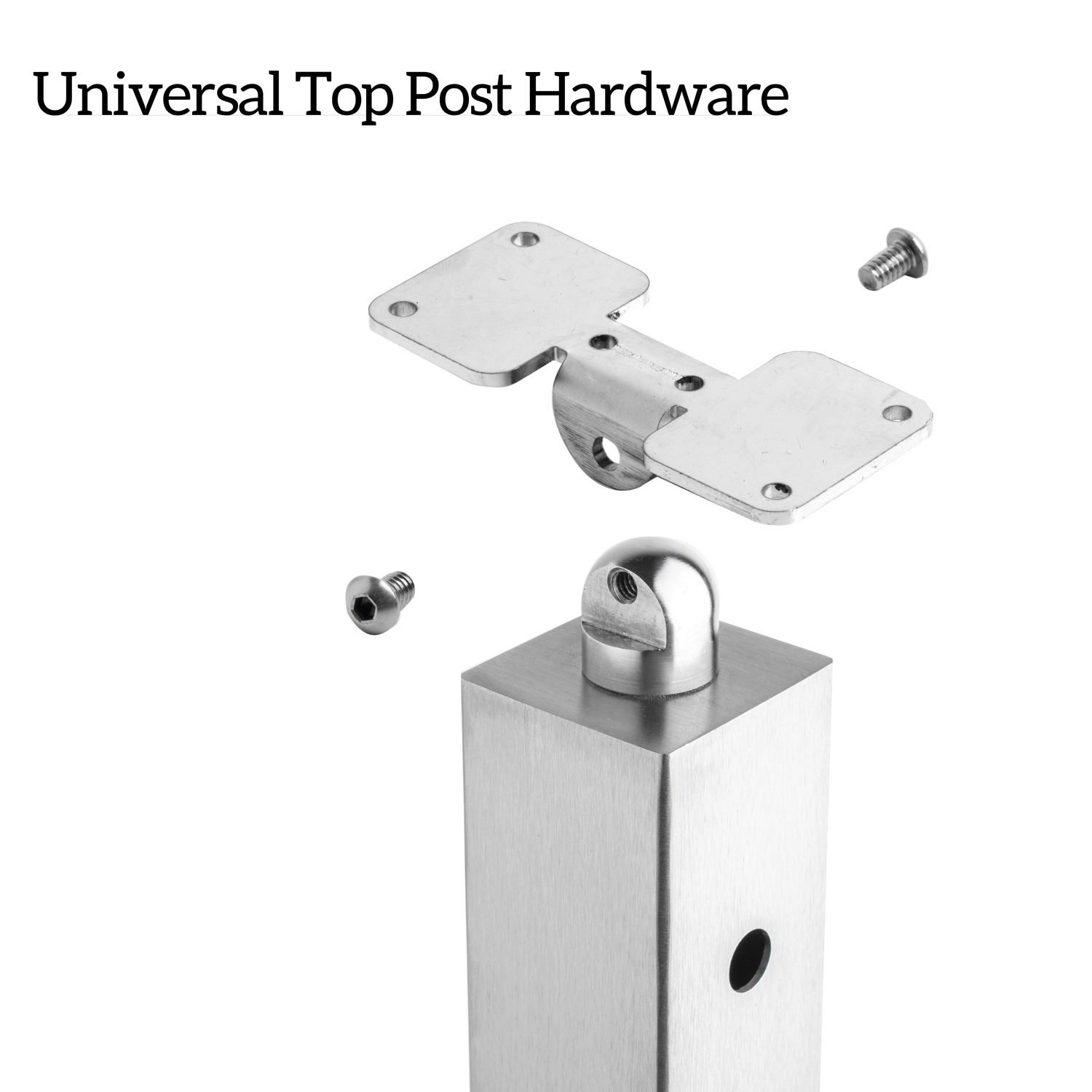

The standard brackets that come with our posts are designed to work with flat bottom handrail, if you order our Round Metal Handrail 2″, we’ll automatically select rounded brackets to work with the handrail. If you have round wood handrail, or are ordering an additional post for your project please specify in the notes if you need a rounded bracket.
The stainless steel posts are a hand polished stainless steel. The finish is created by with an American worker and polishing wheel working with the steel products. The finish is polished to a bright finish with enough polishing lines to give character to the light as it reflects off. Here is what our customer’s say, “High quality” … “Beautiful Finish” … “Very Durable.” Posts are pre-drilled with 3.125″ spacing to accommodate our cable railing system. Custom hole drilling can be requested. Mounting feet with 4 holes are provided for 3/8″ fasteners. They can be fastened to concrete or wood with the 4 mounting holes provided at the bottom of the mounting feet. Since there is a such a wide scope of fastening situations, fasteners are not provided. Angle posts have holes drilled at a 40 degree angle which will accommodate most stairways from 37 degrees to 42 degrees. They can be ordered as 3-way and 4 way with holes on 3 sides or 4 side of the post to allow for creating right angles from posts.
This product has been used in the following "Completed Projects"
Base plate dimensions?
Is that the price for one (1) or is it a set? If it’s a set, how many are in a set? thanks!
hello, I am building a cable rail between two walls 14’10” wide. if I put a 2″ post 4″ from wall and one in middle using 3 posts the span between each post would be aprox 80 inches, is that ok or do I need four posts? (aprox 54″)
Can I paint the posts?
Your post video shows a “G” post configuration for a corner post, but I don’t see that as an option. Can a “G” post be ordered as I would much rather have that than the “C” configuration that is available.
The “G” post configuration has been eliminated in order to simplify our system. However, if you need it for your project you can order online and then call in to add that custom item, or you can place your order over the phone.
Please let us know if you have any other questions.
Is there a different way to mount the top wood rail on a level run?When looking at project #69, there appears to be a different mounting flange. Is this type available?
Where its says, “handrail height”, is that the distance from the floor to the top of the handrail bracket, or to the top of the wooden handrail? What is the actual height of the level posts from the finished floor (bottom of the base plate) to the top of the handrail bracket? What is the spacing of the pre-drilled holes?
The “Handrail Height” refers to the finished height, from the bottom of the foot to the top of the handrail. On Metal handrail it would be 36″, on wood handrail it would be 36 1/2″.
On a 36″ post, the height from bottom of the foot to top of the bracket is 35″. Standard hole spacing is 3 1/8″.
If you need more technical information like this a good resource for you would be our Viewrail Buyers Guide.
Please let us know if you have any other questions.
Hi I am adding a rail on top of a 24″ half wall to meet code for which i need 42″. Can I cut your 10 hole 36″ posts and if so is it from top or bottom? thanks
What are dimensions of the top plate to which handrail attaches, and distance between the centers of the screw holes? Will it fit the handrail that is 1-1/4″ at the base?
Do the post come with the hand rail mount on top or do you have to buy the separately
The post comes with everything you see in the picture (including the handrail bracket). The one item that most people purchase that isn’t included is our Foot Cover Plate.
Please let us know if you have any other questions.
Is that the “Standard Post Bracket – Straight PC: Black- SRSM-10096, for use on top of cable railing post with flat bottom handrail, including machine screws for attaching to post dome” ? This was listed on a quote received, but looking on the website for the part number did not find it listed. The price on the quote was $0.00, so is it automatically included or does it have to be specified somehow when adding to the online cart?
Yes, the brackets are included at no charge. Once you place your order, we separate them onto their own line item so that we can easily pull them. And it allows us to more easily specify if the bracket needs to be bent to accept a round handrail. When you order online we review your order and add those at no charge.
Which posts to use on a deck outside in Wisconsin? I believe Aluminum is the correct post to use?
What is the wall thickness of your 2″ square 304 SS posts?
What is the exact difference between the C-Left and C-Right posts ? Are the 2 types interchangeable ? Many thanks.
What is the maximum diameter of the Keymount post holes?
The Keymount fitting, at the tabs, is 0.4375″ or 7/16″. The Keymount post holes are only slightly larger to allow insertion of the fitting. If you are in need of more specific details on this, please feel free to contact us directly at firstname.lastname@example.org. Thank you, Danielle.
In project# 126 it shows posts that look to be about 4 x 4 or 5 x 5 and all I can find on your site are 2 x 2 or 1 x 2? Are the posts in the picture of project# 126 from this site and if so where do I go on the site to locate them?
Thank you for your question, Randy. The posts in project #126 were designed and built by the project builder, and Stair Supplies does not carry posts of that size currently. We would be more than happy to discuss with you what options we may have for you. Please contact us directly at email@example.com at your convenience.
We’re looking to have fewer cables than the 10 pre-drilled holes would seem to require. Any advice on whether it is do-able to just string the cable thru every other hole? If it’s been done before and you have photos of a finished product, could you send along to us? Thanks!!
Thank you for contacting us Jeff. Although it is likely that this has been done with our product before, we recommend following the most widely accepted code requirements of spacing between openings to not be more than 4 inches. Thus, we would not have project photos outside of those recommendations generally available. We would welcome the chance to learn more about your specific project. Please email us directly at firstname.lastname@example.org, and we will be more than happy to assist you.
Can I get the post 42″ high to meet ADA code, if yes what is the cost per post?
Thank you for contacting us Mike. We can certainly address your specific post height needs. Please contact us directly at email@example.com for pricing details.
I have an unusual application where I need the top rail to run at a right angle to the cable. Can the bracket on the universal post be rotated 90 degrees?
Thank you for your question. Unfortunately, our standard bracket is not able to be turned 90 degrees as you have mentioned, but we may be able to find an alternate method of achieving your request. If you would like to, please email us with the specific details (and possibly a sketch of what you are attempting to do) to firstname.lastname@example.org.
Can you custom make a C Post that is fascia mounted on the side only? (not corner mount).
Do the aluminum posts look different from the stainless steel posts if they are powder coated black?
Thank you for contacting us, Steve. We can certainly look at custom post options for your specific need. In this instance, we would recommend that you send your project-specific information to us directly at email@example.com for us to review your unique need. Regarding the powder coat question, we would not anticipate any significant difference in the overall look of a powder coated post whether it is manufactured out of aluminum or stainless steel.
