Angle Foot Universal Top 2" Square Post

Angle Foot Universal Top Square 2″ Cable Railing Post

Clear
Ships in approx: 8 Business Days

Details of each “Post Configuration” can be found in the description below.

Product Description

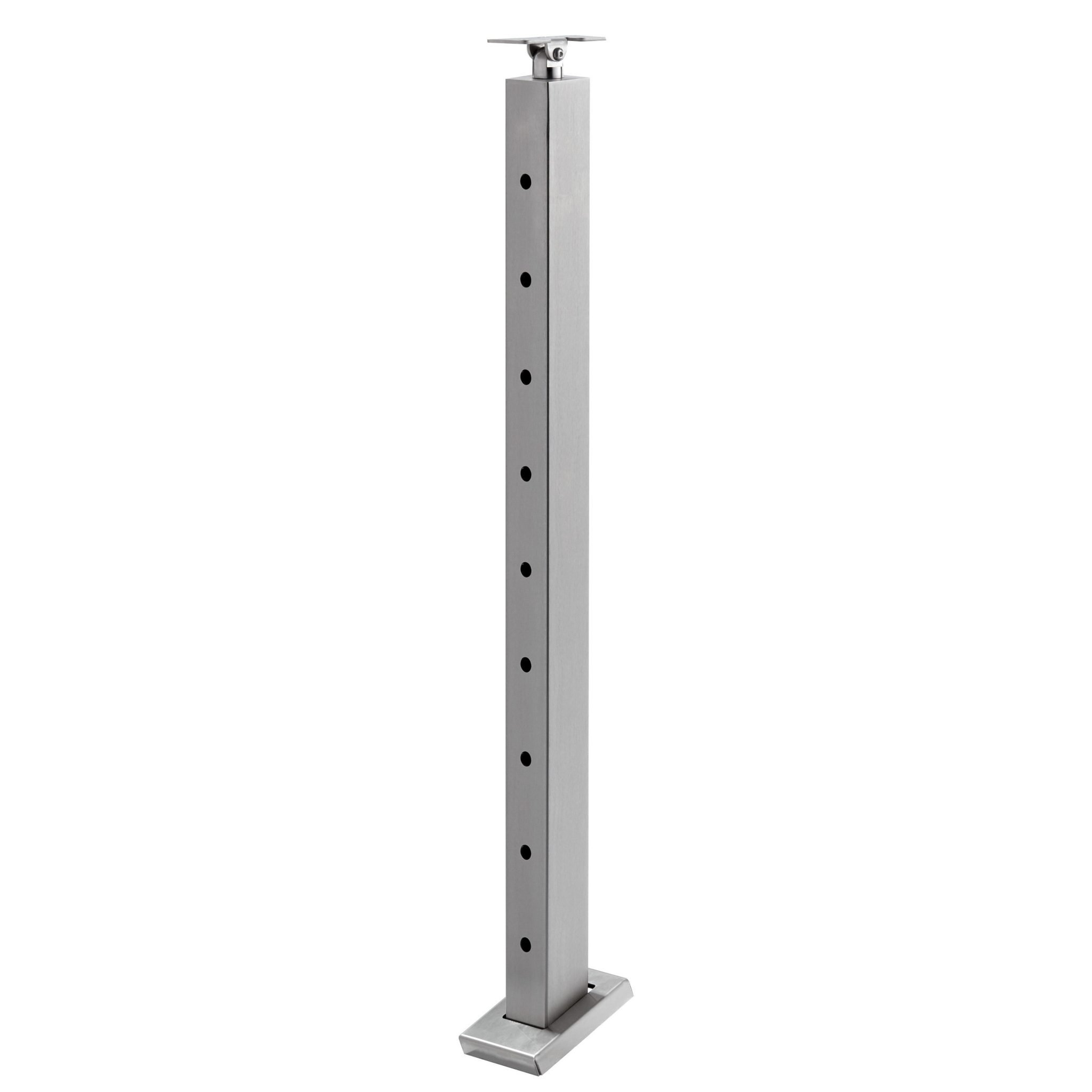

Angle Foot Universal Top 2″ Square Post are mounted to an angled knee wall.

The post will be custom made based on the height of your knee wall, and the angle of your staircase.

Posts are available in multiple material types (2205 Duplex Stainless Steel, 304 Stainless Steel, & Aluminum), and in multiple finishes (Brushed, Powder Coated Black, White, Pewter & Copper Vein). Guide to getting started with Viewrail.

Post Configuration Details:

"B" Angle Foot Cable Railing Post

“B” – The “B” (Up or Down) post is designed to be a start or end post on angled stair runs. It has 1/2″ holes drilled on one side of the post, and 5/16″ holes offset and drilled on the other side of the post. Recommended fittings: “Angle Tension Kits” (36″ – 10 kits, 39″ – 11 kits, 42″ – 12 kits). The “Up” or “Down” options refer to the direction the cable will be traveling when it exits the post.

"B-5" Angle Foot Cable Railing Post

“B-5” – The “B-5″ post is designed to be an intermediate post on angled stair runs. It has 5/16” offset* holes drilled on both sides of the post. Recommended fittings: “Adhesive Sleeves” (quantity varies based on final height of post, typically 18).

"J" Angle Foot Cable Railing Post

“J” – The “J” (up or down) post is designed to be a start post on angle stair runs. One side of the post has KeyMount holes drilled into it, the other three sides of the post are completely clean (pick this post for an extra clean look). Recommended fittings: “KeyMount Kits” (quantity varies based on final height of post, typically 9).

"S" Angle Foot Cable Railing Post

“S” – The “S” post is shipped without any holes pre-drilled in the post itself (handrail bracket and foot still come pre-drilled). Select this post if you have an application where cables aren’t necessary but you still want to run handrail, or in a custom application and you want to drill the holes yourself.

*All offset holes will be drilled to match the angle of your kneewall. So please make sure to fill out the angle foot post form and submit it after placing your order.

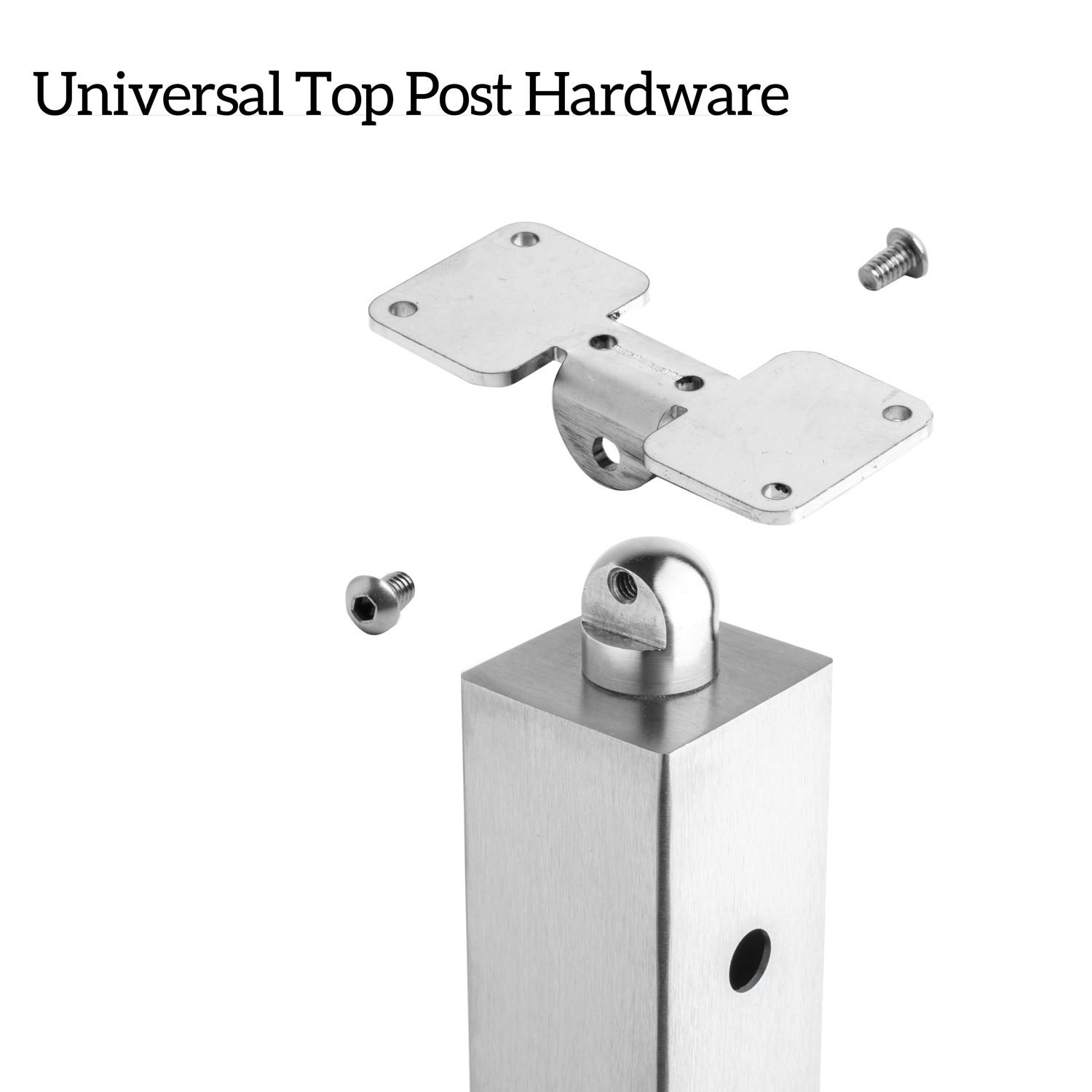

The standard brackets that come with our posts are designed to work with flat bottom handrail, if you order our Round Metal Handrail 2″, we’ll automatically select rounded brackets to work with the handrail. If you have round wood handrail, or are ordering an additional post for your project please specify in the notes if you need a rounded bracket.

Stainless Steel posts complete the look with stainless steel cable. The posts are 2″ Square and they provide the foundation for a cable railing system. These you see are 304 Stainless steel which is the typical stainless used in the food industry. If you live in coastal regions you want to select the 316 stainless. Posts are available with 1/2″ holes for standard fittings and with 5/16″ holes for use as intermediate posts where the cable passes through, but does not terminate.

Product Specifications

Surface Mount Post Attachment Guide

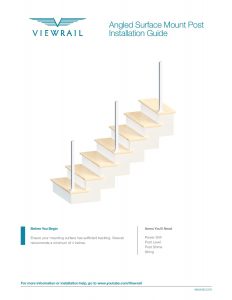

Installation Guide

Metal Post Installation Guide Thumbnail

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A


    Customer
    Carmen
    3 years 8 months ago

    How long can you have cable before adding a new post? In other words, what is the recommended min/max expanse between posts? Thanks!

    Support
    3 years 8 months ago

    In order to meet code we recommend adding a post at least every 4 feet. This will ensure that your cables can not be expanded beyond the common 4″ sphere rule.

    Guest
    Craig
    3 years 4 months ago

    What are the complete size specs of this post? More specifically what are the dimensions of the bottom mounting square? Thank you.

    Support
    3 years 4 months ago

    Hi Craig,

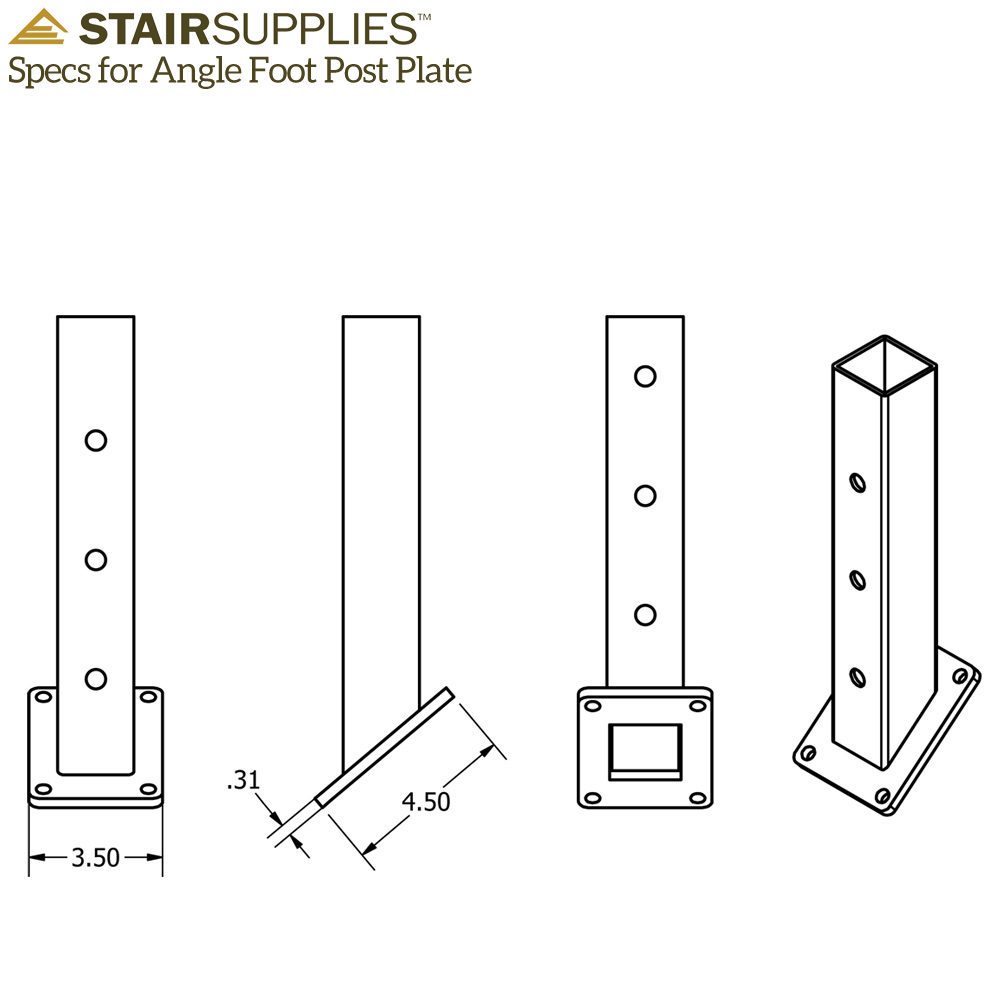

    The post is 2″ x 2″ square, the height and number of holes vary depending on your specific height & angle of your kneewall. The foot (mounting plate), is 3 1/2″ wide x 4 1/2″ deep.
    Please let us know if you have any other questions.

    Guest
    Sandy
    3 years 3 months ago

    Hi, I would like to know what is the difference between “J” up and down? I know I need a B post for my angled stair runs that only measures 5′ 1″ and on the bottom on the run I need a J post but I have doubts if it needs to be J up or down (both posts need to be angled) thank you

    Support
    3 years 3 months ago

    Hi Sandy,
    “J” up is designed to go at the bottom of your stairs, “J” down is designed to go at the top of the stairs. You can’t go from “J” post to “J” post you can start with a “J” post, but you have to end on a “B” post.
    Please let us know if you have other questions.

    Guest
    Sandy
    3 years 17 days ago

    Why can’t I order an “I” post? I have a small “L” shape at top of stairs, I want to start there with an “F” then go to an “I” that will begin my descent down the stairs. After 4-5 “B” can I end it with a “J-up”? All of which is a moot point if I cannot order an “I” post.

    Support
    3 years 15 days ago

    Thank you for asking, Sandy. It is likely that you would need to select a “D” post instead, because an “I” post is not available in 36″. The only limitation to the “D” post is that you cannot use a metal handrail due to the lack of space for a postside handrail bracket.

    If you prefer the metal handrail, then we suggest that you switch to a 39″ post system. This would then allow you to select an “I” post and metal handrail option.

    If you need any further assistance, you can also contact us directly at orders@stairsupplies.com. We would be more than happy to assist you in designing or reviewing your Viewrail project.

    Guest
    Shui
    2 years 11 months ago

    When I place an order, how do I submit the form with the dimension (height and angle) of the posts that I need?

    Support
    2 years 11 months ago

    Thank you, Shui. You can send this form to orders@stairsupplies.com.

    Guest
    John
    2 years 11 months ago

    what is the wall thickness of these posts?? thanks.

    Support
    2 years 11 months ago

    Hi John,
    Each material has a different thickness:
    304 Stainless Steel: 13 Gauge
    316 Stainless Steel: 11 Gauge
    Aluminum: 11 Gauge
    Please let us know if you have any other questions!

    Guest
    Brooks
    1 year 6 months ago

    Are the powder coated posts suitable for exterior areas near the ocean?

    Support
    1 year 6 months ago

    Hi Brooks,

    For an exterior application, we recommend a fluoropolymer finish for your posts. If you have additional questions about product performance, please give us a call at 1 (866) 226-6536.

    Best,
    The StairSupplies Support Team

    Guest
    Vito Covalucci
    6 months 25 days ago

    Does the angled post come in a standard angle or is it per order fitment? Same with height? I have a knee wall installation so only need 2 posts (40 degrees).

    Support
    6 months 24 days ago

    Thanks for the question Vito.

    The post will be custom made based on the height of your knee wall, and the angle of your staircase. If you look further down the product page, you’ll see an Angle Foot Post Specification Form, that you can use to ensure we manufacture the posts to your exact specifications.

    Best,

    StairSupplies Customer Support

    Guest
    Jim
    5 months 2 days ago

    What railing system can be recommended for protecting an in-ground pool in Florida near a brackish river?

    Support
    4 months 3 days ago

    Thanks for the question Jim.

    If you’re worried about corrosion resistance, you could get our rod railing system in 2205 stainless steel.

    Best,

    StairSupplies Customer Support

    Guest
    Whitney
    2 months 6 days ago

    Is it possible to have the base custom made for width of 2.5″ rather than 3″?

    Support
    2 months 4 days ago

    Thanks for the question Whitney.

    Any kind of custom order would have to go through one of our specialists, who can be reached at (866) 226 6536 during regular (EDT) business hours. They’ll be able to tell you if what your asking is something we can do.

    Best,

    StairSupplies Customer Support
