See Frameless Glass Railing

Ascend Glass Talon

Clear

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in approx: 10 Business Days

Product Description

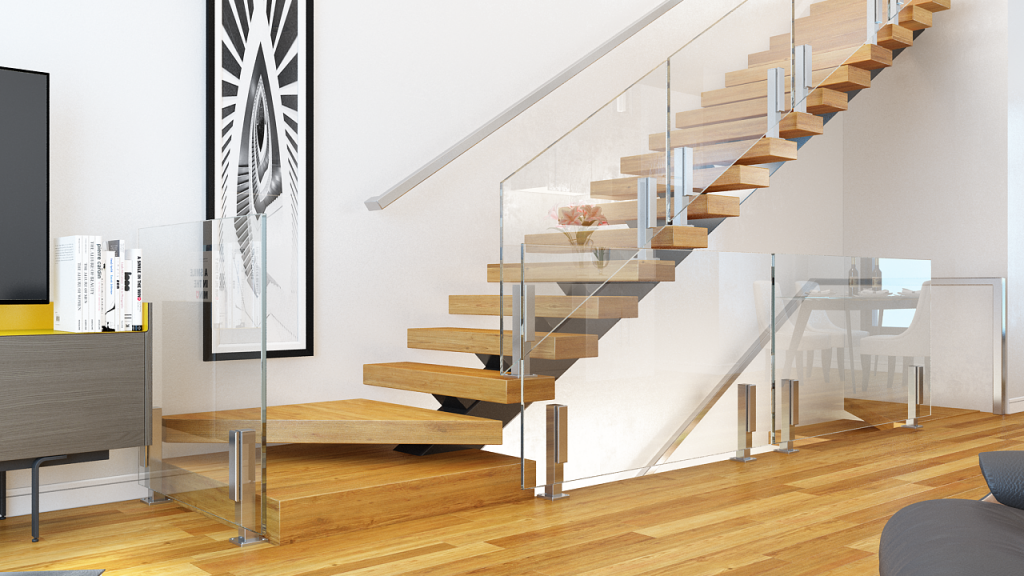

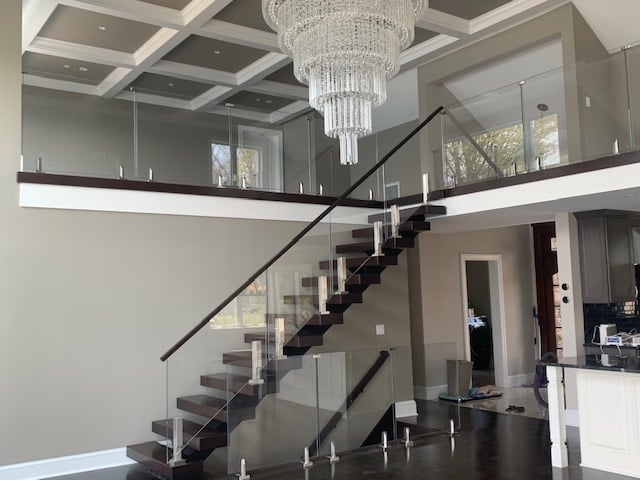

The Ascend Talon option is designed to allow surface mounted glass systems to accommodate stairs. The Ascend Talon may be used on level systems as well, and may be used as either an interior or exterior solution. The Ascend Talon has a sleek design that may be customized with any available powder coat options to match the rest of your system. Available in either standard or special application foot options to accommodate traditional or concrete mounting styles.





Product Specifications

Ascend Talon ThmbnlViewrail-Ascend-Talon

Installation Guide

Ascend Talons Install Thmbnl9)-page-001

Product Q&A


Guest
Chad Rice
3 years 7 days ago

how does the glass mount ? Does the glass need to be pre drilled?

Support
Blake Royer
3 years 4 days ago

Hi Chad,

The glass mounts using two 1.125” holes per talon. Yes the glass needs to be pre-drilled.

Thank you,
StairSupplies Customer Support

Guest
Chad Rice
3 years 7 days ago

what are the dimensions of this product? Also how big is the base flange

Support
Blake Royer
3 years 4 days ago

Hi Chad,

The talon itself is 2″ wide and 14″ tall. The base flange is square at 3.75″ for wood applications and 4.5″ for concrete applications. Feel free to call us at (866) 226-6536 if you have any more questions.

Thank,
StairSupplies Customer Support

Guest
Ever Luizaga
2 years 11 months ago

Hello, is there a minimal and maximum glass width for this accessory? Would you have more detailed plan on it. Thanks

Support
2 years 11 months ago

Hi Ever,

If by width, you mean thickness, then yes 12-13.52mm is the thickness supported by these talons. If you mean panel length, then we recommend two talons for every four feet of glass. If you have more specific questions about a custom project, feel free to call us and ask for the glass team.

Thanks,
StairSupplies Customer Support

Guest
Ever Luizaga
2 years 11 months ago

Can this mount on a 10mm glass?

Support
2 years 11 months ago

Hello Ever,

Unfortunately, our product was engineered to fit 12-13.52mm glass panels. If you would like to learn more, please call and ask for the glass team!

Thank you,
StairSupplies Customer Support
