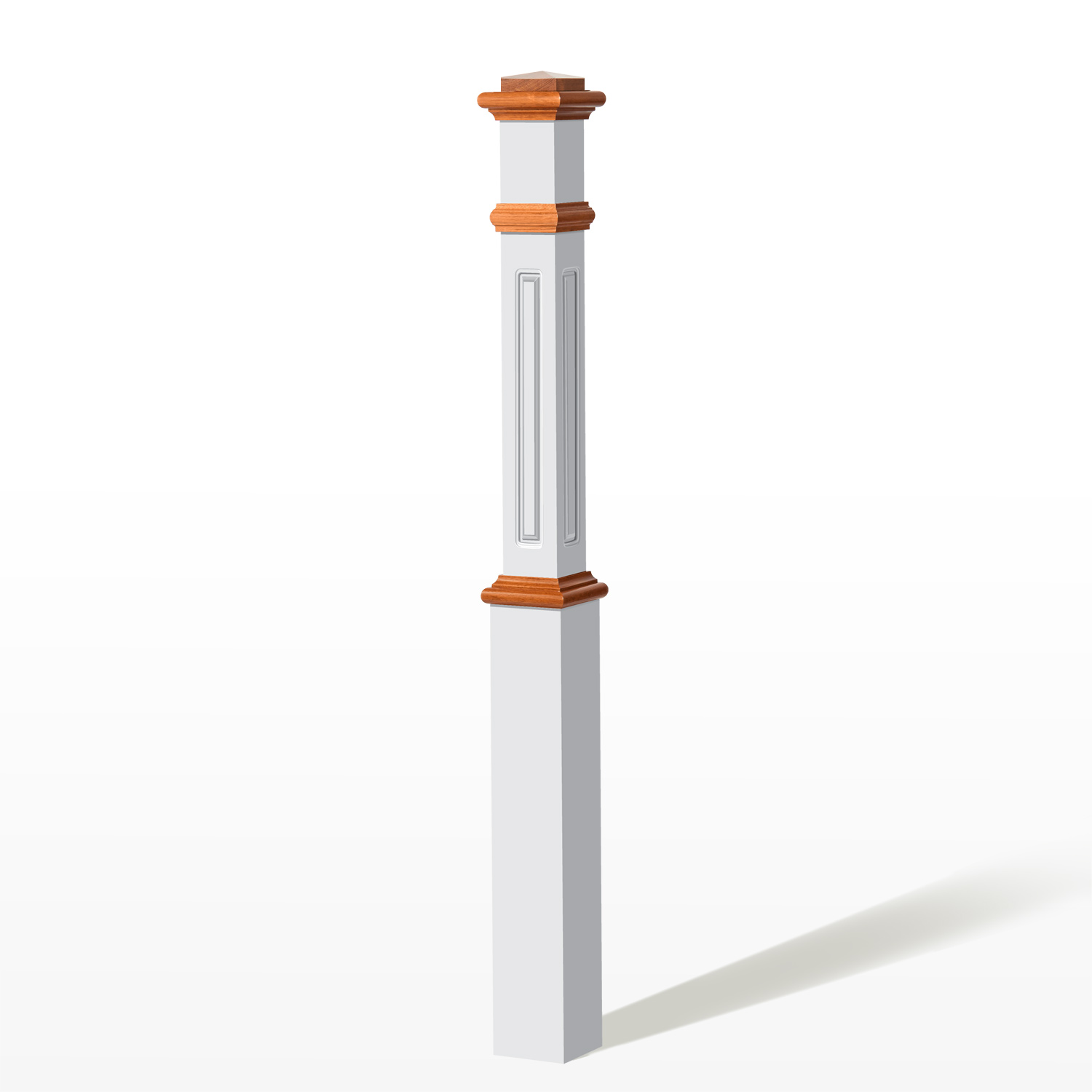

The 4621 Blended Raised Panel Box Newel combines a primed newel body with beautiful stain-grade trim details. Precise mitering creates a classic raised panel design, packing a big punch of style in a mid-sized box newel. Often accented with the 4791 Blended Raised Panel Box Newel, this box newel is perfect for smaller spaces or stairways that require many newels.

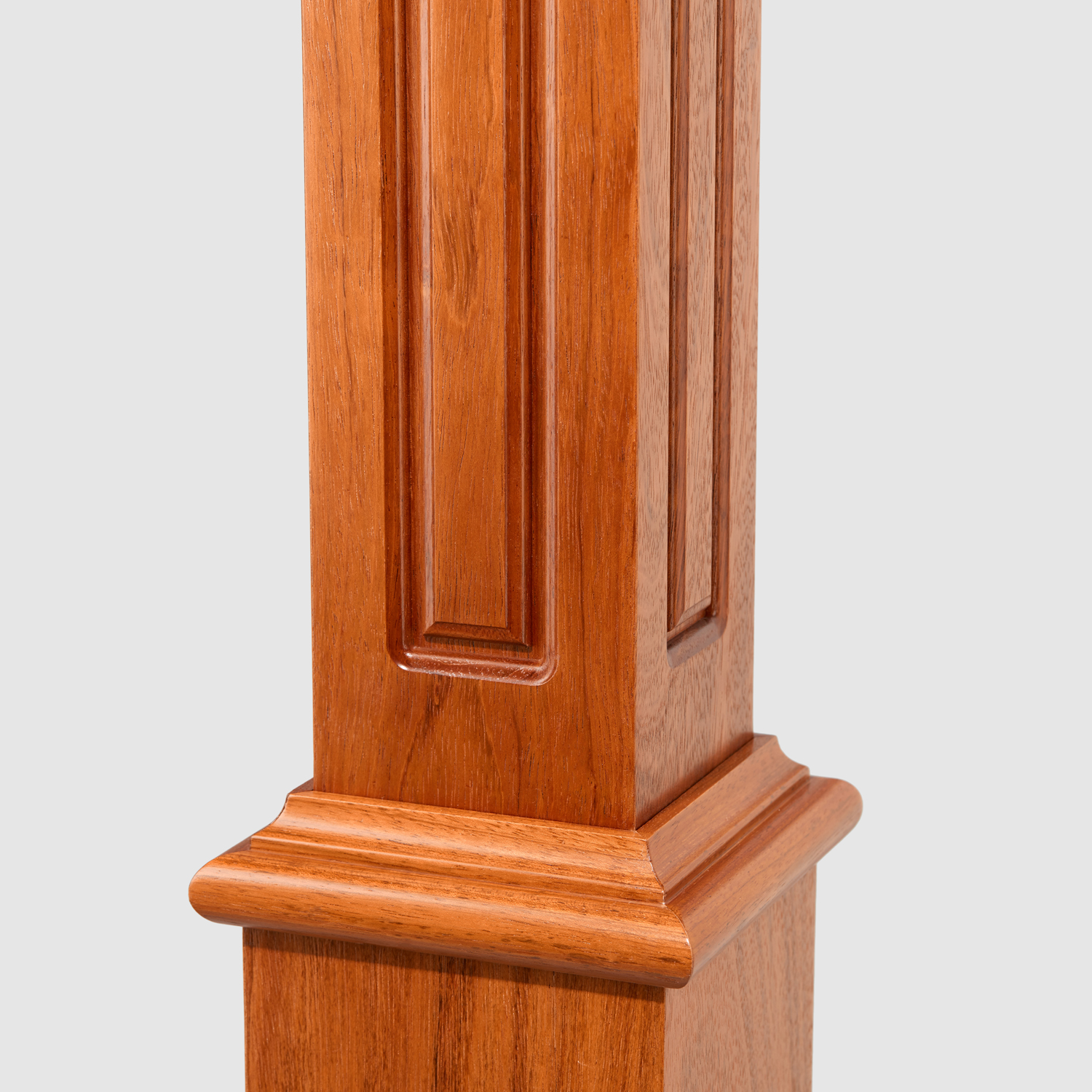

- Raised Panel Milled Detail
- Primed Newel Body
- Stain-Grade Shoulder Trim

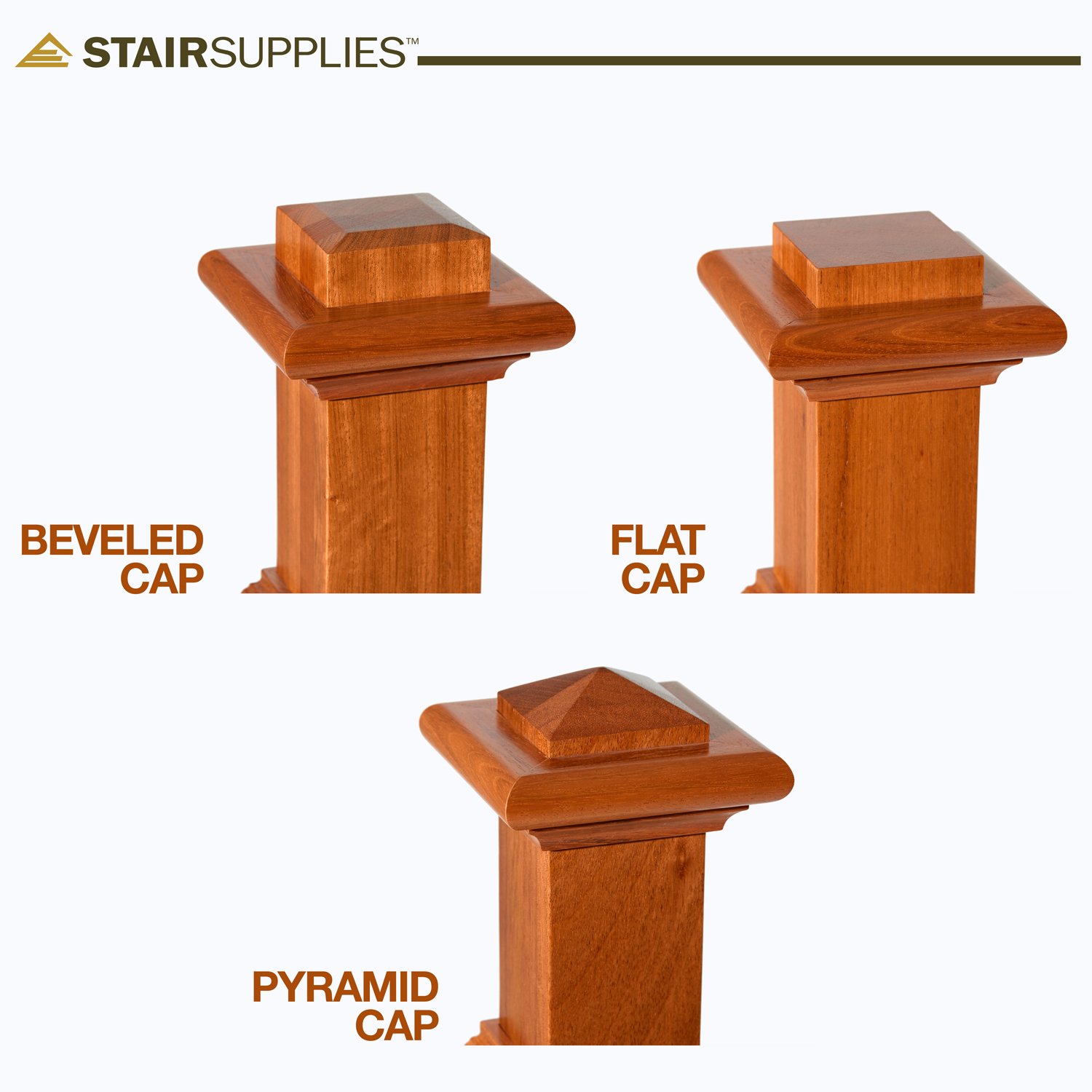

- Customizable Cap
- Easy Install
To install your 4621 Blended Raised Panel Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Box Newels look best on a square starting step.
Join handrail to your 4621 Blended Raised Panel Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.
Splitting Box Newels
In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Blended Raised Panel Box Newel split in half, please select “Split in Half” in the drop-down menu above.
- Overall: 5″ x 5″ x 60″
- Bottom Block: 5″ x 5″ x 28″
- Top Block: 3 1/2″ x 3 1/2″ x 32″
- Space between Top & Shoulder Trim: 5″
- Bottom Opening: 3 1/2″ x 3 1/2″
- Bottom Block: Hollow, Soft Maple or Poplar, Primed
- Top Block: Solid, Soft Maple or Poplar, Primed
- The Top Block extends down into the Bottom Block approximately 8” for strength and stability
Clear Finish & Stain Information
StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For Box Newels we offer both clear finishes and stains for the stain-grade portions of the newel. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Box Newels.
All of our stained and clear-finished Box Newels will be coated with Pre-Catalyzed Lacquer. Using the same quality product that cabinet makers require, this lacquer is designed to resist the natural oils from hands. We use this lacquer on all of our products that will be consistently touched, such as handrails, balusters, and newels. This layer of protection will keep your Box Newels looking smooth and stain free for years to come.
The primed portions of the newel are painted with a white vinyl primer. Give the primed sections a quick, light sanding, and they can be painted to match your home.
Wood Grain & Color Variation
At StairSuppliesTM we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSuppliesTM, you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.
