4623 Primel Recessed Panel Box Newel

4623 Primed Recessed Panel Box Newel

Ships in approx. 14 Days
SKU: N/A Category:

Product Description

American Made Primed Box Newels are handmade by our professional craftsmen and primed in our spray booth.

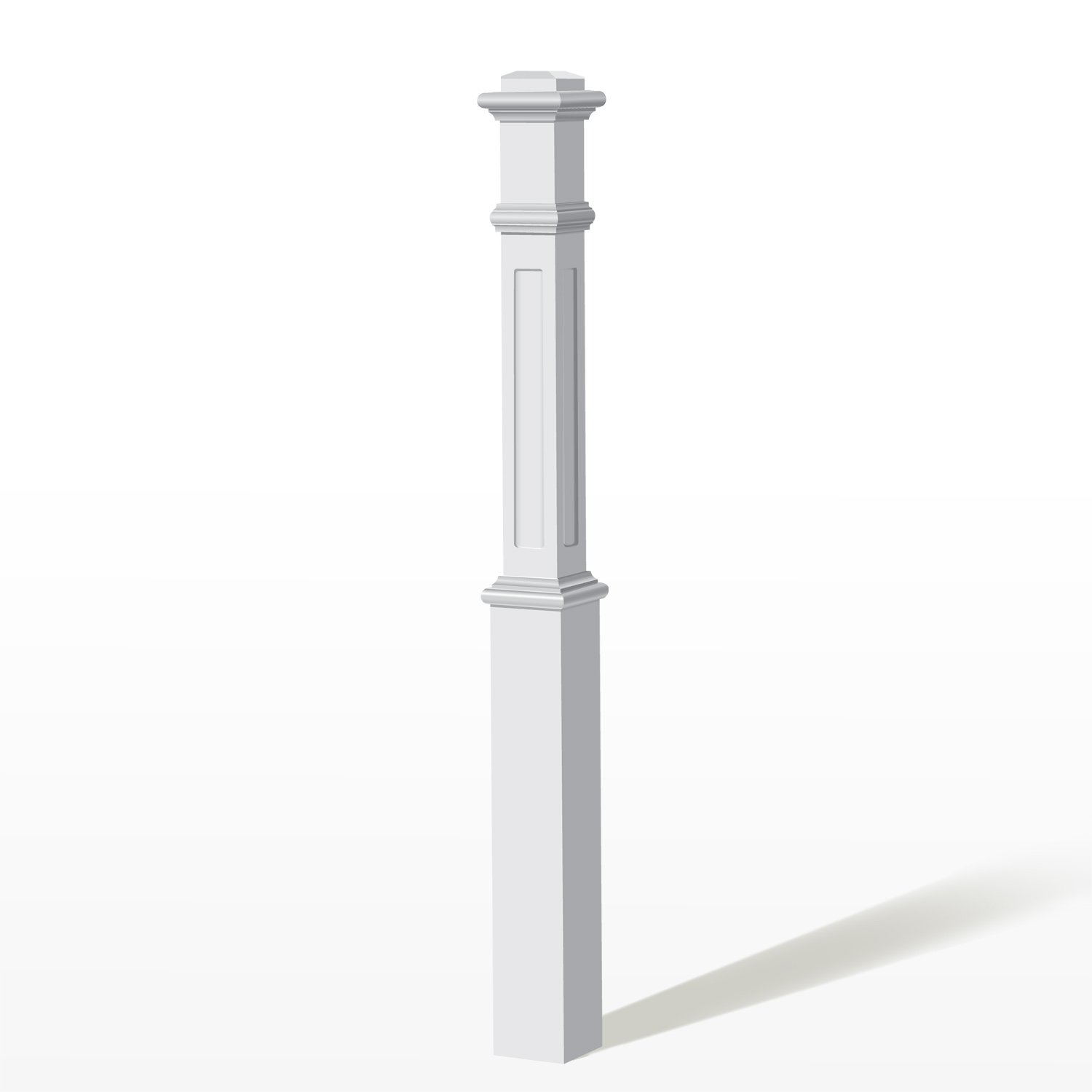

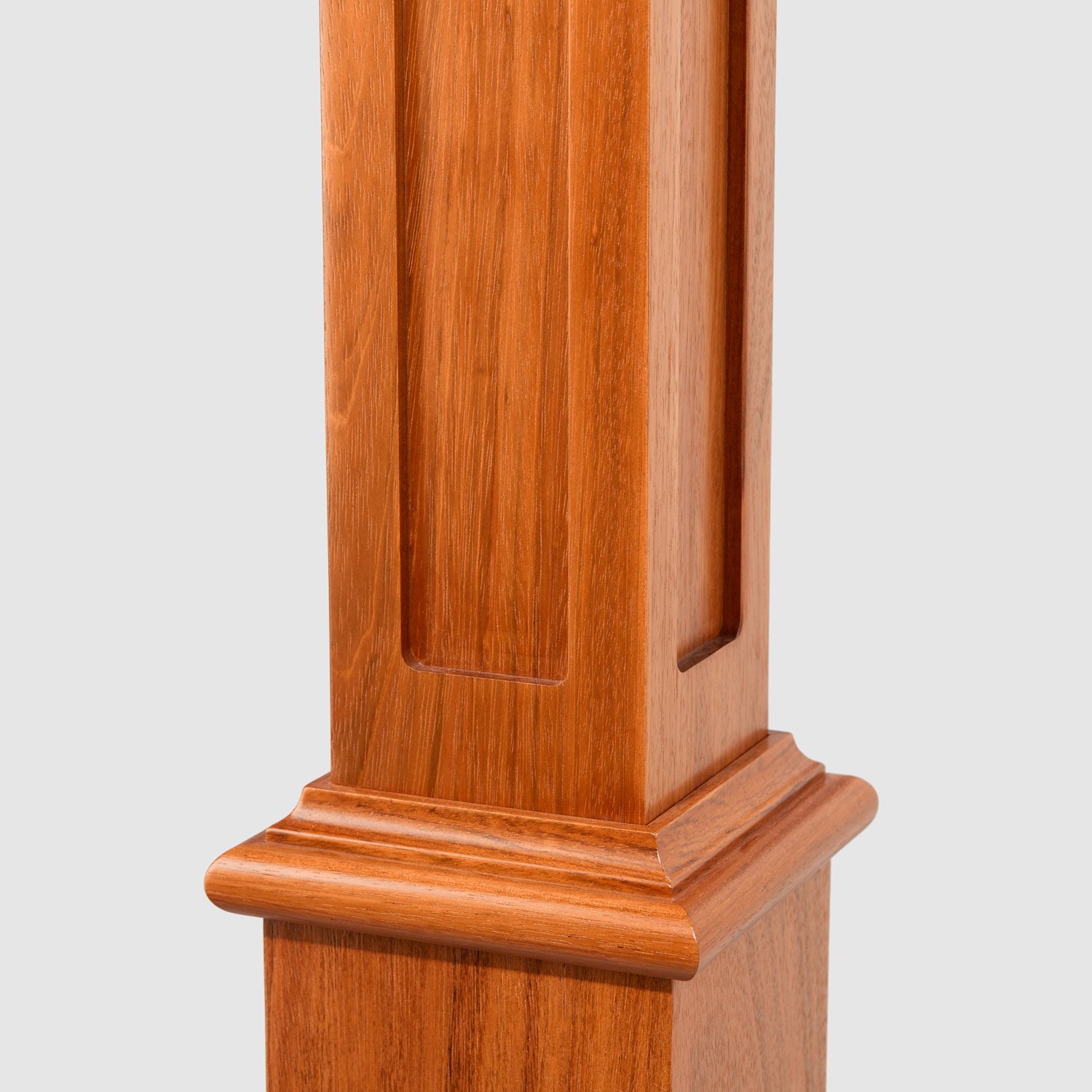

The 4623 is 5″ square box newel as a complement to the larger box newel. The 4623 is a recessed panel box newel made by routing into the face of the newel.

This is a very attractive newel for any stairway. The small box newel is perfect for stairways with lots of newels. It is especially useful on landings and at the second floor. The small box newel is a favorite for smaller houses, apartments and places that do not want the crowding that comes with larger box newels. This unit is easy to install for professional stair builders or for those who want to DIY. Whether your stairway goes one flight of stairs or more the box newel fits on the stair tread or beside a tread. We do not recommend curved starting steps for box newels. We prefer the look of a square starting step. With a box newel, handrail attaches to the side of the newel with a rail bolt or other stair hardware. Railings coming into a fluted box newel on the rake should be combined with a gooseneck. Call to see if the box newel you need is hollow or solid for the easiest mounting option for your application. The box newel creates the strongest wooden stair system possible when combined with a larger handrail.

Box Newels can be split for a charge of $35.00.

Product Specifications

Product Dimensions:

Overall dimensions: 5″ x 5″ x 60″.
Bottom Block: 5″ x 5″ x 28″ tall (Hollow – no end grain).
Top Block: (3 1/2″ x 3 1/2″ x 32″ tall (Solid – has end grain on 2 sides).

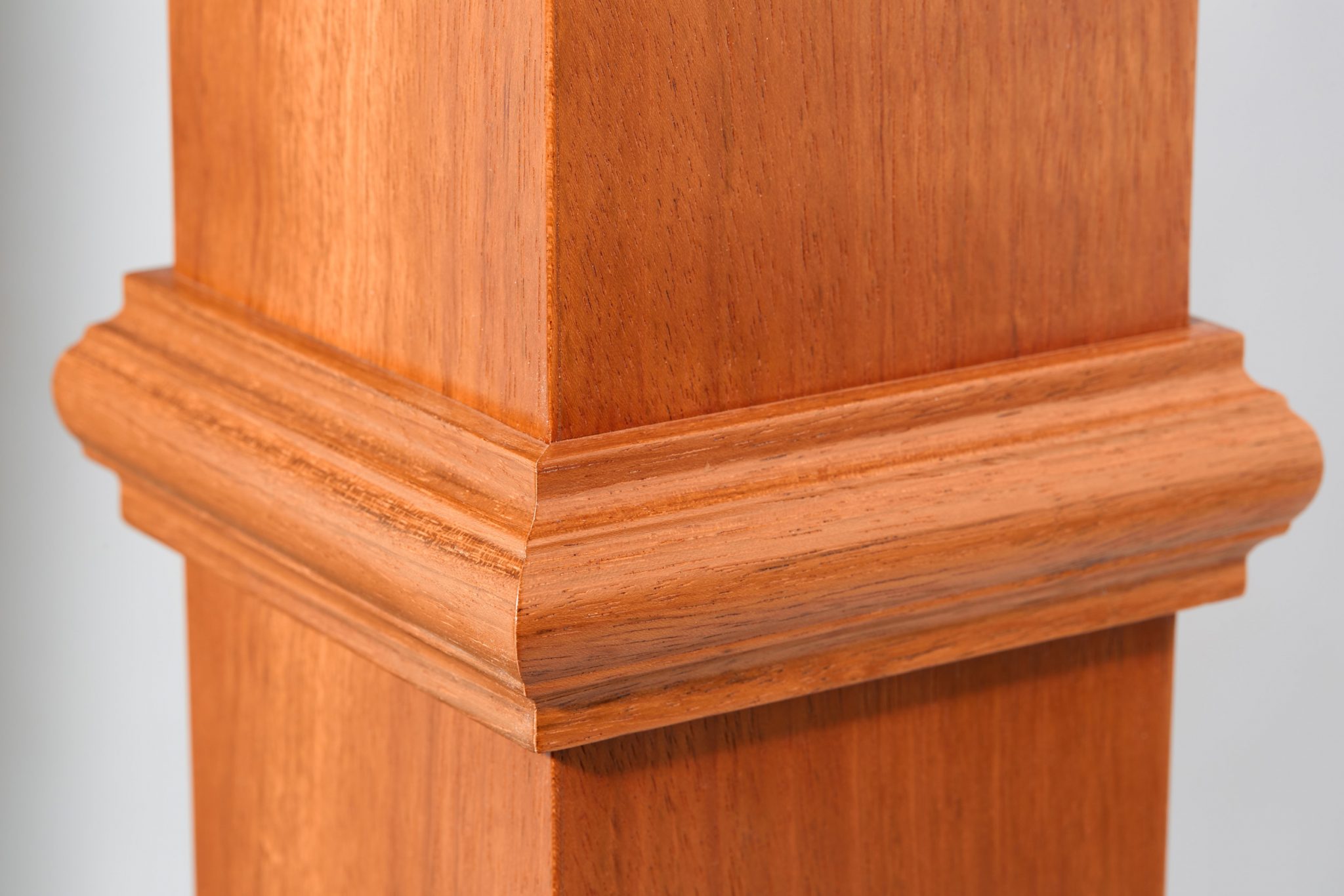

Space between top & shoulder trim: 5″.
Bottom opening: 3 1/2″ x 3 1/2″.

The top block extends into the bottom block approximately 8 inches to provide the necessary strength.


Clear Finish & Stain Information:

StairSuppliesTM offers premium finish options, we select different products depending on the application (read more about our stain & finish selection). Whether you want a clear finish to draw out and protect the natural color of the wood, of you prefer a custom mixed stain to give your stair parts a more unique rich color, we have the expertise to give you the look you want.

Primed items, are primed with a white vinyl primer. Any item can be ordered with a primer by selecting the finish type “Paint Grade” and the finish “Primed”. These parts come ready for a quick light sanding, and then can be painted in the specific color of your choice.

Installation Guide
