4991 White Paint Recessed Panel Box Newel

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 25 Business Days

Product Description

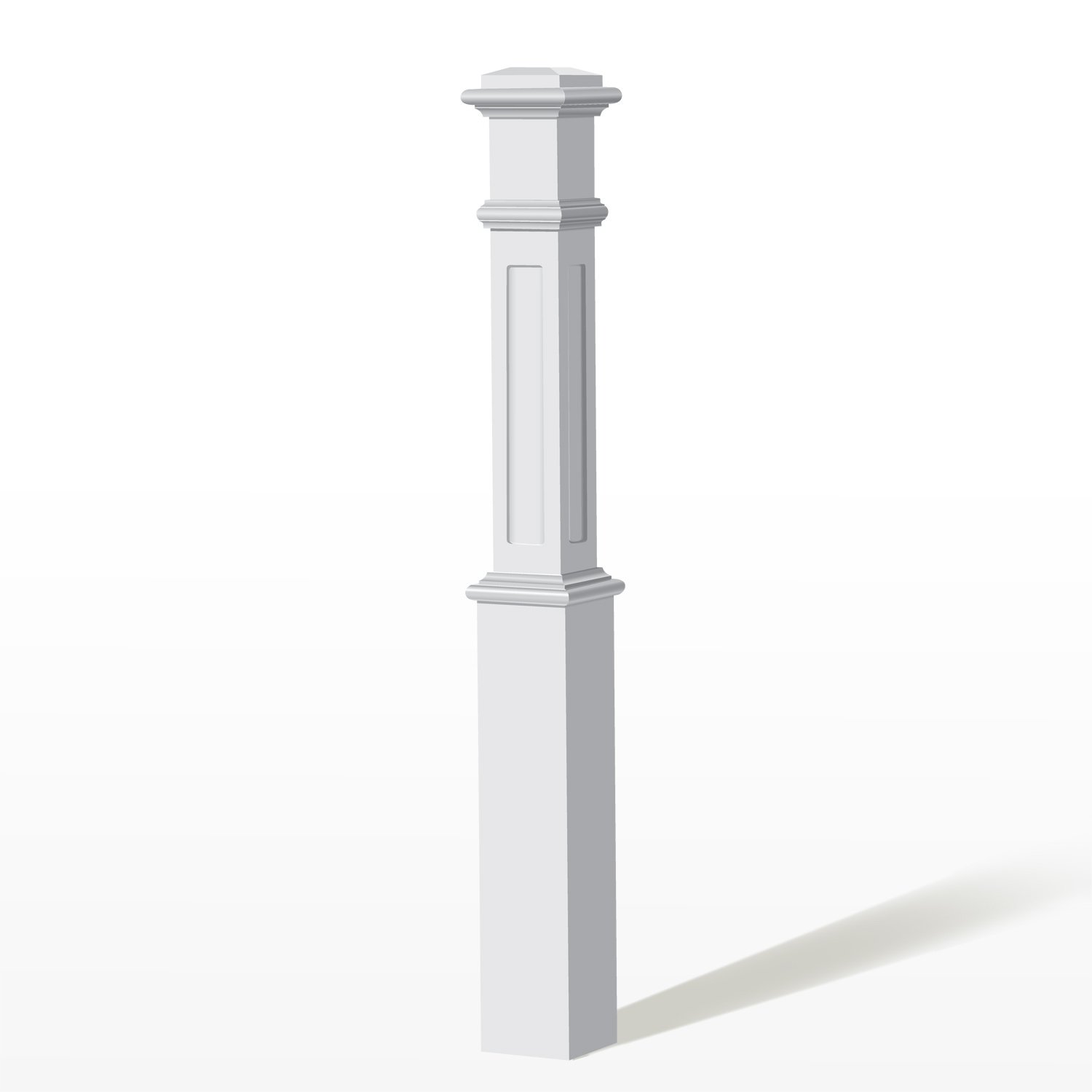

Steady and secure, the 4991 Painted Recessed Panel Box Newel is crafted by our StairSupplies™ experts and prepped with a smooth coating of paint before arriving at your doorstep. The recessed panel details adorning each side, precisely mitered shoulder trims, and your choice of cap style make this newel an impressive focal point for your stairway. The smaller 4623 Painted Recessed Panel Box Newel pairs nicely with this newel if various sizes are desired for your design.

Key Features

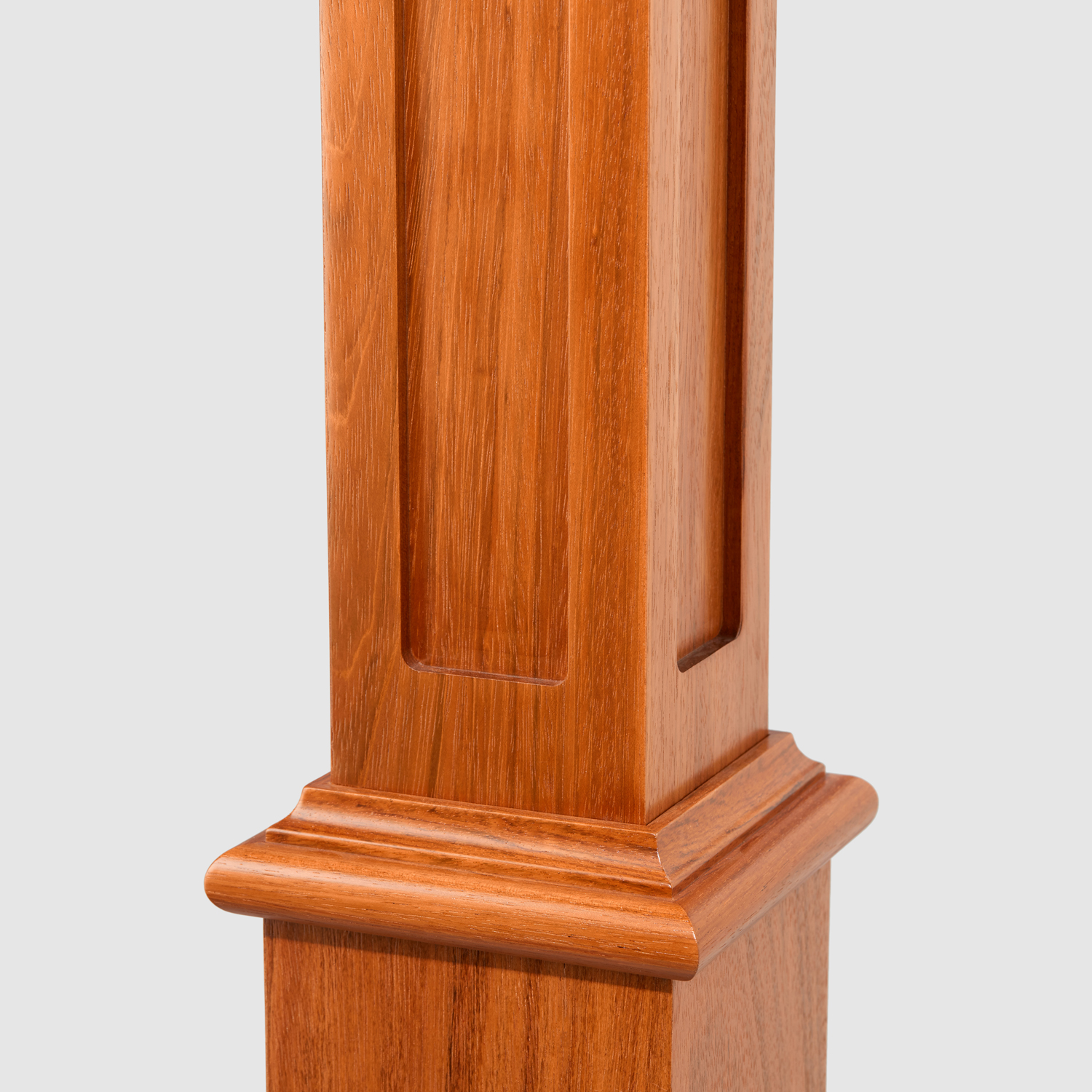

  • Recessed Panel Details
  • Strong, Larger Body
  • Shoulder Trim
  • Customizable Cap
  • Painted
  • Easy Install

Mounting System

To install your 4991 Painted Recessed Panel Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The Painted Recessed Panel Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Box Newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4991 Painted Recessed Panel Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

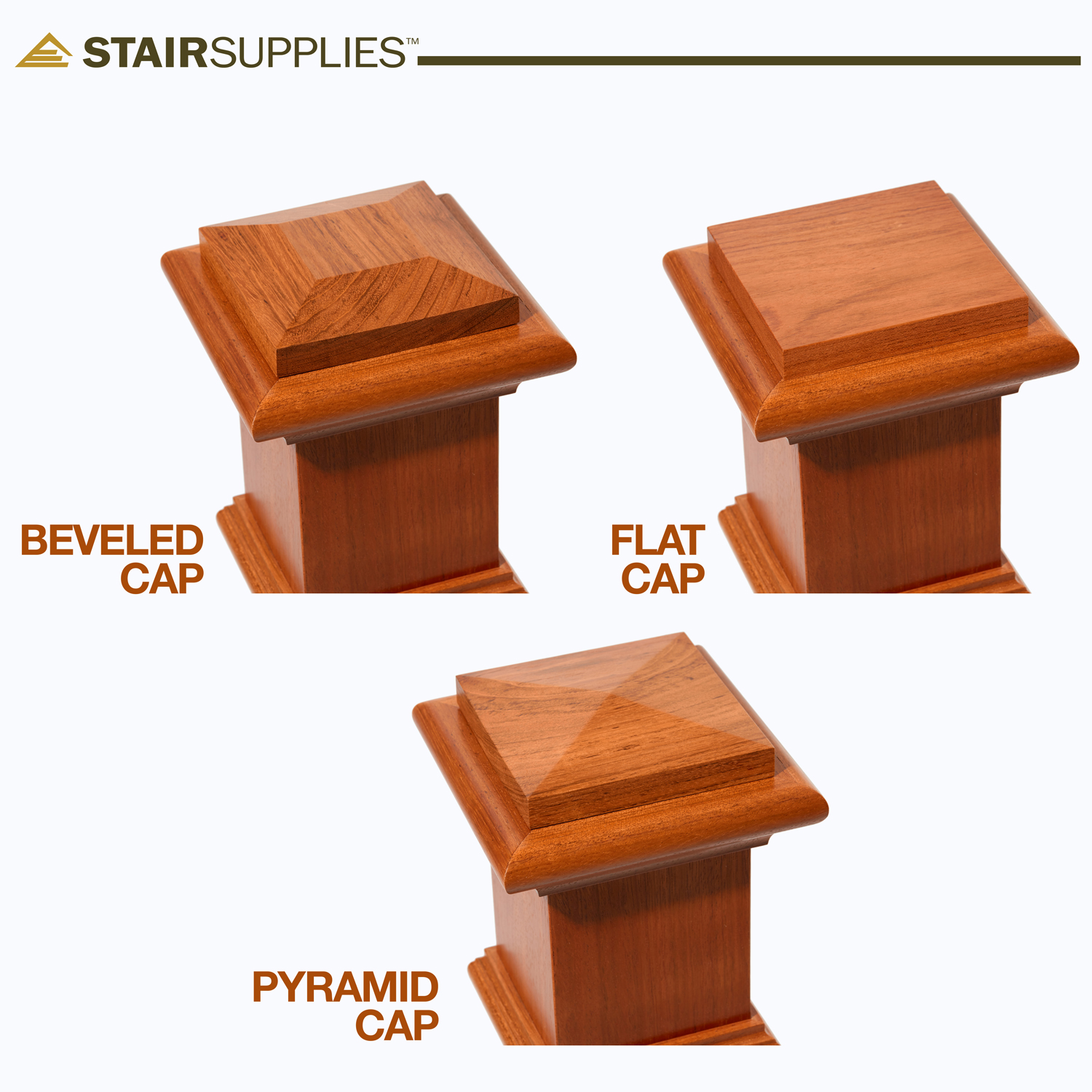

Cap Attachment

The cap for this box newel is sent unattached to the newel body, allowing easy access for mounting handrail. Then, after handrails are attached, the cap can be secured on-site by applying a bit of wood glue and finishing nails for increased strength.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Painted Recessed Panel Box Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

Product Dimensions

  • Overall: 6 1/4″ x 6 1/4″ x 60″
  • Bottom Block: 6 1/4″ x 6 1/4″ x 28″ tall
  • Top Block: 4 3/4″ x 4 3/4″ x 32″ tall
  • Space between Top & Shoulder Trim: 5″
  • Bottom Opening: 4 3/4″ x 4 3/4″

Composition

  • Bottom Block: Hollow, Soft Maple or Poplar, Primed
  • Top Block: Hollow, Soft Maple or Poplar, Primed
  • The Top Block extends down into the Bottom Block approximately 8” for strength and stability.

Primed Finish

These primed newels are painted with a white vinyl primer. Give the primed sections a quick, light sanding, and they can be painted to match your home.

Interior Use Only

This product may contain glue joints and is designed for interior use only.
