S-9600 Rail Bolt Kit

SKU: 2805

List Price: $7.72
Your Price: $6.43

Ships in approx: 3 Business Days

Product Description

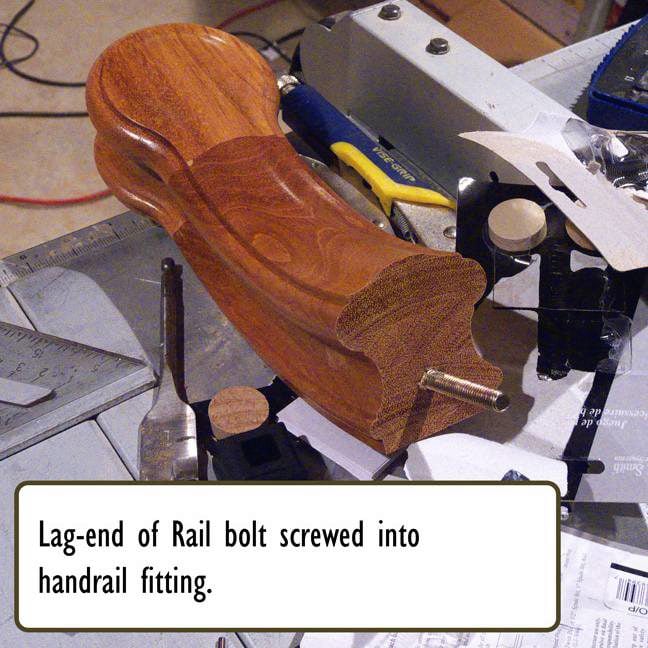

The S-9600 Rail Bolt Kit stair part is used for joining two handrails, attaching handrails to newels, and attaching handrails to handrail fittings.

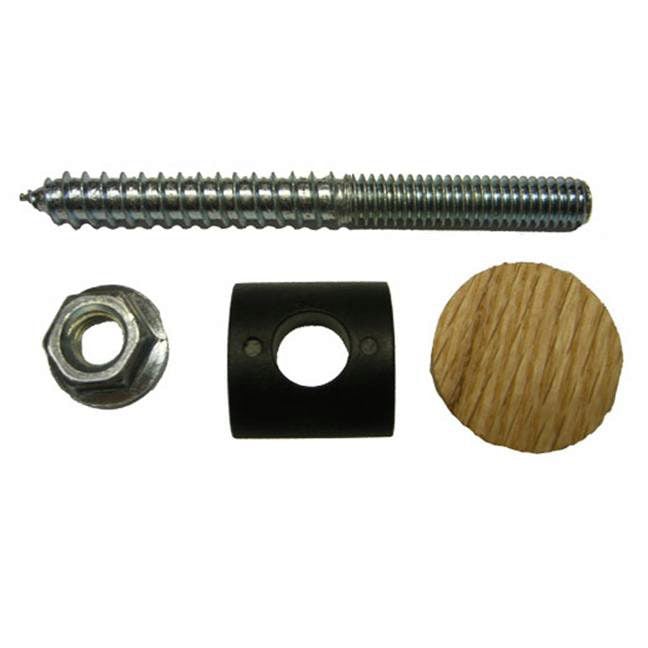

Included in the kit is:

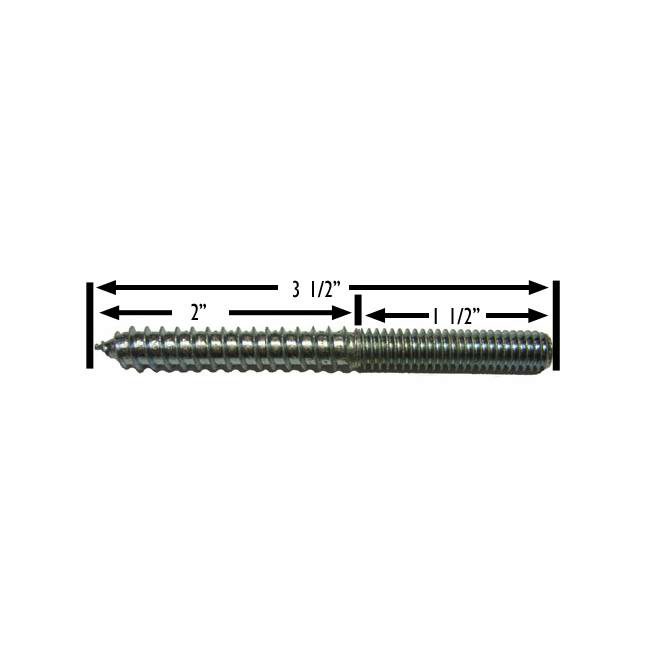

1 – 3 1/2″ Rail Bolt

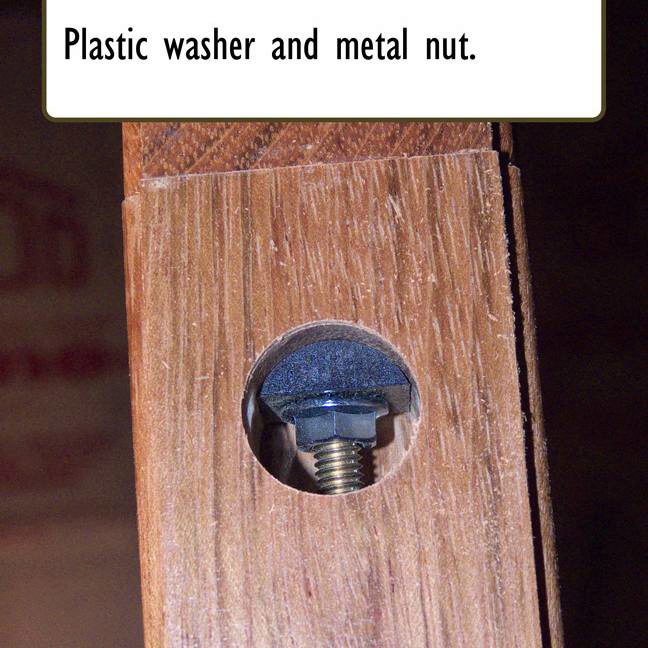

1 – Metal nut
1 – Curved plastic washer

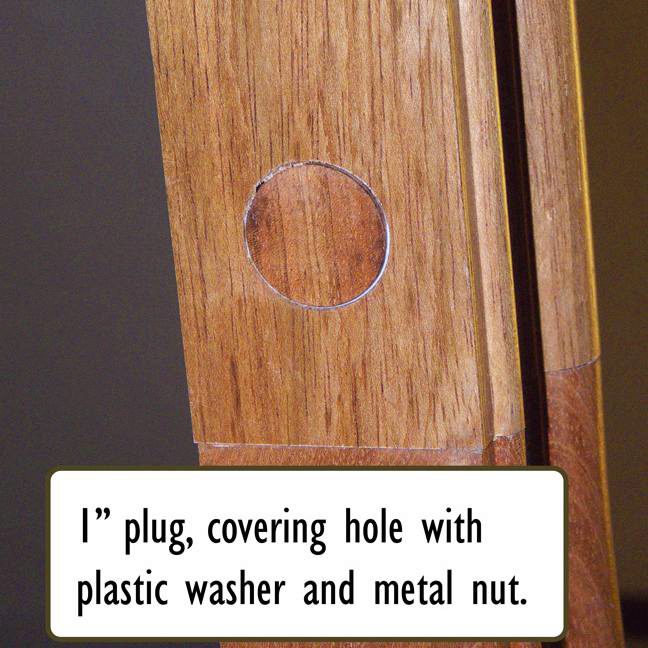

1 – 1″ Red Oak plug.

The wood plug sent to you is Red Oak, if you need plugs that match your handrail and fittings go to the plug product page and they are available for a minimal charge.

For precise instructions click on “Installation info” on left side of page (under main product image).

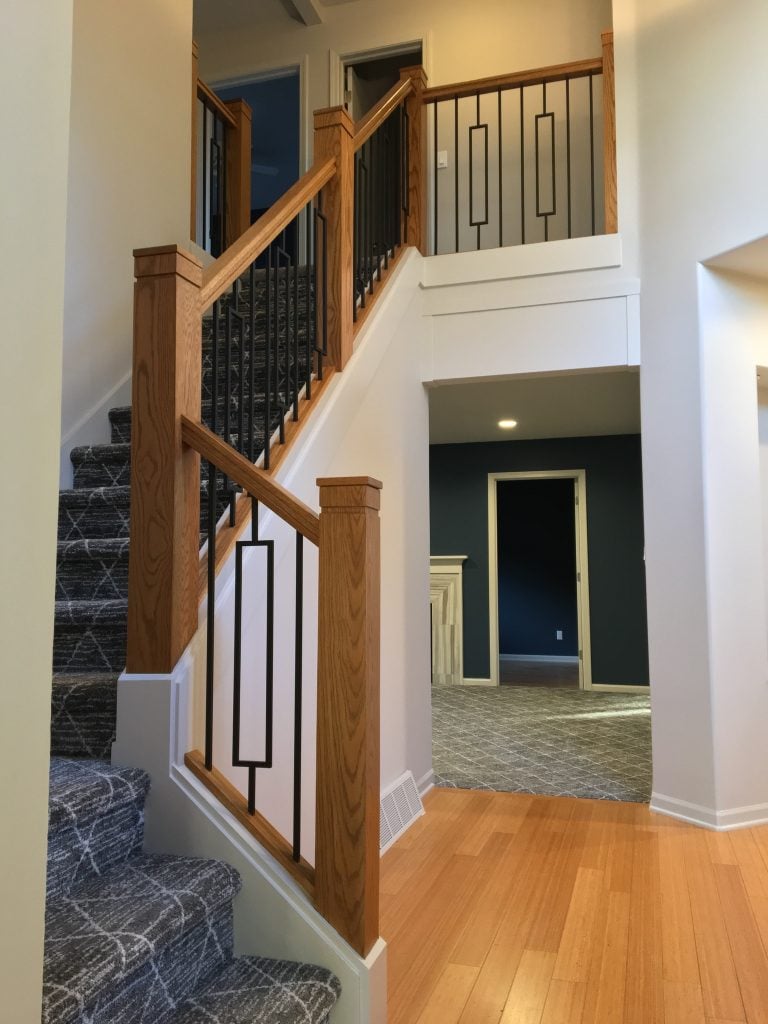

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A

    Linda Guss
    4 years 24 days ago

    Can this kit be used to attach a handrail to a rosette and then to the wall?

    4 years 15 days ago

    Thanks for reaching out to us Linda,

    You should be able to do that. I would recommend mounting the rosette to the wall and then drilling into the rosette and wall to attache the rail bolt kit.


    StairSupplies Customer Support

    James Petran
    4 years 12 days ago

    Can the S9600 and 9601 rail bolts be used on all railing profiles including the smaller ones such as #6800 or 6610 ?
    Also, if I am installing a 7ft. mitered return rail with bolts attached at each end, would I need an additional wall bracket in between? Really looking forward to this project and working with quality materials….thanks

    3 years 11 months ago

    Thanks for the question James.

    The rail bolts should work with any of the profiles we sell. As for brackets, we typically recommend you use one on each end, and then an additional every 4 feet.

    If you have any additional questions, feel free to give us a call at (866) 226 6536 and talk to one of our specialists.


    StairSupplies Customer Support
