See Frameless Glass Railing

Side Mount Talon Spigot

Clear

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in approx: 6 Business Days

Product Description

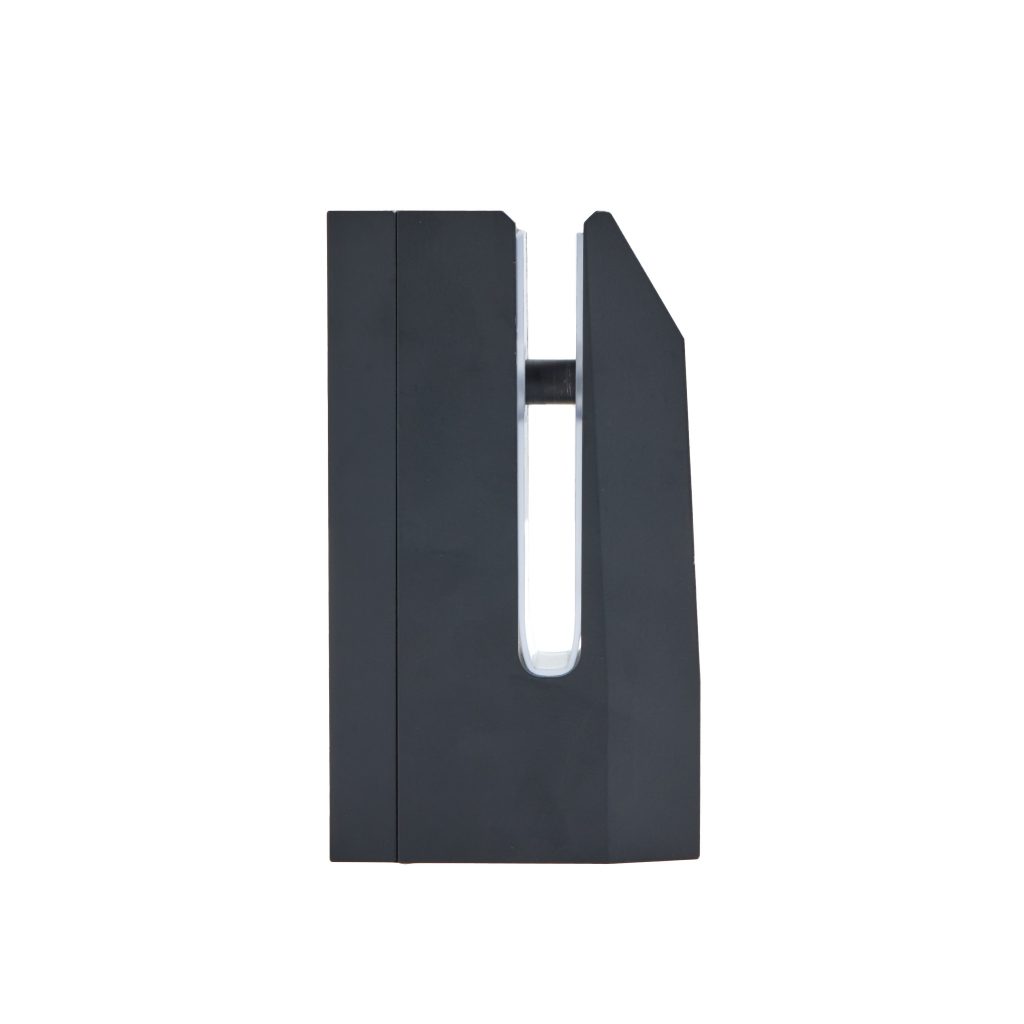

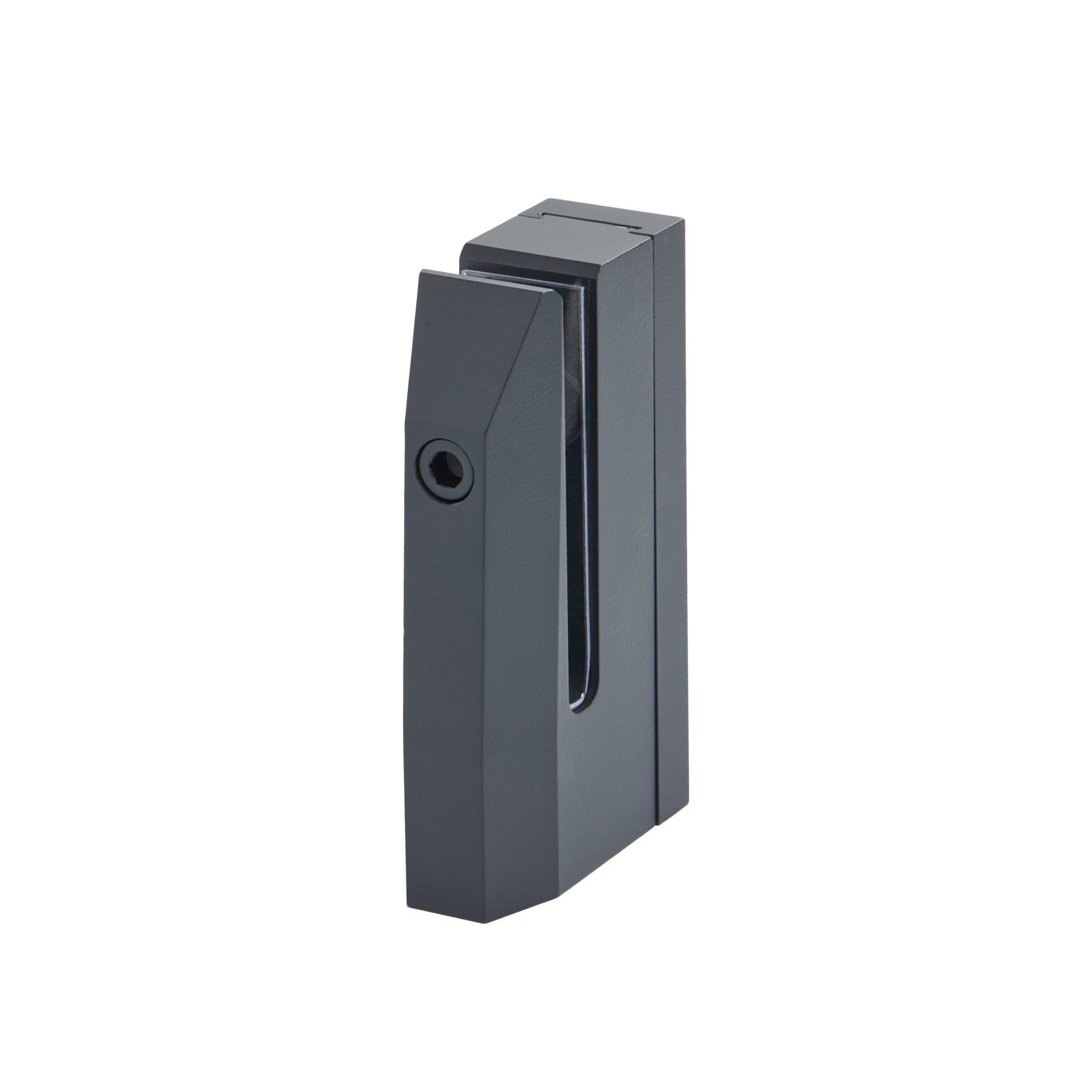

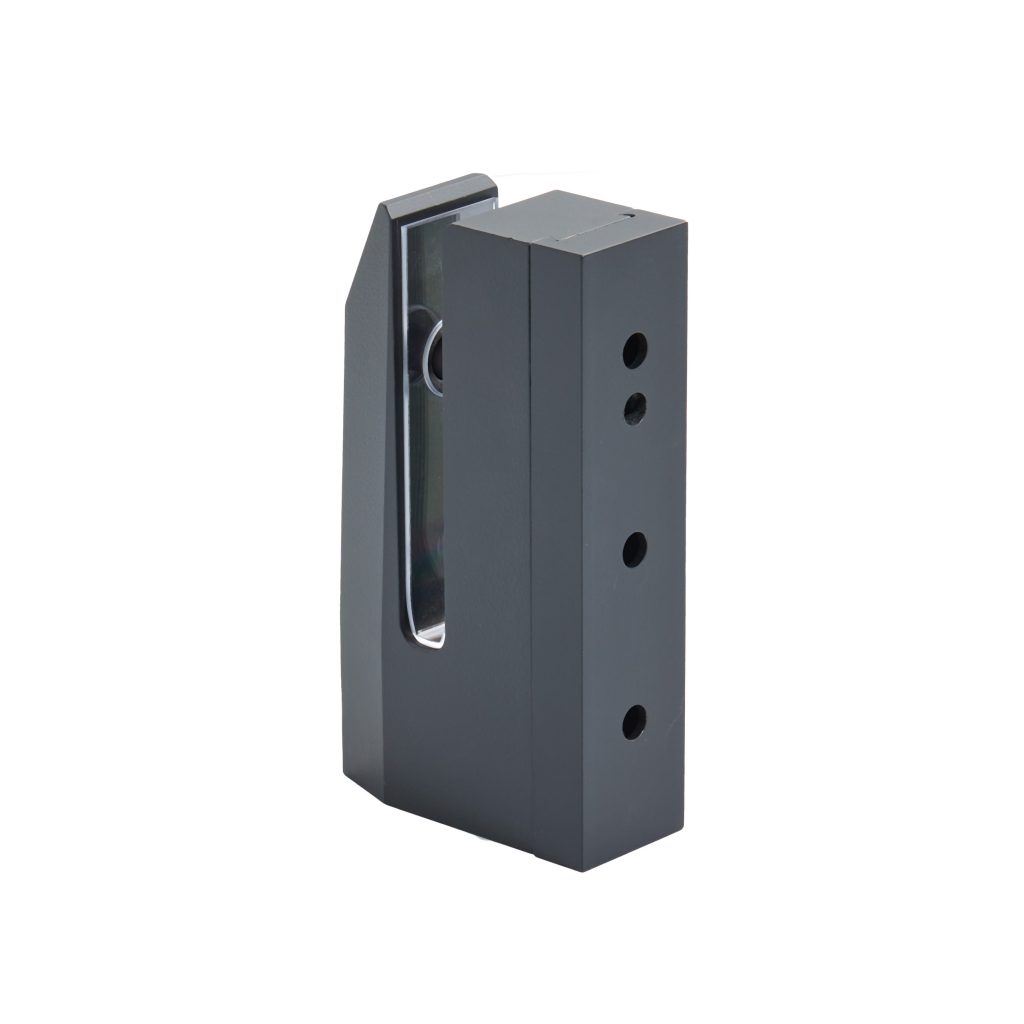

Perfect alignment, every time. Made from the most corrosion-resistant aluminum in the industry, the Side Mount Talon Spigot is designed with durability and safety in mind. The talons are designed to hold both 1/2″ and 9/16″ laminated glass. Just two spigots support up to a 4 foot panel of glass (glass sold separately).

This Side Mount Talon Spigot is designed to be fascia mounted to preserve the most space on your deck, stairway, or balcony. With a sleek look, innovative design, and durable construction, Side Mount Talon Spigots do the work for you.

Key Features
• Side Mount Talon Spigot is made from 6061 Aluminum for corrosion resistance in any environment. .
• Designed for 1/2″ tempered  or 9/16″ laminated glass.
• Two talon spigots can support up to a 54″ panel of glass.
•Talon Spigots come with shims, which enables easier aligning of glass during installation.
• Glass needs a 1-1/8″ (28.6 MM) hole to accommodate talon bolt

Included Hardware
• Aluminum Talon Bolt
• Talon Gasket Polycarbonate
• Talon Gasket Shim Polycarbonate
• Talon Pin Lock (not visible in assembly)

*Install Hardware sold separately

Product Specifications

Installation Guide

Product Q&A


Guest
Peter Maurer
2 years 9 months ago

Can I use wider glass panels, say 8’, w 3 or 4 side mount spigots per panel or are they always installed as pairs? Could 2 spigots support panels sized 64”w x 42 tall?

Support
2 years 9 months ago

Hi Peter,

I consulted with our glass team and they have confirmed that any panel over 4 feet wide should use 3 of the side-mount talon spigots, if you went up to 8 feet we suggest using 4 or 5 spigots depending on weight of the panel. If you have any other questions, feel free to reach out to us at (866) 226-6536.

Thanks,
StairSupplies Customer Support

Guest
Ben
2 years 8 months ago

Is there a max height of the glass recommended for this? I assume 36″, but can this handle a commercial sized railing for U.S. standards of 42″?

Support
2 years 8 months ago

Hi Ben,

I spoke with one of our glass specialists, we do not recommend using side mount talon spigots with glass panels that are taller than 42″ above the finished floor. If you have any other questions, feel free to call in and we can get you in touch with one of our glass specialists.

Thanks,
StairSupplies Customer Support
