See Frameless Glass Railing

Surface Mount Talon Spigot

Clear

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in approx: 6 Business Days

Product Description

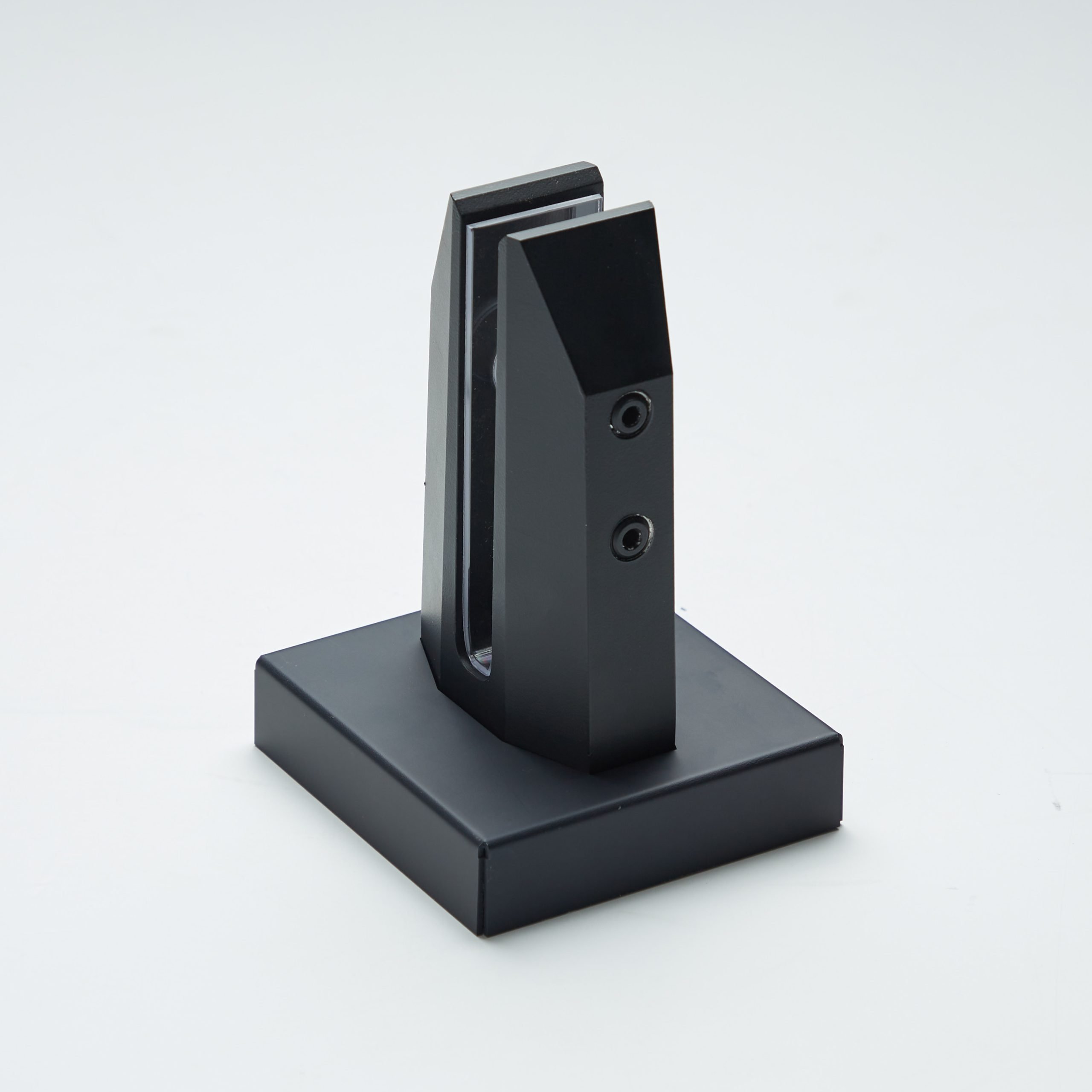

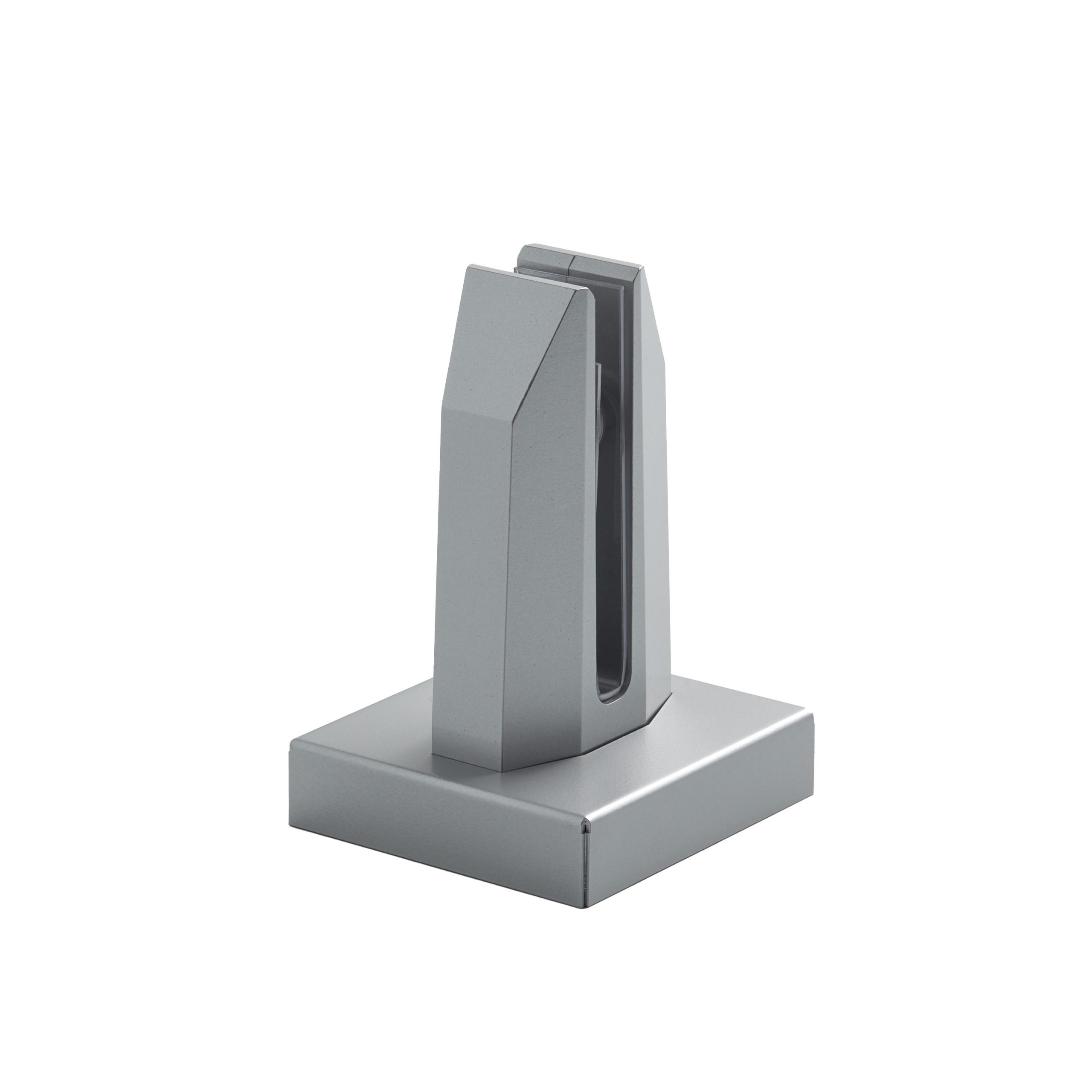

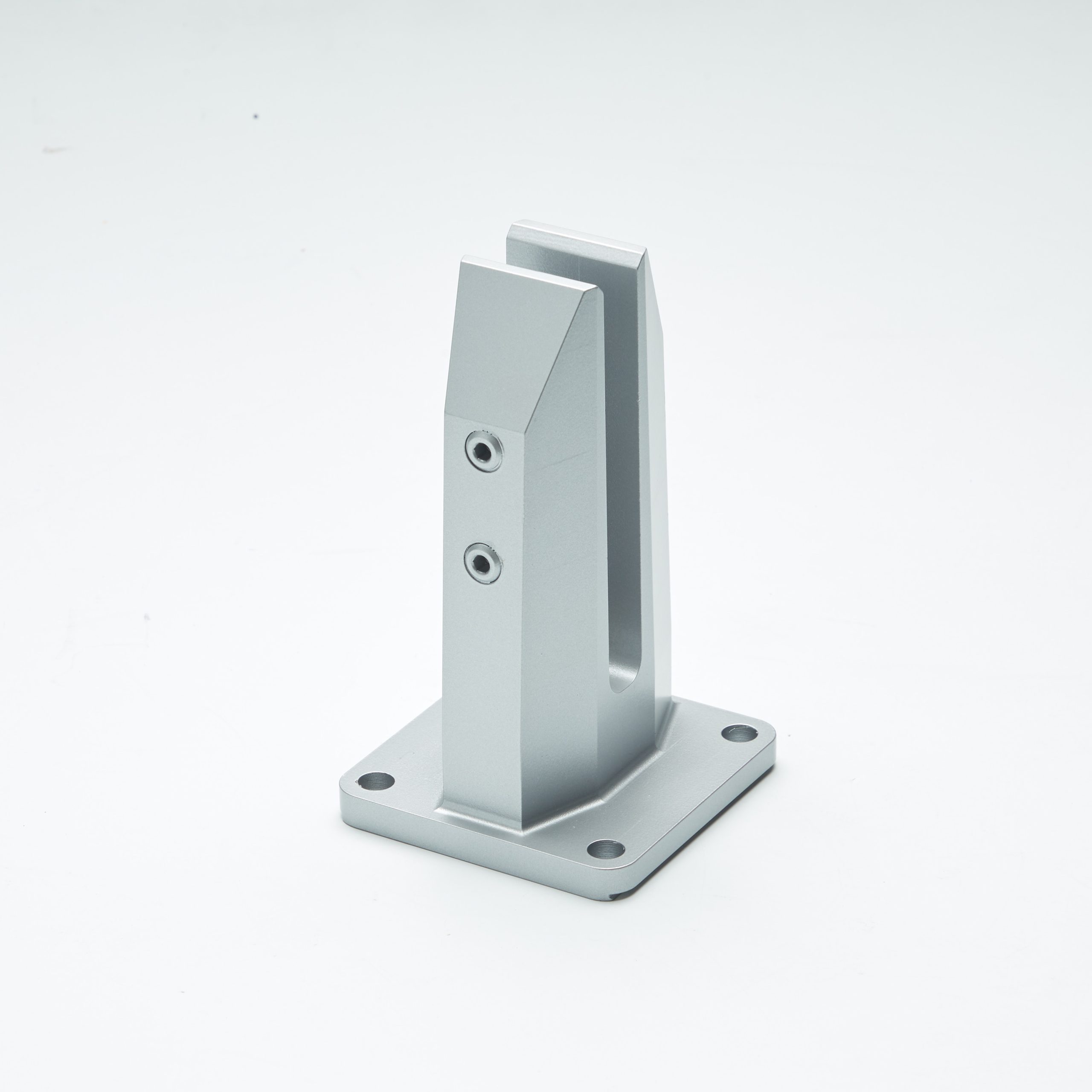

Made from the high grade Aluminum, the Surface Mount Talon Spigot is designed with durability and safety in mind.  These glass talons hold ½” or 9/16″ glass panels using an adjustable pressure plate which creates an extremely strong connection. The glass is supplied by StairSupplies, so you don’t need to worry about glass logistics. Each panel is designed to be held by two talons.

This Surface Mount Talon Spigot is designed to be mounted directly the surface of your deck or balcony. With a sleek look, innovative design, and durable construction, Surface Mount Talon Spigots do the work for you. Choose between a standard powder coat for noncoastal projects or a more durable fluoropolymer powder coat for extreme environments.

Key Features

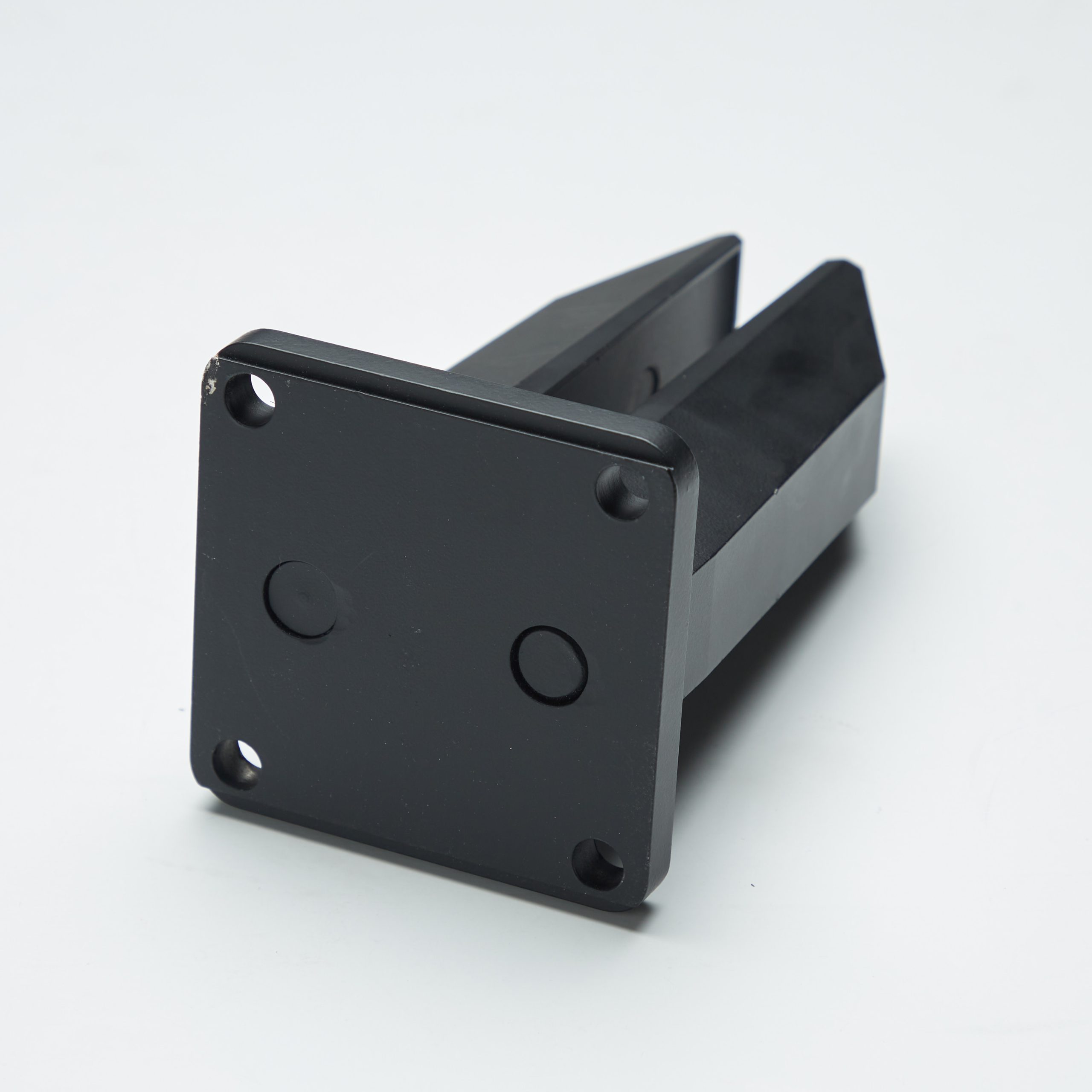

  • Surface Mount Talon Spigot is made from Aluminum
    • Contains two 316 Stainless Steel rods pressed-in-fit into the body for stability
    • The Aluminum is anodized first, the stainless steel is pressed in, and the assembly is powder coated
  • Comes with the foot cover – mounting screws sold separately
  • Designed for 1/2″ or 9/16″ glass
  • Two talon spigots can support up to a 4′ panel of glass
  • Able to be finished in all powder coat options



Included Hardware:

1- Aluminum Surface Mount Talon Set Screws

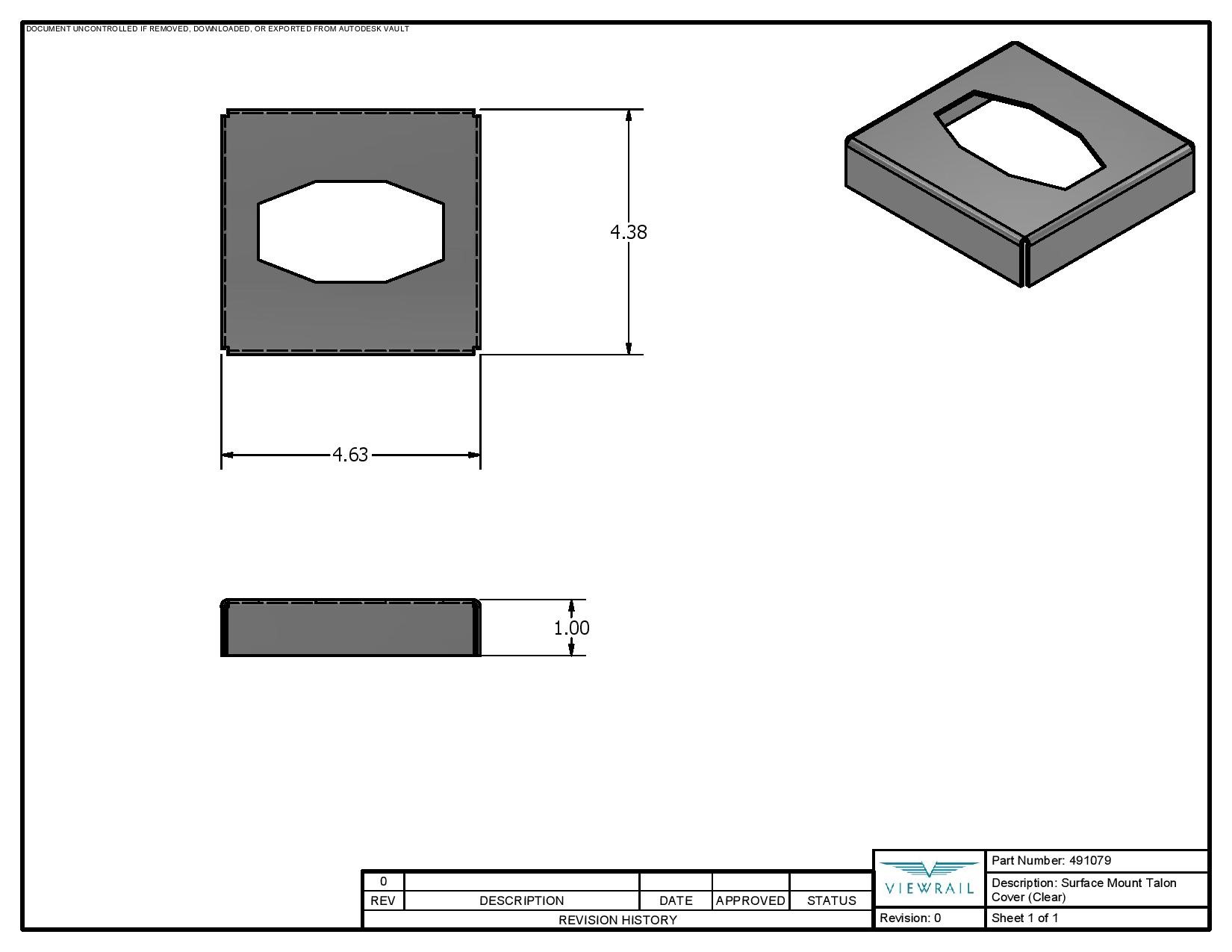

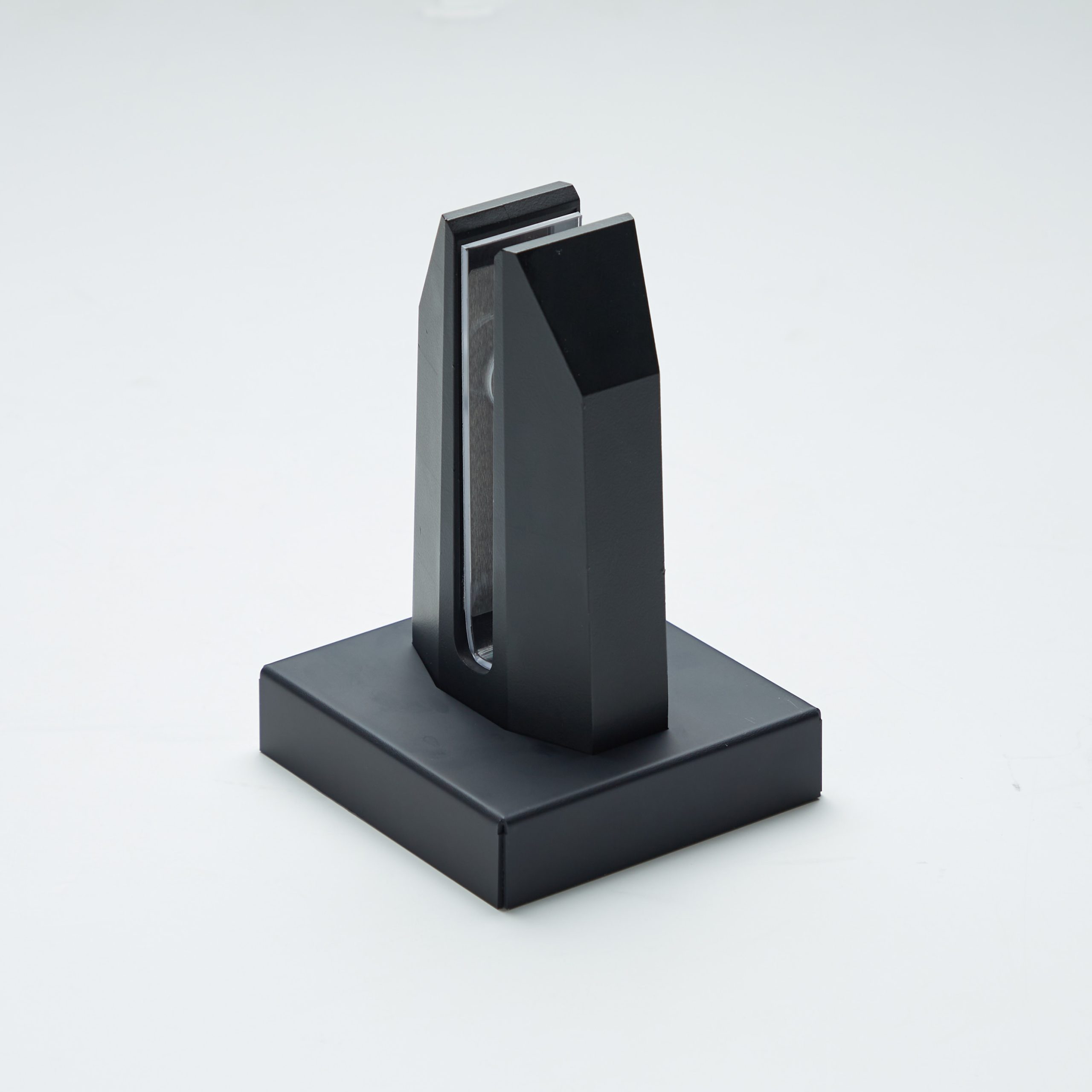

1- Aluminum Surface Mount Talon Foot Cover
1- Talon Gasket Polycarbonate
1- Steel Pressure Plate

*Install Hardware sold separately

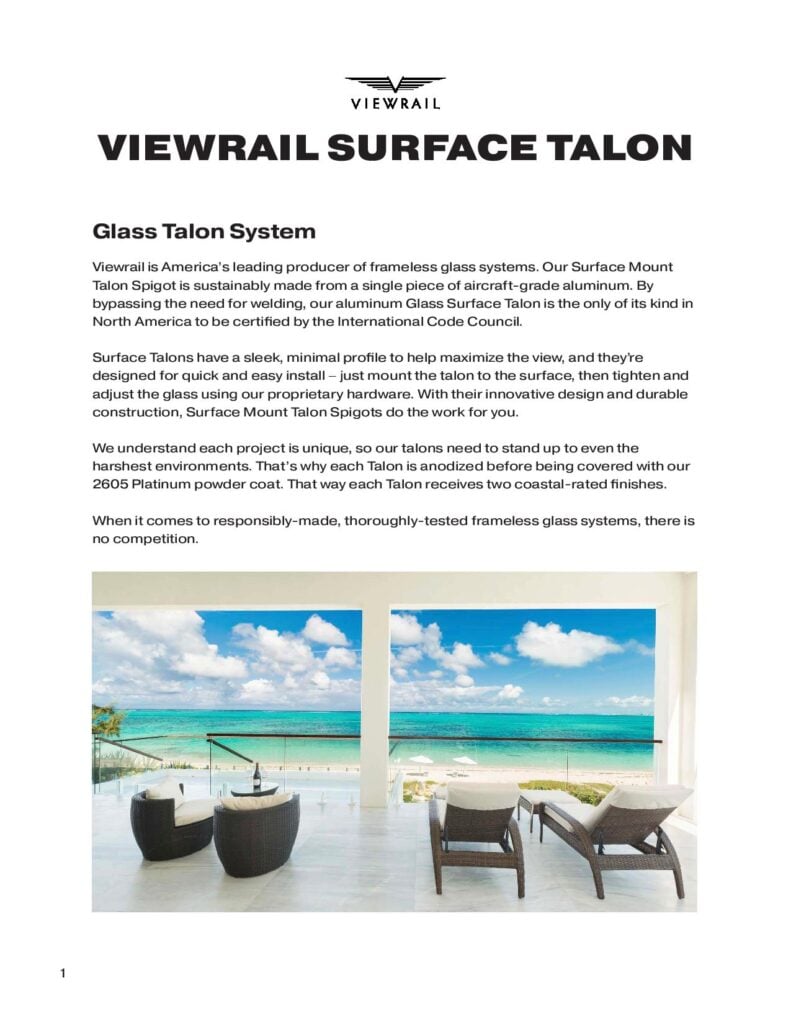

Product Specifications

ESR 4799 JPGSurface-Talon

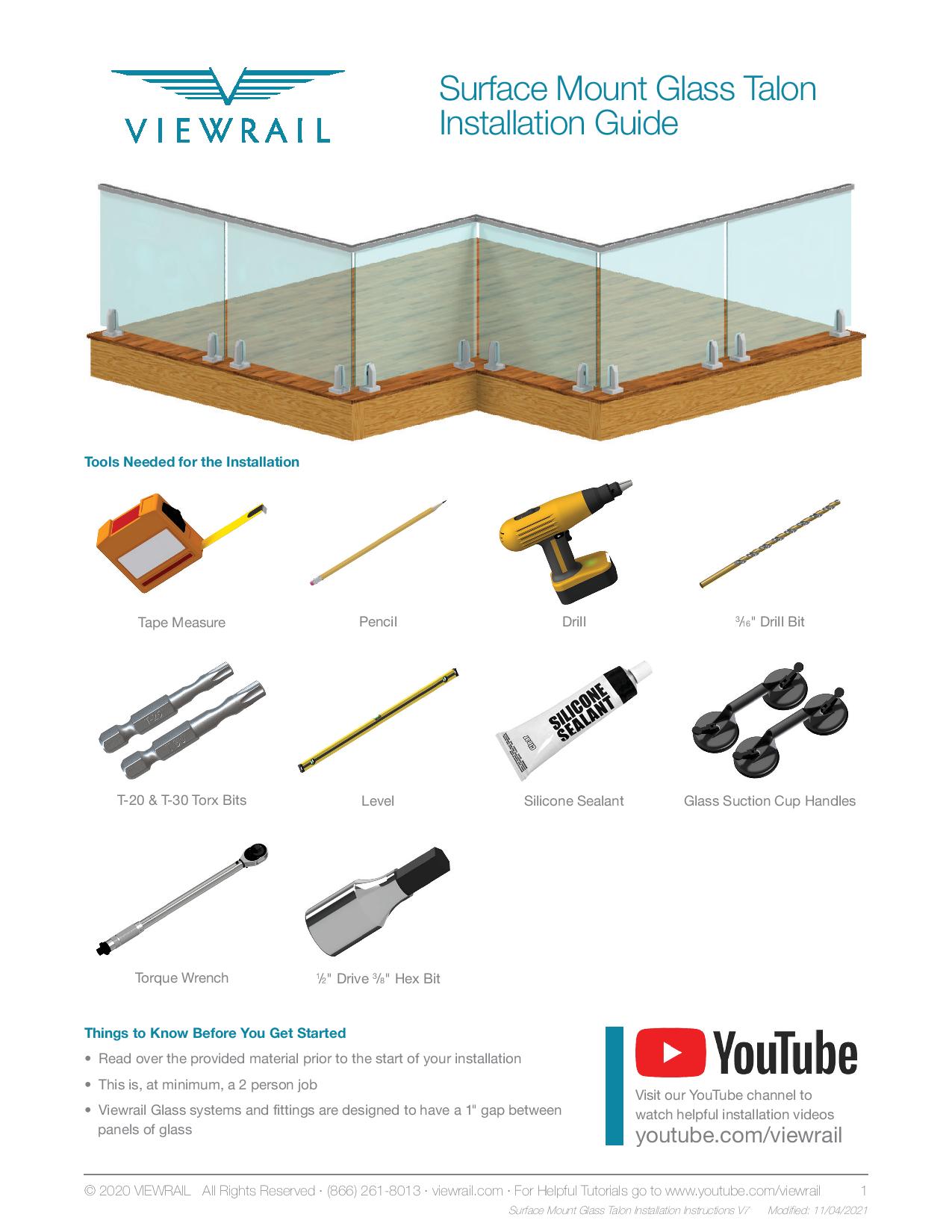

Installation Guide

Surface Mount Glass Talon Installation

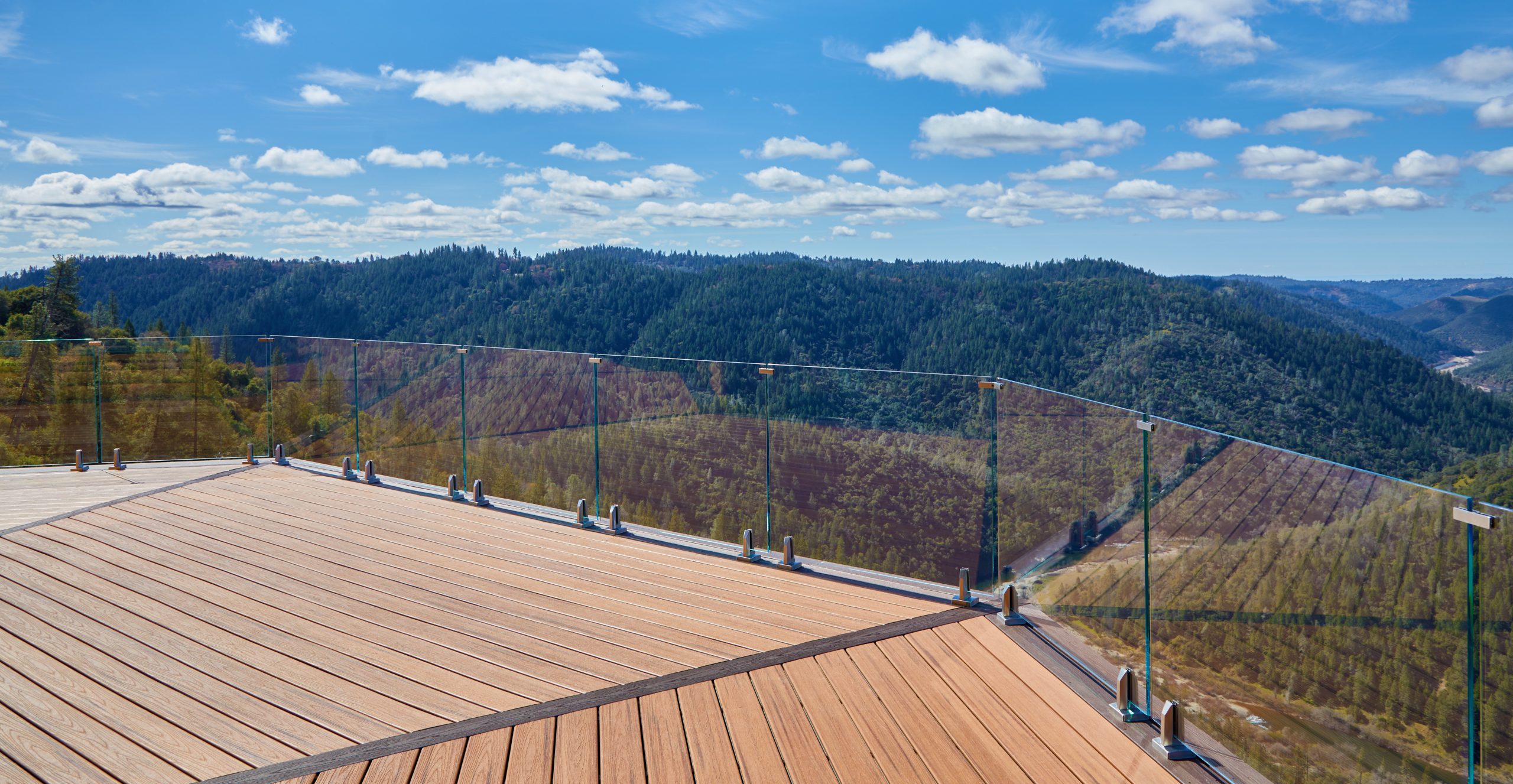

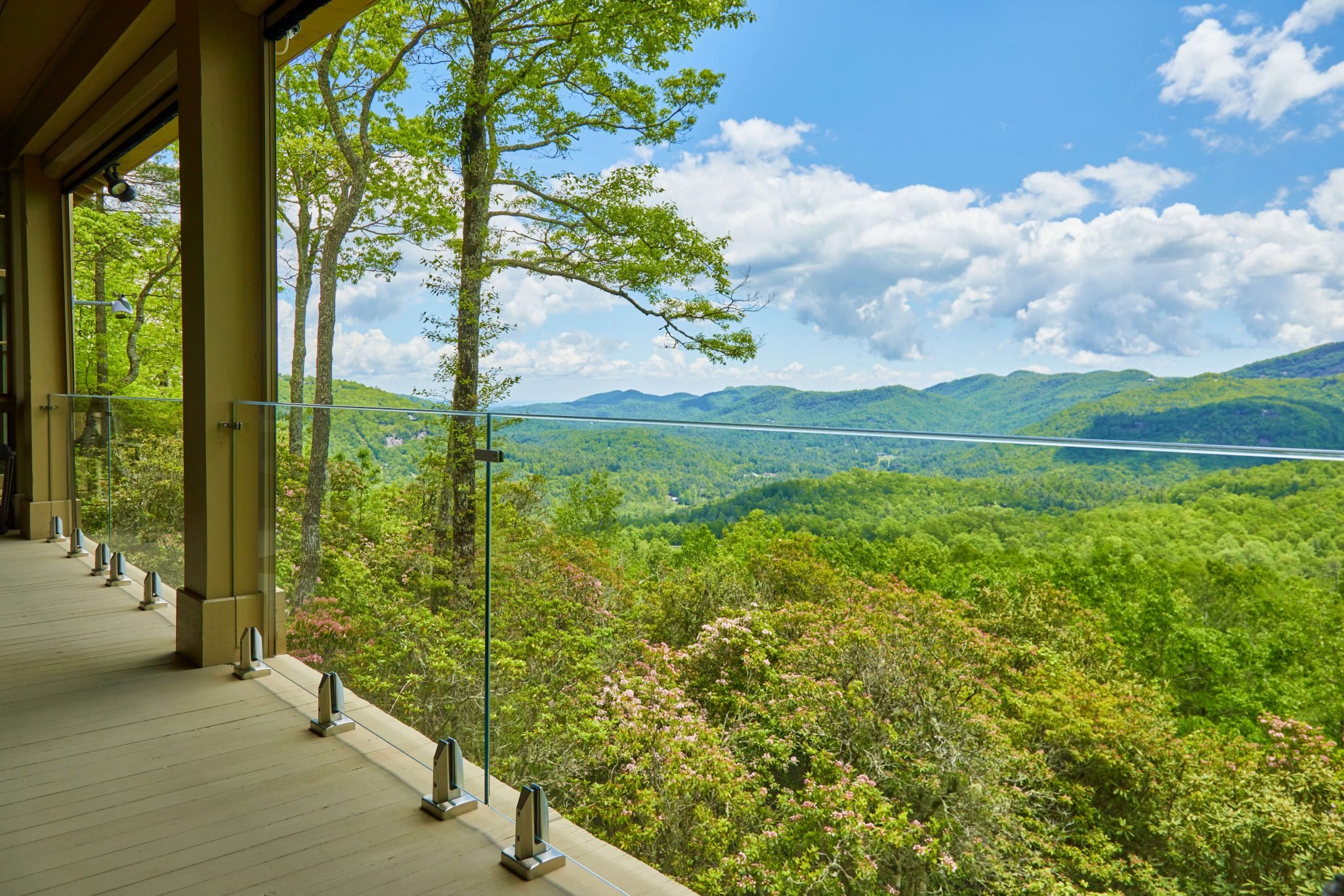

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A


    Guest
    Barbara Farnsworth
    3 years 10 months ago

    what is the height of this?

    Support
    3 years 10 months ago

    Hi Barbara,

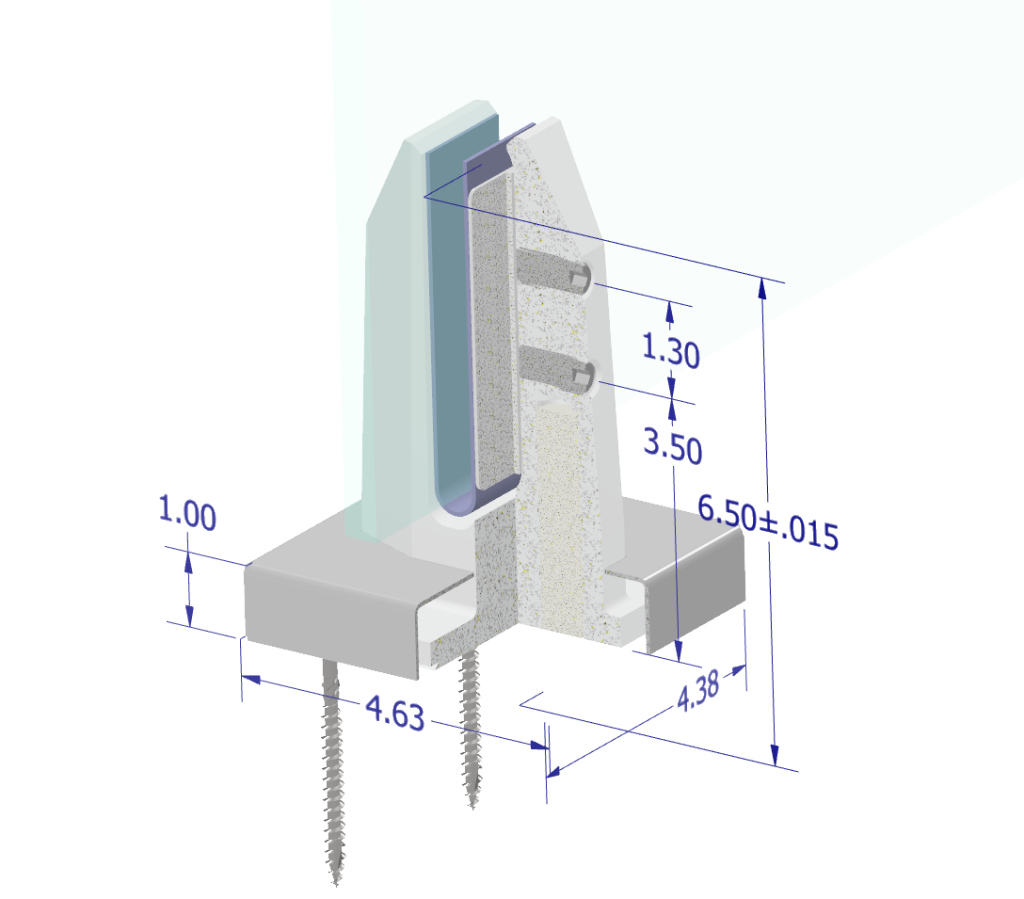

    The Surface Mount Talon Spigot stands 6-1/4″ off the mounting surface.

    Best,
    The StairSupplies Support Team

    Guest
    Mike
    3 years 10 months ago

    What is the maximum height for the glass if it is 48″ wide?

    Support
    3 years 10 months ago

    Hi Mike,

    We provide glass panels from 36″ to 42″ which covers the range of residential and commercial code in most places. Every municipality is different, however, and we cannot stress enough the need to verify with your local code official about the scope of work to be done in your project. If you have any additional questions, give our team a call at 1 (866) 226-6536.

    Best,
    The StairSupplies Support Team

    Guest
    Sam
    3 years 8 months ago

    Do these clamp to the glass or does the bolt go through the glass?

    Support
    3 years 8 months ago

    Sam, thanks for the question.

    Our talon spigots make for an easier installation because there is no need to pre-drill holes in the glass. They will clamp on and hold firmly.

    If you have any other questions, don’t hesitate to call our customer support line at (866) 226 6536.

    Best,

    StairSupplies Customer Support

    Guest
    Daniel
    3 years 6 months ago

    Hi,
    May this talon be used on stair threads (non-horizontal clamping)?

    Support
    3 years 6 months ago

    Daniel, thanks for the question.

    Our recommendation for angle glass installations is either post-to-post or stand-off pins.

    If you want to call one of our specialists at (866) 226 6536 they can walk you through all the options we can provide to achieve the look you want.

    Best,

    StairSupplies Customer Support

    Guest
    Jason
    2 years 10 months ago

    Would the finish on this be considered polished stainless or brushed stainless?

    Support
    2 years 8 months ago

    Hi Jason,

    The finish on this product would be closer to a brushed stainless steel.

    Thank you,

    StairSupplies Customer Support

    Guest
    mike merritt
    2 years 6 months ago

    can this be installed outdoors? can this be installed into existing concrete surface? can this be installed without the metal cap or stabilizers? just spigots and glass? thanks.

    Support
    Blake Royer
    2 years 6 months ago

    Hi Mike,

    Yes, this is an interior and exterior product. We do not recommend installation on concrete surfaces due to proximity of drill holes that can cause cracking. We recommend the entire package for safety and aesthetics. If you have more questions, give us a call at (866) 226 6536 and ask to talk with one of our glass specialists.

    Thanks,
    StairSupplies Customer Support
