4601 Raised Panel Ranch Newel


Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 15 Business Days

Product Description

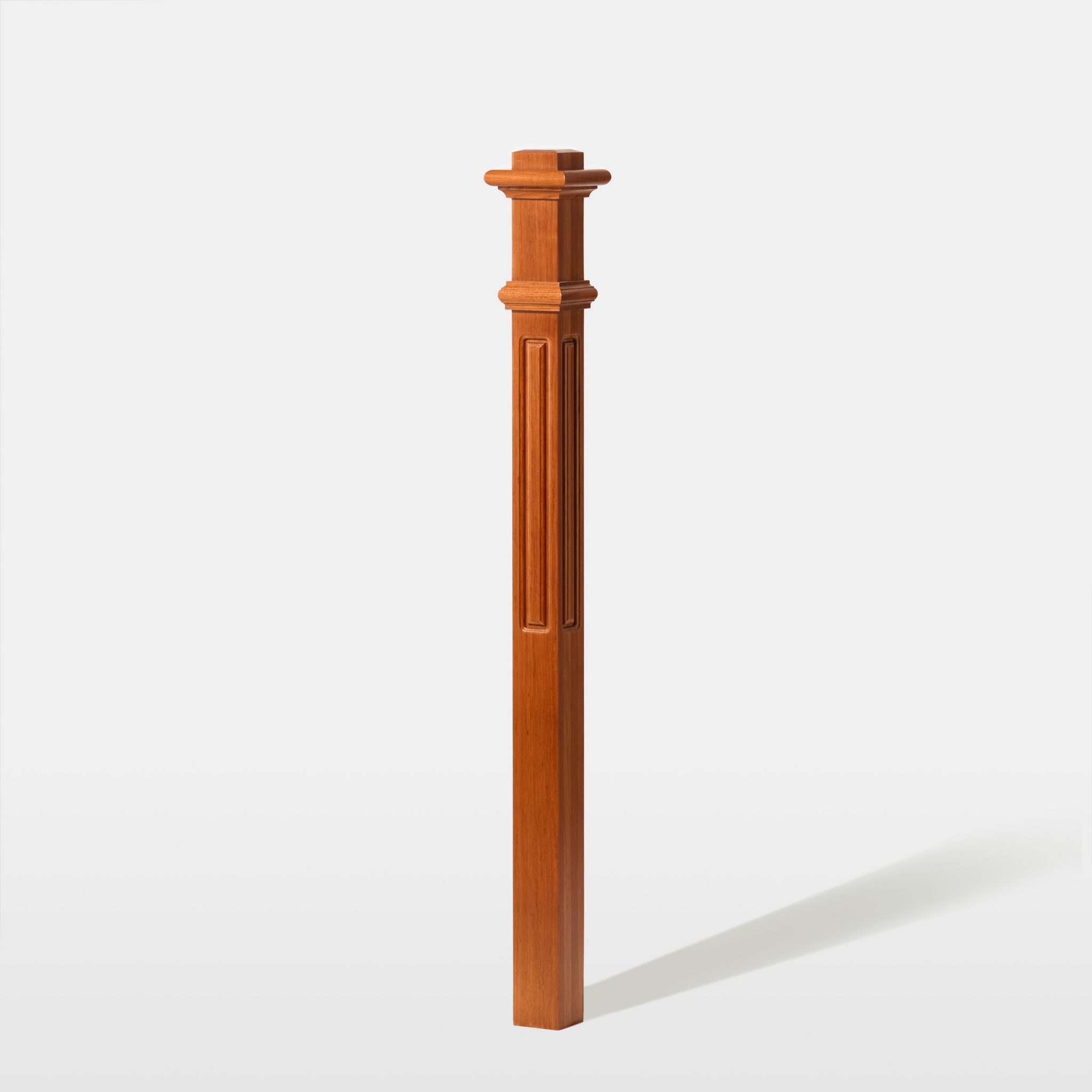

A classic in ranch newel design, the 4601 Raised Panel Ranch Newel is traditionally styled. This solid ranch newel is formed in your choice of Red Oak, Maple, Brazilian Cherry, Hickory, American Cherry, or another from our large selection of wood species. The raised panels of the 4601, in addition to the elegant shoulder trim and customizable cap, will make the stain-grade, natural wood an eye-catching delight.

Key Features

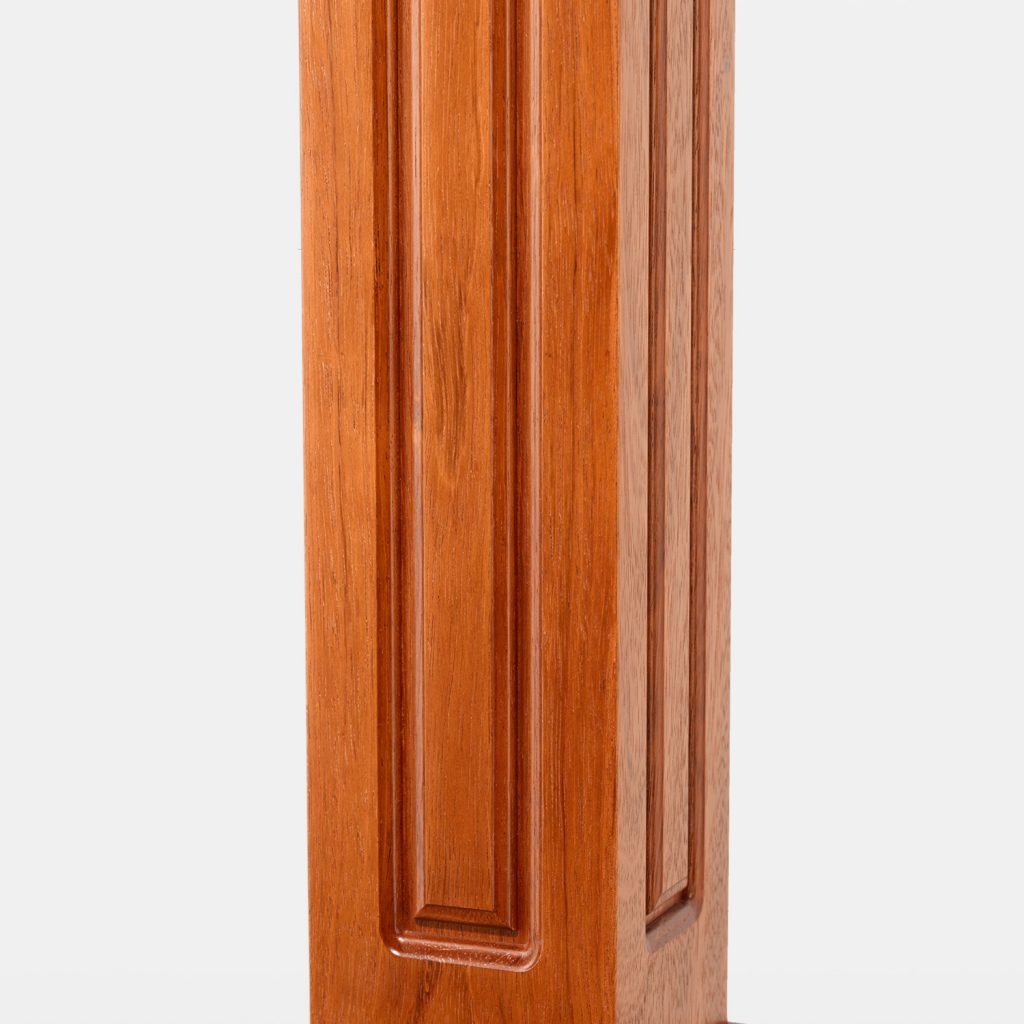

  • Raised Panel Detail

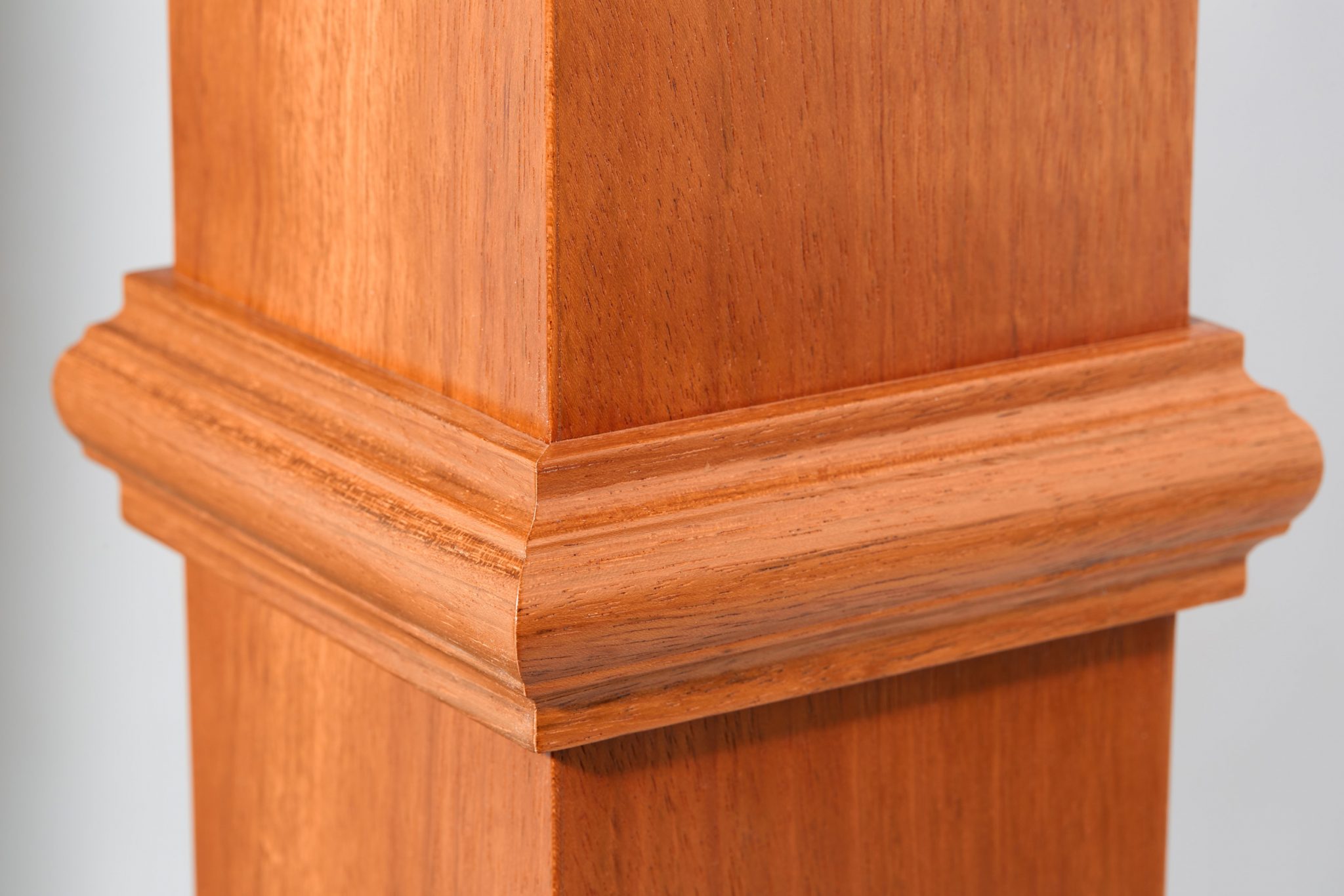

  • Shoulder Trim

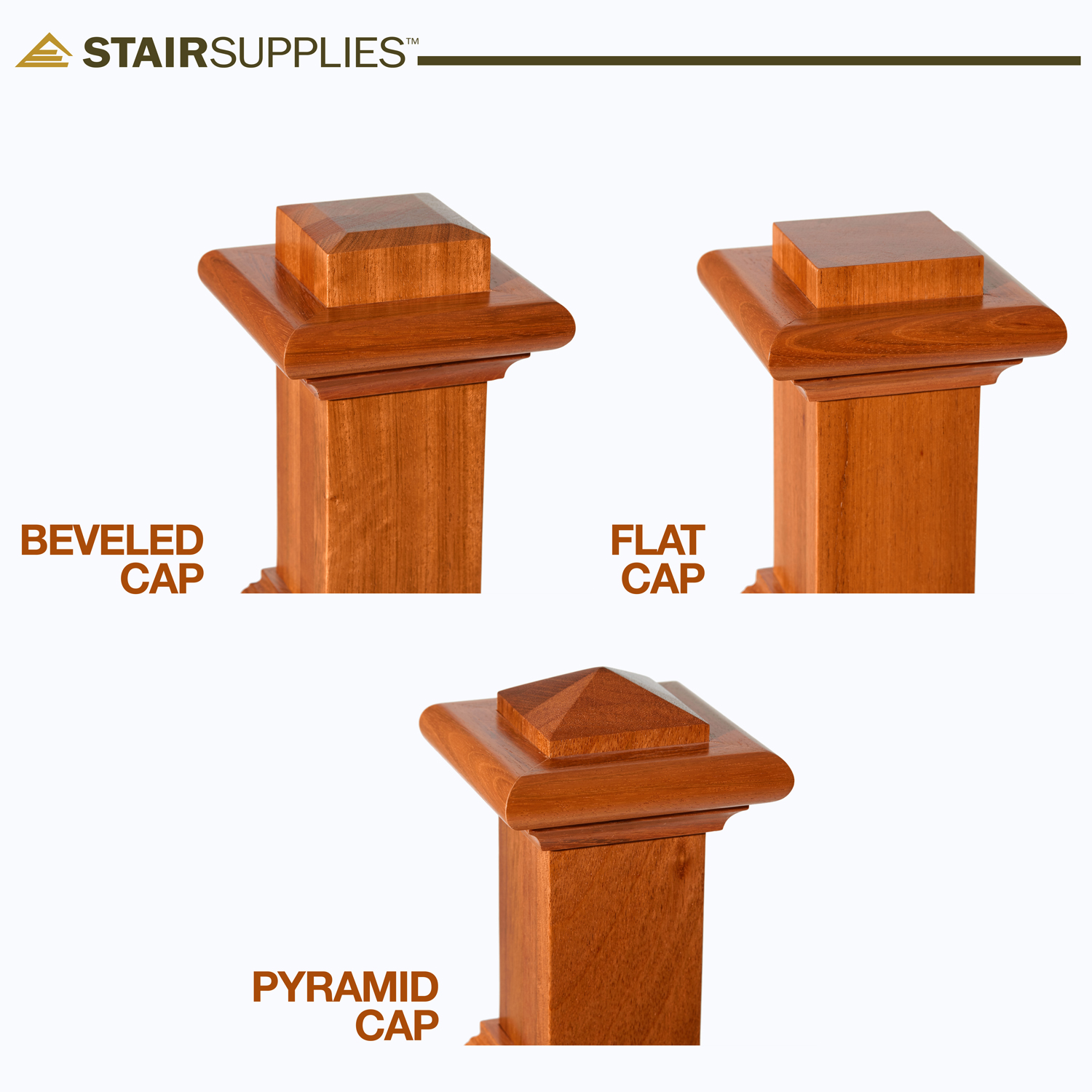

  • Customizable Cap
  • Solid Construction
  • Stain-Grade
  • Easy Install


Mounting System

When installing your 4601 Raised Panel Ranch Newel, you will need the Sure-Tite Newel Fastening System. Follow our Sure-Tite Installation Guide to establish a sturdy and secure fit. The 4601 may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Box Newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4601 Raised Panel Ranch Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Raised Panel Ranch Newel split in half, please select “Split in Half” in the drop-down menu above.


Product Specifications



  • Overall: 3 1/4″ x 3 1/4″ x 54″.
  • Space between Top & Shoulder Trim: 5”



  • Solid Construction
  • Edge Grain on 2 Sides


Clear Finish & Stain Information

StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For Box Newels, we offer both clear finishes and stains. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Box Newels.

All of our stained and clear-finished Box Newels will be coated with Pre-Catalyzed Lacquer. Using the same quality product that cabinet makers require, this lacquer is designed to resist the natural oils from hands. We use this lacquer on all of our products that will be consistently touched, such as handrails, balusters, and newels. This layer of protection will keep your Box Newels looking smooth and stain free for years to come.

Wood Grain & Color Variation

At StairSuppliesTM we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSuppliesTM, you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.

Installation Guide

How to install Sure-Tite

Product Q&A

Beth Yeagy
5 years 6 months ago

What are the dimensions of the raised panel? I see the the box is 3 1/4 inch, but do not see specifications on the raised panel itself.

5 years 6 months ago

Beth, thanks for the question.

The raised panel is 19 3/4 inches by 2 1/4 inches.

I hope that helps.


StairSupplies Customer Support

5 years 5 months ago

Is there any way to get this newell post in a longer dimension? Say 60″?

5 years 4 months ago

Thanks for the question Larry,

Custom orders are possible for some products, to find out if we can make this custom newel for you, call us at 1 (866) 226 6536 and one of our specialists should be able to let you know if this is possible and help you get it ordered to your exact specifications.


StairSupplies Customer Support
