4622 Primed Fluted Box Newel

4622 Primed Fluted Box Newel

Clear
Ships in approx: 24 Days

Product Description

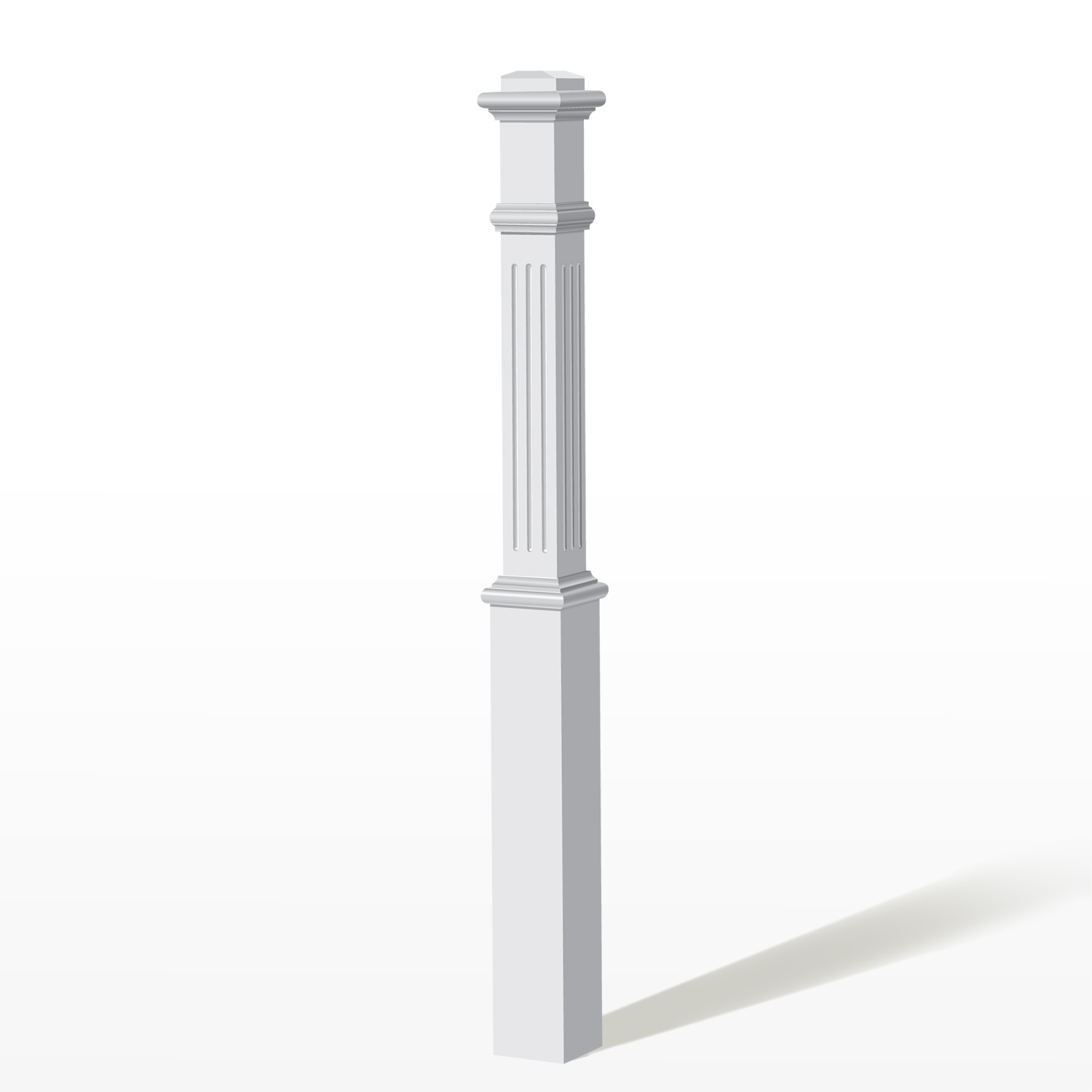

The 5” square 4622 Primed Fluted Box Newel is crafted with milled fluted details running parallel on each side. This newel is an appropriate size for smaller rooms or stairways that require multiple box newels. Fully primed, the 4622 is ready to be customized with your favorite paint color. Add the 4891 Primed Fluted Box Newel at the top or bottom of the stairway as a complementary accent.

Key Features

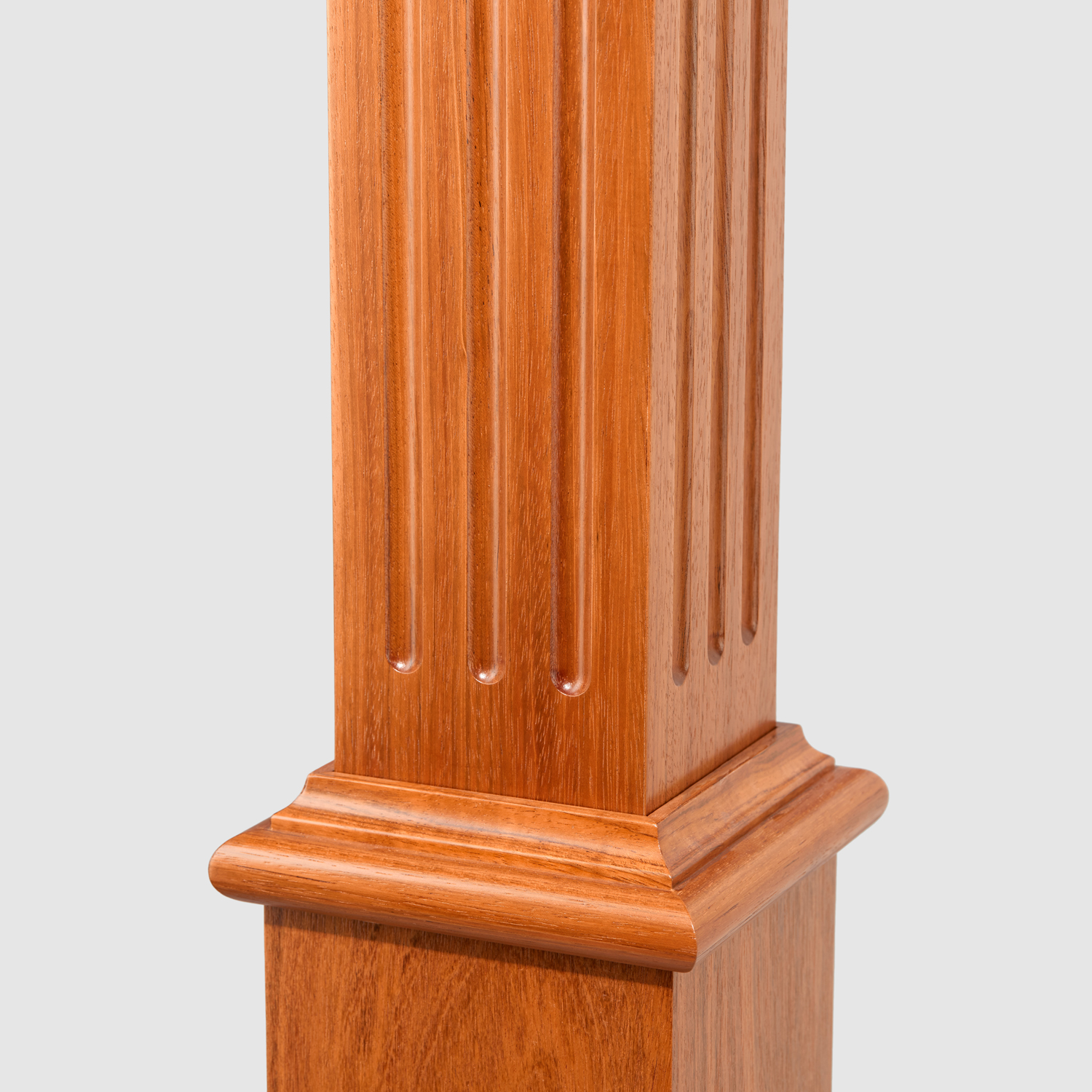

  • Fluted Details
  • Primed Newel Body

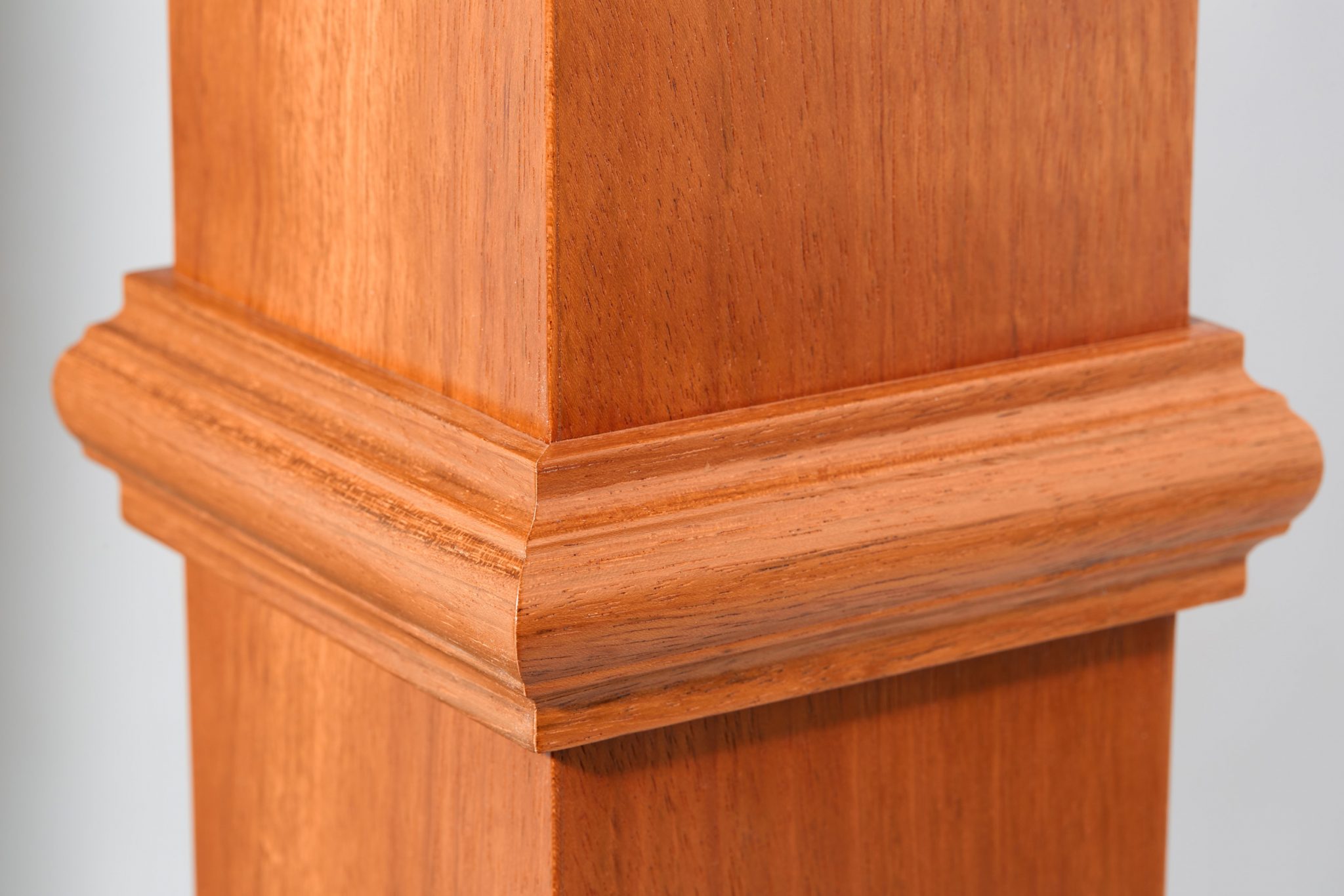

  • Primed Shoulder Trim

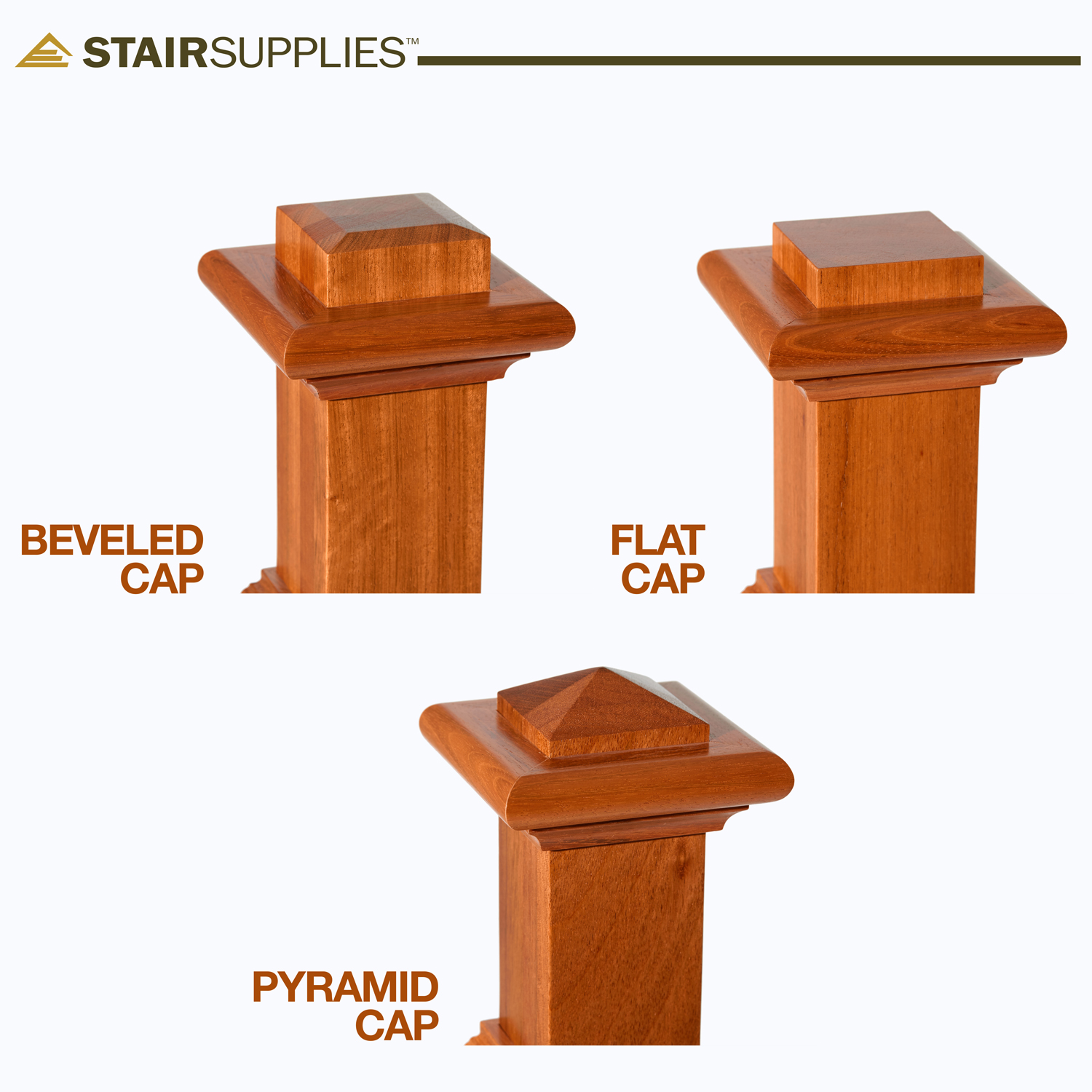

  • Customizable Cap
  • Easy Install

Mounting System

To install your 4622 Primed Fluted Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Box Newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4622 Primed Fluted Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Primed Fluted Box Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

Dimensions

  • Overall: 5″ x 5″ x 60″.
  • Bottom Block: 5″ x 5″ x 28″
  • Top Block: 3 1/2″ x 3 1/2″ x 32″
  • Space between Top & Shoulder Trim: 5″
  • Bottom Opening: 3 1/2″ x 3 1/2″

Composition

  • Bottom Block: Hollow, Soft Maple or Poplar, Primed
  • Top Block: Solid, Soft Maple or Poplar, Primed
  • The Top Block extends down into the Bottom Block approximately 8” for strength and stability

Primed Finish

These primed newels are painted with a white vinyl primer. Give the primed sections a quick, light sanding, and they can be painted to match your home.
