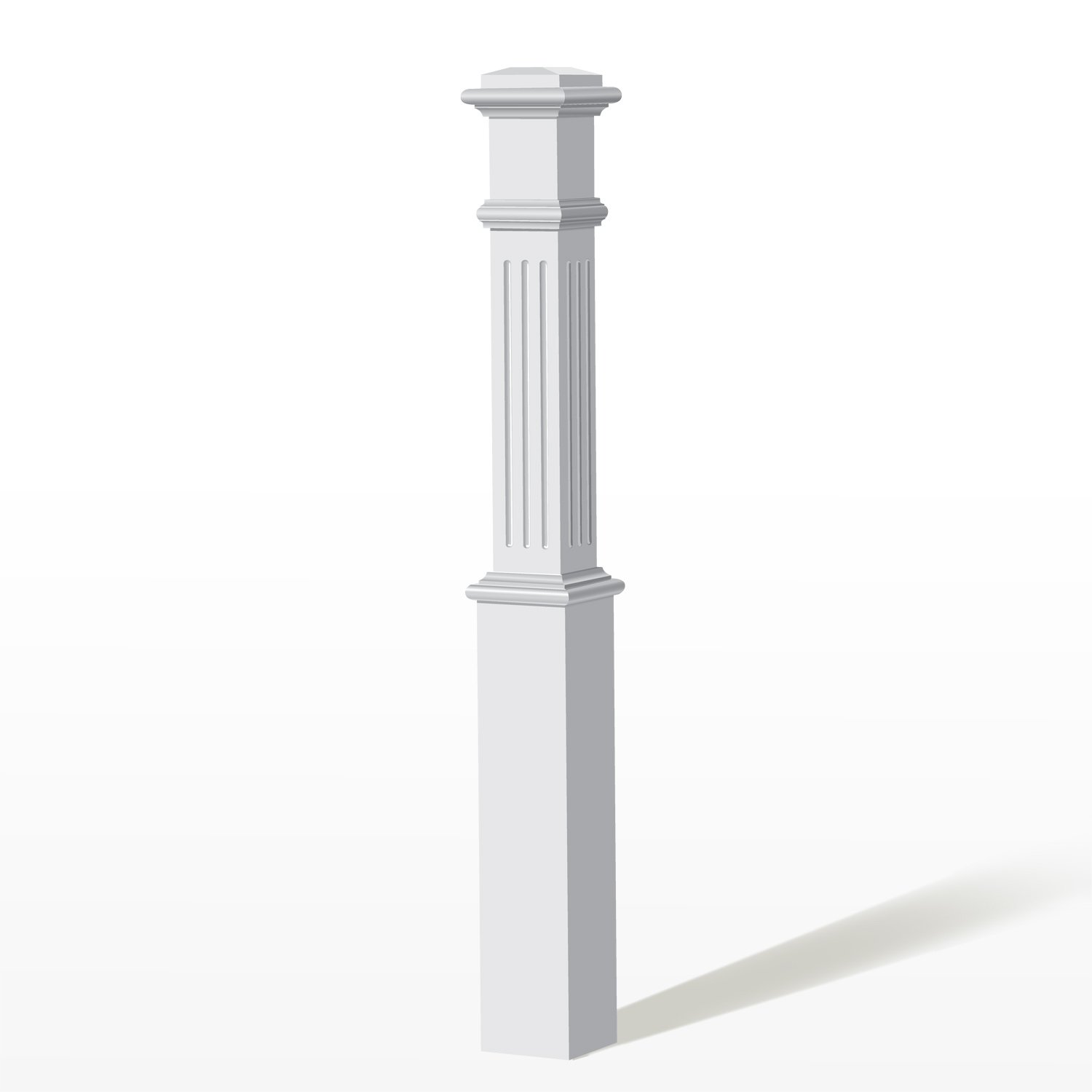

4891 White Paint Fluted Box Newel

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 15 Business Days

Product Description

Painted in our professional spray booth, the 4891 Painted Fluted Box Newel is artfully constructed, prioritizing strength and aesthetics. Beautiful milled fluting add texture and style. Personalize the 4891 newels with the paint color of your choice for a customized result. If you are interested in adding smaller, complementary newels, consider the 4622 Painted Fluted Box Newel.

Key Features

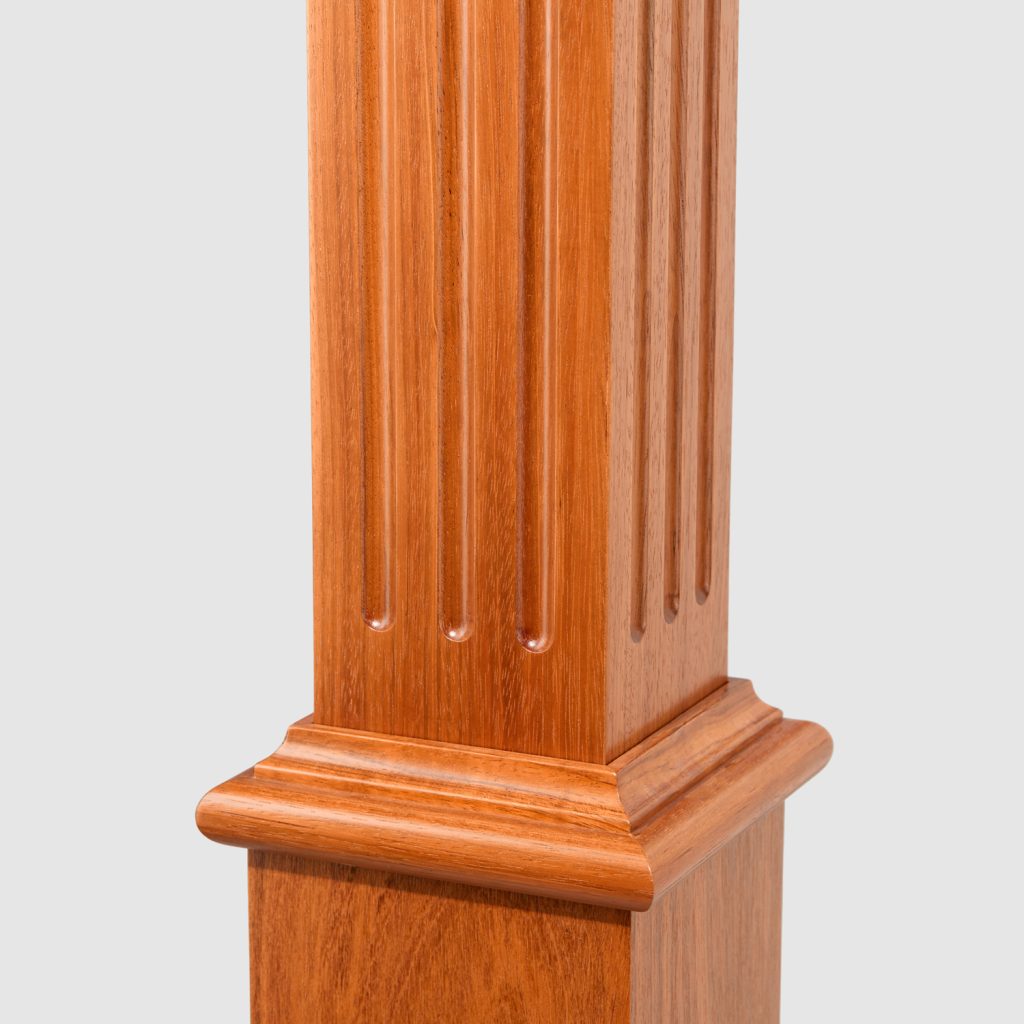

  • Fluted Details
  • Large, Painted Newel Body

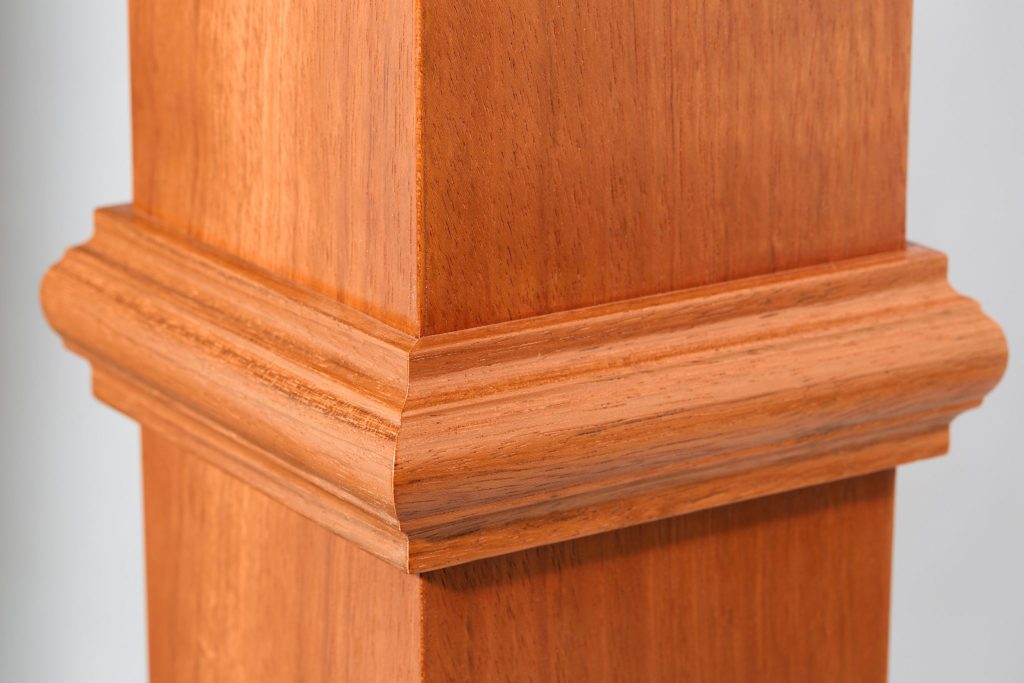

  • Painted Shoulder Trim
  • Customizable Cap
  • Easy Install

Mounting System

To install your 4891 Painted Fluted Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Box Newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4891 Painted Fluted Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

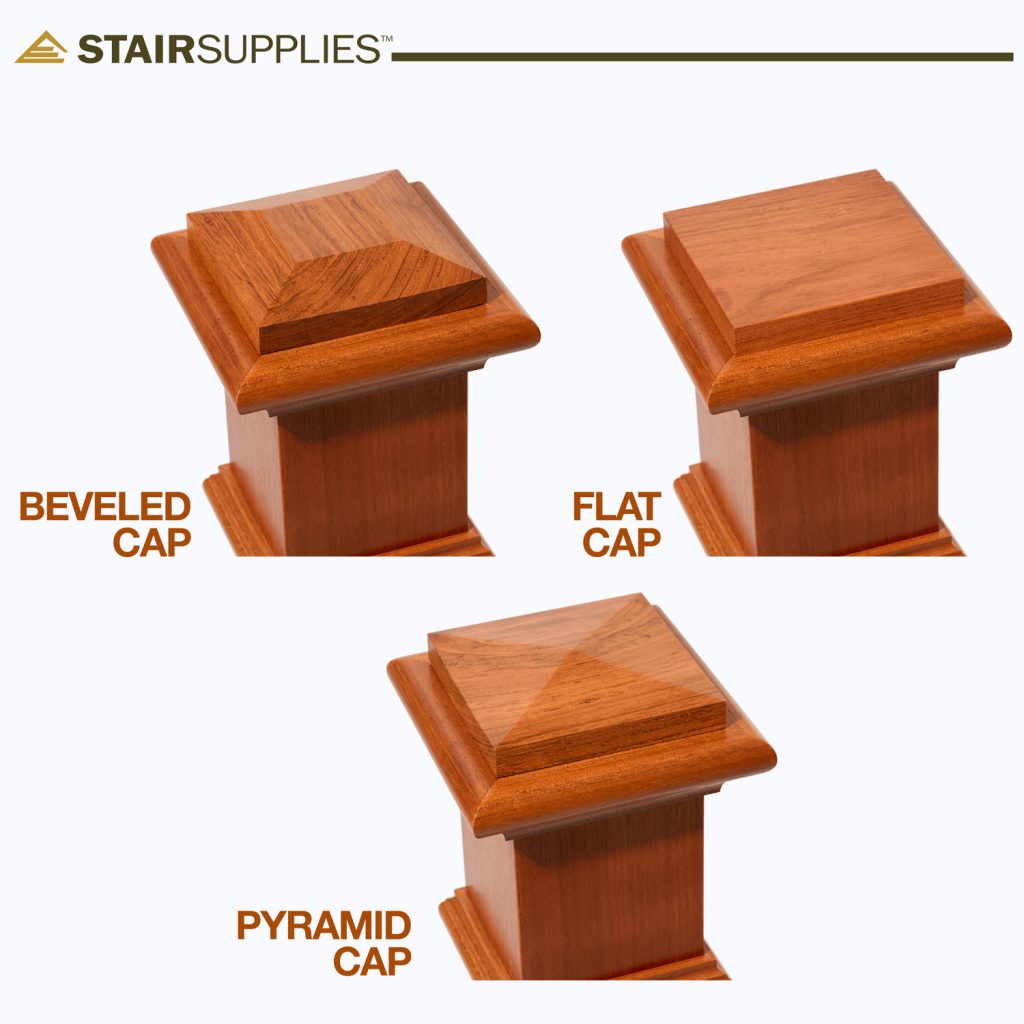

Cap Attachment

The cap for this box newel is sent unattached to the newel body, allowing easy access for mounting handrail. Then, after handrails are attached, the cap can be secured on-site by applying a bit of wood glue and finishing nails for increased strength.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Painted Fluted Box Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

Product Dimensions

  • Overall: 6 1/4″ x 6 1/4″ x 60″
  • Bottom Block: 6 1/4″ x 6 1/4″ x 28″ tall
  • Top Block: 4 3/4″ x 4 3/4″ x 32″ tall
  • Space between Top & Shoulder Trim: 5″
  • Bottom Opening: 4 3/4″ x 4 3/4″

Composition

  • Bottom Block: Hollow, Soft Maple or Poplar, Primed
  • Top Block: Hollow, Soft Maple or Poplar, Primed
  • The Top Block extends down into the Bottom Block approximately 8” for strength and stability.

Primed Finish

These primed newels are painted with a white vinyl primer. Give the primed sections a quick, light sanding, and they can be painted to match your home.

Installation Guide

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A


    Guest
    David Cosby
    7 years 2 months ago

    Suitable for exterior stairs?

    Guest
    StairSupplies
    7 years 2 months ago

    Hi David,

    This box newel is not suitable for exterior conditions. If you purchased an unfinished White Oak newel and let us know that you intend to use it for exterior use, we could manufacture it with exterior glue. However, you would need to do the priming & painting on site. If you’re interested, please call us or email [email protected].
