Cable Angle Tension Kit

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 1 Business Day

Product Description

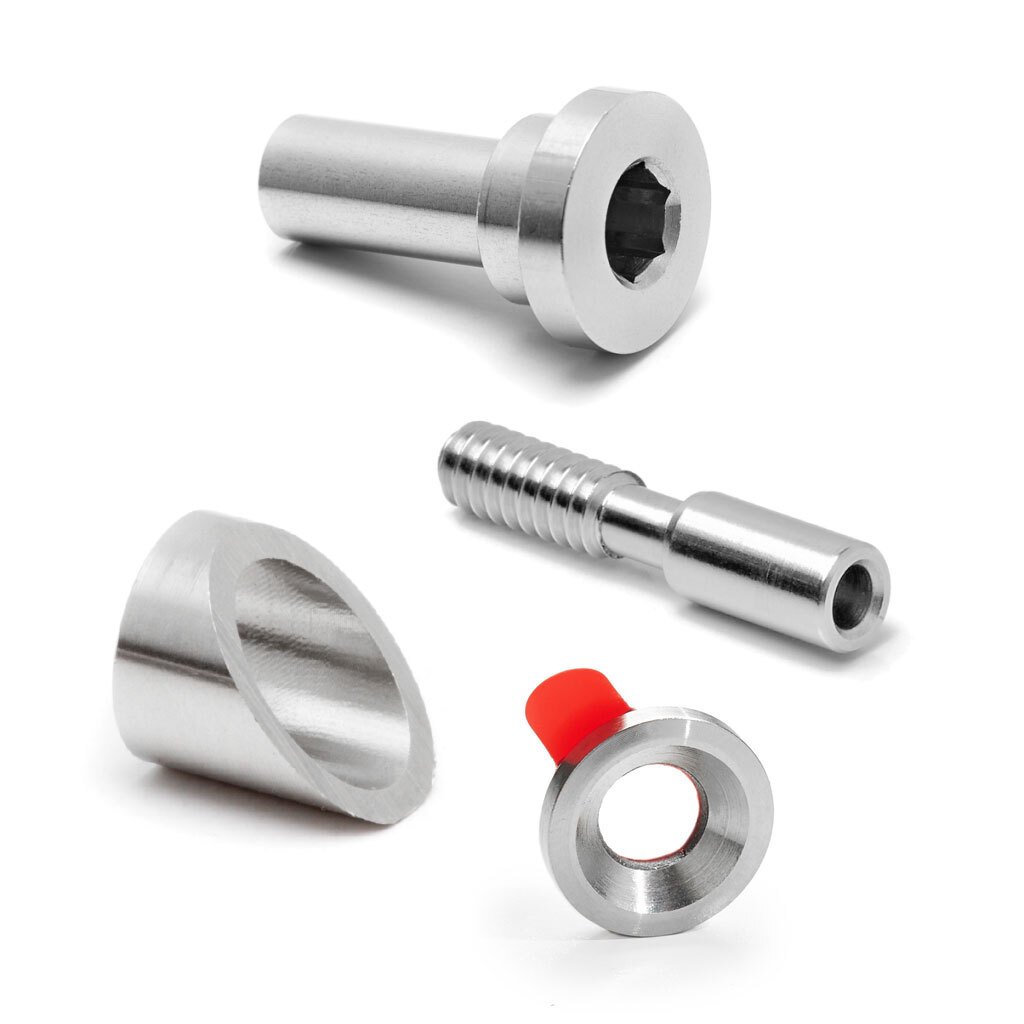

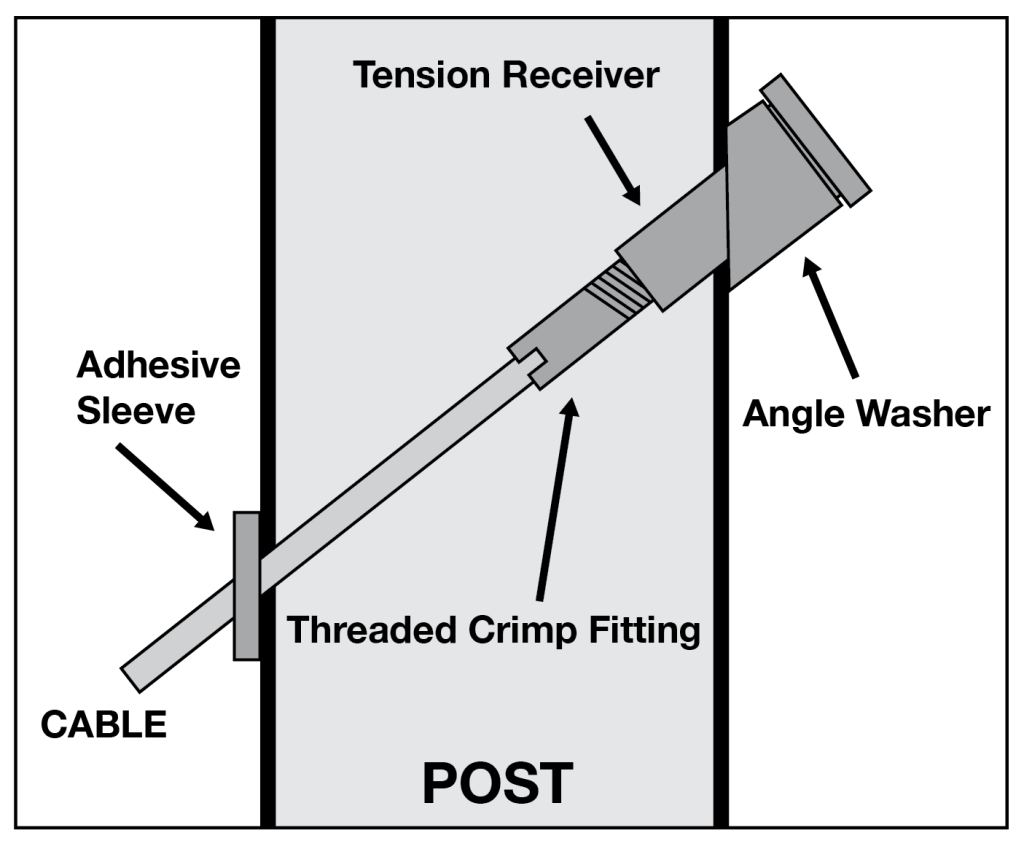

The Angle Tension Kit contains everything you need to be able to tension one end of a run of cable going at an angle.*

1 – Tension Receiver
1 – Threaded Crimp Fitting
1 – Angle Washer  [Select the angle that matches your stairs]
1 – Angle Adhesive Sleeve

These components are crafted from marine-grade 316 stainless steel for lasting beauty and strength. If you are purchasing our 36″ tall posts purchase a 10 pack for each tensioning post. For 39″ posts purchase a 11 pack, and for 42″ posts purchase a 12 pack. Used for “B” Up, “B” Down, “D”, or “I” posts.

*You will need to purchase a kit for the other end of your cable, either another Level Tension Kit, an Angle Tension Kit (for starting or ending on a staircase), or an Inside Post Mount Kit (which is used in our C, F, H & J posts to begin a cable run inside the post). We highly recommend using our Cable Rail Tool Kit to install this product.

Product Specifications

Cable Tension Receiver

20 Degree Cable Washer

25 Degree Cable Washer

30 Degree Cable Washer

35 Degree Cable Washer

37 Degree Cable Washer

40 Degree Cable Washer

45 Degree Cable Washer

Installation Guide

Cable Rail Install Guide

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A


    Guest
    Andrew
    8 years 1 month ago

    What angle is this designed for?

    Guest
    Stair Supplies
    8 years 1 month ago

    They are designed to work between 20 degrees to 45 degrees. If your staircase falls outside of that range we can provide you with angle washers to accommodate other angles. Just let us know in the notes of your order and we’ll substitute the correct items for no additional charge.

    Guest
    Marlene McBurnie
    6 years 8 months ago

    How many pieces make up the angle kit & what is the cost of cable if sell it.

    Guest
    Stair Supplies
    6 years 8 months ago

    Hi Marlene.

    One angle tension kit comes with 1 Tension Receiver, 1 Angle Washer, 1 Threaded Crimp Fitting, and 1 Adhesive Sleeve. You can check out our cable product page for information on pricing for our 100 & 400 foot spools. Please let us know if you have any additional questions!

    Guest
    Buford Hatcher
    6 years 7 months ago

    What is the maximum run of cable per tension kit and how much do I need to leave extra when I cut cable?

    Guest
    StairSupplies
    6 years 7 months ago

    Hi Buford,

    The maximum run length that we recommend is 80′. For installation instructions for the level and angle tension kits, you can refer to page 8 of the Installation Guide. Please let us know if there’s anything else we can help you with!

    Guest
    Robin Carter
    6 years 5 months ago

    I am considering using your cable railing system and would like to use my own metal post. Will 1 1/2 inch square metal post work with VR294 and VR 290? When using VR294 do I need to drill the holes on an angle or can I offset the holes on each side of the post?

    Guest
    Caleb Morris
    6 years 5 months ago

    Robin,

    We can’t recommend using 1 1/2″ posts because of concerns about their structural integrity. Further, you will likely have components that are sticking out of your posts, which means that you will not be able to use the insert or adhesive sleeves to hide the tension components.

    As far as drilling holes, you will be able to get by with 1/2″ holes drilled straight. For our angle posts, we drill a special size that is actually a 3/8″ hole and a 5/16″ holes that are slightly overlapping, but that is mainly so that the adhesive sleeve works correctly. Since you likely won’t be using the adhesive sleeves, you should be good with just 1/2″ holes.

    Also, I’d recommend buying just the components rather than a whole kit since you won’t be utilizing the sleeves. You can find the tension receiver and threaded crimp fitting here and the angle washer here.

    Let us know if we can offer you any more assistance.

    Guest
    Natalia Zelenskaya
    5 years 7 months ago

    Does this fit only square posts or can be used for round posts as well?

    Guest
    StairSupplies
    5 years 7 months ago

    Hi Natalia,

    All of our components are designed to work with our 2″ x 2″ square posts. If you have additional questions, feel free to give us a call at 1 (866) 226-6536.

    Best,
    The StairSupplies Support Team
