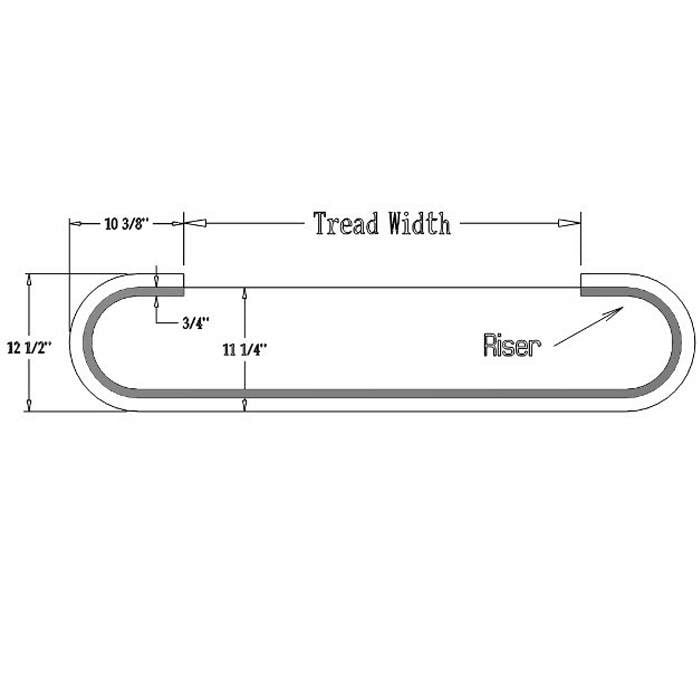

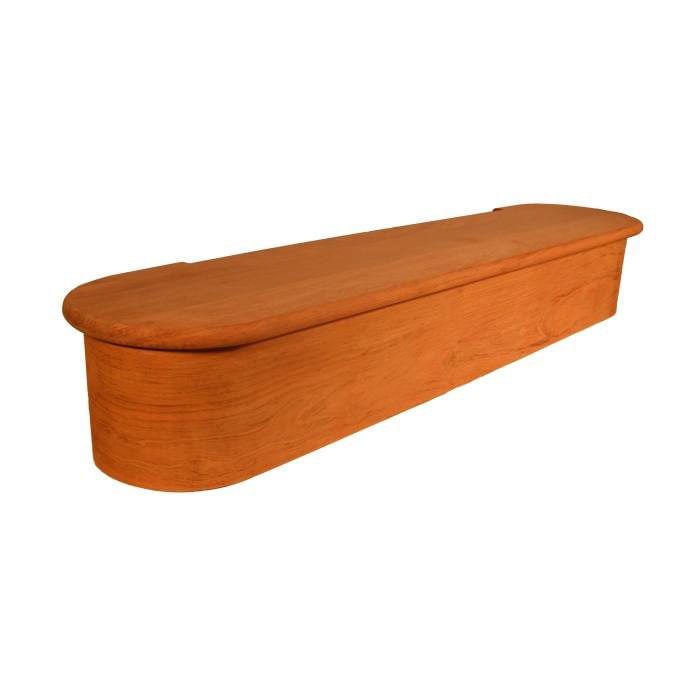

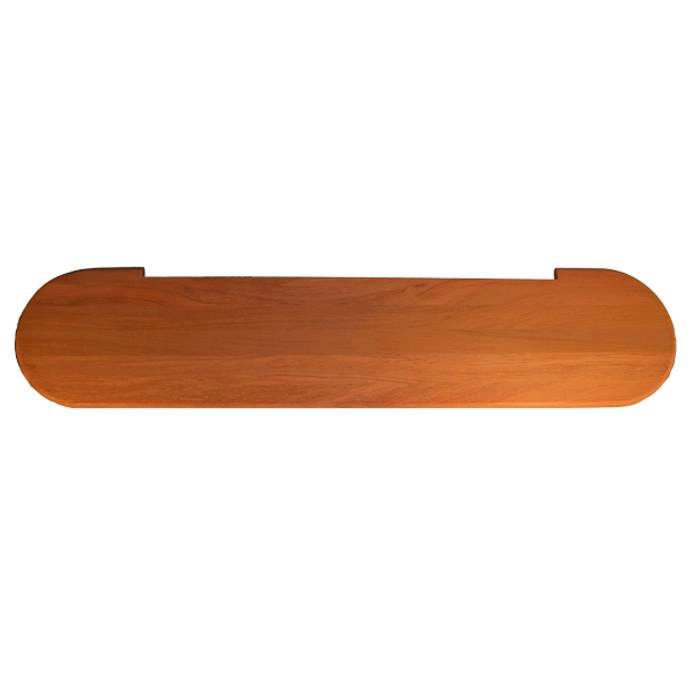

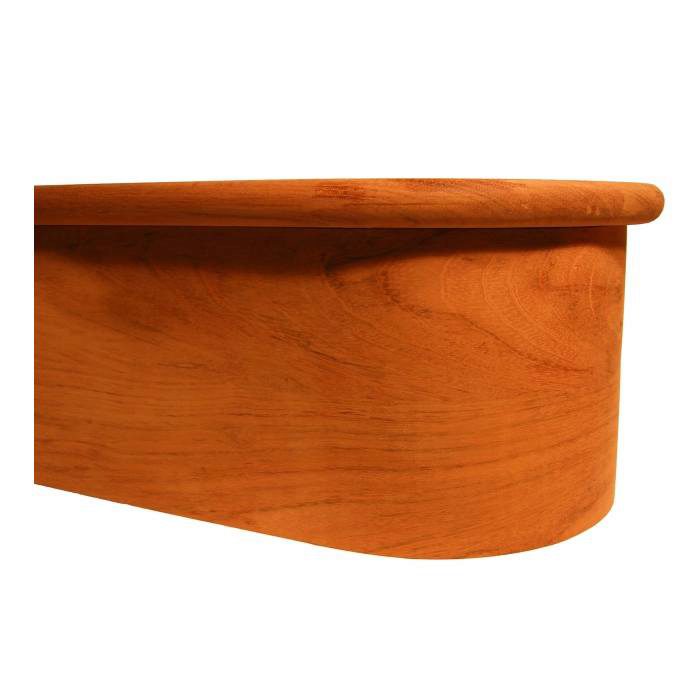

The 8010 is used as the first step for a stairway. You can order this starting step as a single end where only one end is rounded or as a double end with both ends rounded. The single end product is designed where one end runs into the wall and the other end is rounded to accept a volute. The double end product is built to accept volutes on both ends. Starting steps are measured from the inside of the notch to the inside of the notch on the other end (this is called the Throat Cut). The overall length of the product is more than the size ordered by the amount of the round parts on the end or ends. The curved riser under the starting step is 7 1/2″ tall. The diameter of the rounded ends on the tread is 12 1/2″.
Special options for starting steps:
All starting step treads can be hand scraped for an additional 30%.
All starting step risers can be made paint grade for a 20% saving.
Either put notes in your order, or call to place your order.

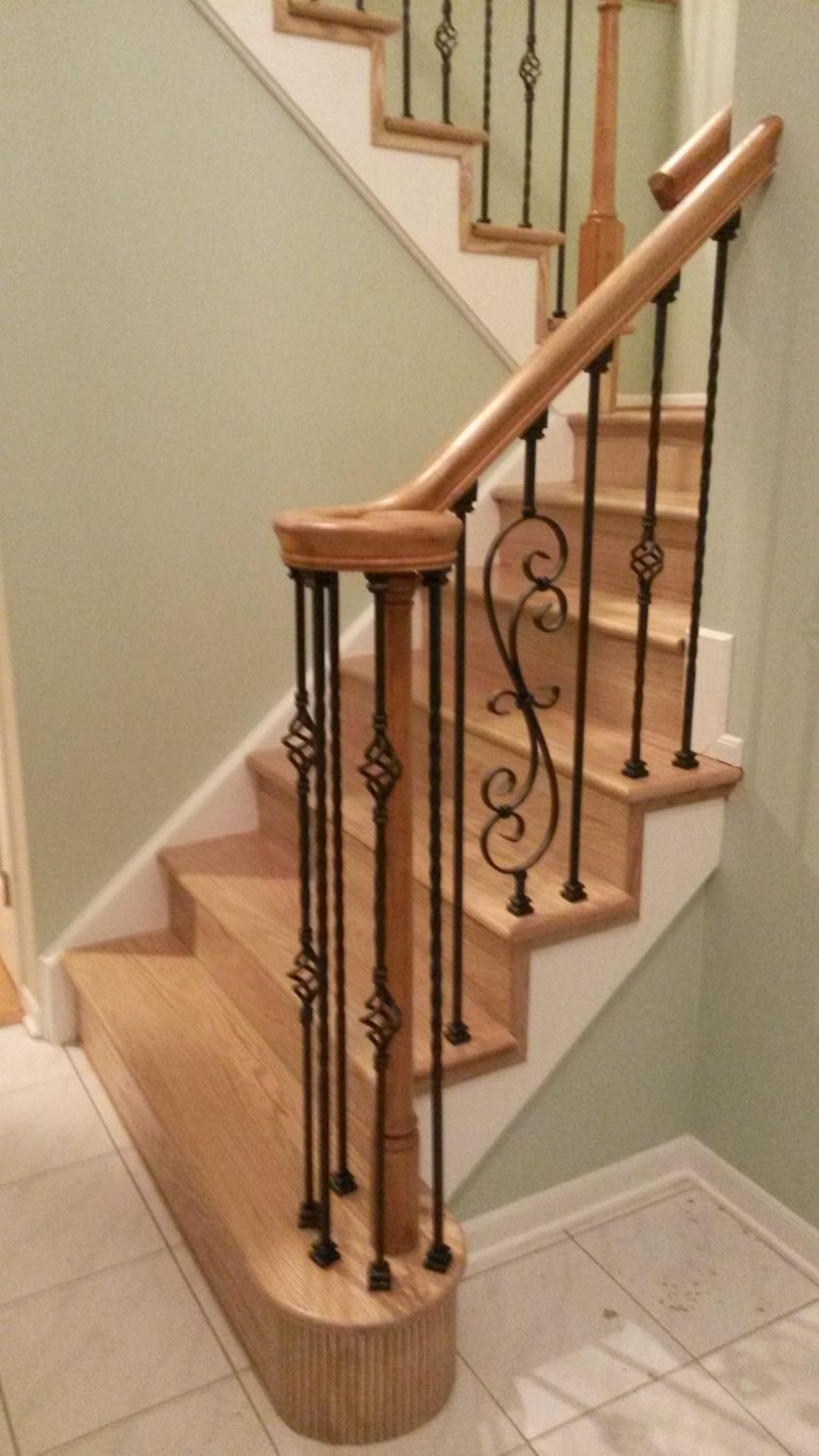

This product has been used in the following "Completed Projects"
Does the starting step come fully assembled, or does it come in pieces? Do you have an exploded view of the pieces? Thank you!
It doesn’t come fully assembled, it comes in two pieces. The riser (which has supports in the ends to ensure it maintains the rounded shape), and the tread. Unfortunately we don’t have any other pictures of this item. Please let us know if you have any other questions.
What is the thickness of the tread?
Hi, do you sell the riser separately? I am looking for a paint-grade riser with 45 in throat and a 6.5 in rise. It needs to fit the tread I have, which is 66 in in total length with a diameter at the ends of 13.75in and tread depth of 11.25in. How much would that cost for product and shipping? Thanks!
Thank you for your question, Andrew. We can indeed sell a riser separately. Please contact us directly at firstname.lastname@example.org to discuss pricing.
