4606 Chamfered Box Newel

4606 Chamfered Ranch Newel

Clear
Ships in approx: 12 Days

Product Description

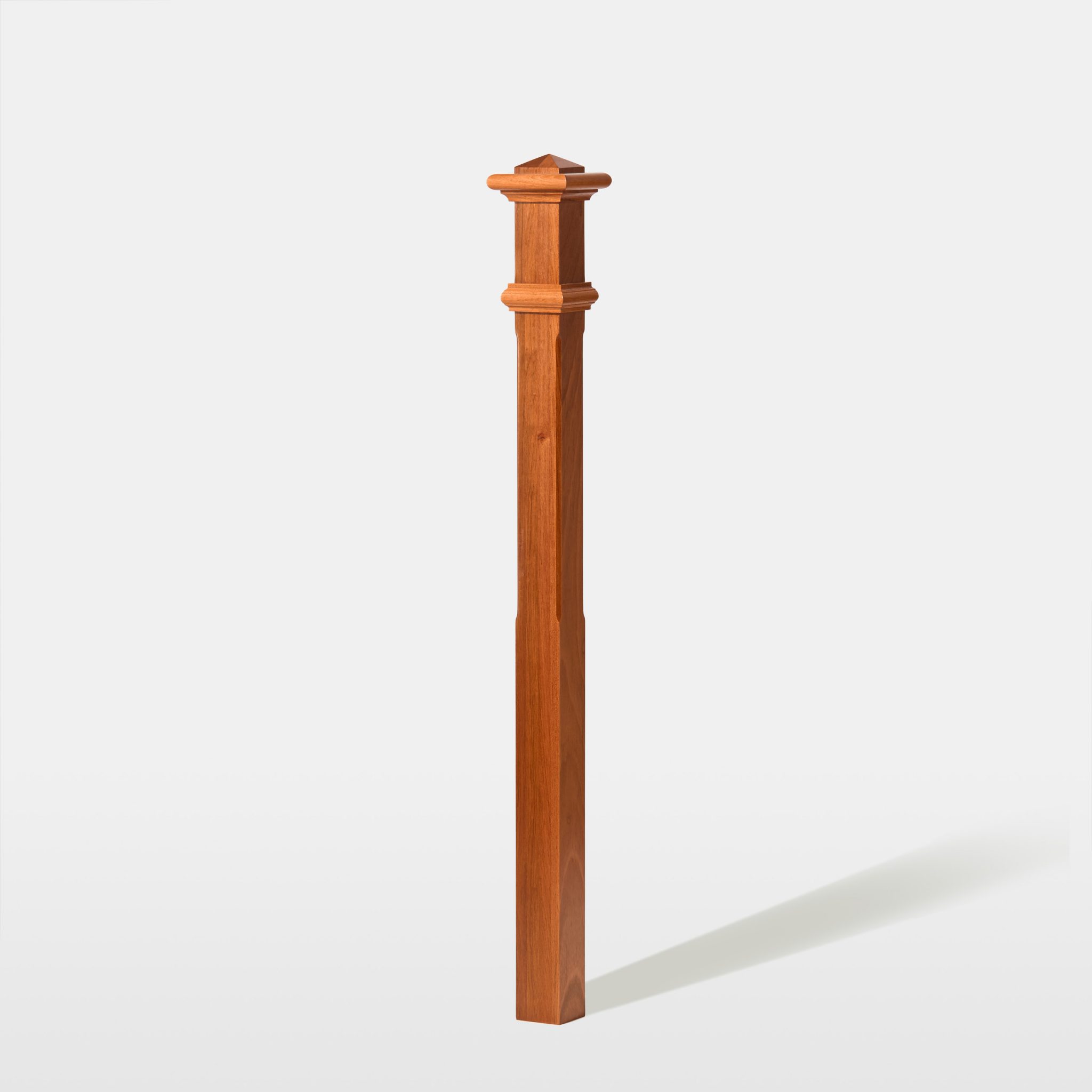

Mature and sophisticated in appearance, the 4606 Chamfered Ranch Newel provides detail without overpowering the senses. Simple to install, this solid box newel is available in a variety of wood species, such as Red Oak, Maple, Brazilian Cherry, Hickory, and many more. Select a beauty-enhancing stain and finish for further customization. Enjoy your classy Chamfered Ranch Newel for years to come.

Key Features

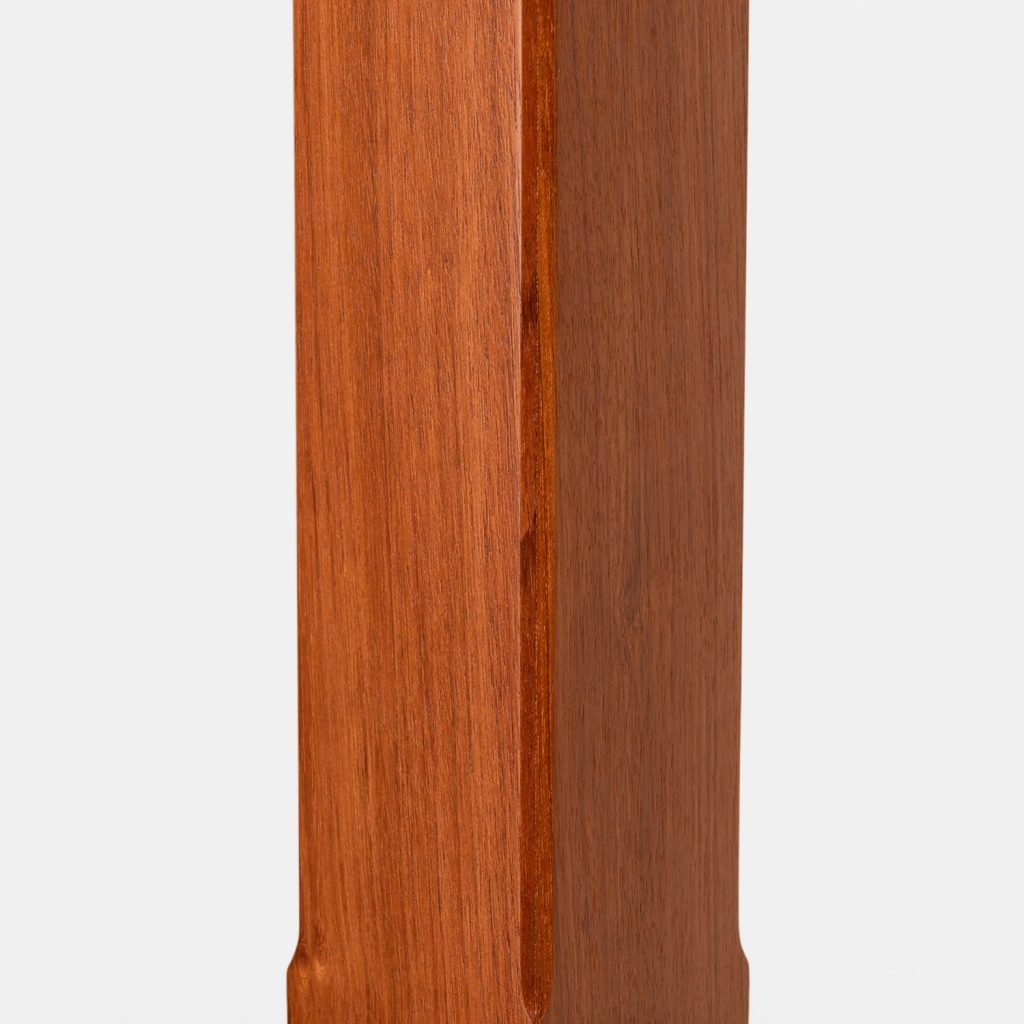

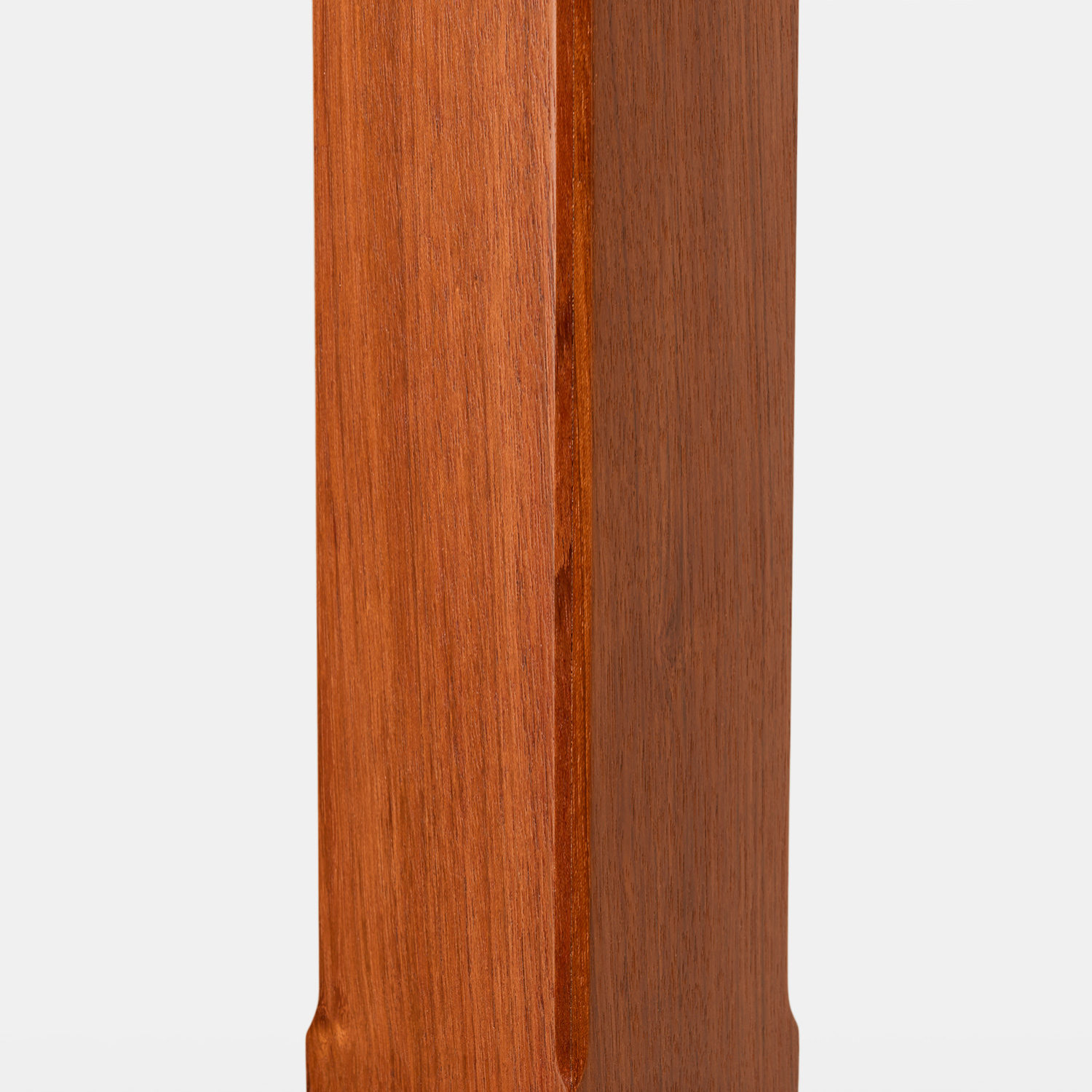

  • Chamfered Details

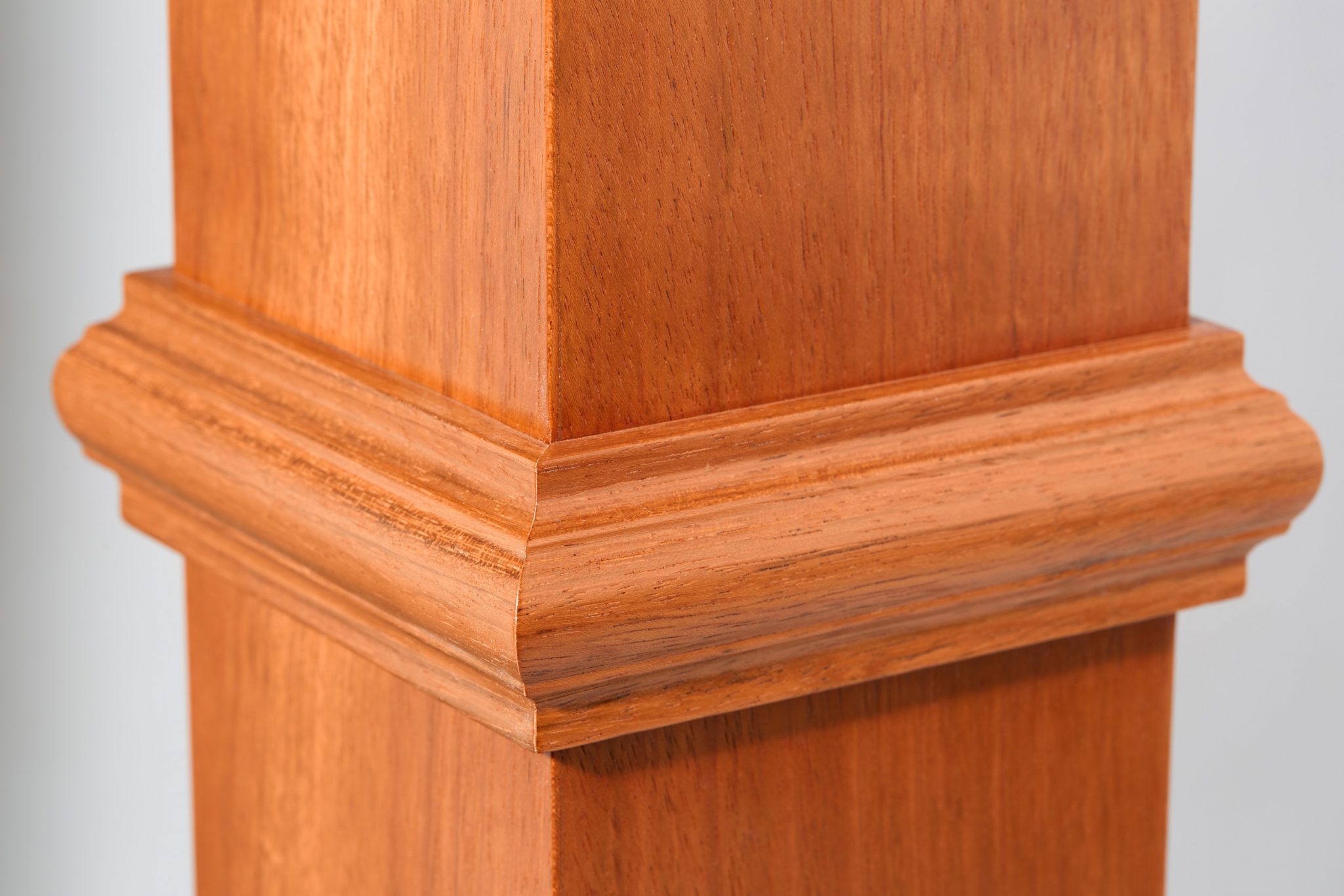

  • Shoulder Trim

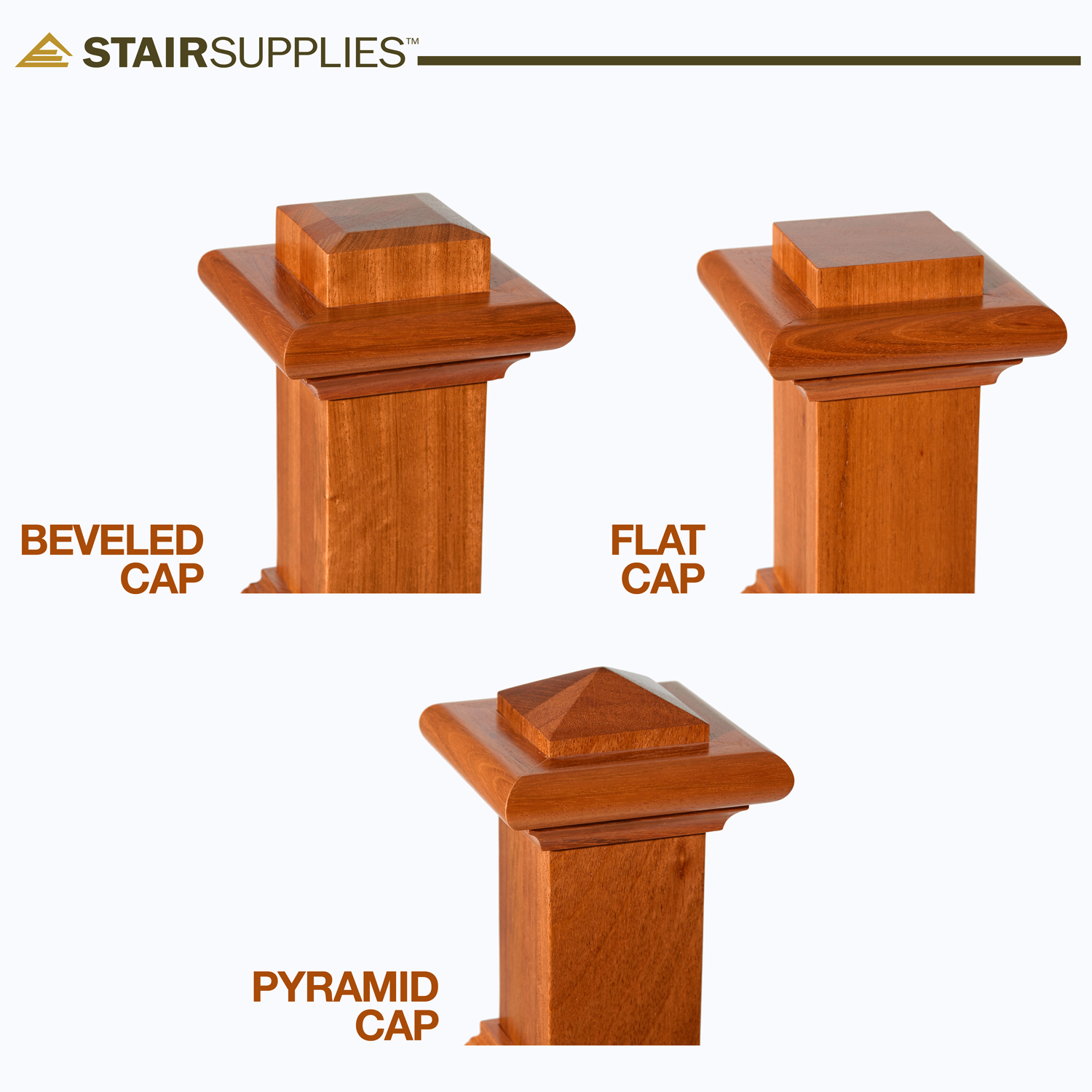

  • Customizable Cap
  • Solid Construction
  • Stain-Grade
  • Easy Install

Mounting System

When installing your 4606 Chamfered Ranch Newel, you will need the Sure-Tite Newel Fastening System. Follow our Sure-Tite Installation Guide to establish a sturdy and secure fit. The 4606 Chamfered Ranch Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Ranch Newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4606 Chamfered Ranch Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Chamfered Ranch Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

Dimensions

  • Overall: 3 1/4″ x 3 1/4″ x 54″.
  • Space between Top & Shoulder Trim: 5”

Composition

  • Solid Construction
  • End Grain on 2 Sides

Clear Finish & Stain Information

StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For the 4600 Ranch Newels we offer both clear finishes and stains. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Box Newels.

All of our stained and clear-finished Box Newels will be coated with Pre-Catalyzed Lacquer. Using the same quality product that cabinet makers require, this lacquer is designed to resist the natural oils from hands. We use this lacquer on all of our products that will be consistently touched, such as handrails, balusters, and newels. This layer of protection will keep your Box Newels looking smooth and stain free for years to come.

Wood Grain & Color Variation

At StairSupplies™ we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSupplies™, you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.

Installation Guide

How to install Sure-Tite
