4621 Raised Panel Box Newel


Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 15 Business Days

Product Description

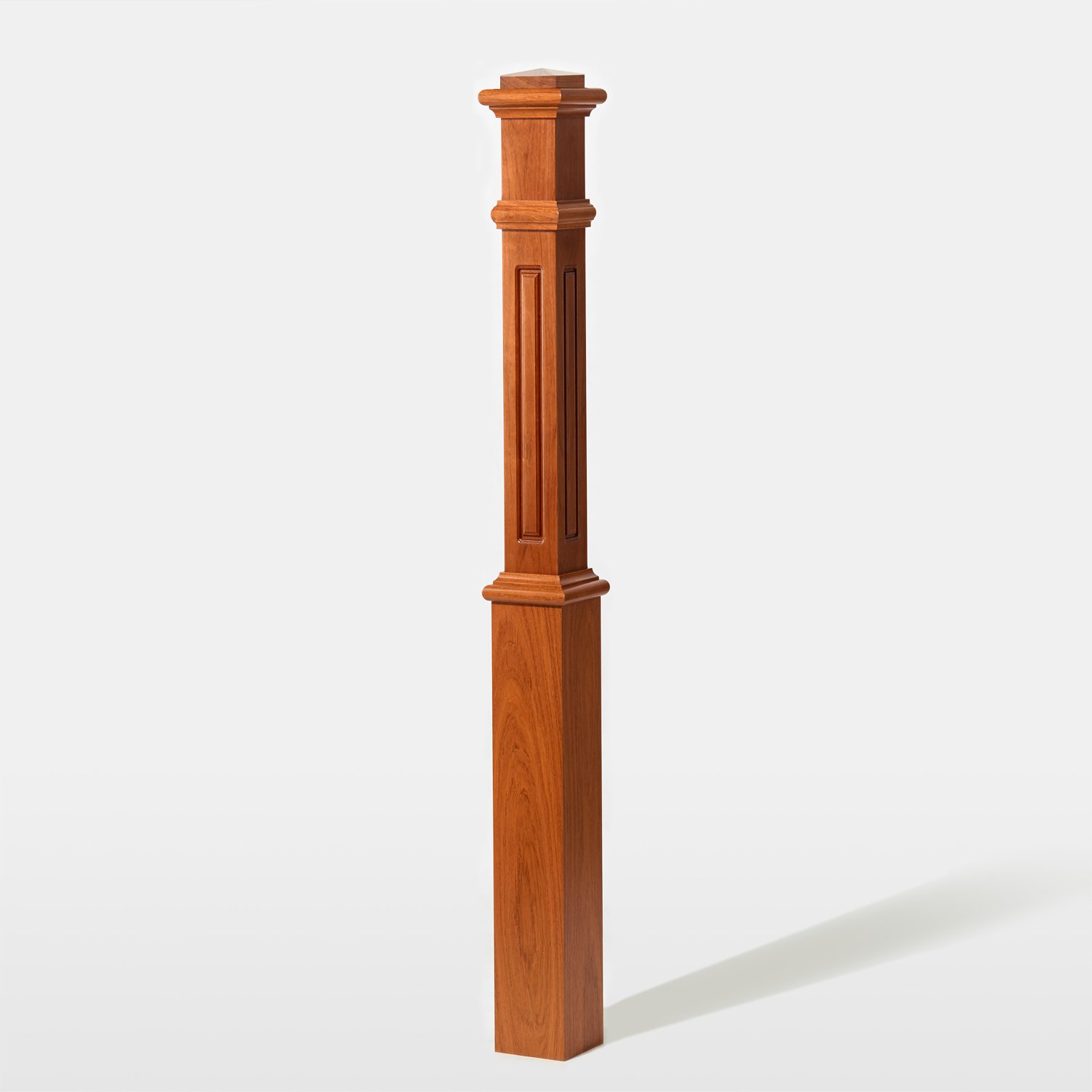

The 4621 Raised Panel Box Newel combines a detailed, solid top with a sturdy hollow base. Beautiful raised panels are routed into the wood species of your choice, including options such as Red Oak, Maple, Brazilian Cherry, Hickory, and many more. This 5” square box newel offers the style of our larger box newels, but has a smaller footprint, making it perfect for smaller homes or offices. Increase your style options by combining the 4621 with other newels in our Raised Panel collection.

Key Features

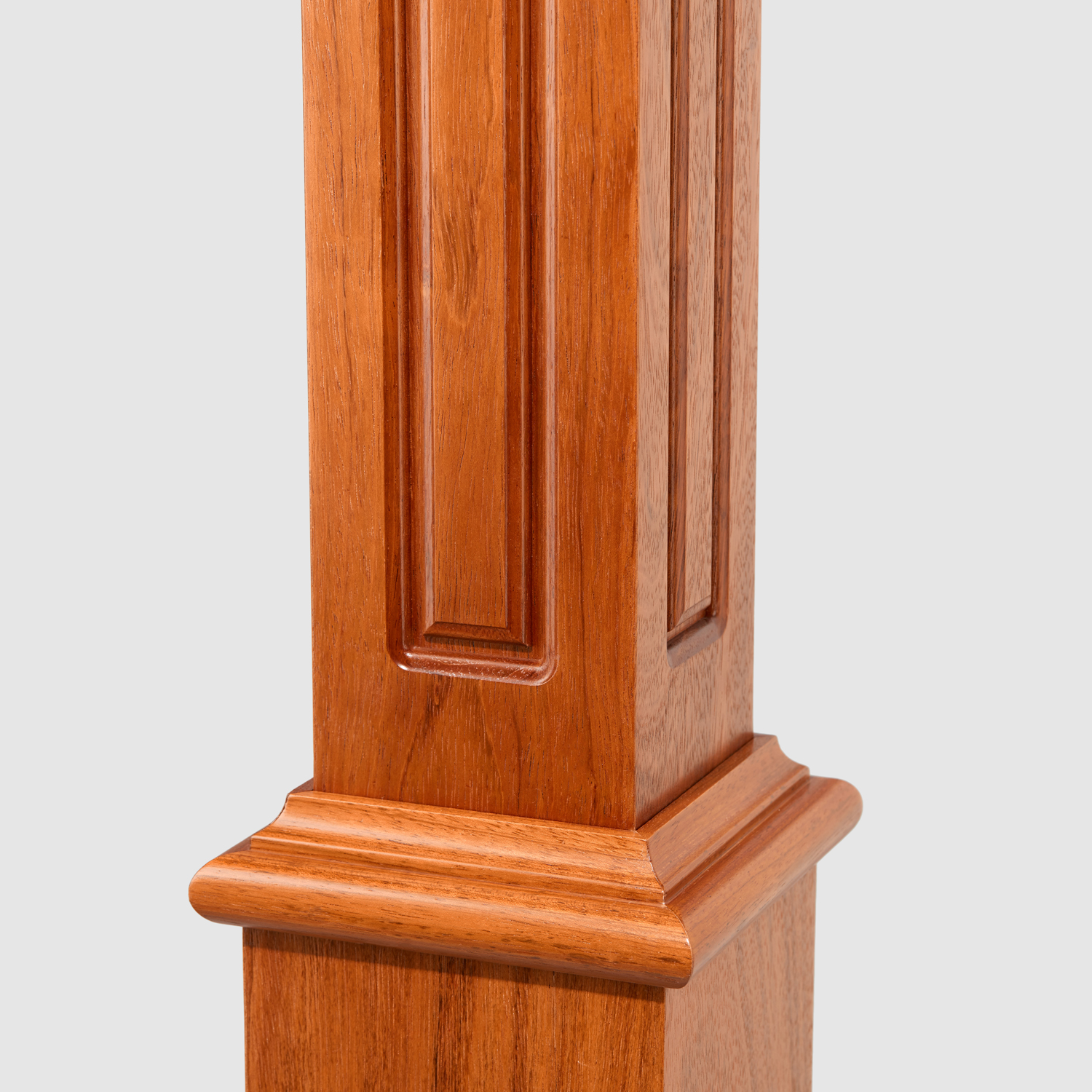

  • Raised Panel Milled Detail

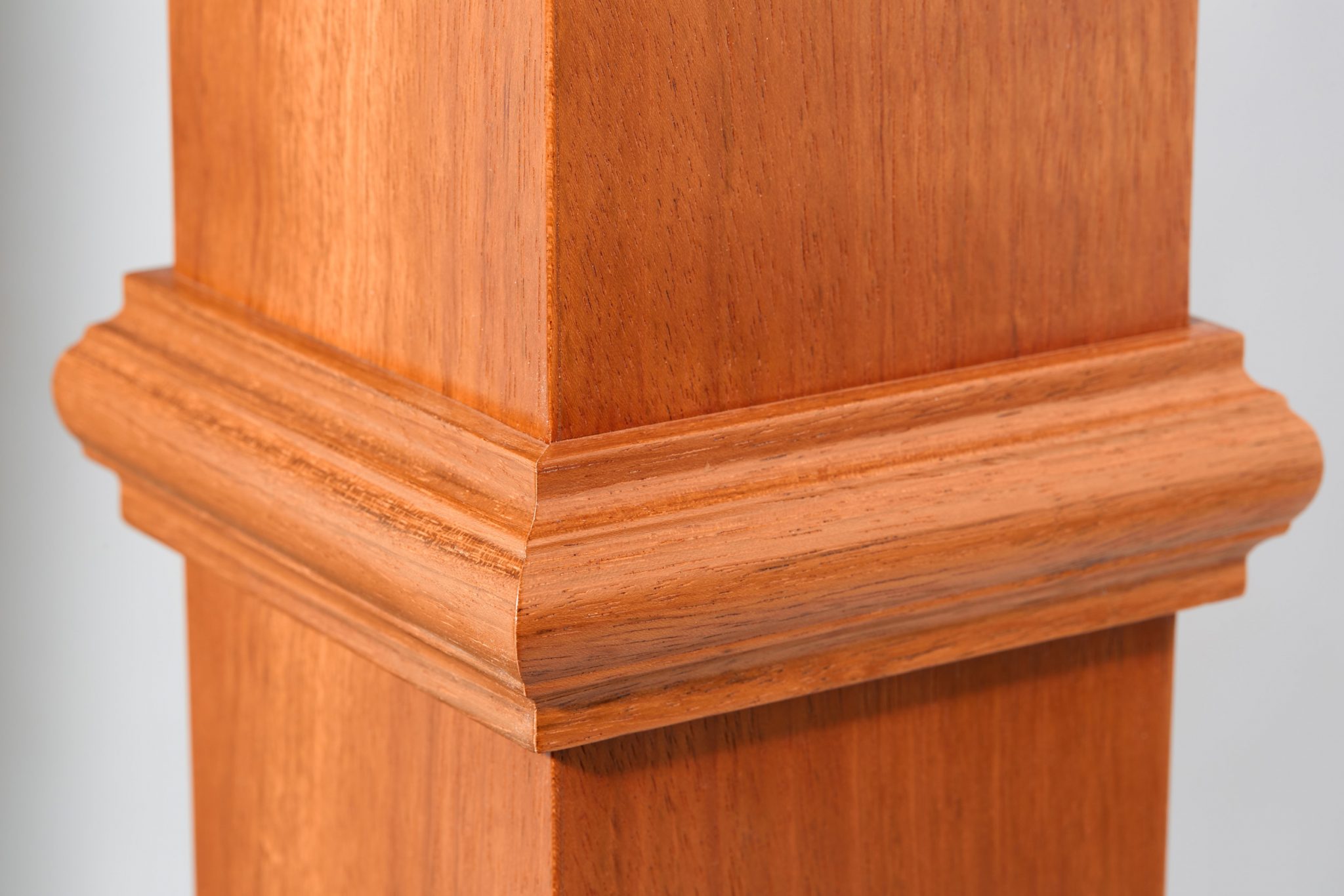

  • Shoulder Trim

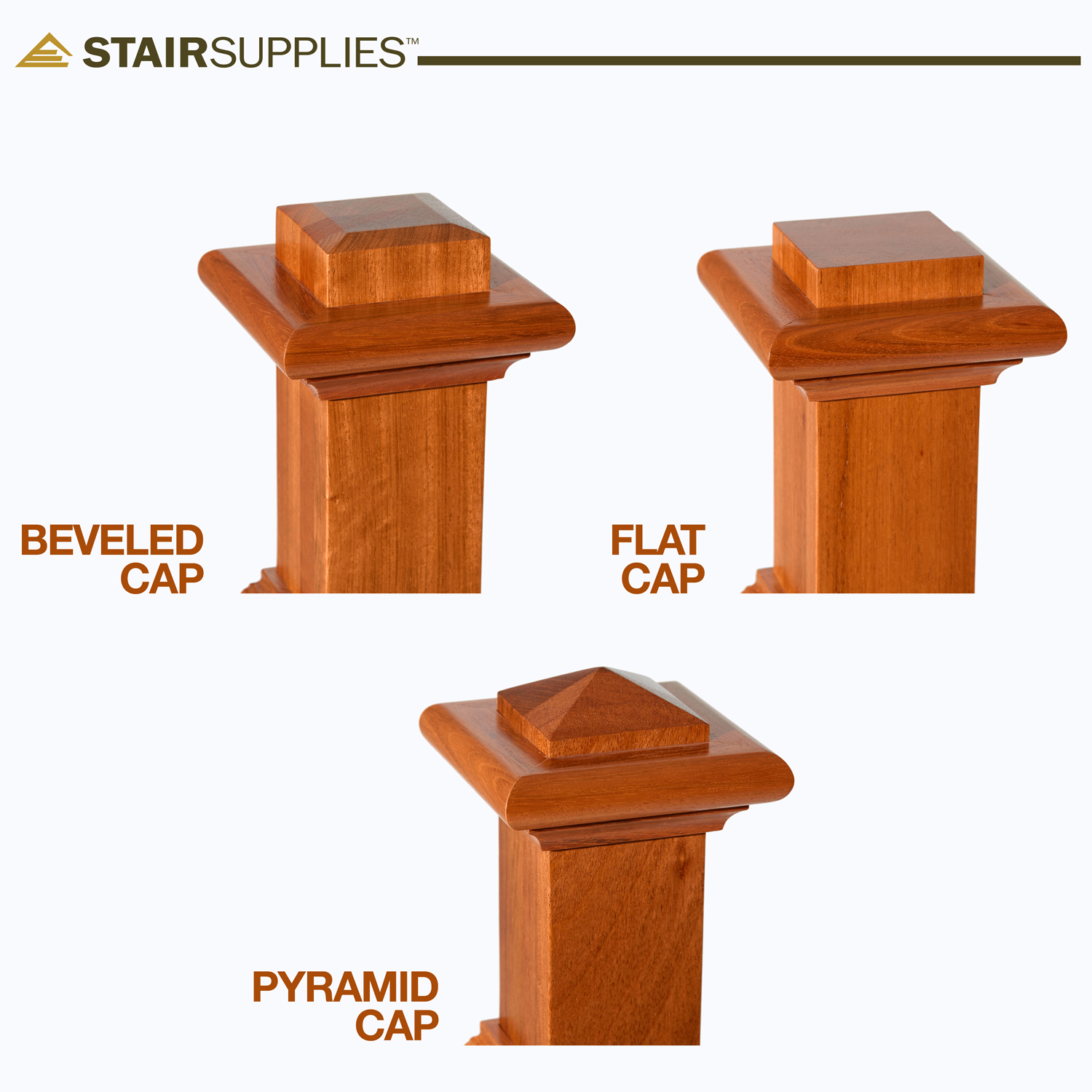

  • Customizable Cap
  • Stain-Grade
  • Easy Install


Mounting System

To install your 4621 Raised Panel Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Box Newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4621 Raised Panel Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Raised Panel Box Newel split in half, please select “Split in Half” in the drop-down menu above.


Product Specifications




  • Overall: 5″ x 5″ x 60″
  • Bottom Block: 5″ x 5″ x 28″
  • Top Block: 3 1/2″ x 3 1/2″ x 32″
  • Space between Top & Shoulder Trim: 5″
  • Bottom Opening: 3 1/2″ x 3 1/2″




  • Bottom Block: Hollow, no end grain
  • Top Block: Solid, edge grain on 2 sides
  • The Top Block extends down into the Bottom Block approximately 8” for strength and stability.


Clear Finish & Stain Information

StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For Box Newels we offer both clear finishes and stains. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Box Newels.

All of our stained and clear-finished Box Newels will be coated with Pre-Catalyzed Lacquer. Using the same quality product that cabinet makers require, this lacquer is designed to resist the natural oils from hands. We use this lacquer on all of our products that will be consistently touched, such as handrails, balusters, and newels. This layer of protection will keep your Box Newels looking smooth and stain free for years to come.

Wood Grain & Color Variation

At StairSuppliesTM we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSuppliesTM, you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.

Installation Guide

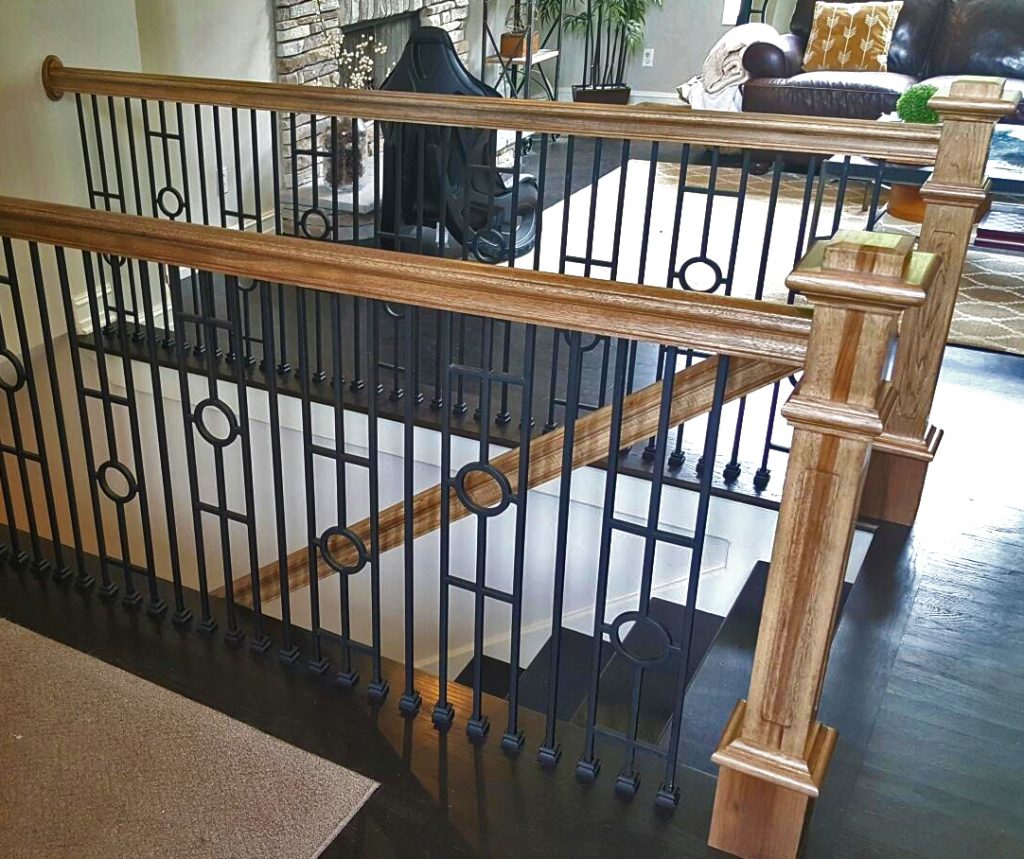

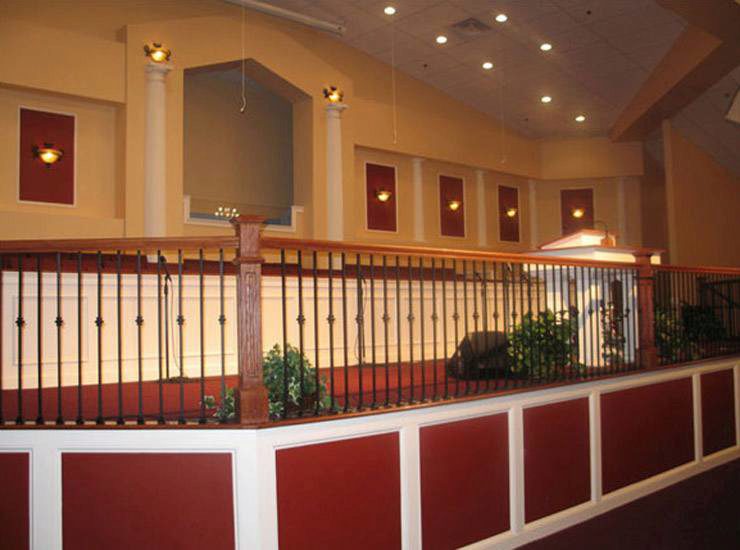

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A

    8 years 6 months ago

    Hello – Do you have dimensions for the 4621 5x5x60″ Raised Box Newel? That is, what dimensions does the newel neck down to in the middle — 3.5×3.5″, 4×4″, or other? Thanks

    Stair Supplies
    8 years 6 months ago

    Hi David,
    The base of the newel is 5″ x 5″, and the top portion (or neck) is 3 1/2″ x 3 1/2″.
    Please let us know if you have any other questions.
