4625 Primed Recessed Panel W Cove Box Newel

4625 Primed Recessed Panel w/ Cove Box Newel

Clear
Ships in approx: 11 Days

Product Description

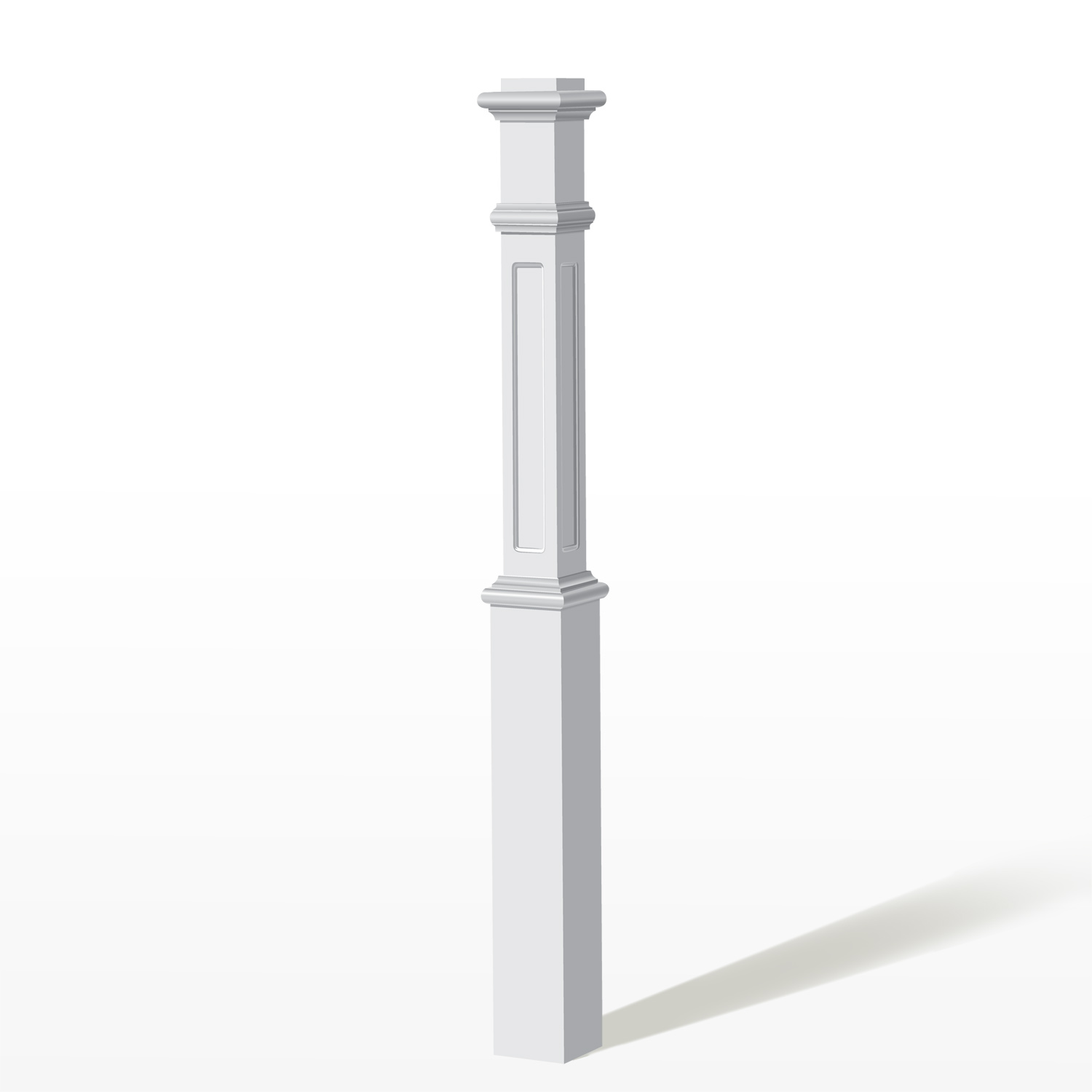

Primed and ready to be painted, the 4625 Primed Recessed Panel with Cove Box Newel offers craftsman details prepared to match your color pallet. The strong and sturdy design of the 5” square 4625 box newel makes it ideal for smaller spaces that require multiple box newels. This box newel is a perfect match for your home… quality never goes out of style!

Key Features

  • Recessed Panel Details
  • Primed Solid Top
  • Primed Hollow Base
  • Stain-Grade Shoulder Trim

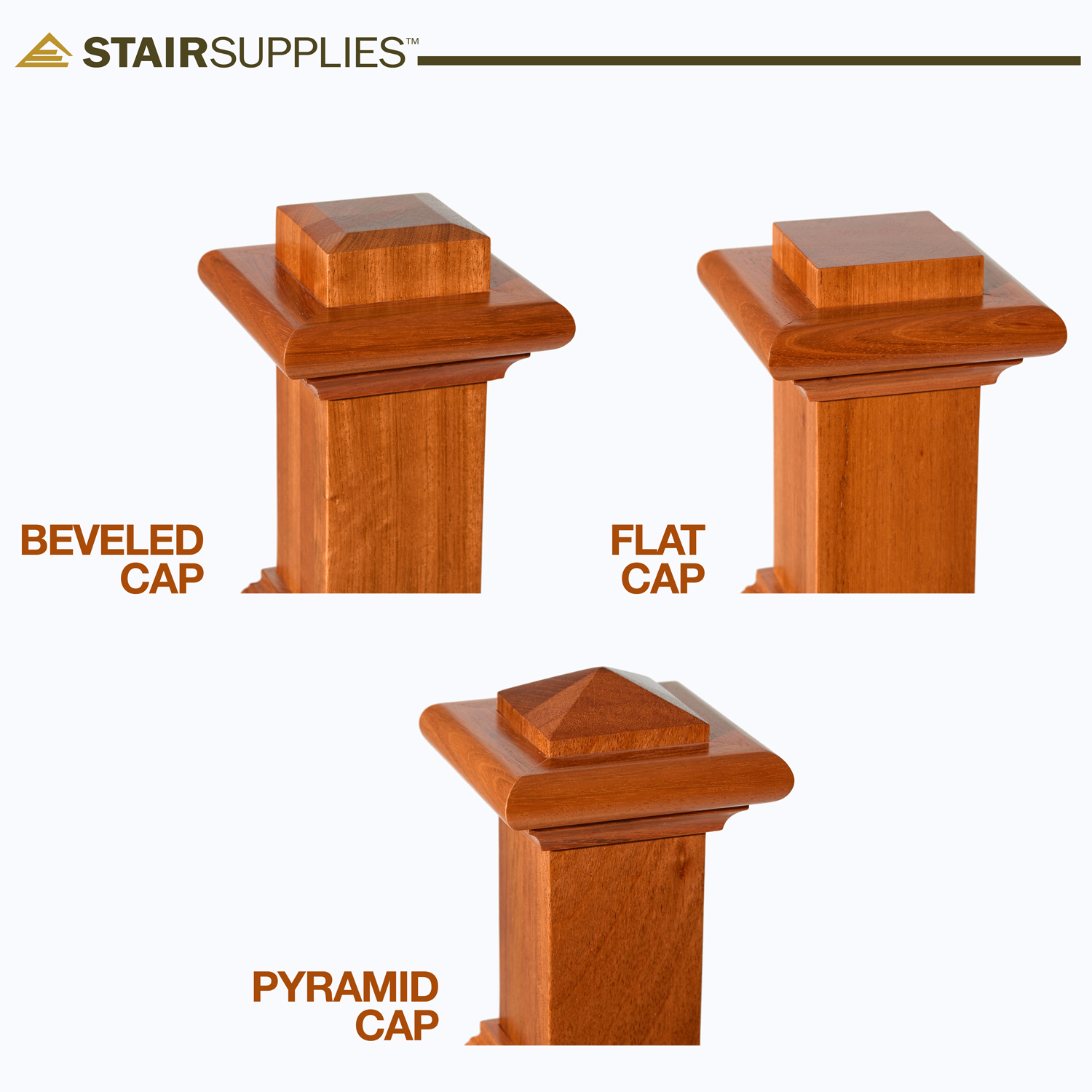

  • Customizable Cap
  • Easy Install

Mounting System

To install your 4625 Primed Recessed Panel with Cove Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. Box Newels may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Box Newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4625 Primed Recessed Panel with Cove Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Primed Recessed Panel with Cove Box Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

Dimensions

  • Overall: 5″ x 5″ x 60″.
  • Bottom Block: 5″ x 5″ x 28″
  • Top Block: 3 1/2″ x 3 1/2″ x 32″
  • Space between Top & Shoulder Trim: 5″
  • Bottom Opening: 3 1/2″ x 3 1/2″

Composition

  • Bottom Block: Hollow, Soft Maple or Poplar, Primed
  • Top Block: Solid, Soft Maple or Poplar, Primed
  • The Top Block extends down into the Bottom Block approximately 8” for strength and stability.

Primed Finish

These primed newels are painted with a white vinyl primer. Give the primed sections a quick, light sanding, and they can be painted to match your home.
