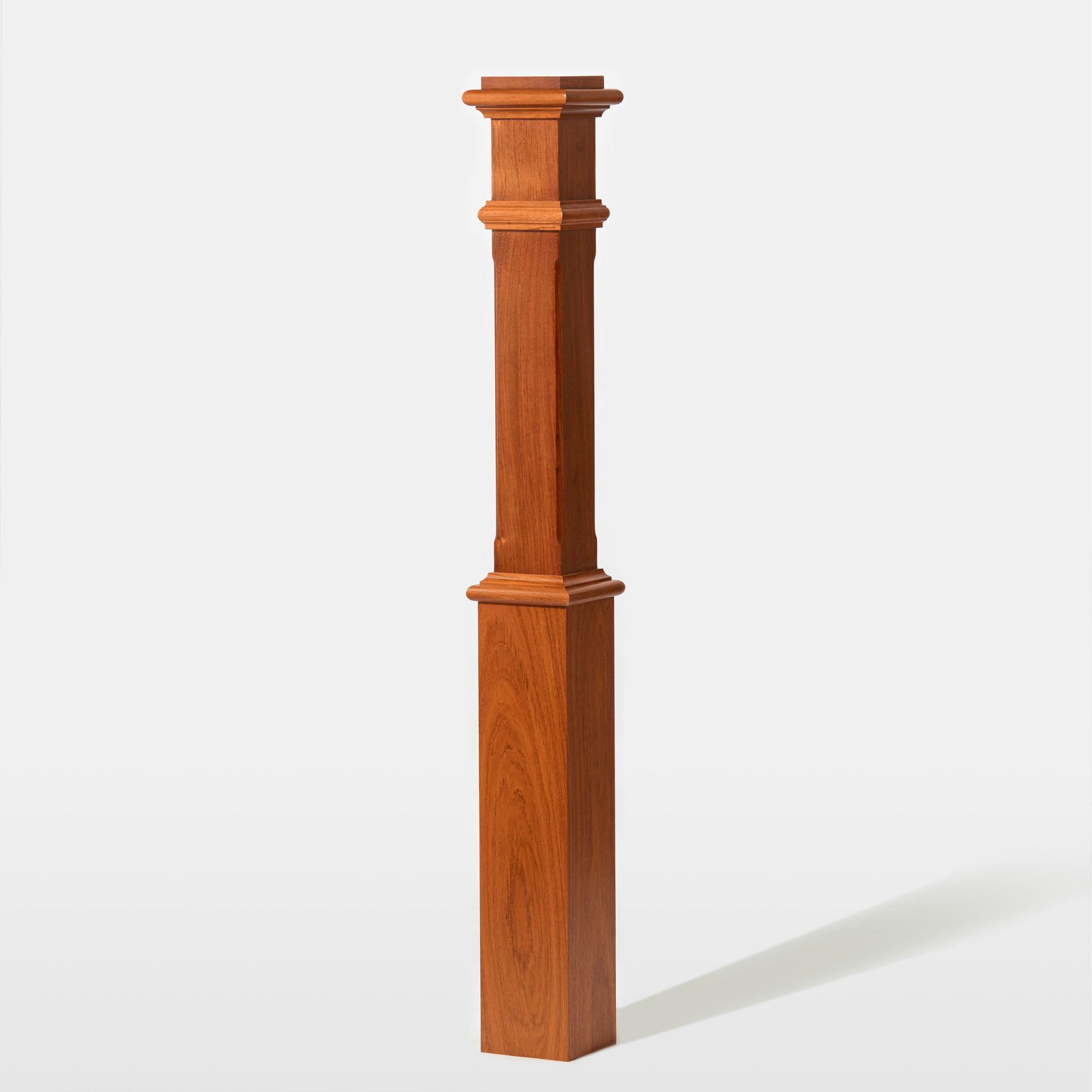

4994 Chamfered Box Newel

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 15 Business Days

Product Description

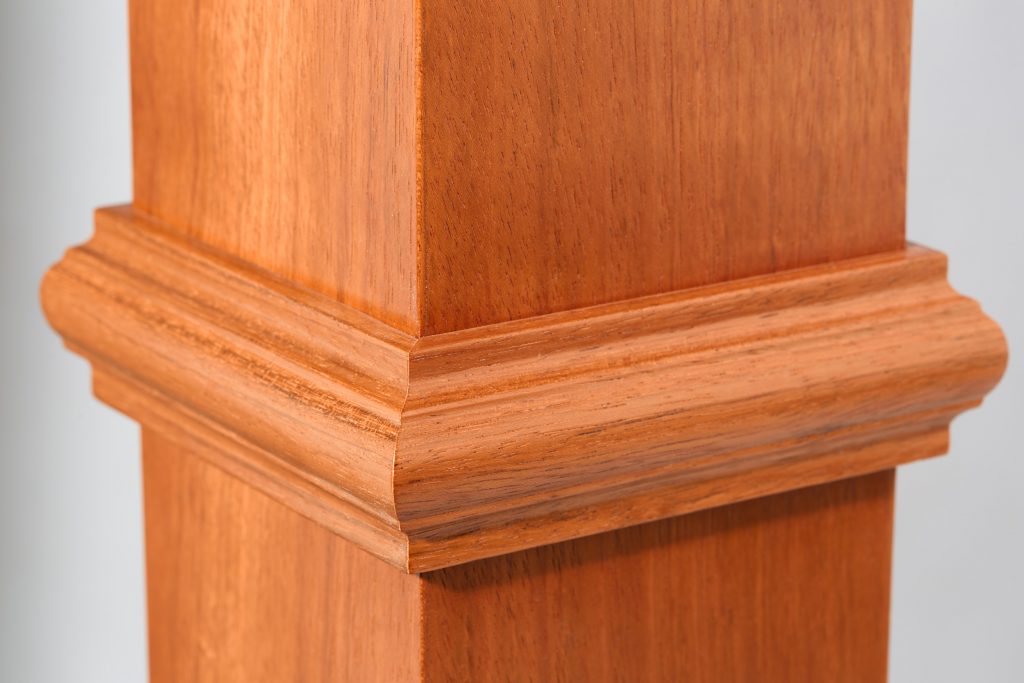

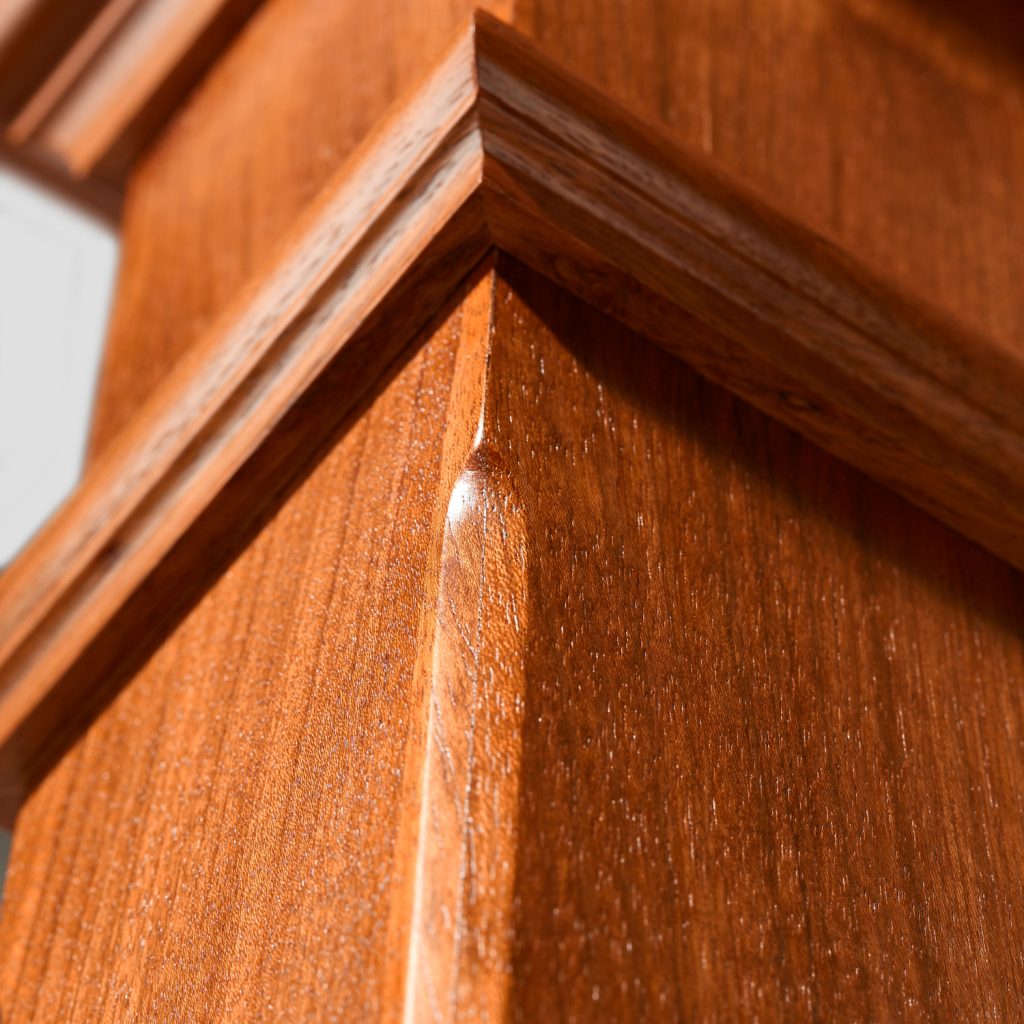

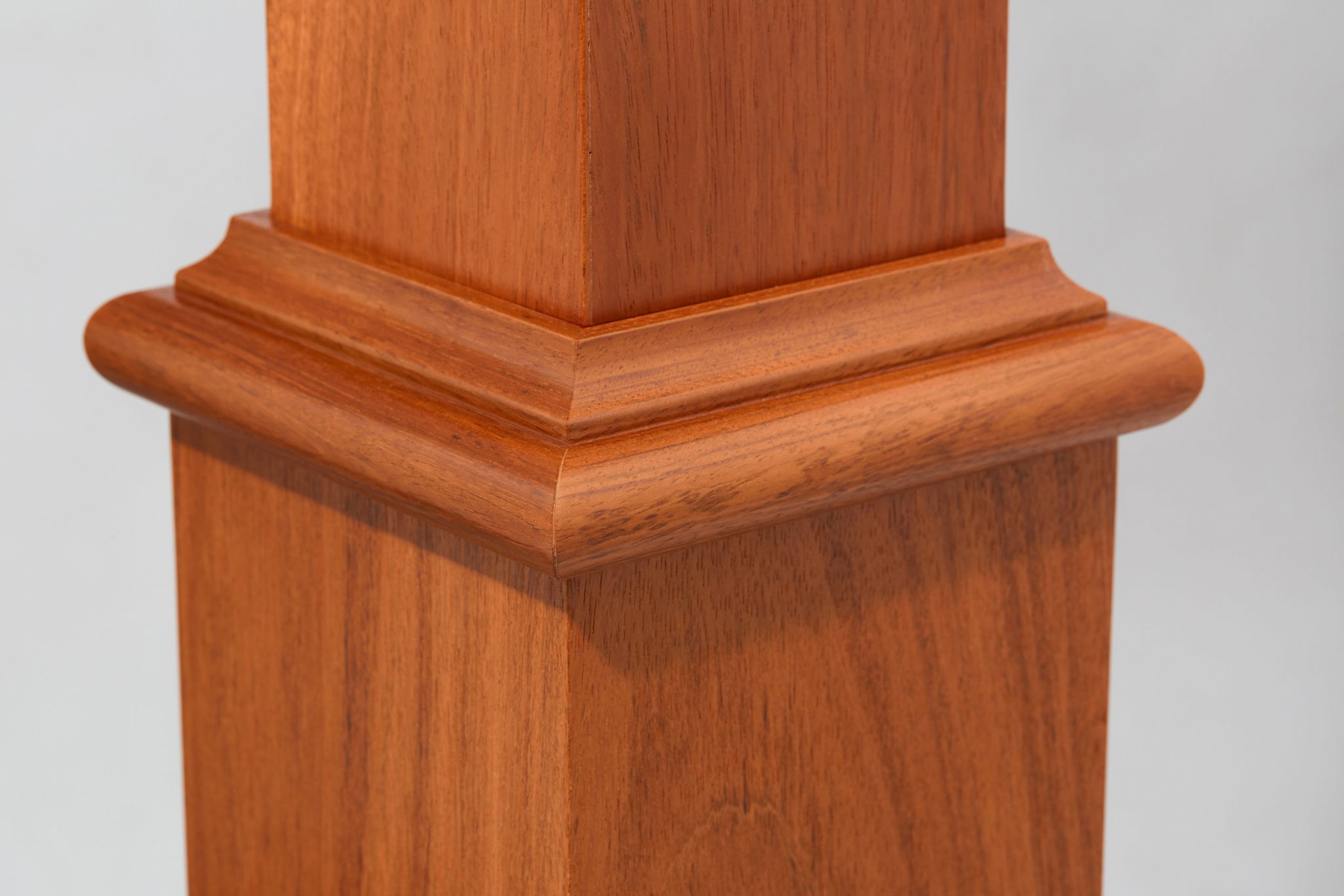

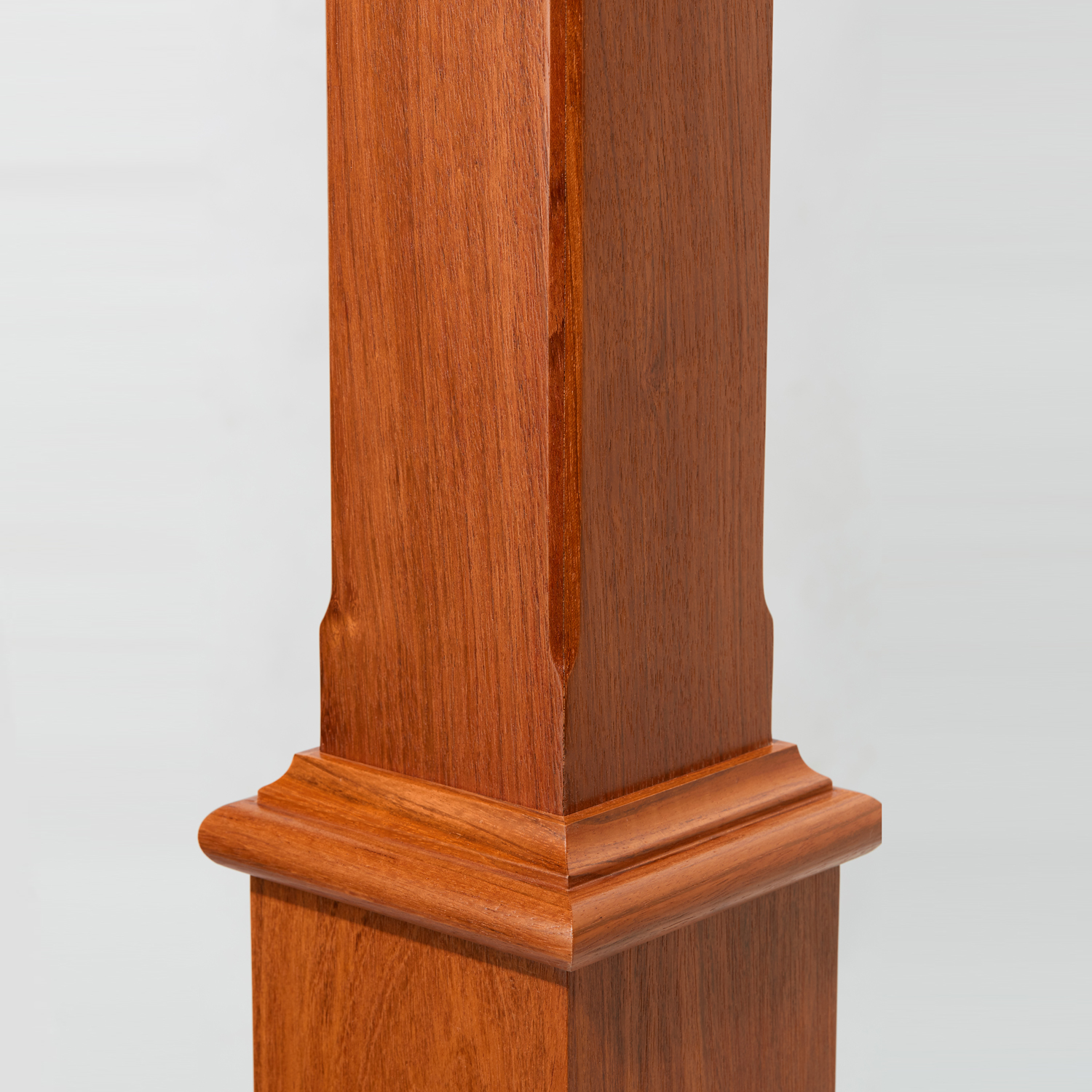

Allow natural textures to shine through with the high-quality, stain-grade wood used to construct the 4994 Chamfered Box Newel. Expert craftsmen detail this sturdy box newel with timeless beveled corners, precisely mitred shoulder trim, and the cap style of your choice. Consider pairing the 4994 box newel with other Chamfered Box Newels for a customized design.

Key Features

  • Chamfered Details
  • Large Size
  • Shoulder Trim
  • Customizable Cap
  • Stain-Grade
  • Easy Install

Mounting System

To install your 4994 Chamfered Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The Chamfered Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that box newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4994 Chamfered Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

Cap Attachment

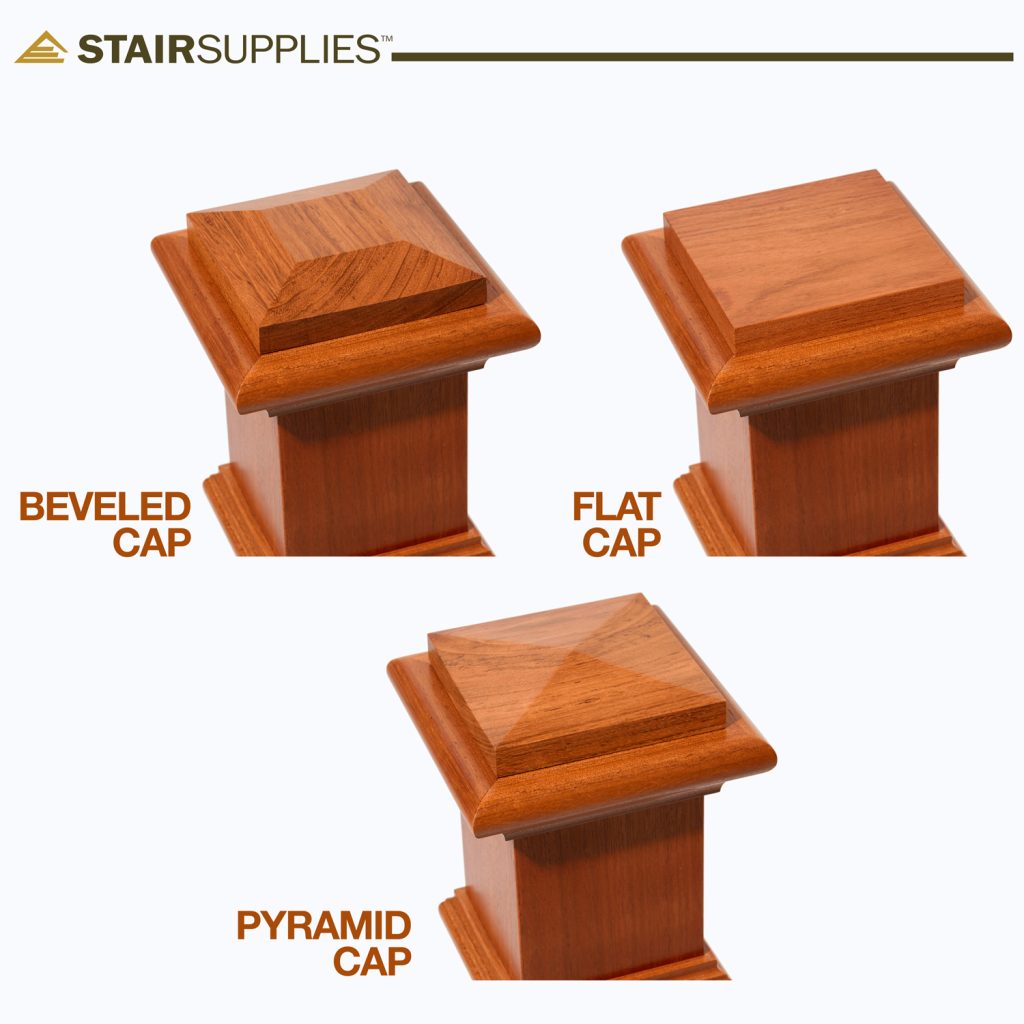

The cap for this box newel is sent unattached to the newel body, allowing easy access for mounting handrail. Then, after handrails are attached, the cap can be secured on-site by applying a bit of wood glue and finishing nails for increased strength.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Chamfered Box Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

Product Dimensions

  • Overall: 6 1/4″ x 6 1/4″ x 60″
  • Bottom Block: 6 1/4″ x 6 1/4″ x 28″ tall
  • Top Block: 4 3/4″ x 4 3/4″ x 32″ tall
  • Space between Top & Shoulder Trim: 5″
  • Bottom Opening: 4 3/4″ x 4 3/4″

Composition

  • Bottom Block: Hollow, no end grain
  • Top Block: Hollow, no end grain
  • The Top Block extends down into the Bottom Block approximately 8” for strength and stability.

Clear Finish & Stain Information

StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For the Box Newels we offer both clear finishes and stains. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Box Newels.

All of our stained and clear-finished Box Newels will be coated with Pre-Catalyzed Lacquer. Using the same quality product that cabinet makers require, this lacquer is designed to resist the natural oils from hands. We use this lacquer on all of our products that will be consistently touched, such as handrails, balusters, and newels. This layer of protection will keep your Box Newels looking smooth and stain free for years to come.

Wood Grain & Color Variation

At StairSupplies™ we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSupplies™, you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.

Installation Guide

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A


    Guest
    Randy
    9 years 2 months ago

    what are the dimensions of all the sections?

    Guest
    Stair Supplies
    9 years 2 months ago

    The bottom section is 28″ tall. The center section is around 21″ tall. The distance between the top two sections of trim is 5″.
    Please let us know if you have any other questions.
