Express – Angle Line Post


Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 1 Business Day

Product Description

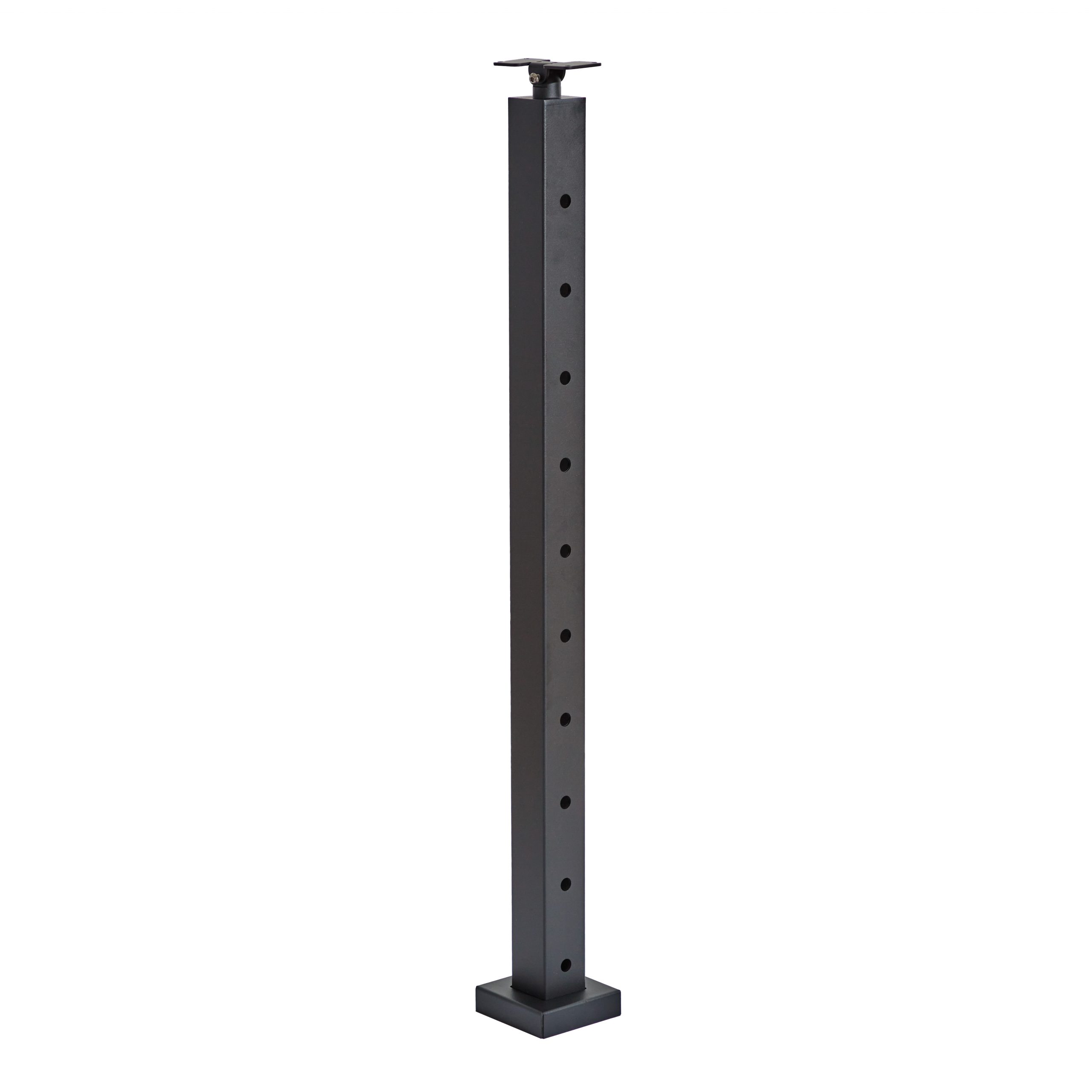

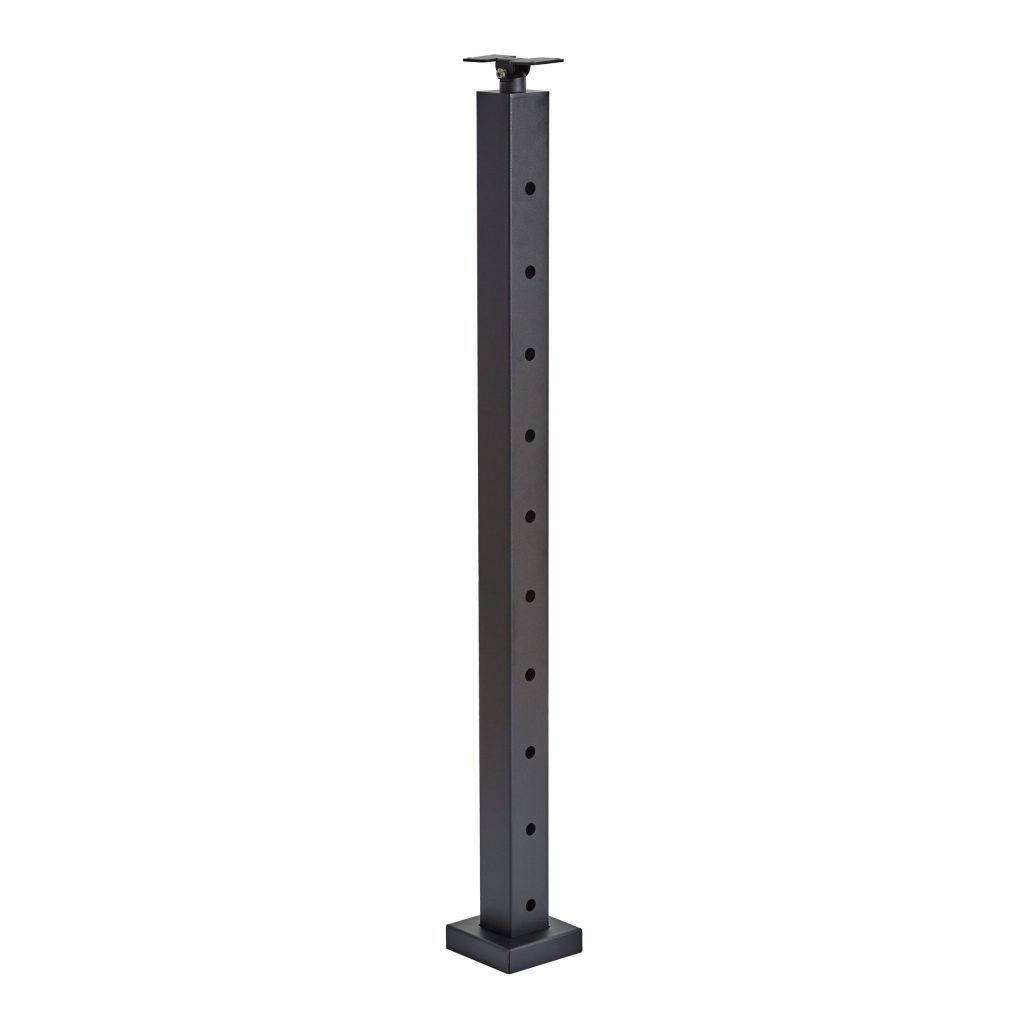

The Express angle line post from StairSupplies is designed to function as a through post in angled sections of your Express railing system. Each 36” post comes pre-drilled with 1/2″ holes on both sides. The 1/2″ holes allow the posts to accommodate most standard stair angle without the cable touching the post. An angle above 40 degrees may make contact with the post holes depending on the post placement. These posts are constructed out of the same aluminum as our Signature product line and powder coated with a matte black finish.

The main difference between the Express and Signature angled posts is the Express post uses the larger 1/2″ hole and does not include the stainless steel washers to cover the holes. This helps keep the installation simple and the post budget friendly.

Posts are designed to mount on a flat surface, such as a stair step. These will not mount on an angled knee wall.

Post cost includes all hardware.

Post Includes:

  • (1) Angle End Post – 36″
  • (1) Aluminum Post Foot Cover – Standard
  • (1) 3.5″ Post Mounting Screw -4pk
  • (1) Composite Shim – 2pk
  • (1) Standard Post Bracket – Straight
  • (2) 1/4-20 x 3/8″ Hex Button Head
  • (6) Black Aluminum Pop Rivets


*Note: As of 2/14/23 the express angle end post has been updated to gen 2. The infill holes in this version are slotted holes which differ from the larger circles that its predecessor had.
