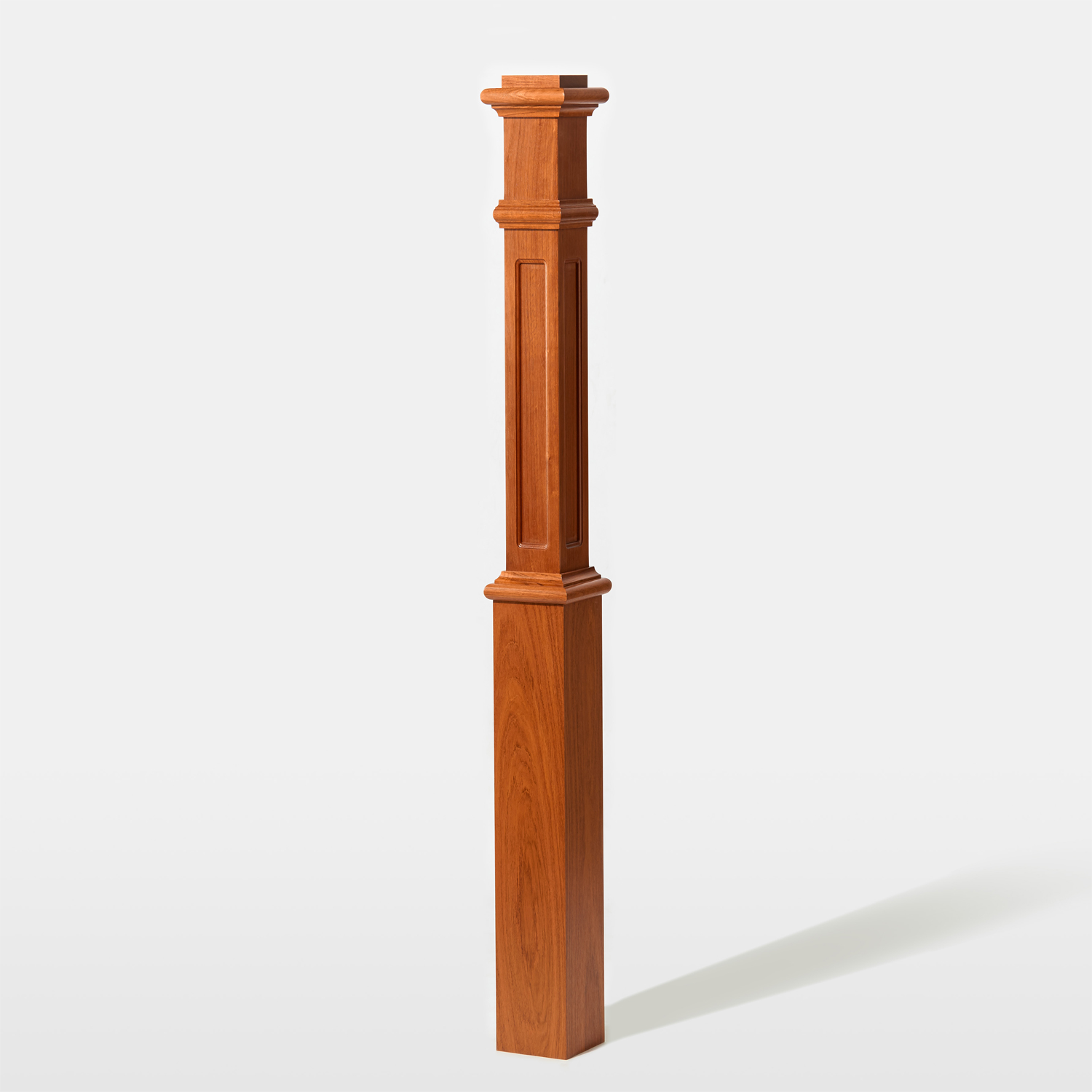

4625 Recessed Panel w/ Cove Box Newel

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 25 Business Days

Product Description

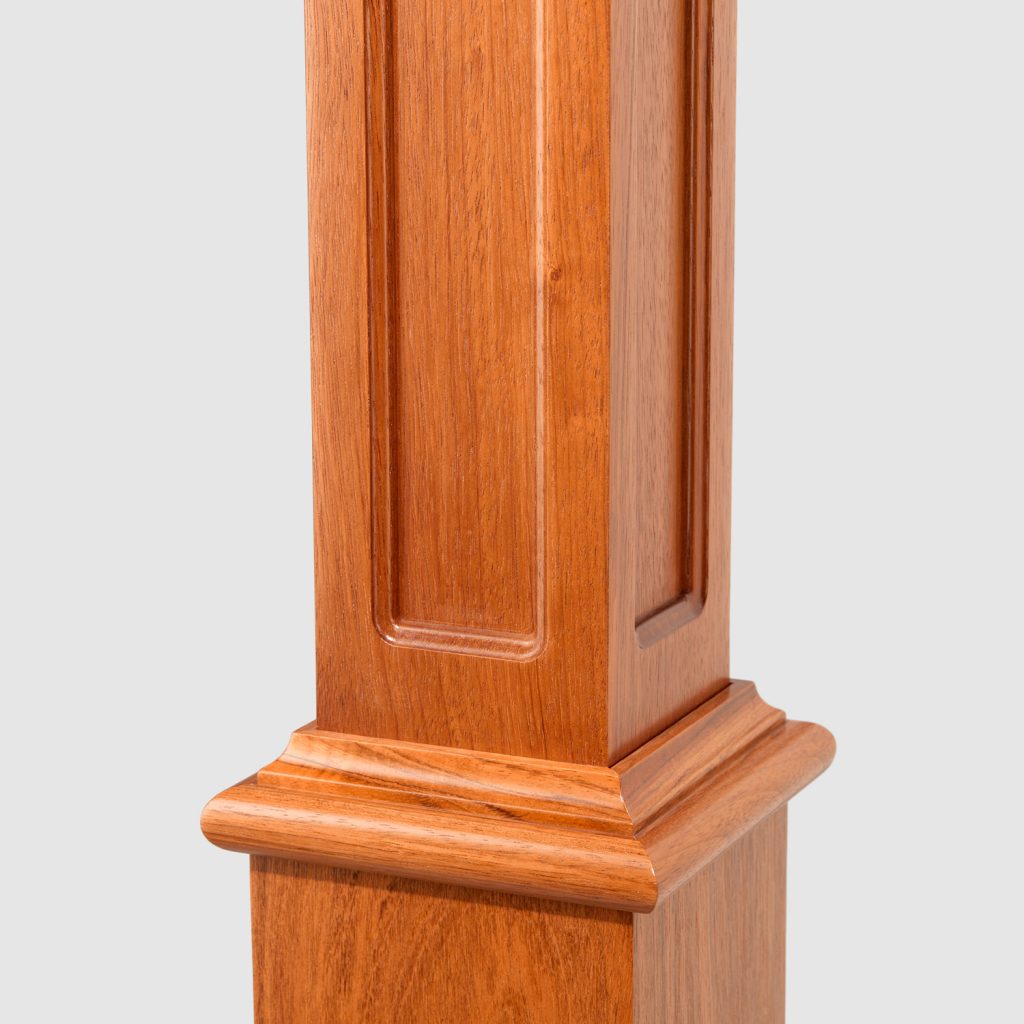

Two layers of beveled edging trace the perimeter of each milled panel on the 4625 Recessed Panel with Cove Box Newel. This box newel is crafted in each of the many stain-grade wood species at StairSupplies™, including: Walnut, Cypress, Hickory, Soft Maple, and more. Additional details include precisely mitered shoulder trim and your choice of cap style. Enjoy the 4625 with other box newels in the Recessed Panel with Cove Box Newel style group for additional size and finish options.

Key Features

  • Recessed Panel with Cove Details
  • Solid Top
  • Wider, Hollow Base
  • Shoulder Trim

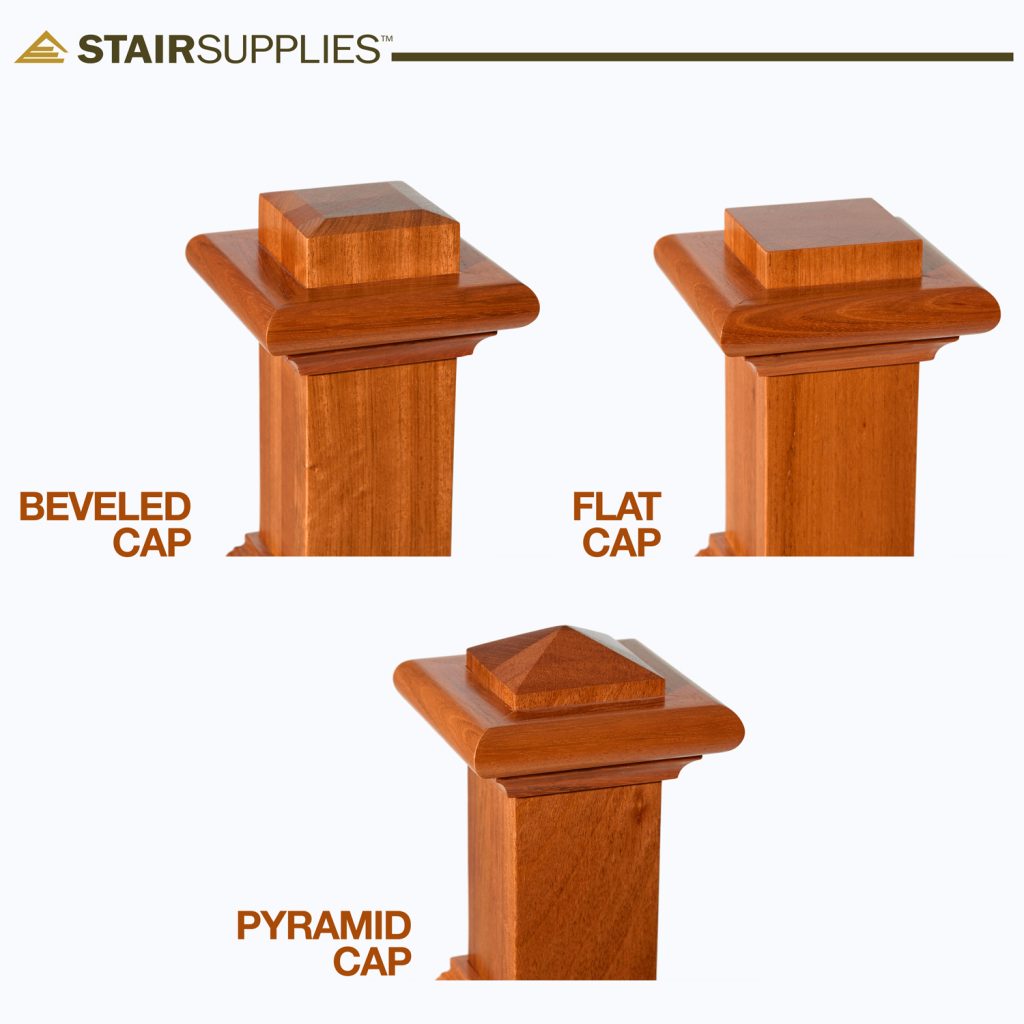

  • Customizable Cap
  • Stain-Grade
  • Easy Install

Mounting System

To install your 4625 Recessed Panel with Cove Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Box Newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4625 Recessed Panel with Cove Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Recessed Panel with Cove Box Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

Dimensions

  • Overall: 5″ x 5″ x 60″.
  • Bottom Block: 5″ x 5″ x 28″
  • Top Block: 3 1/2″ x 3 1/2″ x 32″
  • Space between Top & Shoulder Trim: 5″
  • Bottom Opening: 3 1/2″ x 3 1/2″

Composition

  • Bottom Block: Hollow, no end grain
  • Top Block: Solid, edge grain on 2 sides
  • The Top Block extends down into the Bottom Block approximately 8” for strength and stability.

Clear Finish & Stain Information

StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For the Box Newels we offer both clear finishes and stains. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Box Newels.

All of our stained and clear-finished Box Newels will be coated with Pre-Catalyzed Lacquer. Using the same quality product that cabinet makers require, this lacquer is designed to resist the natural oils from hands. We use this lacquer on all of our products that will be consistently touched, such as handrails, balusters, and newels. This layer of protection will keep your Box Newels looking smooth and stain free for years to come.

Wood Grain & Color Variation

At StairSupplies™ we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSupplies™, you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.



Installation Guide

Product Q&A


Guest
RICARDO STACK
4 years 11 months ago

When ordering a split in half box newel does one receive both halves? It would seem a half should be somewhat less than a complete post unless one gets both halves for the extra cost.

Guest
StairSupplies
4 years 11 months ago

Thanks for the question Ricardo.

When ordering a split box newel, you will receive both halves – which is why the price is the same as a whole box newel.

Best,

StairSupplies Customer Support
