8060 Bowed Starting Step


Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 15 Business Days

Product Description

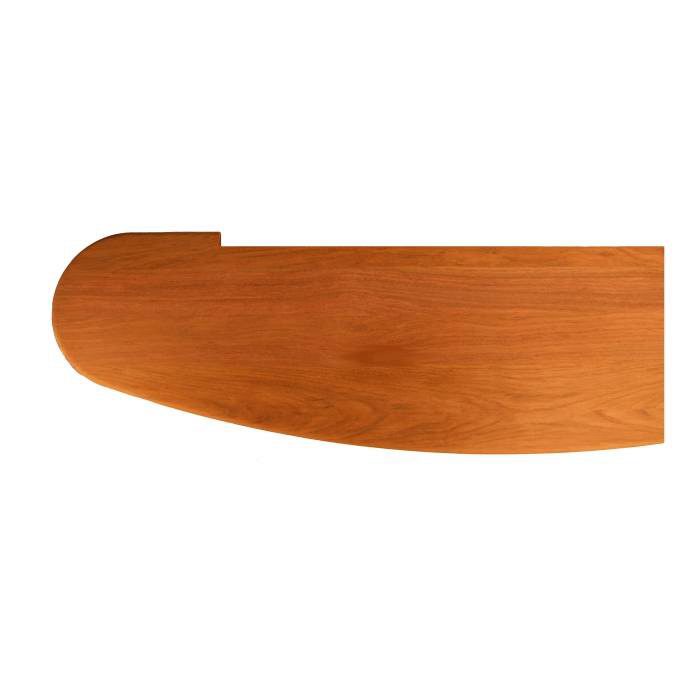

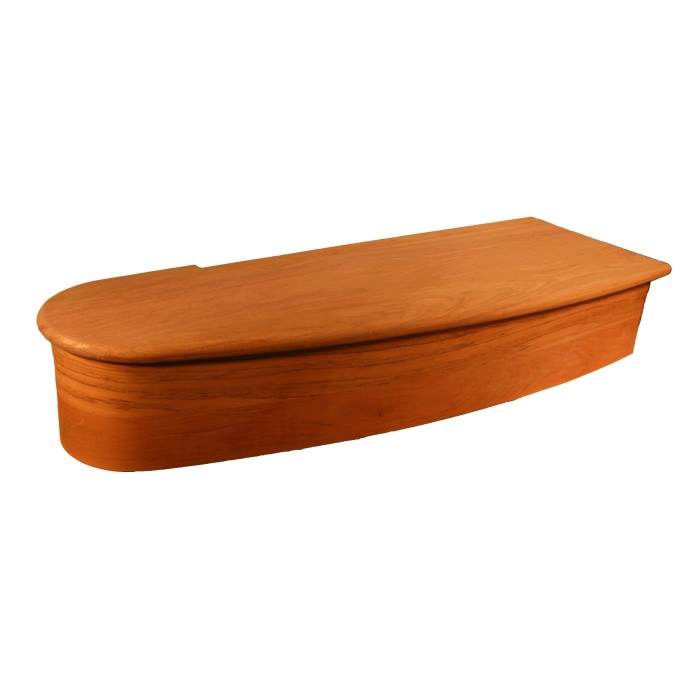

Show off your spacious staircase with an elegant entrance. The 8060 Bowed Starting Step gently transitions from 11 ½” to 14” in depth for a truly traditional and timeless design. Rounded ends offer a natural location for turned newels with volute handrail fittings and wrought iron balusters. With options to customize wood species and finish, we have just what you need to create your picture-perfect stairway.

Key Features

  • Starting Step
  • Bowed Front
  • Rounded End(s)
  • Stain-Grade
  • Customizable

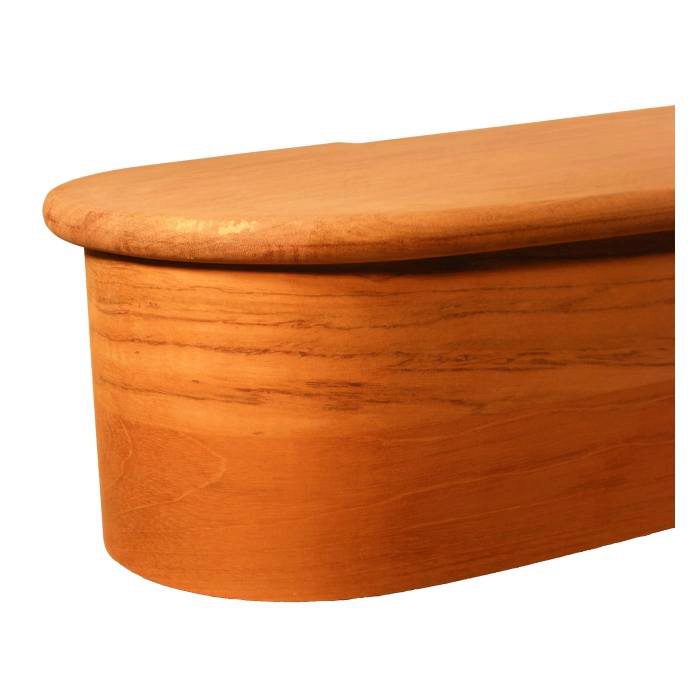

Rounded End

Each side of the 8060 Bowed Starting Step that does not attach to a wall requires a decorative Rounded End to accommodate a newel.There are three configurations available: Left, Right, and Double. NOTE: If both sides of the stair treads fit against a wall, you do not need this style of starting step.

To determine if a Left or Right Rounded End is required, stand at the bottom of the stairway and look up. If the right side is exposed, then you need a Right Rounded End. If the left side is exposed, then you need a Left Rounded End.

Double Rounded End starting steps are needed when both sides of the starting step are exposed. This style requires a special measurement called the “throat cut”, which you will need to provide when you place your order. To find the throat cut, measure the length between the inside of the Left and Right Rounded End. Each Rounded End adds 14 ⅜” per side.

Additional Style Options

  • Distressed Detailing
  • Hand Scraped Textures
  • Paint Grade Risers

Note, wood products may have varying amounts of staves due to the varying thicknesses of lumber that comes in each bunk and the width of the product.


We are happy to accommodate your custom design. Give us a call, one of our experts are happy to assist you!

Product Specifications


  • Total Height: 8 ½”
  • Riser Height 7 ½”
  • Tread Thickness: 1”
  • Throat Cut (between Notches): 36”, 42”, 48”, 54”, 60”, 66”, or 72”
  • Side Length (from furthest point of curve to the Throat Cut): 14 ⅜”
  • Depth Curves up to 17 ½” at the center and down to 12 3/16” on the sides

Clear Finish & Stain Information

StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For Starting Steps, we offer both clear finishes and stains. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Starting Steps.

All tread materials and products that are used underfoot are finished with a Conversion Varnish. Strong and resilient, this varnish is standard in the hardwood flooring industry. Our team of experts apply this specialty product onto each stair tread using a spray applicator for even, flawless coverage to protect your treads against heavy wear and tear.

Wood Grain & Color Variation

At StairSupplies™ we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSupplies™ , you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.

Interior Use Only

This product may contain glue joints and is designed for interior use only.

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A

    8 years 4 months ago

    Is a bowed starting tread at the bottom of a straight staircase allowed by international building code?

    Stair Supplies
    8 years 4 months ago

    Hi Frank,
    Unfortunately I don’t know about international code, you’d want to check with your local building inspector to find out for sure. Please let us know if you have any other questions.

    Dinakara Karanth
    8 years 4 months ago

    I have a custom bowed starting step (double returns) with carpet on it. I am replacing with wood. What is the radius of the returns for a 60 inch wide starting step. Also, Do you make custom starting step- bowed with double returns. I can send picture with dimensions.

    Stair Supplies
    8 years 4 months ago

    Hi Dinakara,
    We definitely do custom! And if you’re trying to match a specific starting step I’d recommend going that direction.
    Please let us know if you have any other questions.

    6 years 10 months ago

    what’s the dept in the center ? 11 or 14 ?

    6 years 10 months ago

    Hi Chris,

    The radius of the starting step varies depending on the size that you order and the number of returns. The sides will be approximately 11 1/4″. In most cases, the center will be around 14″. If you need measurements for a specific size of this starting step, please let us know the width you desire, and we can provide the measurements.

    6 years 7 months ago

    Can you provide the detailed measurements for the 60″ starting step? I want to have several bowed treads prior to the starting step. Can Stairsupplies create bowed treads and risers that match the curve of the starting step?

    6 years 7 months ago

    Hello Tina,

    We would be able to produce bowed treads and risers for your project that would match the starting step. If you email [email protected] with more details about your project, we will be able to provide you with more detailed measurements for the 60″ starting step and design the bowed treads to meet your needs. Thanks!

    6 years 1 month ago

    Looking at a left-hand bowed starting step. Is the tread “order” width the throat width or total width (includes left return). Also, what is length of the left return (throat cut to outer edge)…and is the bull-nose tread sit std 1.5″ proud of riser?

    6 years 1 month ago

    Hi Mark,

    The measurement that you designate for your 8060 Bowed Starting Step indicates the width of the throat cut. The return on a standard 8060 Bowed Starting Step measures 14-3/8″ from the the widest point of the bowed end to the edge of the throat cut. These measurements can be found in the Specifications tab on this product page. If you require any additional information that you don’t see listed under the Specifications tab, please give our team a call at 1 (866) 226-6536 – we would be happy to assist you.

    The StairSupplies Support Team
