See Glass Railing Accessories

Glass Clip

Clear

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in approx: 10 Business Days

Product Description

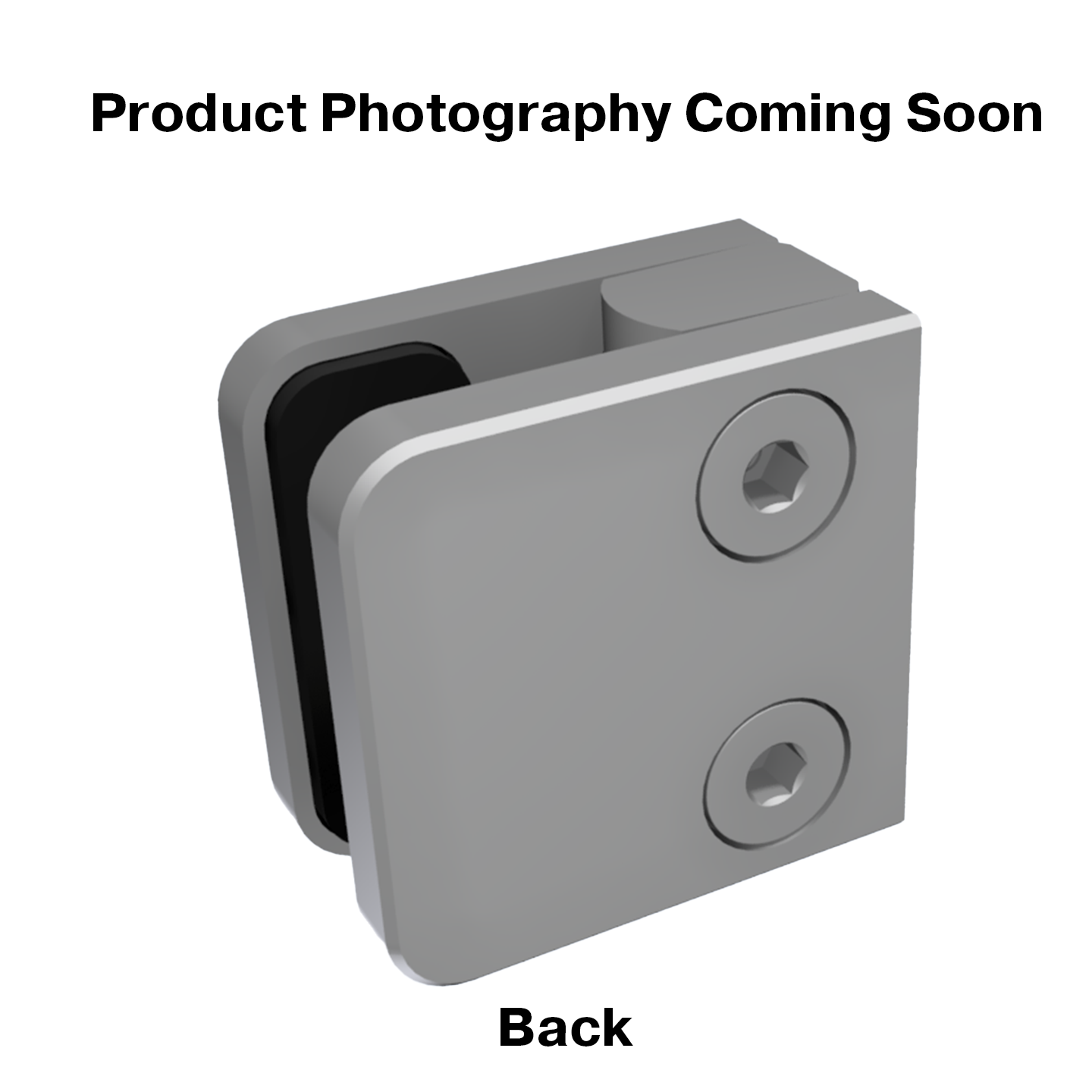

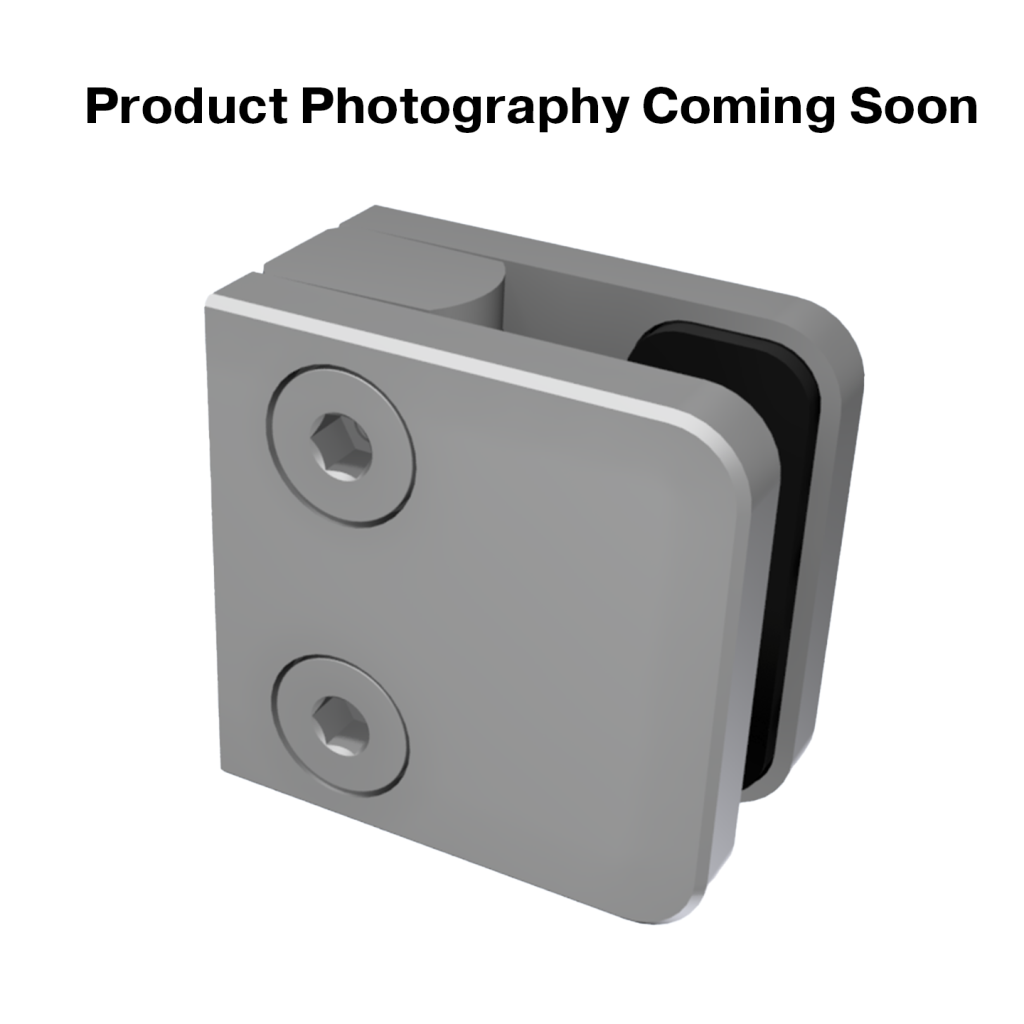

Constructed from 6061 Aluminum and 316 SS glass clips are one of the latest glass hardware pieces that we have been able to manufacture in house instead of purchasing from overseas. These clips have been engineered to be slimmer and smaller than our old clips and provide a square and minimal look as well. These clips can be bolted onto our flow drilled posts or attached to wood posts with lags to hold a variety of thicknesses of glass.



Key Features:

  • 1 3/4” tall by 1 3/4” wide
  • This is a 1pk and will require multiple clips per post
  • Include 1” Button Head Socket Screws 5/16” Wide
  • Posts are Pre-Drilled for Easy Installation
  • Natural Stainless Steel Finish—Powder Coating Available
  • Accommodates 3/8″ (10mm) or 1/2″  (12mm) Tempered glass and 9/16″ laminate glass



Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A


    Guest
    Sean Hatchett
    5 years 6 months ago

    How much of the clip would I subtract for the glass size? In other words, if I have two posts, would I subtract 2 inches from the width of the glass?

    Support
    5 years 5 months ago

    Hi Sean,

    Using these clips, you would have 3/4″ between the each post and the glass. So if you have two posts with glass in the center, count on 3/4″ from each post to the glass. Please let us know if there’s anything else we can answer for you!

    Guest
    John
    5 years 3 months ago

    Can these be used as floor-mount clamps?

    Support
    5 years 3 months ago

    John,

    These are intended to be post mounted clips that are used directly with our posts. We have not tested these clips in a floor mount application. I wouldn’t advise using them this way, as normally floor clamped glass has a continuous shoe rail rather than small clips.

    Guest
    Rafael Zabala
    4 years 6 months ago

    Can the clips be installed on 4×4 wood posts?

    Support
    4 years 6 months ago

    Hi Rafael,

    Yes! Our glass clips can be installed with wood 4×4 posts. We would recommend using a hardwood, a species more dense than pressure treated pine. If you have additional questions, give us a call at 1 (866) 226-6536.

    Best,
    The StairSupplies Support Team

    Guest
    Bruce Banning
    4 years 1 month ago

    Can you confirm there is a pin that goes through the glass to secure the glass vertically? I will need the diameter of the pin hole for my glass guy, and would appreciate a detailed drawing of the glass clips for planning purposes.

    Support
    4 years 18 days ago

    Bruce, thanks for the question.

    The clips come with a pin, but it is optional. The clips themselves will generally hold the glass panel securely without the pin. If you want to make it even more secure you can use the pin, which is about 3/8″ in diameter.

    Best,

    StairSupplies Customer Support

    Guest
    Casey
    3 years 11 months ago

    Are these available in different colors (e.g. black) to match the posts if I purchase them in a different color?

    Support
    3 years 11 months ago

    Thanks for the question Casey.

    They can be powder coated, but you should give us a call at (866) 226 6536 for pricing.

    Best,

    StairSupplies Customer Support
