3013 Intermediate Pin Top 3 1/4″ Newel


Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 15 Business Days

Product Description

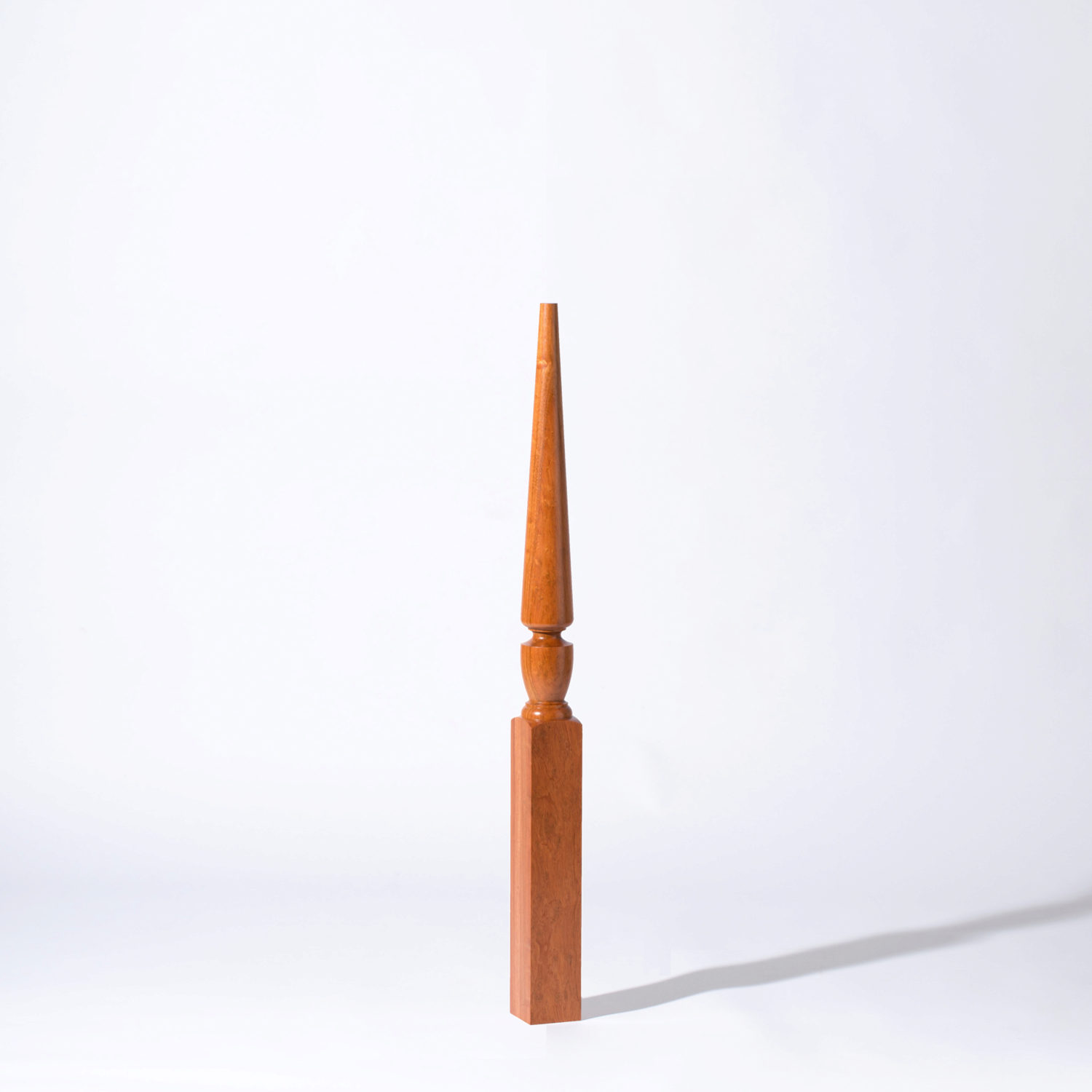

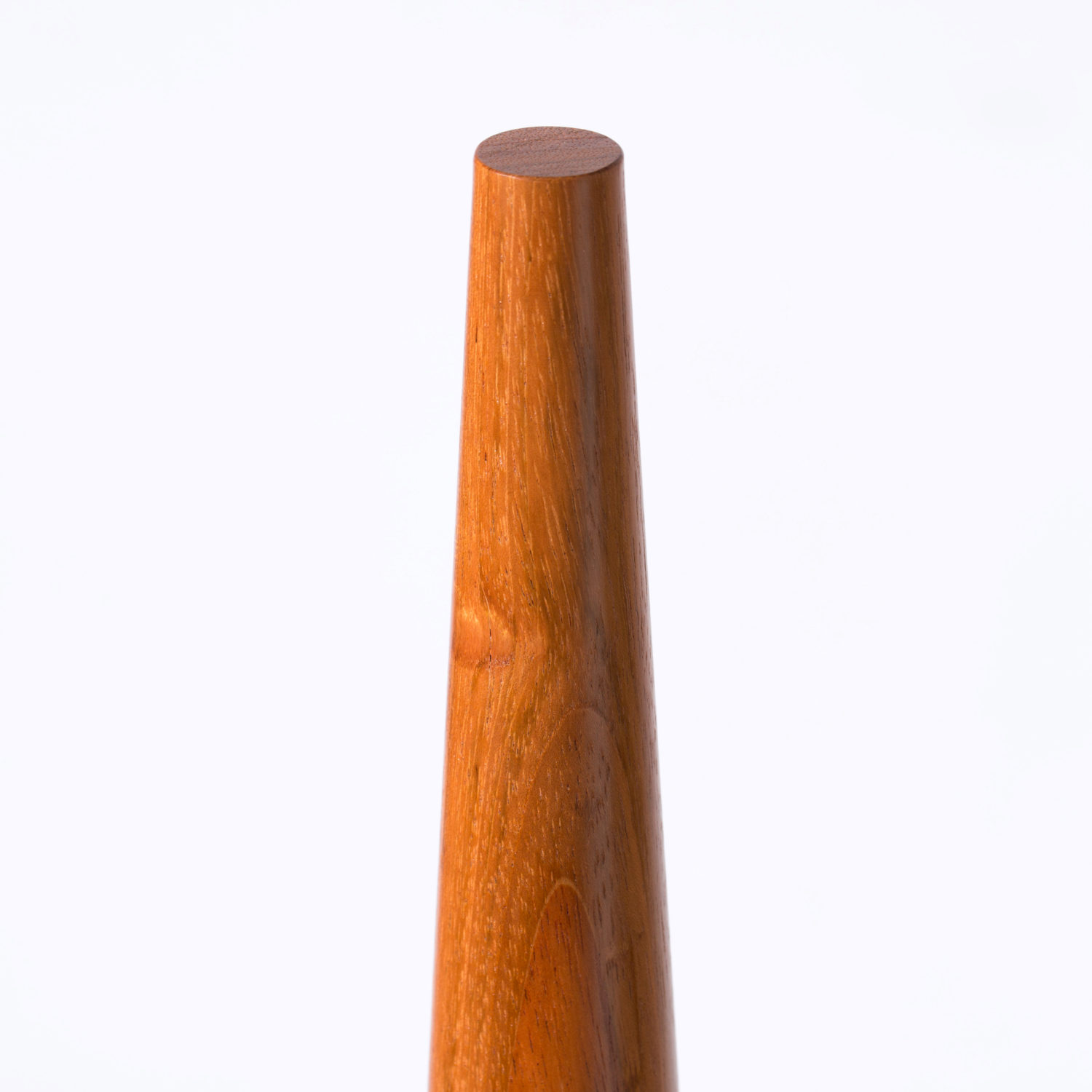

Marion Newels have urn-shaped designs and other stylized parts that give them an overall look of exceptional quality. With the 3013 Intermediate Pin Top 3 1/4″ Newel, you can give your post-to-post system extra support. The pin top of the newel is 1″ in diameter and can connect with any of our wood handrail profiles. Simply drill a 1″ hole in the bottom of your handrail, attach the newel, and enjoy the security of your railing system. All Marion Newels are 3 ¼” wide and add a stately appearance to any home.

Key Features:

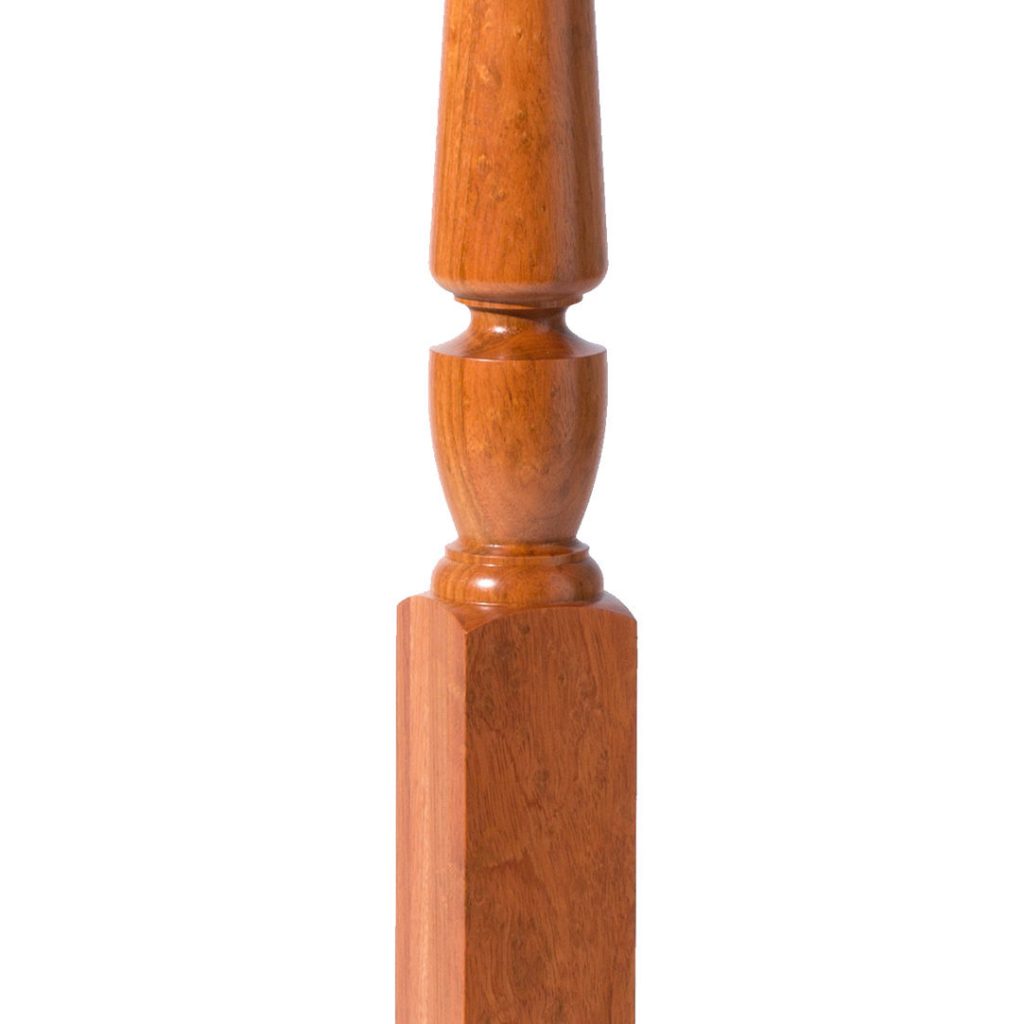

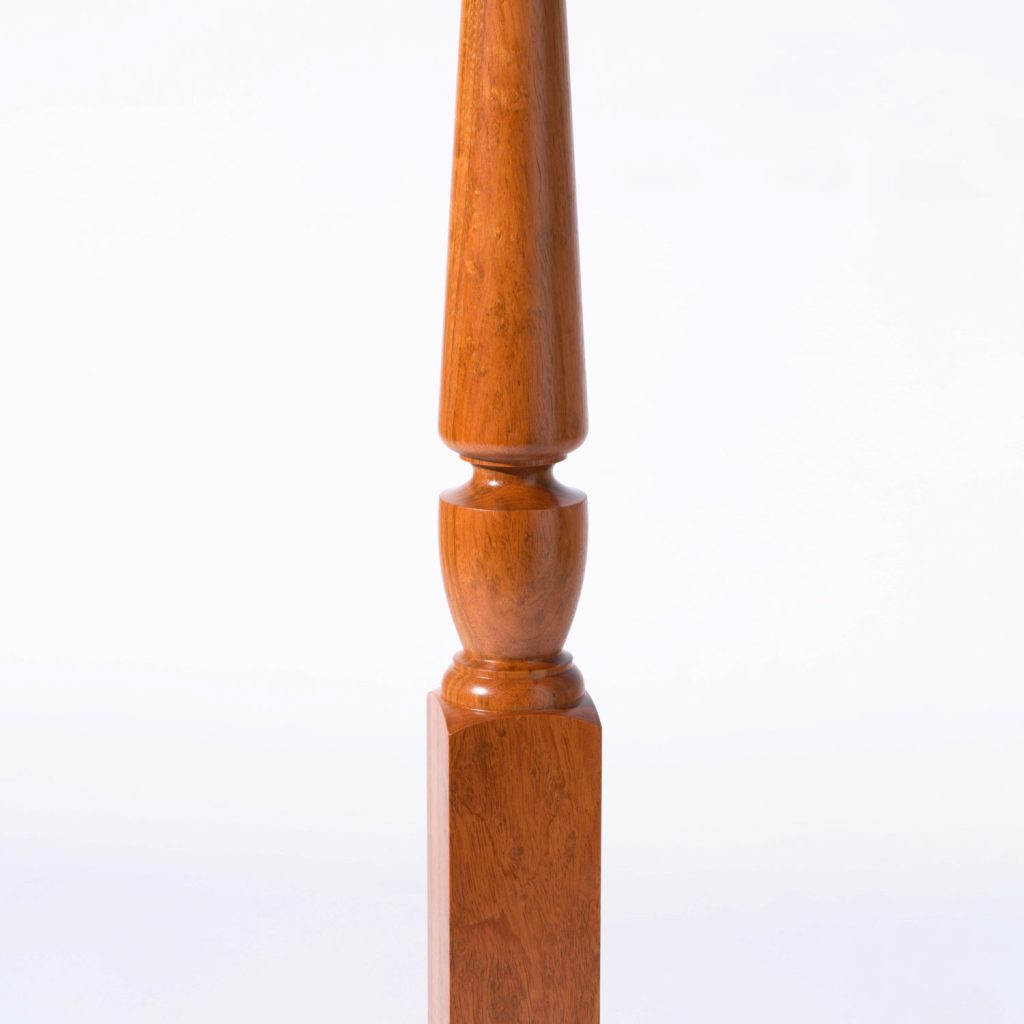

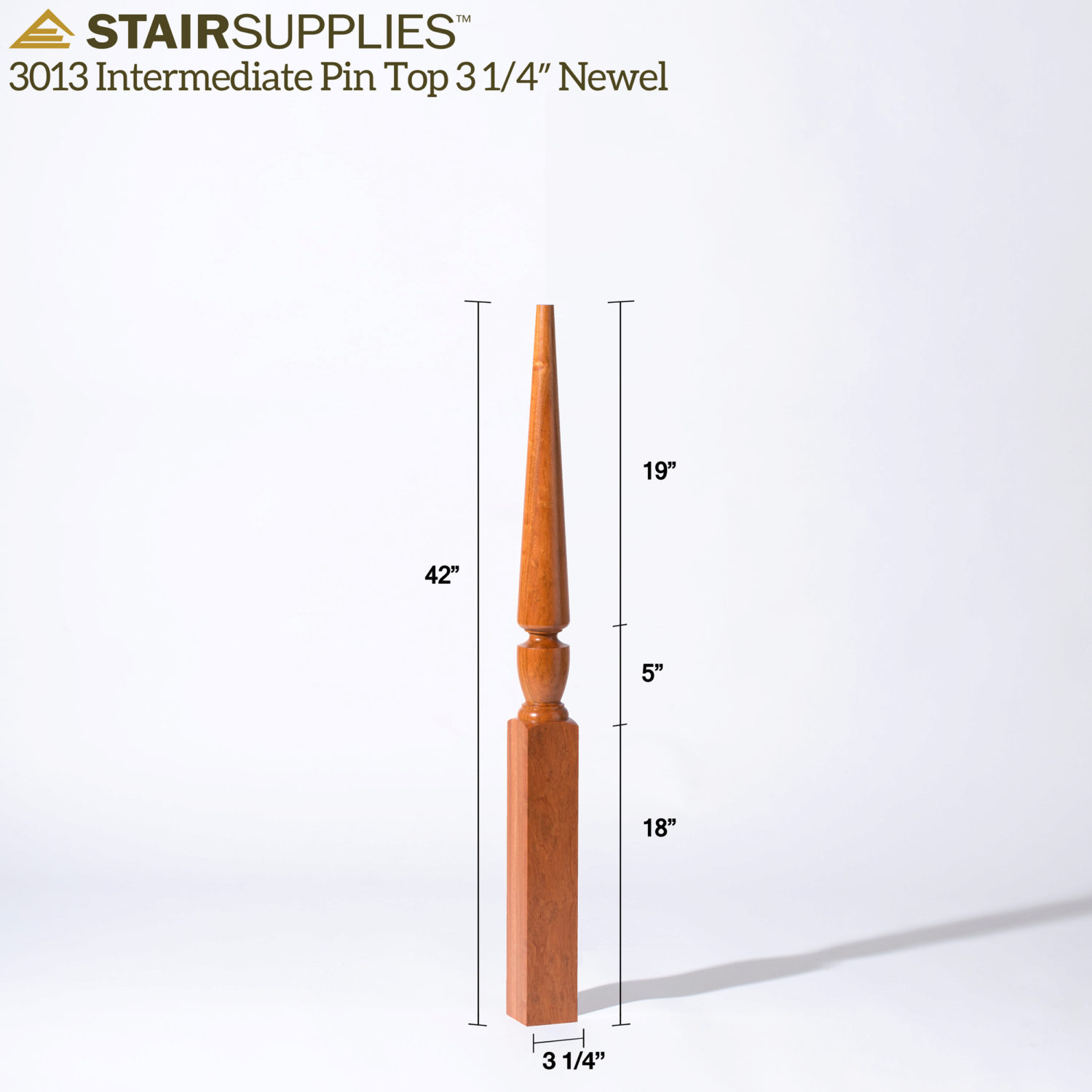

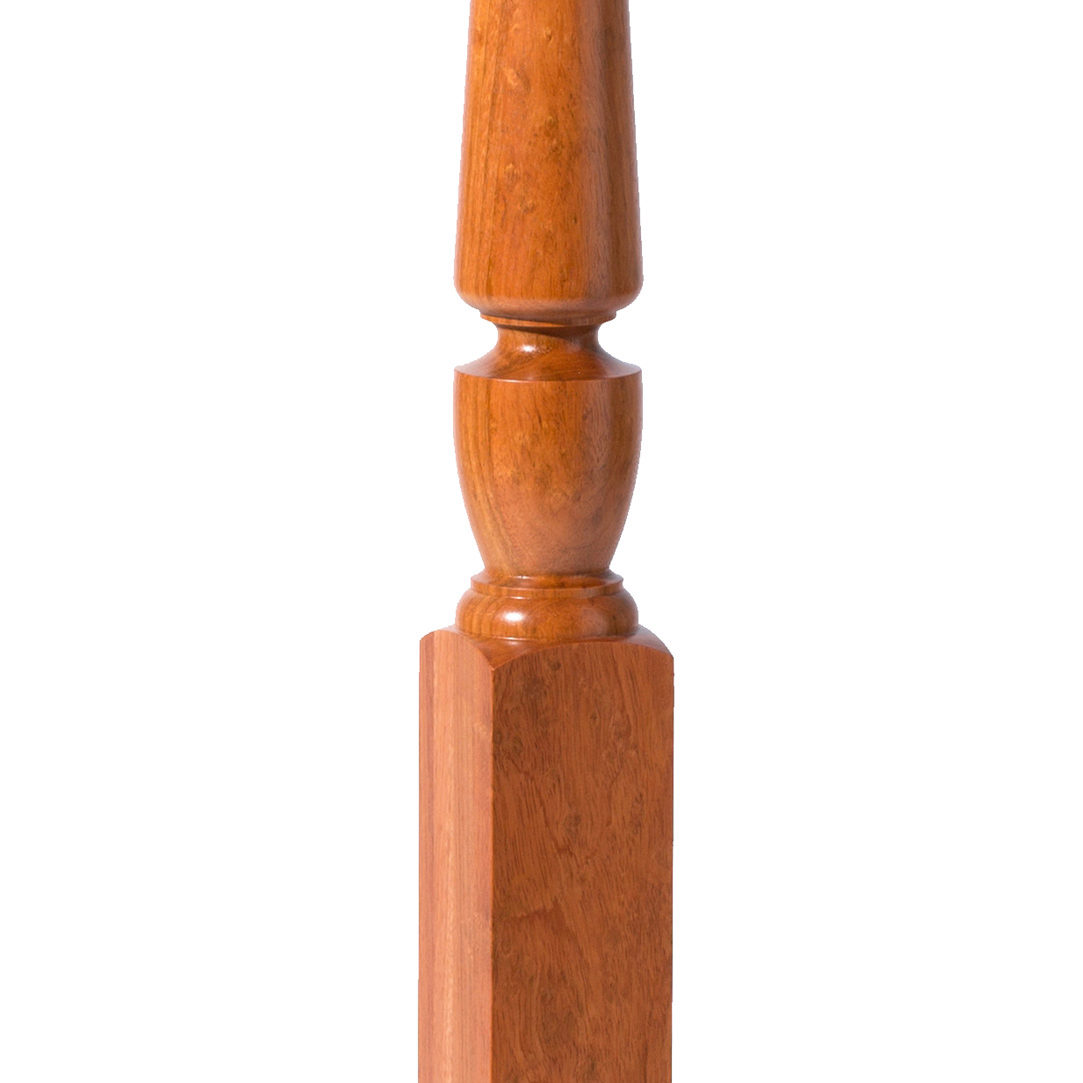

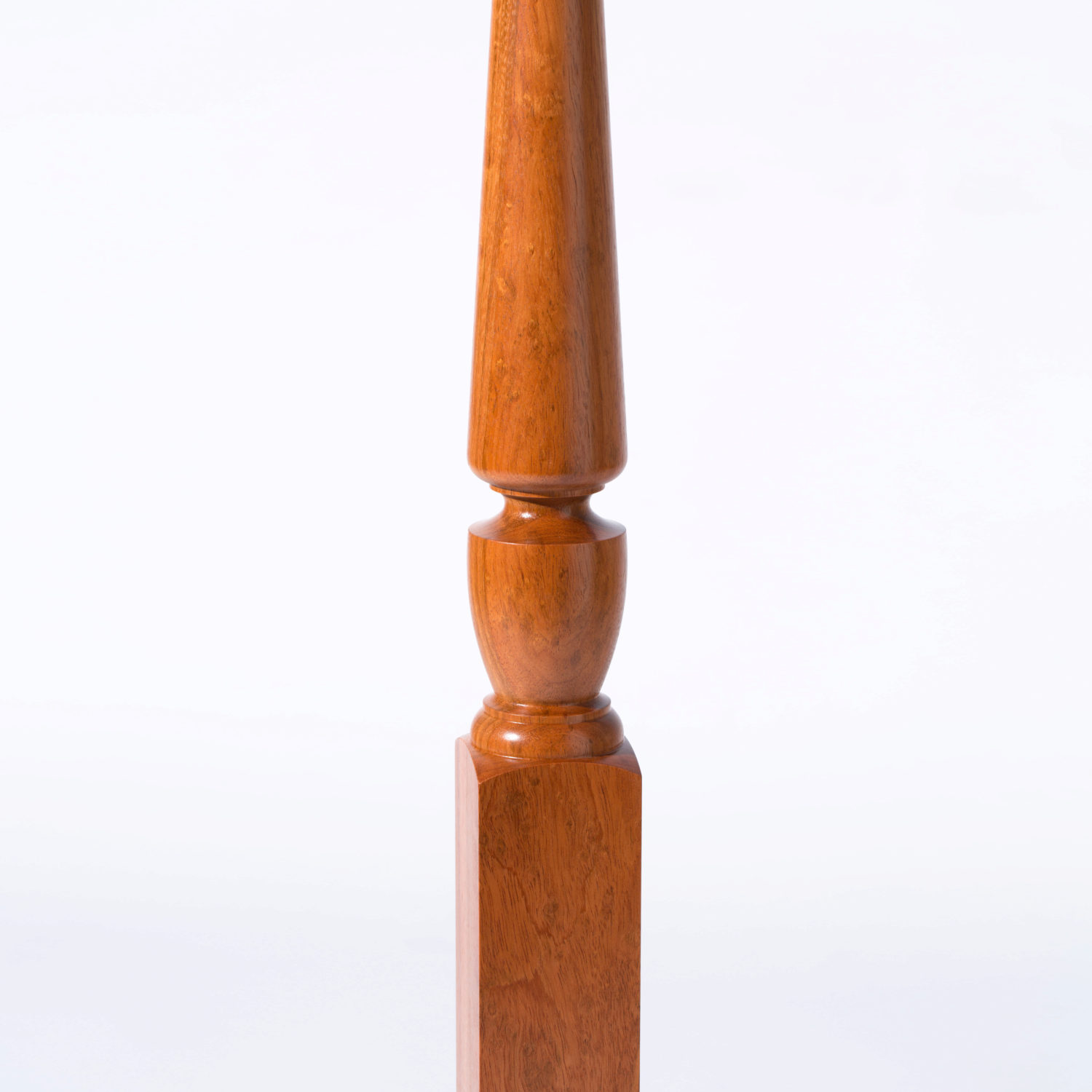

  • 5” urn shape above the mounting block
  • 18” mounting block
  • 42″ height

Mounting & Finishing Information

Turned Newels mount on a stair, landing tread, or floor using the Sure-Tite System. Finished Turned Newels will be coated with a Pre-catalyzed Lacquer to protect them against natural oils on skin.

Product Specifications


Wood Grain & Color Variation

At StairSuppliesTM we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural character of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSuppliesTM, you acknowledge that there may be some variation in the grain and color of your wood products.

Interior Use Only

This product may contain glue joints and is designed for interior use only.

Installation Guide

How to install Sure-Tite
