4993 Primed Recessed Panel W Cove Box Newel

4993 Primed Recessed Panel w/ Cove Box Newel

Clear
Ships in approx. 15 Days

Product Description

American Made Primed Box Newels are handmade by our professional craftsmen and primed in our spray booth.

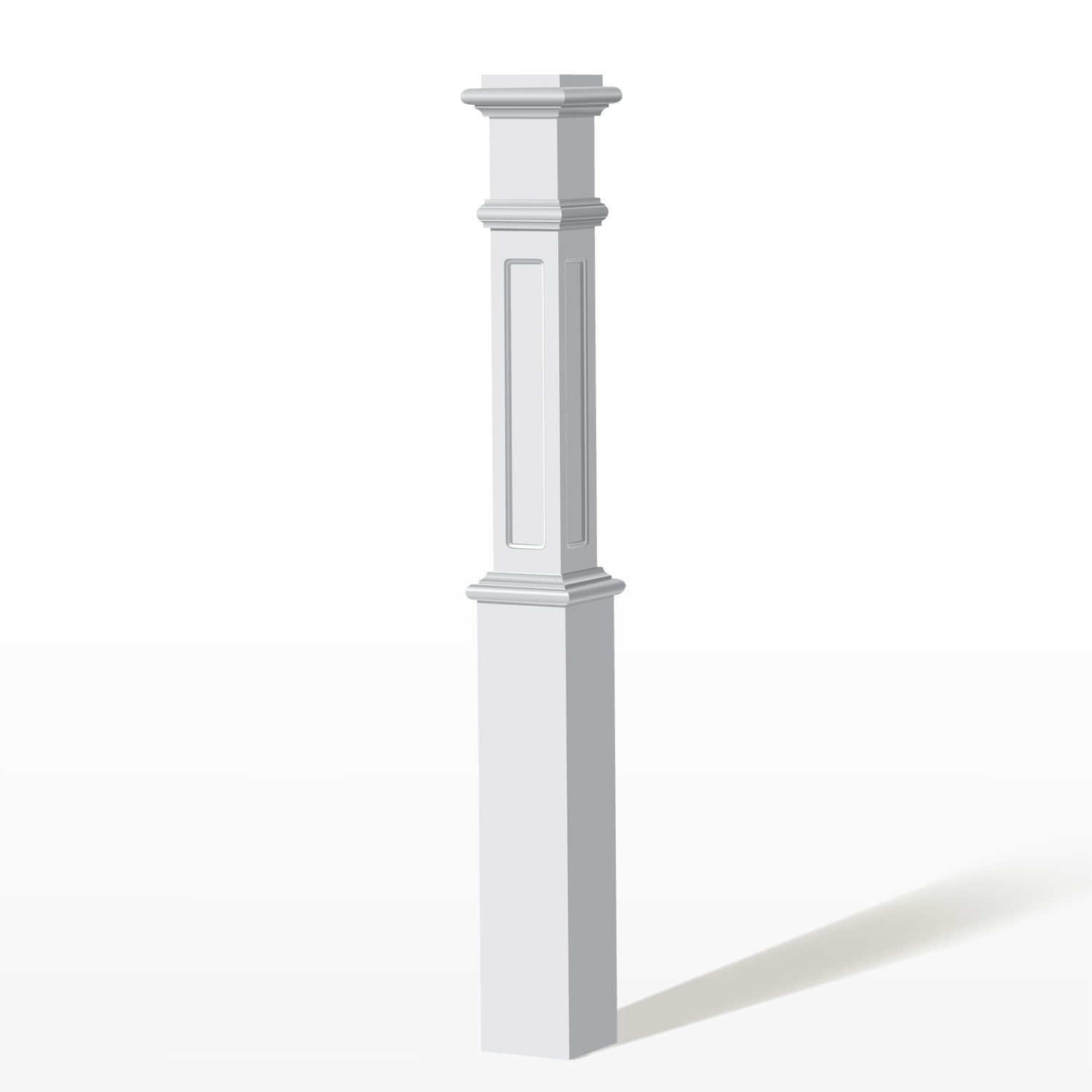

4993 Recessed Panel w/ Cove Box Newel 6 1/4″ x 6 1/4″ x 60″

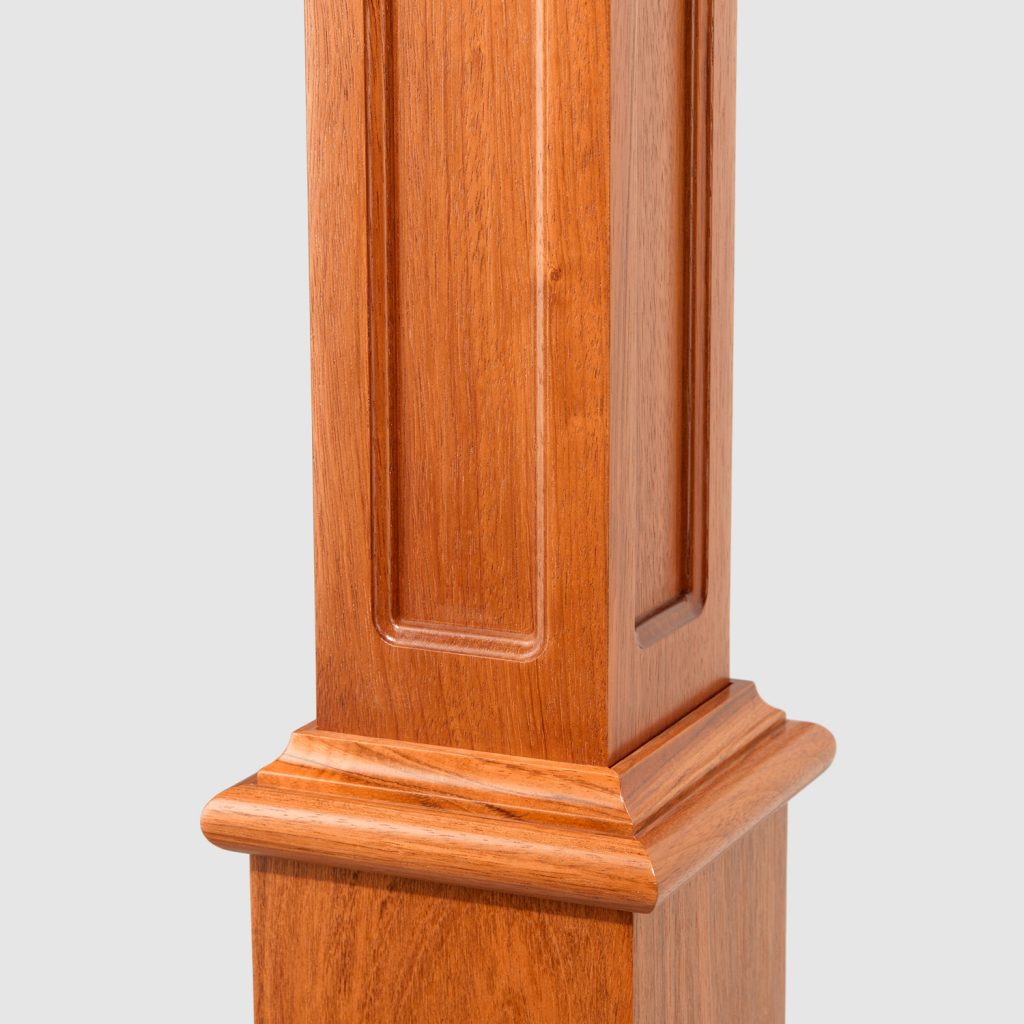

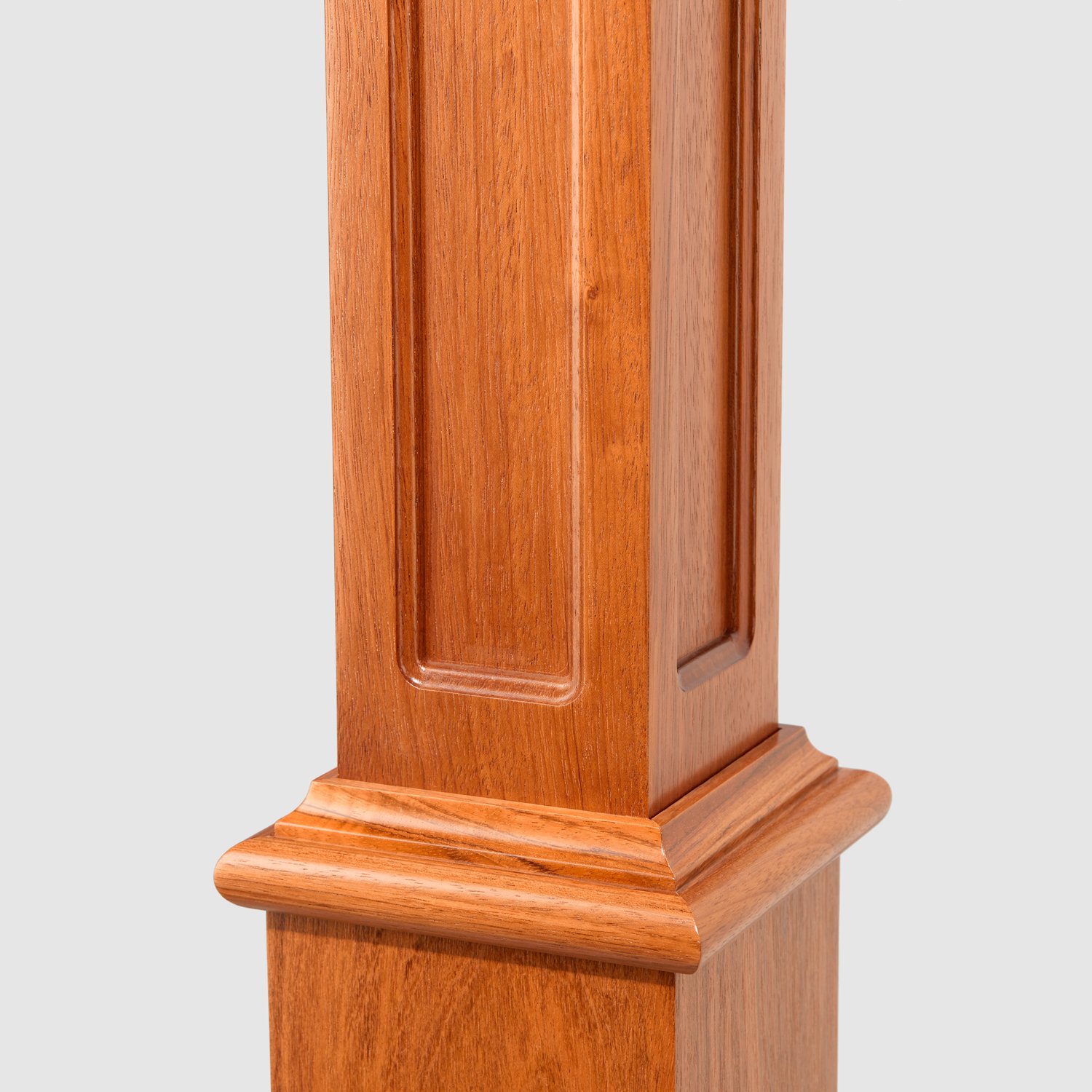

The product, box post or ranch style newel is a classic in the stair parts line. The 4993 is a recessed panel box newel. It has applications in homes that have a mission, shaker or contemporary theme. The recessed or flat panel design w/ cove goes well with contemporary cabinetry

This newel is an excellent complement to raised panel cabinetry and furniture. This is a very attractive newel for any stairway. This unit is easy to install for professional stair builders or for those who want to DIY. Whether your stairway goes one flight of stairs or more the box newel fits on the stair tread or beside a tread. We do not recommend curved starting steps for box newels. We prefer the look of a square starting step. With a box newel, handrail attaches to the side with a rail bolt or other stair hardware. Railings coming into a fluted box newel on the rake should be combined with a gooseneck. Call to see if the product you need is hollow or solid for the easiest mounting option for your application. The box newel creates the strongest wooden stair system possible when combined with a larger handrail. We recommend installation of box newels with our Box Newel Mounting Kit for a strong and reliable staircase.

Box Newels can be split for a charge of $35.00.

Product Specifications


Product Dimensions:

Overall dimensions: 6 1/4″ x 6 1/4″ x 60″.
Bottom Block: 6 1/4″ x 6 1/4″ x 28″ tall (Hollow – no end grain).
Top Block: (4 3/4″ x 4 3/4″ x 32″ tall (Hollow – no end grain).
Space between top & shoulder trim: 5″.
Bottom opening: 4 3/4″ x 4 3/4″.

The top block extends into the bottom block approximately 8 inches to provide the necessary strength.



Clear Finish & Stain Information:

StairSuppliesTM offers premium finish options, we select different products depending on the application (read more about our stain & finish selection). Whether you want a clear finish to draw out and protect the natural color of the wood, of you prefer a custom mixed stain to give your stair parts a more unique rich color, we have the expertise to give you the look you want.

Primed items, are primed with a white vinyl primer. Any item can be ordered with a primer by selecting the finish type “Paint Grade” and the finish “Primed”. These parts come ready for a quick light sanding, and then can be painted in the specific color of your choice.
