6040 Round Handrail

6040 Round Handrail

Clear
Ships in approx: 7 Business Days

Product Description

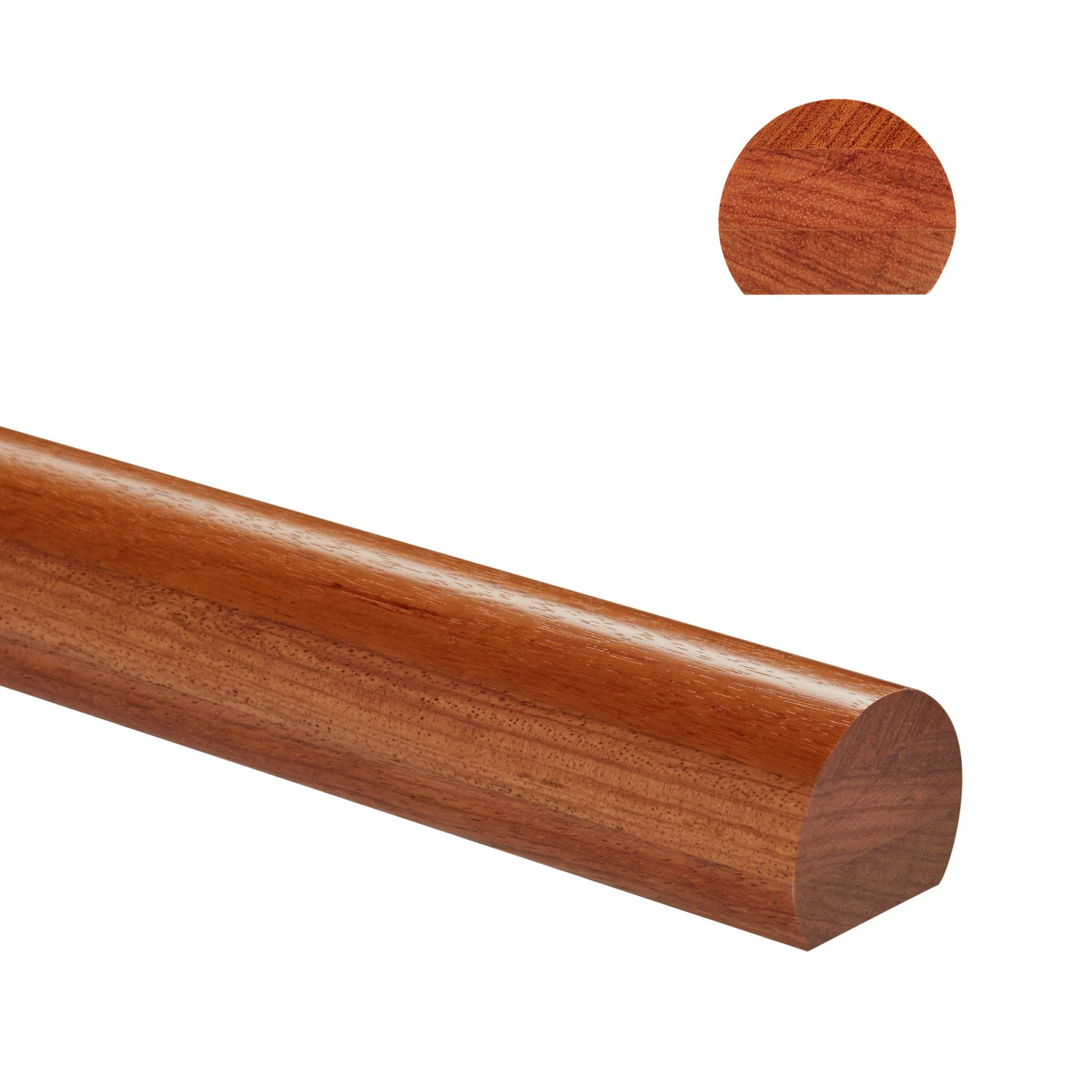

The 6040 “Round Handrail” is circular with a flat bottom for mounting. This curved shape has a comfortable grip, sized perfectly for a hand to grasp and slide smoothly across. The 6040 is often used as a grab rail in conjunction with a guard rail in areas with strict code requirements, but it also looks great with the Viewrail cable railing system.

Key Features

  • Grab Rail
  • Rounded Top
  • Viewrail Compatible
  • Stain-Grade Wood



Product Specifications

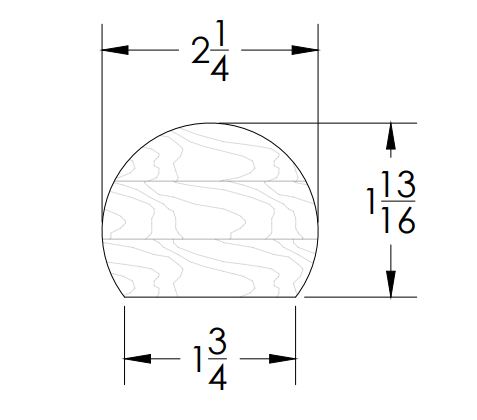

Dimensions

  • Widest Point: 2 ¼”
  • Tallest Point: 1 13/16”
  • Flat Bottom: 1 ¾”

Mounting Options

  • Viewrail System: Pair your modern handrail with a state-of-the-art cable railing system. Design your customized cable rail system with the Viewrail Design Tool.
  • Square-Top Baluster Mount: The 6040 Handrail can be plowed at widths of 1”, 1.25”, and 1.75” to accommodate Square-Top Balusters. When ordering plowed handrails, don’t forget to include Fillet in your order to fill the openings between balusters after installation.
  • Iron Baluster Mount: Pair this handrail with your choice of Wrought Iron Balusters for timeless beauty. Design your own look with the Iron Baluster Design Tool. Be sure to include the proper mounting accessories, such as mounting kits and aluminum shoes.
  • Bracket Mount: The 6040 Handrail may also be mounted using VR 453 Stainless Steel Handrail Bracket for Wall-Mounted Handrail. Be aware of code requirements in your area. Most codes require wall-mounted handrails to terminate into a wall. For that reason, Quarter Turn and 45 degree Mitred handrail endings may be necessary.
  • Rail Bolt Kit: If you plan to join two handrails, install Wooden Newels, or connect Handrail Fittings, you will need a Rail Bolt Kit or an Angled Rail Bolt Kit.

Clear Finish & Stain Information

StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For handrails, we offer both clear finishes and stains. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Handrail.

All of our stained and clear-finished handrails will be coated with Pre-Catalyzed Lacquer. Using the same quality product that cabinet makers require, this lacquer is designed to resist the natural oils from hands. We use this lacquer on all of our products that will be consistently touched, including handrails, balusters, and newels. This layer of protection will keep your indoor handrail looking smooth and stain free for years to come. Unfortunately, we do not currently offer any exterior-grade finishes. If your handrail will be used outside, you may order it unfinished and apply your own exterior-grade finish.

Wood Grain & Color Variation

At StairSupplies™ we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSupplies™, you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.

Additionally, longer handrails crafted in certain species may require joints. Though this is rare, joints are always constructed with color, grain-match, and strength as priorities. We utilize Scarf Joints in order to provide the strongest, most discreet joint possible.

Interior Use Only

This product may contain glue joints and is designed for interior use only. If you’re looking for exterior options check out our ipe exterior wood handrail.

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A


    Guest
    tammy teng
    2 years 4 months ago

    When you are grasping this handrail do you feel the sharp edge at the bottom?

    Support
    2 years 4 months ago

    Hi Tammy,

    The handrail is sanded so that the edges are slightly rounded over. This gives them a finish that’s not sharp, which is part of what makes it a great graspable handrail. Please let us know if you have any other questions.

    Guest
    Erik
    2 years 1 month ago

    What is the circumference of this handrail?

    Support
    2 years 29 days ago

    Erik,

    Here are the measurements for the 6040 handrail:

    • Widest Point: 2 ¼”
    • Tallest Point: 1 13/16”
    • Flat Bottom: 1 ¾”

    Guest
    Tim Legat
    1 year 8 months ago

    How deep is the plow for 1.25″

    Support
    1 year 8 months ago

    Hi Tim,

    The depth of the plow for all of our handrail is 3/8″.
    Let us know if you have any further questions!

    Guest
    Edward
    1 year 17 days ago

    Just to verify dimensions, the 3/8″ deep plow is off of the 1 3/4″ bottom flat face on the #6040 round handrail?

    Support
    1 year 16 days ago

    Edward, thanks for the question.

    You are correct the 3/8″ deep plow is off of the 1 3/4″ bottom flat face.

    If you have any other questions, feel free to give us a call at (866) 226 6536 and one of our customer support specialists will be happy to help you out.

    Best,

    StairSupplies Customer Support.

    Guest
    David S
    4 months 4 hours ago

    Are “overeasing” available for #6040, and if so, where can I purchase them??

    Support
    3 months 19 days ago

    Thanks for the question David.

    Unfortunately we do not sell an over easing for this profile. I’m not sure where you can find them, you might try one of the big box stores, or Google.

    Best,

    StairSupplies Customer Support

    Guest
    lee webb
    3 months 3 days ago

    I do not want to return the ends to the wall. If I buy the rail finished, how are the ends terminated? Do you have matching end-caps or finials? Also, is there any difference structurally between the hard and soft maple? Which of the two woods do you recommend for the round handrail?

    Support
    2 months 27 days ago

    Thanks for the question Lee.

    Our 6040 Round Handrail comes with just flat ends, sanded and with whatever finish is selected. There isn’t a lot of difference between hard and soft maple – hard maple has a janka rating of 1450 and soft maple has a janka rating of 950. Either one is fine for a handrail. The hard maple, as the name implies, is a denser wood.

    Best,

    StairSupplies Customer Support

    Guest
    Jelena Erceg
    5 days 3 hours ago

    Hi, I am looking at purchasing walnut and I will need routed 3/8″ slot along the bottom to fit into a solid steel custom railing. I can send you a photo, however I will need this channel to be at least 3/4″ deep. Could you provide the custom fitting for this? I need 8 foot length. I would also order several other lengths to complete the job. Thank you

    Support
    3 days 9 hours ago

    Hi Jelena,

    I forwarded your question on to our sales team, they should be in touch soon. Feel free to call us if you need urgent help.

    Thanks,
    StairSupplies Customer Support
