S-9601 Angled Rail Bolt Kit

S-9601 Angled Rail Bolt Kit

List Price: $5.99
Sale Price: $2.93

Ships in approx: 2 Business Days

Product Description

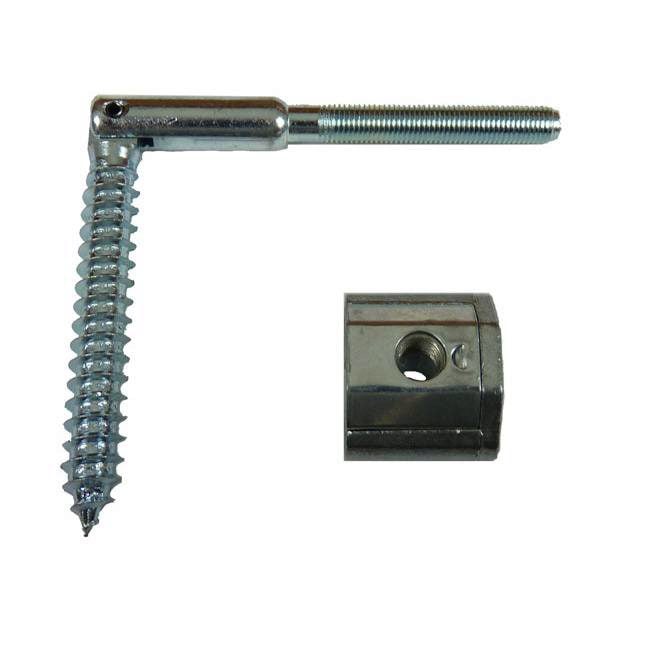

The S-9601 Angled Rail Bolt Kit stair part is used for joining a handrails to a newel at an angle.

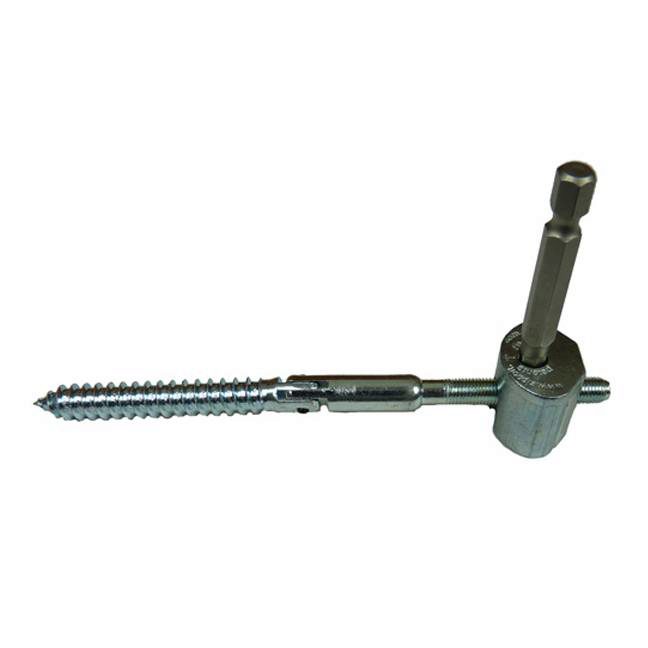

To tighten this rail bolt you need our 3905 – Angled Rail bolt driver.

You will need a wood plug that matches your handrail and fittings search for “plug” on our website and they are available for a minimal charge.

The mechanism that tightens this bolt is commonly referred to as a ZIP bolt.

Installation Guide

How to install angled rail bolt

Product Q&A


Guest
Bruce Hawkins
2 years 9 months ago

When using the 6000 Handrail and securing to a 4000 3 1/4 Newel what fastening method / kits should be used?

Support
2 years 9 months ago

Thank you for contacting us, Bruce. We would certainly recommend our S-9601 Angled Rail Bolt Kit for securing the handrail and newel that you mentioned in your question.

Guest
Don M
1 year 2 months ago

I have used the angled rail bolt fastener to connect the angled rail to the newel post. One end was easy. But, I can’t figure out how to get the other end of the rail onto the bolt on the other newel. There is no clearance. Help!

Support
1 year 2 months ago

Hi Don,

Thanks for the question – we’re sorry you’re having difficulties during installation. Please give us a call at 1 (866) 226-6536 so a member of our support staff can assist with your installation.

Best,
The StairSupplies Support Team

Customer
rsdmitch46
5 months 7 days ago

What is the size (dia.) and length of the lag? I will need about ten for my project and want to make sure these will work.

Thank You

Bob Mitchell

Support
5 months 3 days ago

Thanks for the question rsdmitch46,

I have one here in my office and it looks like the diameter is about 1/4″ on the end that goes into the newel and 3/8″ on the end that goes into the handrail. The entire bolt is 5″ long.

Best,

StairSupplies Customer Support

Guest
Mike
4 months 12 hours ago

Are these acceptable to be used on hollow boxed Newell’s (3/4” thick)?

Support
3 months 29 days ago

Thanks for the question Mike.

The rail bolt should have at least 2 inches of wood to go into. With a hollow box newel, you could theoretically put another board, like a 2×4 inside it to provide the thickness needed for the rail bolt.

Best,

StairSupplies Customer Support
