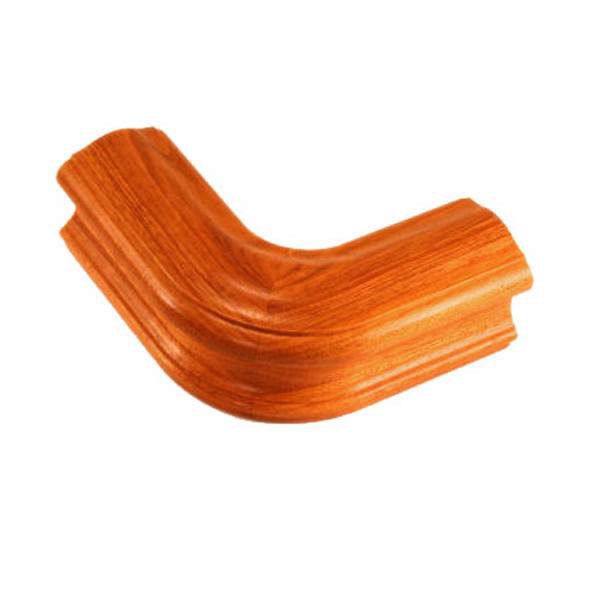

Level quarter turns are used to make a 90 degree turn of a handrail where a newel is not being used. These are commonly used to return a handrail to a wall.

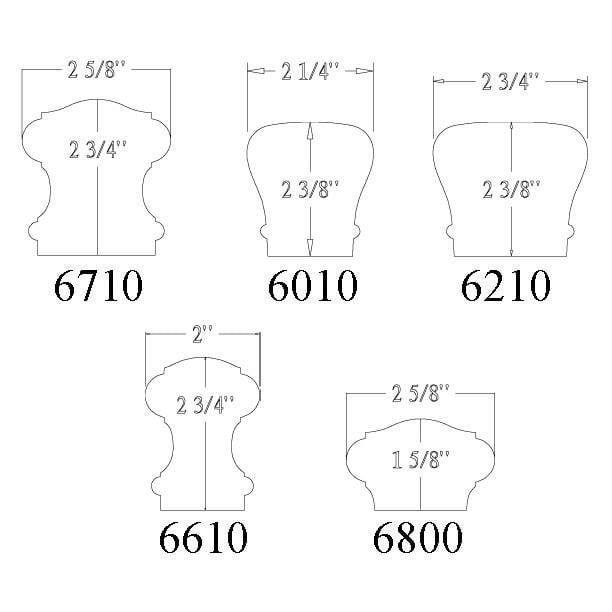

7011 – fits 6010 profile handrail
7211 – fits 6210 profile handrail
7611 – fits 6610 profile handrail

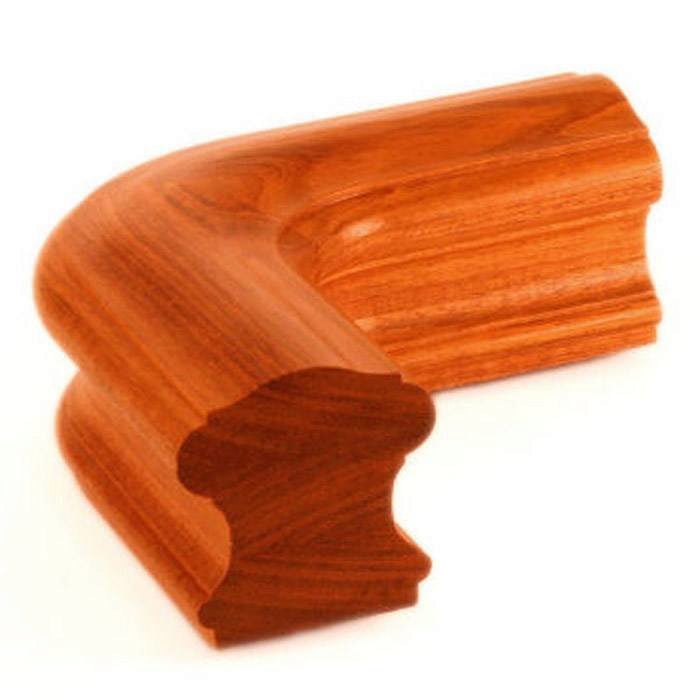

7711 – fits 6710 profile handrail
7811 – fits 6800 profile handrail
StairSupplies guarantees the tolerance on our fittings to match our handrail within 1/32″ (will be within 1/32″, once centered on the handrail). Please be aware that the part numbers on our handrail & fittings are industry standard numbers, but the actual profiles can vary from one supplier to another. For example, we do not guarantee that our 6010 profile will match 6010 profile you purchased elsewhere. Let us know if you have additional questions about this policy.
You must be logged in to post a comment.
What are the dimensions for installation, I am looking to use 2 of them to make a 180 degree turn at the top of a stair.
The length of the fitting varies some depending on the profile of the handrail. Typical from center to end of the fittings is 4″ – 5″. If you need custom length just let us know, and we should be able to do that for you.
Hi, I need this level quarter turn to fit the handrail 6910. Please advise.
Isaac, thanks for the question.
We do have the 6910 handrail in a level quarter-turn, but it comes with the length of handrail with level quarter turns attached to both ends (https://www.stairsupplies.com/product/6910-level-quarter-turn-handrail/). If that won’t work for your application, you could call one of our specialists, at (866) 226 6536 to make arrangements for a custom order.
I hope this helps.
StairSupplies Customer Support
