See Craftsman Series Box Newels
4130 Craftsman Box Newel
4130 Box Newel

4130 Box Newel

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 20 Business Days
Order Samples Before You Buy

Product Description

Craftsman style from cap to base, the 4130 Box Newel is extremely versatile. Choose from one of our many of wood species, such as Ipe, Brazilian Cherry, or Walnut, and select a finishing option to reveal the beauty of the natural wood. This 4 ¾” square box newel stands 54” tall, but can be adjusted on-site to fit your stairway perfectly. Top off this timeless box newel with either a beveled or flat cap and enjoy your ideal Craftsman Series Box Newel.

Key Features

  • Craftsman Style
  • Beveled or Flat Cap
  • Stain-Grade
  • Easy Install

Mounting System

To install your 4130 Box Newel, you will need the Box Newel Mounting Kit. Follow our Installation Video to ensure a secure fit. The Box Newel may be installed either on the surface of the stair tread or beside the tread. Due to their precise edges, we have found that Box Newels look best on a square starting step.

Handrail Attachment

Join handrail to your 4130 Box Newel using a rail bolt kit. Many configurations allow handrail to mount directly into the newel; however, if your handrail is joining with your box newel on a rake, you may also require a gooseneck handrail attachment.

Cap Attachment

The cap for this box newel is sent unattached to the newel body, allowing easy access for mounting handrail. Then, after handrails are attached, the cap can be secured on-site by applying a bit of wood glue and finishing nails for increased strength.

Splitting Box Newels

In order to maintain a consistent appearance when handrail must terminate into a wall, we offer Split Box Newels. Attach the partial newel to the wall, and your handrail can be secured like normal. If you would like your Box Newel split in half, please select “Split in Half” in the dropdown menu above.

Product Specifications

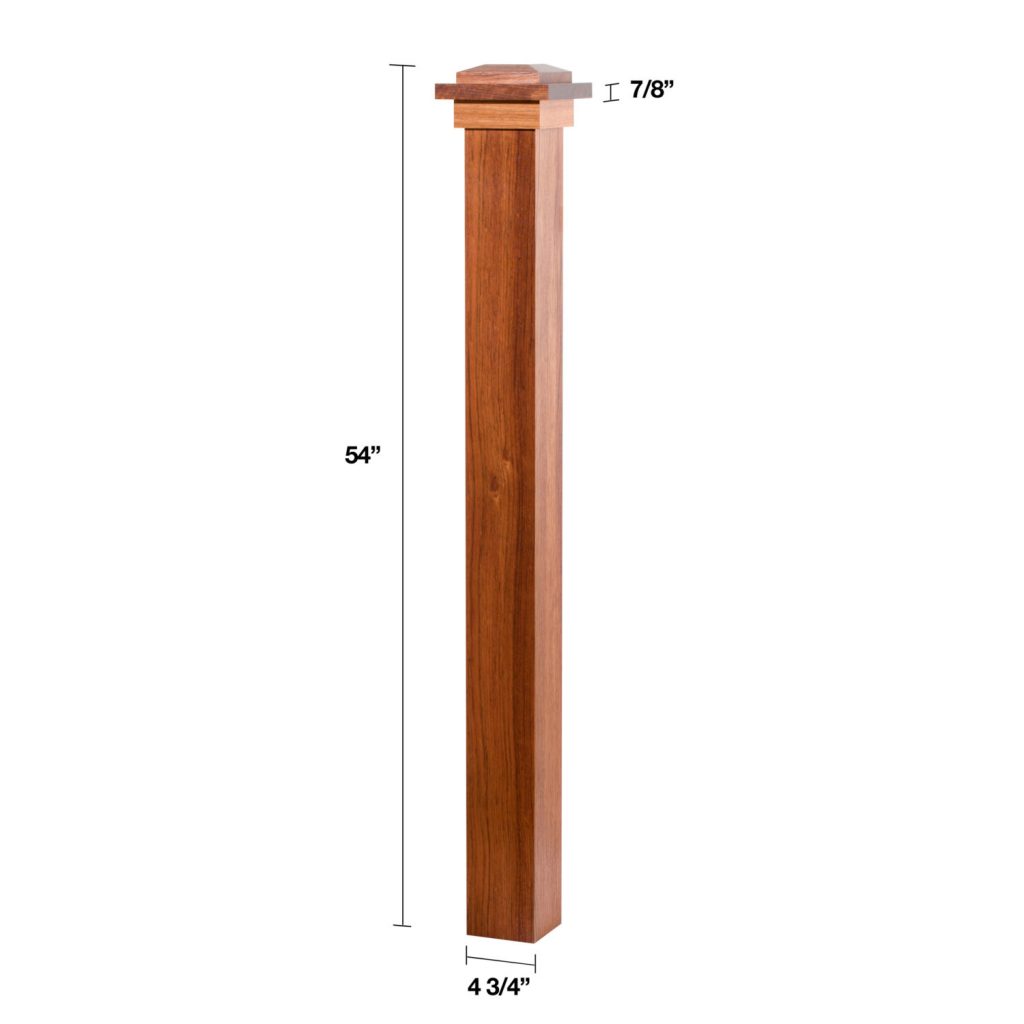

Product Dimensions

  • Overall: 4 ¾” x 4 ¾” x 54”
  • Space between Top & Shoulder Trim: 5″
  • Bottom Opening: 3 1/4″ x 3 1/4″

Composition

  • Hollow Construction
  • No Visible End Grain

Clear Finish & Stain Information

StairSupplies™ offers several premium stain and finish options for our products, depending on the product’s use. For the Box Newels we offer both clear finishes and stains. Select a clear finish if you want to draw out the natural beauty and colors of the wood. If you prefer deeper, richer tones, our custom-mixed stains are the ideal choice for your Box Newels.

All of our stained and clear-finished Box Newels will be coated with Pre-Catalyzed Lacquer. Using the same quality product that cabinet makers require, this lacquer is designed to resist the natural oils from hands. We use this lacquer on all of our products that will be consistently touched, such as handrails, balusters, and newels. This layer of protection will keep your Box Newels looking smooth and stain free for years to come.

Wood Grain & Color Variation

At StairSupplies™ we believe that natural wood colors and visual textures add character to our products. With that in mind, we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural variation of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSupplies™, you acknowledge that you are receiving a uniquely crafted product and there may be some variation in the grain and color of your wood products.

Interior Use Only

This product may contain glue joints and is designed for interior use only.

Product Q&A

Guest
Art
8 years 3 months ago

Can this fit as a sleeve over a standard 4×4?

Guest
Stair Supplies
8 years 3 months ago

Unfortunately no, the inside dimension is 3 1/4″. And you probably wouldn’t want to go much larger than 3″ in order to ensure the post fits snugly.

Customer
art.dykhuis
8 years 3 months ago

Do you have any photos of the flat cap style, as opposed to the beveled? Thanks!!

Guest
Stair Supplies
8 years 3 months ago

Unfortunately we don’t. Sorry!

Guest
Marie Williams
6 years 5 months ago

what wood and stain is on the picture of the 4130 box newel

Guest
StairSupplies
6 years 5 months ago

Marie,

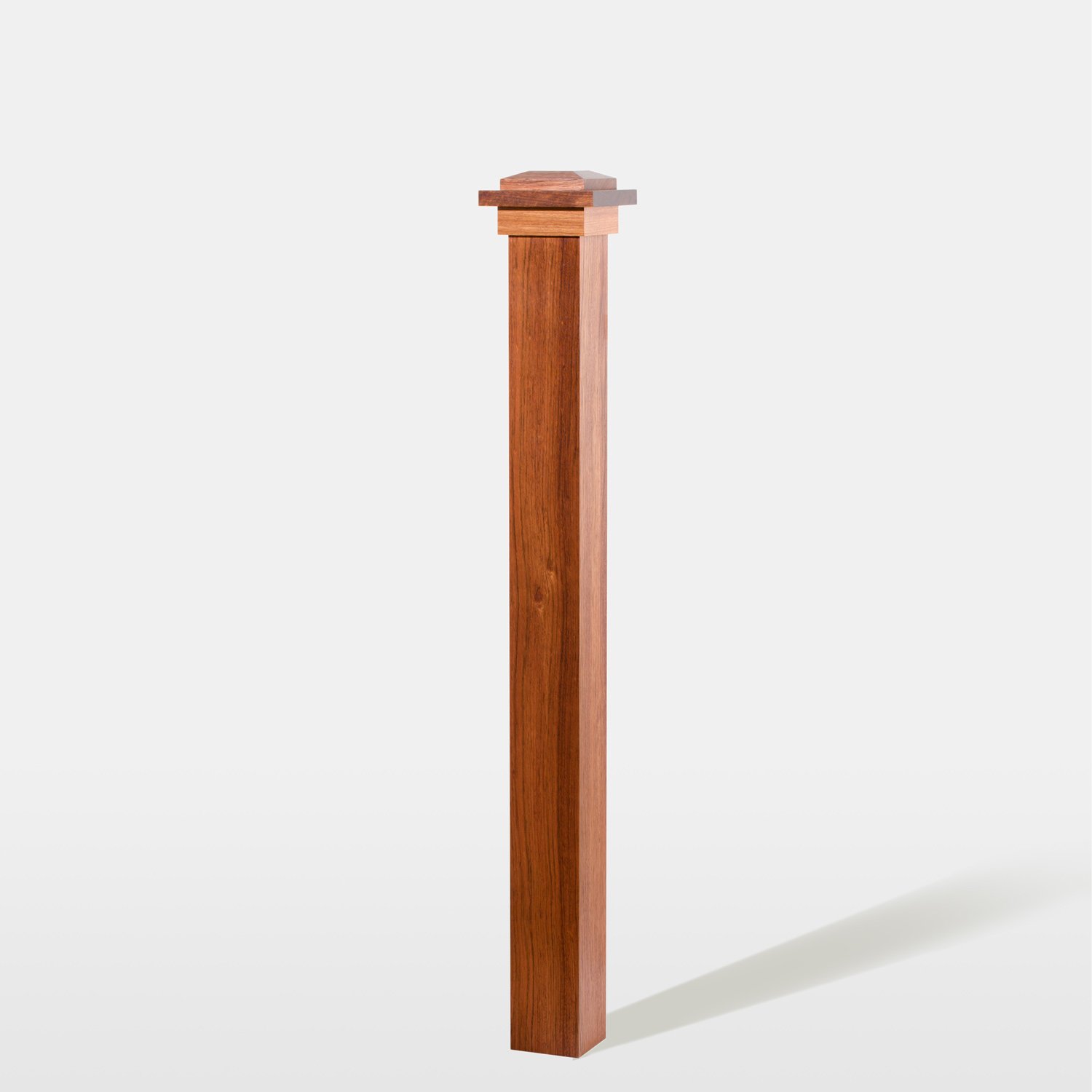

The product photo uses a box newel manufactured out of Brazilian Cherry with a Clear Finish.

Guest
Toye Nigey
6 years 5 months ago

Can I order this post shorter? I need 5

Guest
StairSupplies
6 years 4 months ago

Toye,

This post is manufactured at a standard 54″ length. However, you may cut the post to a specific length on-site with a table saw.
