6010 45 deg Mitered Handrail
6010 45 deg Mitered Handrail
American Made Primed Balusters

6010 45 deg Mitered Handrail

Clear

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in approx: 10 Business Days
Suggested Products
Classic Handrail Bracket
Classic Handrail Bracket
The above products are recommended for installation or mounting of the 6010 45 deg Mitered Handrail.
Order Samples Before You Buy

Product Description

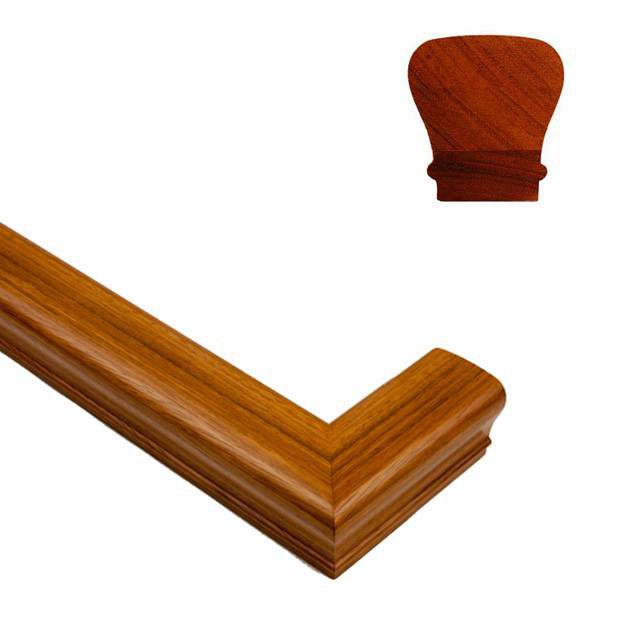

Mitered Handrail is mitered and jointed at a 45 degree angle on both ends. Use handrail brackets to attach your handrail to the wall.

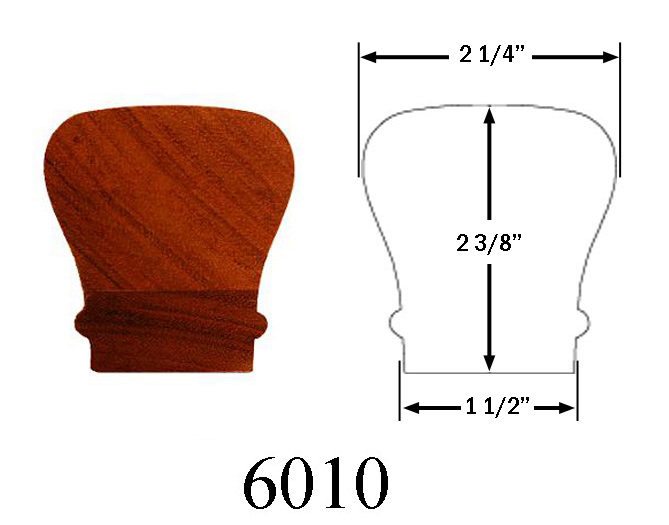

6010 Colonial Handrail is 2 1/4” at its widest point & 2 3/8” at its tallest point. The 6010 is the industry standard, and is used in more stairways in North America than any other handrail. 6010 handrail has a soft profile that is easy to install and easy to use with fittings.

Rarely, in some species joints will be necessary in longer handrails. Joints are always done with color and grain match as the priority.

Product Specifications



Wood Grain & Color Variation

At StairSuppliesTM we strive to match the grain and color of all of our wood products as closely as possible. However, due to the natural character of wood products, there may be instances in which a perfect grain and color match is not possible. By ordering from StairSuppliesTM, you acknowledge that there may be some variation in the grain and color of your wood products.

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A

    Guest
    Matthew
    6 years 3 months ago

    Which brackets should I use with this product? What reach should they be to ensure a clean installation?

    Support
    Stair Supplies
    6 years 3 months ago

    Hi Matthew,
    You can select whichever bracket style you like best. We oversize the mitered returns in order to ensure that you have enough room for them to be cut down on the job site to match the projection of whatever bracket you select.

    Guest
    Bryce Schober
    6 years 2 months ago

    What is the total width, or length of the post-mitered section? Code seems to limit total width from wall to the stair side of the handrail to 4-1/2″. I wouldn’t want to have to trim a finished rail to meet that…

    Support
    Stair Supplies
    6 years 2 months ago

    Hi Bryce,
    We oversize the mitered returns so that you can cut them down on the job site. That way you can ensure that the handrail meets code, and that it works with whatever handrail brackets you get.

    Guest
    David
    4 years 10 months ago

    For all of the listed lengths, is this dimension an overall dimension (i.e., total length including the width of the return handrail) or is it to the centerline of the return section? For the later, this would mean that a 3′-0″ piece would be a total dimension of 3′-2 1/4″ rather than a total length of 3′-0″). I have a tight section I need to fit this in so I certainly want it to fit but don’t want it to be too under sized.

    Support
    StairSupplies
    4 years 10 months ago

    David,

    The listed dimension will be a guaranteed minimum of just the length of the handrail. This dimension does not include the mitered return.

    Guest
    Norm
    3 years 7 months ago

    If I order a 8′ rail section with the mitered ends,is the length of the rail 8′ max, or does it increase by the width of the added 45 degree mitered component on each end? Adding a couple inches to the overall length of the rail

    Support
    StairSupplies
    3 years 7 months ago

    Thanks for the question Norm.

    An 8′ rail section would be 8′ at the longest edge of the mitered ends.

    Best,

    StairSupplies Customer Support

    Guest
    Brighton
    3 years 3 months ago

    I have a length of 46 inches can i cut down the 48 inch length?

    Support
    StairSupplies
    3 years 2 months ago

    Thanks for the question Brighton.

    It’s mitered and joined on both ends, so you wouldn’t be able to cut 2 inches off of either end.

    Best,

    StairSupplies Customer Support

    Guest
    Michael Bloor
    3 years 6 hours ago

    You mention that the mitered ends are oversize, what is the dimension you cut them to?

    Support
    StairSupplies
    2 years 10 months ago

    Hi Michael,

    The mitered ends are around 6″, long enough to be cut down for code. If you have any other questions, feel free to call us.

    Thanks,
    StairSupplies Customer Support
