Cable Steel Insert Sleeve

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 1 Business Day

Product Description

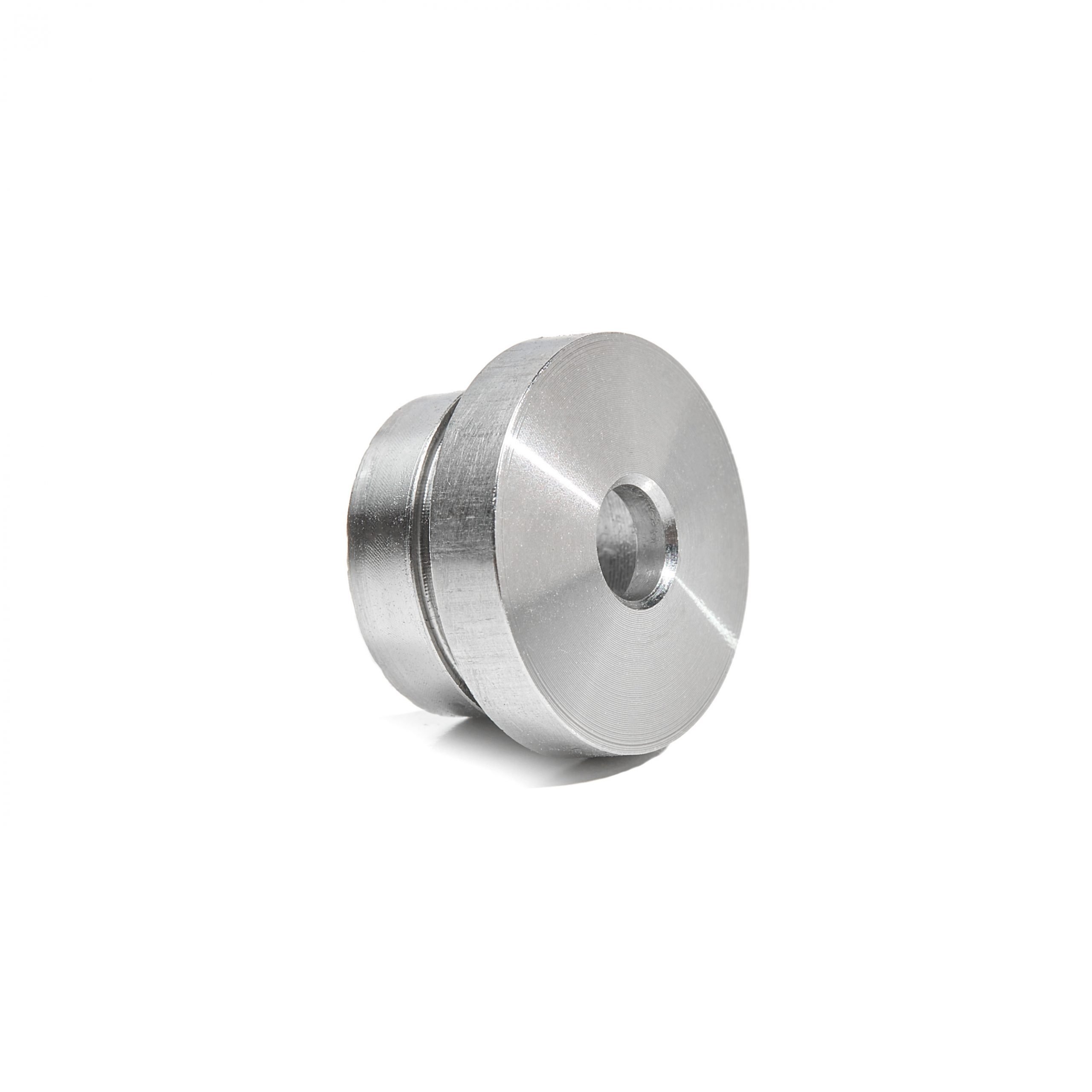

The Steel Insert Sleeve is used to cover the hole wherever cable exits a metal post on a level run, creating a clean look. These sleeves have been designed with a small lip that helps the part lock into place once properly installed. With the beauty of 316 stainless steel, the Steel Insert Sleeve brings a look of elegance to any Viewrail cable railing system. The Steel Insert Sleeve can be found in the Level Tension Kit.

Installation Guide

Cable Railing Kit Instructions Booklet

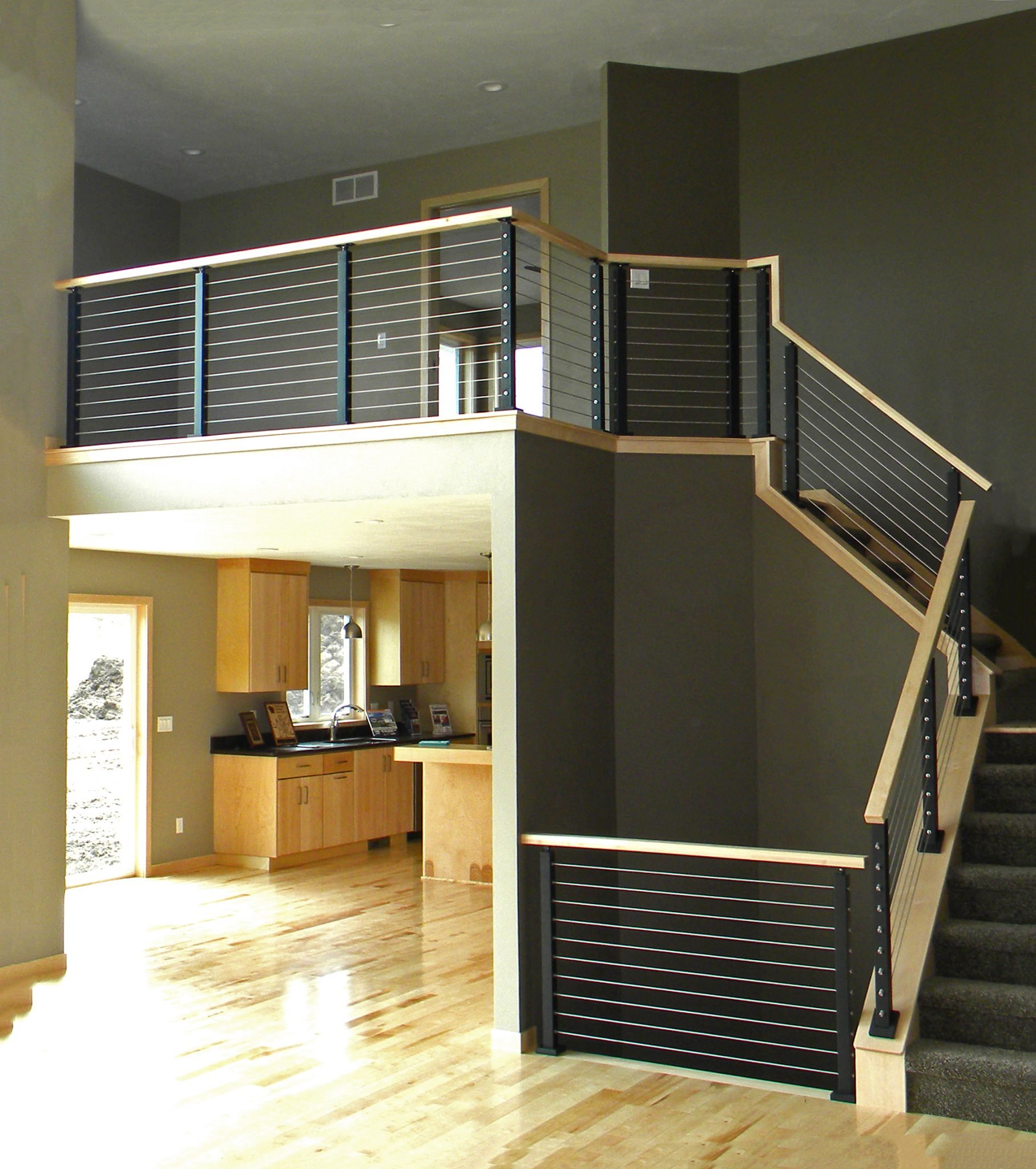

Completed Projects

This product has been used in the following "Completed Projects"

    Product Q&A


    Guest
    Dave Grieve
    7 years 2 months ago

    Product VR331, what is the OD & ID dimension. How thick is the portion that is visible on the post?

    Guest
    StairSupplies
    7 years 2 months ago

    Hi Dave,

    The inner dimension is 3/16.”
    The outer dimension is just over 5/8.”
    The thickness that sticks out of the post is .150″.

    Please let us know if there’s anything else we can help you with!

    Guest
    Steven D Hamilton
    6 years 1 month ago

    how would you suggest making this insert water tight so no rainwater can enter the (hollow) post?

    Guest
    StairSupplies
    6 years 1 month ago

    Steven, thanks for reaching out to us regarding the Steel Insert Sleeve.

    The Insert Sleeve is a very tight fit so water is not likely to get inside regardless, but if you want some additional protection you could apply a bead of silicon around the interior of the sleeve immediately before you press it into place. You might get some squeeze-out that you’ll want to wipe down.

    If you have any additional questions, don’t hesitate to call one of our excellent support specialists at (866) 226 6536.

    Best,

    Your StairSupplies Support Team

    Guest
    jason
    6 years 2 days ago

    what is the max size cable will pass through this sleeve?

    Guest
    StairSupplies
    6 years 11 hours ago

    Jason, thanks for contacting us.

    The inner dimension is 3/16.”
    The outer dimension is just over 5/8.”
    The thickness that sticks out of the post is .150″.

    If there’s anything else we can help you with, let us know or give us a call at (866) 226 6536.

    Best,

    StairSupplies Customer Support
