Product Description
The Level Tension Kit contains everything you need to tension one end of a run of cable.*

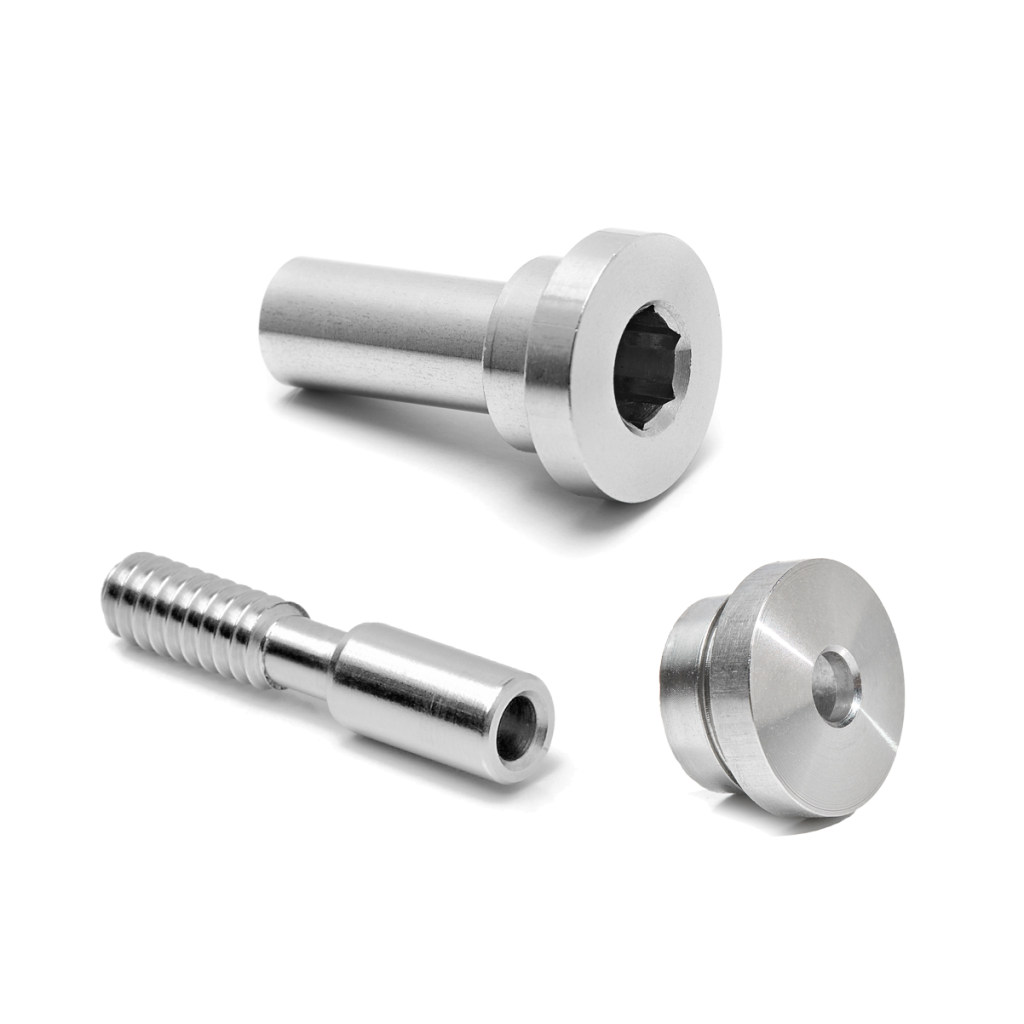

1 – Cable Tension Receiver
1 – Cable Threaded Crimp Fitting
1 – Cable Steel Insert Sleeve
These components are crafted from marine-grade 316 stainless steel for lasting beauty and strength. If you are purchasing our 36″ tall posts purchase a 10 pack for each tensioning post. For 39″ posts purchase a 11 pack, and for 42″ posts purchase a 12 pack. This kit is used for “A”, “C”, “D”, or “I” posts.
*You will need to purchase a kit for the other end of your cable, either another Level Tension Kit, an Angle Tension Kit (for starting or ending on a staircase), or an Inside Post Mount Kit (which is used in our C, F, H & J posts to begin a cable run inside the post). We highly recommend using our Cable Rail Installation Tool Kit to install this product.
Product Q&A
You must be logged in to post a comment.
what is the longest straight run I can run cables between two posts
The longest run that we have tested is 70 feet (assuming you have Level Tension Kit’s on both ends of the cable). Beyond that length you’d want to add double posts somewhere in your run for added tensioning ability.
what diameter of cable?
These fittings are designed to work with cable that is 5/32″ in diameter.
I would like to use wood post around the perimeter and want to know what you have for all the mid posts where the wire goes thru.the posts Is there a stainless steel piece that is installed or do I just drill smaller holes the the wire passes thru. Thanks Jim
Thank you for your inquiry, James. There are posts like this called “intermediate posts”. Currently, however, we do not offer intermediate posts. In order to keep our system strong & safe, we suggest keeping your posts to 4 ft. Spacing as much as possible. If there is anything further we can assist with, please let us know.
What is the size of the hole in the metal post installation?
Our fittings are designed to work with a 1/2″ hole drilled through the post.
Does the level tension kit 1 pack come with an assembly for both ends of the cable or one?
Hi Edgar,
The 1 pack has the components needed to tension one end of one run of cable. Please let us know if you have any additional questions.
Do you sell the steel insert sleeve alone for the cable to pass through wood intermediate post?
Hi Casey,
Good question. The first thing you’ll want to know is that our Wood Level Tension Kits are slightly different from this one that is for metal posts. So, if you’re using wood posts, you’ll definitely want to check the Wood Level Tension Kit out. That kit does include a Wood Insert Sleeve that we do sell separately as well. If you need something for intermediate wood posts on an angled run, take a look at the Wood Angle Insert Please let us know if you have any further questions!
Will this fitting work with a 1″ thk. tube steel post? If not, do you have a shorter tension device that would?
Ian,
This kit will not work with a 1″ thick post. They are designed to be hidden inside of 2″ thick steel posts. All of our metal cable railing systems are designed to work with our 2″ thick posts.
If I’m using the Level Tension Kit VR290 for the end of my 9.5′ run (with one post in the center of the run), do I need to use another Level Tension Kit at the other end, which is a corner? Or should I instead use a Key Mount Kit instead for that corner post?
Brian,
For this specific application, you can use either another Level Tension Kit or a KeyMount Kit on the other end of your run. As long as your run isn’t over 50-60 feet, you will be fine to use the KeyMount Kit on one end.
A few things to note:
Will these work with 3/16″ cable
Jordan,
This product is designed to work with our 5/32″ cable. We can’t offer any guarantees with cable that we don’t sell.
What is the overall diameter of the tensioner fitting that you see on the outside of the post?
Hi Steve,
The outside diameter of a Tension Receiver is 11/16″
Best,
The StairSupplies Support Team
Just to confirm, the tension receiver is designed to seat into a 1/2″ diameter hole on a metal post… and the outer collar of the tension receiver (that sits on the outer post surface) is 11/16″ diameter … correct?
The VR305 Tension Receiver is designed to seat against a 1/2″ hole; the diameter of the Tension Receiver’s collar is 5/8″. If you have any additional questions, please give our team a call at 1 (866) 226-6536.
Best,
The StairSupplies Support Team
What is the diameter of the Steel Insert or Hole in the 2×2″ aluminum intermediate posts? Is it 7/16?
Hi Drew,
The Steel Insert Sleeve that comes with the Level Tension Kit is designed to fit a 1/2″ hole. If you have additional questions, please feel free to give us a call at 1 (866) 226-6536.
Best,
The StairSupplies Support Team
I’m building a fence with 4”x4” cedar post @ 6’ on center. It’s about 160’ long. I’m concerned that I won’t be able to tension it enough with your system.
Any thoughts?
Hi Jim,
We typically recommend that you do not exceed 50ft runs with our Level Tension Kit, but the kit is engineer-stamped up to 70ft if you’re using a Level Tension Kit on both ends of the run. To be clear, we do not recommend spanning posts more than 4ft on center to minimize cable deflection. If we can provide any other technical information or design assistance, please give our team a call at 1 (866) 226-6536.
Best,
The StairSupplies Support Team
do you have kits for a vertical application
Thanks for your question Charlie,
At this time we do not sell any vertical cable rail products or kits.
If you would like to discuss other options, call one of our specialists at (866) 226 6536.
Best,
StairSupplies Customer Support
I have a 4mm diameter cable, would these fittings work?
Thanks for the question Ernesto.
We have not tested our fittings with any other cable than the 5/32″ that we sell. You’re welcome to order out fittings to see if they’ll work and if not, you can return any uncrimped fittings for just a restock fee.
Best,
StairSupplies Customer Support
Can you buy the steel insert sleeve for the middle metal posts
Thanks for the question Pete.
You can buy individual steel insert sleeves on our website at https://www.stairsupplies.com/product/steel-insert-sleeve/.
Best,
StairSupplies Customer Support
I’m planning on using 1 1/2″ x 1 1/2″ steel posts to fit my stairs project. Will the level tension kit as well as the angle tension kit will by short enough to be hidden in the post? I know you make 2″ posts but it’s too wide to sit on top of my 1 1/2″ steel stringers. Thanks.
Thanks for the question Benoit.
Our receiver is 1 inch long, but with the crimped fitting at full tension, you would be almost exactly 1.5 inches, so I’m afraid these would be too long for your 1.5″ posts.
Best,
StairSupplies Customer Support
